Merchandisers
®
LWEGH
Technical Data Sheet
P/N 0412819_E
NSF®Certified
February 2007
Item Part # Description Wiring Item #
FAN ASSEMBLIES AND THERMOSTATS
A. 4W Fan Assembly (1)
0392457 Fan Motor, Standard (MO.4410101)
0409513 Fan Blade, embossing toward motor
(FB.0409513)
B. Optional Adjustable Refrigeration Thermostat (2)
C. 0398557 Defrost Termination Thermostat (3)
(Electric Defrost only) (CT.4440611)
D. 0425304 Heater Switch (4)
(Koolgas Defrost only) (CT.0425304)
HEATERS
E. Control-Glass Anti-sweat Heaters (Export) (5)
Contour Ends 250V, 5amp
0400543 6 foot cases (CT.4480905)
Item Part # Description Wiring Item #
HEATERS
F. Modular Electric Defrost Heaters, 208V
0406444 6 foot case (6)
(HE.4850478)
G. Drip Pan Heaters, Electric 208V (7)
0392412 6 foot case (HE.4850461)
G. Drip Pan Heaters, Koolgas 120V (8)
0421237 6 foot case (HE.4850495)
H. Nosing Anti-sweat Heaters (9)
0401612 6 foot case (Discharge) (HE.0401612)
I. Multiglass – 2 Pane, w/heater (Front & Rear) (10)
0420185 Front (GL.4985219)
0420168 LH End (GL.4985209)
0420169 RH End (GL.4985286)
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
NOTE: Revision E corrects heater data on Page 4.
LWEGH Technical Data Sheet2 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
LWEGH
Front
25
(635)
Access Area
(Gray)
11
9/16
(294)
12
3/8
(314)
Waste
Outlet
7
1/4
(184)
9
3/4
(248)
C
L
Electrical
Refrig.
Outlet
43
(1092)
81
1/2
(2071)
10
3/8
(264)
9
7/8
(249)
69
(1753)
8
1/2
(214)
12
1/2
(318)
43 7/16
(1103)
L.H.
R.H.
(See Note*)
32
3/4
(832)
Engineering

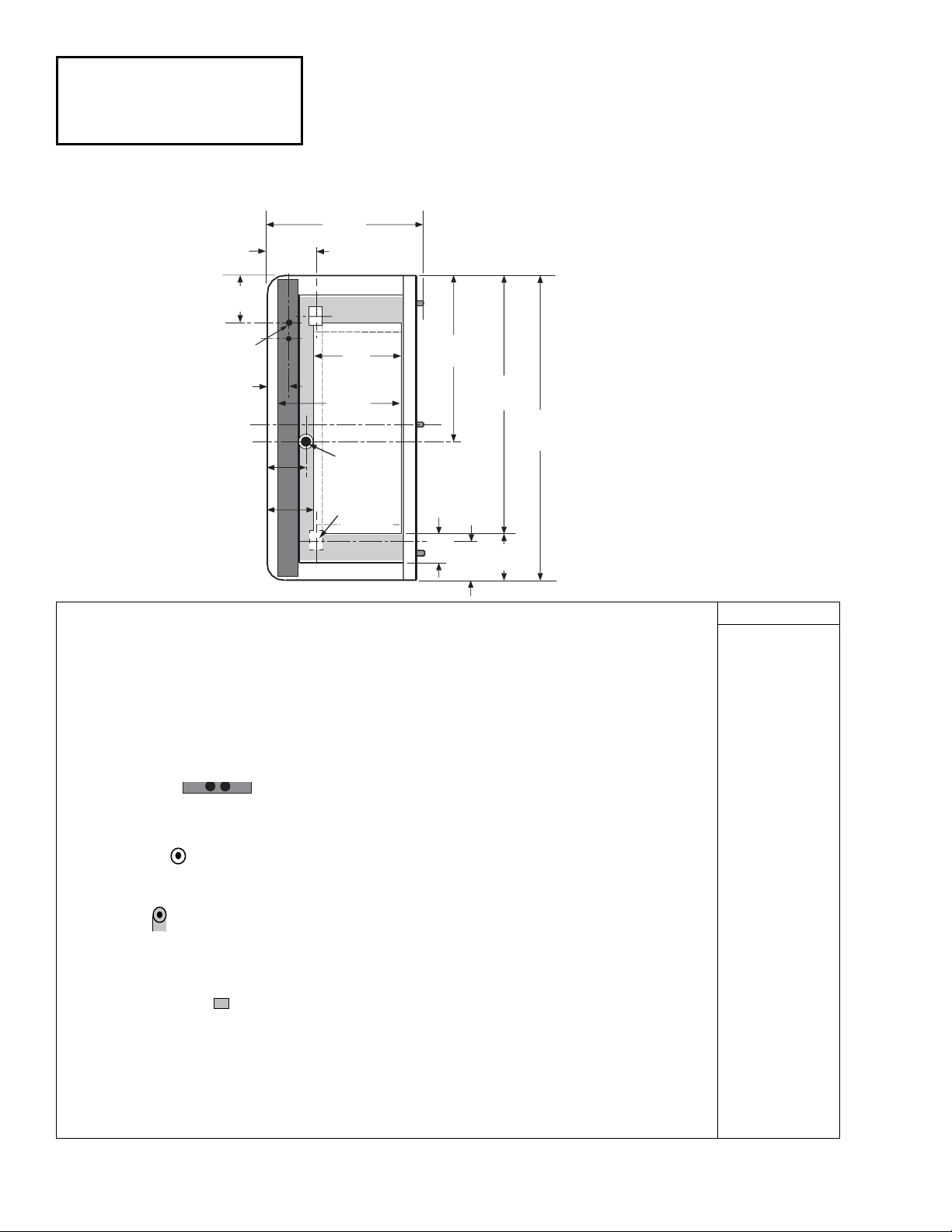

Plan Views Dimensions shown as inches & (mm).
End Case
General
Case Length (without ends or partitions) 81 1/2 (2070)
(Each end and insulated partition adds 2 in. (51 mm) to case line up.)
Maximum O/S dimension of case back to front (includes bumper) 43 (1092)
Front of splashguard to O/S edge of front base rail 8 1/2 (216)
Back of case to O/S edge of front base rail 69 (1753)
Front of case to O/S edge of front base rail 11 9/16 (294)
Width of base rail 2 1/8(54)
Stub-up area (gray) between front base rail and splashguard 7 5/8 (194)
Electrical Service (Electrical Field Wiring connection point)
LH End of case to center of first knockout 9 7/8 (251)
Front O/S edge of case to center knockout 7 1/4 (184)
Waste Outlets
Front of case to the center of waste outlet 9 3/4 (248)
LH End of case to center of waste outlet 43 (1092)
Water Seal
Edge of water seal to center of waste outlet 11 (279)
O/S diameter of drip pipe lines 1 1/2 (38)
Note*: Field installed water seal outlet, tees and connectors are shipped with case.
Refrigeration Outlet
Front of case to center of refrigeration outlets 12 3/8(314)
LH or RH of case to center of refrigeration outlets 10 3/8 (264)
Single Deck High Front
Island End Display w/Glass
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
FF IC
Discharge Air (°F) –12 –22
Evaporator (°F) –20 –30
Unit Sizing (°F) –23 –33
Btu/hr/case FF IC
Parallel 2325 2355
Conventional 2400 2430
DEFROST DATA
FF IC
Frequency (hr) 24 24
Defrost Water (lb/ft/day) 0.75 0.60
(± 15% based on case configuration and product
loading).
ELECTRIC FF IC
Temp Term (°F) 48°48°
Failsafe (minutes) 60 60
GAS
Duration (minutes) 15 18
OFFTIME Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
FF IC
CI/CO (Temp °F)* –27/–39 –27/–39
Indoor Unit Only, Pressure Defrost
Termination (Temp °F) Not Recommended
*Use a Temperature Pressure Chart to determine
PSIG conversions.
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.) 3/8
Merchandiser Suction Line (in.) 5/8
Estimated Charge (lb)**
End Case 1.1
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
Length Added to Lineup by:
Each End/Partition (in.) 1 1/2
Each Contoured End (in.) 5
3 of 7P/N 0412819_E HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
LWEGH
COIL
10
(381)
40
5/8 (1032)
25
(635)
30
1/2 (775)
31
1/8 (791)
33
5/8 (854)
36
1/8 (918)
32
15/16
(862)
14 5/8
(371)
5
(127)
36
(914)
7 (178)
FAN
43
7/16
(1103)
8
1/4
(210)
26
(660)
Dimensions shown in inches & (mm).
Impact LWEGH
Frozen Food & Ice Cream
Single Level Free Standing End Island Display with Glass Front
NSF Certification
These merchandisers are manufactured to meet ANSI /National
Sanitation Foundation (NSF®) Standard #7 requirements.
LWEGH Technical Data Sheet4 of 7
Impact LWEGH
Frozen Food & Ice Cream
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Electrical Data
End
Number of Fans – 4W 1
(Energy Efficient fan motors are not available for End or End-compartment models)
Amperes Watts
8 ft 8 ft
Evaporator Fans
120V 60Hz Standard 0.31 24
120V 50Hz Standard NA
230V 60Hz Export 0.15 24
230V 50Hz Export 0.18 27
120V 60Hz Energy Efficient 0.14 10
230V 60Hz Energy Efficient NA
Nosing Anti-sweat Heaters (on fan circuit)
120V 60Hz Standard 0.95 114
230V 50Hz Export 0.49 114
Glass Anti-sweat Heaters
120V 60Hz Standard 1.84 207
230V 50Hz Export 1.00 228
Cycling Anti-sweat Heaters NA
230V 50Hz Export NA
Minimum Circuit Ampacity
120V 60Hz Standard 3.30
120V 50Hz Standard NA
230V 60Hz Export 1.84
230V 50Hz Export 1.87
120V 60Hz Energy Efficient 3.13
230V 60Hz Energy Efficient NA
Maximum Over Current Protection 120V 20
Maximum Over Current Protection 230V 15
Electric Defrost Heaters
208V 60Hz Standard 5.5 1150
230V 50Hz Export 6.1 1403
Koolgas Drip Pan Heaters
120V 60Hz Standard 1.25 150
230V 50Hz Export NA
Standard Lighting: None
5 of 7P/N 0412819_E
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
120V POWER
120V NEUTRAL
BROWN BAND
Fan
BROWN BAND
Nosing (anti-sweat) Heater
1
9
208 V Power From Defrost Contactors
L1 L2
Drip Pan Heater
Modular Electric Defrost Heater 6
7
Defrost
Termination
Thermostat
Refrigeration
Thermostat
Dark Blue To
Condensing Unit
}
Light Blue
32(Field Installed)
Electric Defrost – Standard
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Gas Defrost – Optional
LWEGH Technical Data Sheet6 of 7
BROWN BAND
Fans
BROWN BAND
Nosing (anti-sweat) Heaters
120V POWER
120V NEUTRAL
1
9
Refrigeration
Thermostat
To
Condensing Unit
}
Light Blue
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
Grayed components in 12 foot models only.
(Field Installed)
2
8
4
Drip Pan Heater
Yellow
Heater Switch
Yellow
120V POWER 120V NEUTRAL
Dark Blue
Dark Blue
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
2 Pane Multiglass
Glass Anti-sweat Heater
White
Black Black
Purple
White
Red
Heater Control
0400543
Red
230V
Purple
W/White
W/White
2 Pane Multiglass
Glass Anti-sweat Heater
Purple White
Black Black
120V
Purple
2 Pane Multiglass
Glass Anti-sweat Heater
Black Black
White
White
Purple
120V White
10
2 Pane Multiglass
Glass Anti-sweat Heater
Black Black
White
White
Purple
Glass Anti-sweat Heater (Domestic)
2 Pane Multiglass
Glass Anti-sweat Heater
White
Black Black
230V
Purple
2 Pane Multiglass
Glass Anti-sweat Heater
Black Black
White
White
Glass Anti-sweat Heater (Export Only)

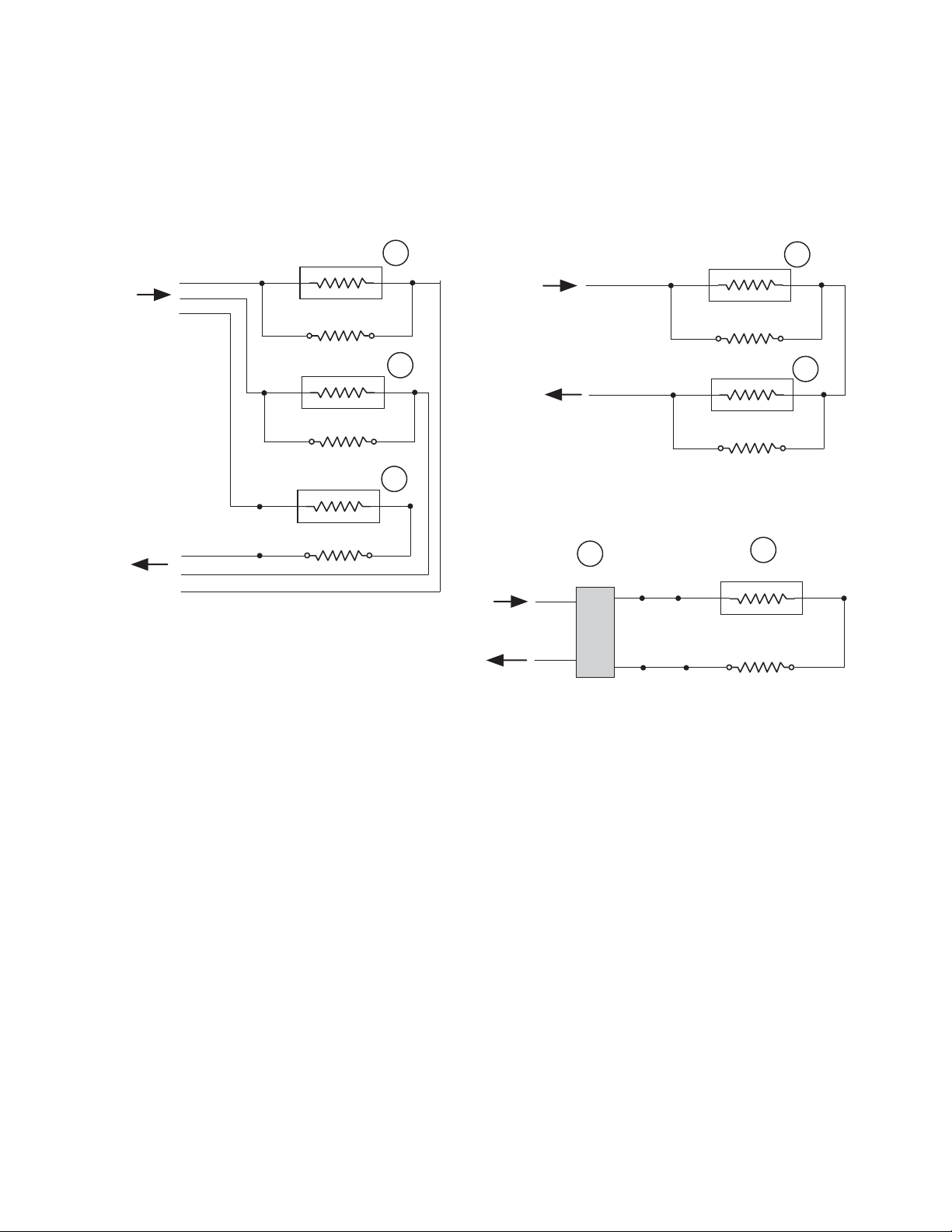

LWEGH (End Case)
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
10
10
10
10
5
10
LWEGH (End Case)
Purple
Purple
Purple
Purple
Purple
Glass Anti-sweat Heaters — Domestic & Export
7 of 7P/N 0412819_E HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
