HP Xw4600 - Workstation - 2 GB RAM Manuel utilisateur

Front fan and fan holder installation

Introduction

This document describes how to install a front card guide and front fan in the HP xw and HP

Workstation series.

Kit contents

●Warranty information

●Fan

●Fan holder for HP xw9300 Workstations

●Combination card guide/fan holder for the HP xw6000 Workstation series

●Combination card guide/fan holder for the HP xw4000 Workstation series and HP 400

Workstations

Before you begin

To view QuickSpecs and determine the compatibility of this product with your HP workstation, see

http://www.hp.com/go/productbulletin.

NOTE: Only workstations having non-factory-integrated, high power PCI cards require the additional

cooling provided by the optional front chassis fan included in this kit. The optional front chassis fan is

not recommended for use on workstations that have hard drives mounted in the optical bays because

this might reduce long term reliability of these hard drives. HP recommends that your environmental

temperature not exceed 27°C (80°F) if this fan is installed in your workstation and you have hard drives

installed in the optical bay area.

ENWW Introduction 1

Warnings and cautions

WARNING! Any surface or area of the equipment marked with this symbol indicates the presence

of an electrical shock hazard. To reduce the risk of injury from electrical shock, do not open any enclosed

area marked with this symbol.

WARNING! To reduce the risk of electric shock or damage to your equipment:

— Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

— Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

— Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

WARNING! Any surface or area of the equipment marked with this symbol indicates the presence

of a hot surface or hot component. If this surface is contacted, the potential for injury exists. To reduce

the risk of injury from a hot component, enable the surface to cool before touching.

WARNING! If a product is shipped in packaging marked with this symbol, , the product must always

be lifted by two persons to avoid personal injury due to product weight.

WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper

workstation setup, posture, health, and work habits for computer users, and provides important electrical

and mechanical safety information. This guide is located at http://www.hp.com/ergo and on the

documentation CD (if one is included with the product).

CAUTION: Static electricity can damage the electronic components of the workstation. Before

beginning these procedures, be sure you discharge static electricity by briefly touching a grounded metal

object.

CAUTION: To prevent damage to the workstation, observe the following Electrostatic Discharge

(ESD) precautions while performing the system parts removal and replacement procedures:

— Work on a static-free mat.

— Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body

to the ground.

— Create a common ground for the equipment you are working on by connecting the static-free mat,

static strap, and peripheral units to that piece of equipment.

NOTE: HP accessories are for use in HP Workstation products. They have been extensively tested

for reliability and are manufactured to high quality standards.

2 Front fan and fan holder installation ENWW

Step 1—Preparing for component installation

NOTE: Workstation models vary. All illustrations are examples only.

Accessing the internal components of the workstation

1. If you need help preparing the workstation for this installation, consult the removal and replacement

procedures in the service guide for your workstation at http://www.hp.com/support/

workstation_manuals.

NOTE: For the HP Workstation series, these procedures are also available in the User

Guide on the Documentation and Diagnostics CD that shipped with your workstation.

2. Power down the workstation, and then disconnect the power cord.

3. Power down all external devices, and then disconnect them from the workstation.

4. Remove the side access panel.

Removing components

▲If present, remove the card support to enable access to the system board connectors.

Step 2—Installing the front fan and fan holder

After preparing the workstation for component installation, perform the following steps to install the front

fan and fan holder.

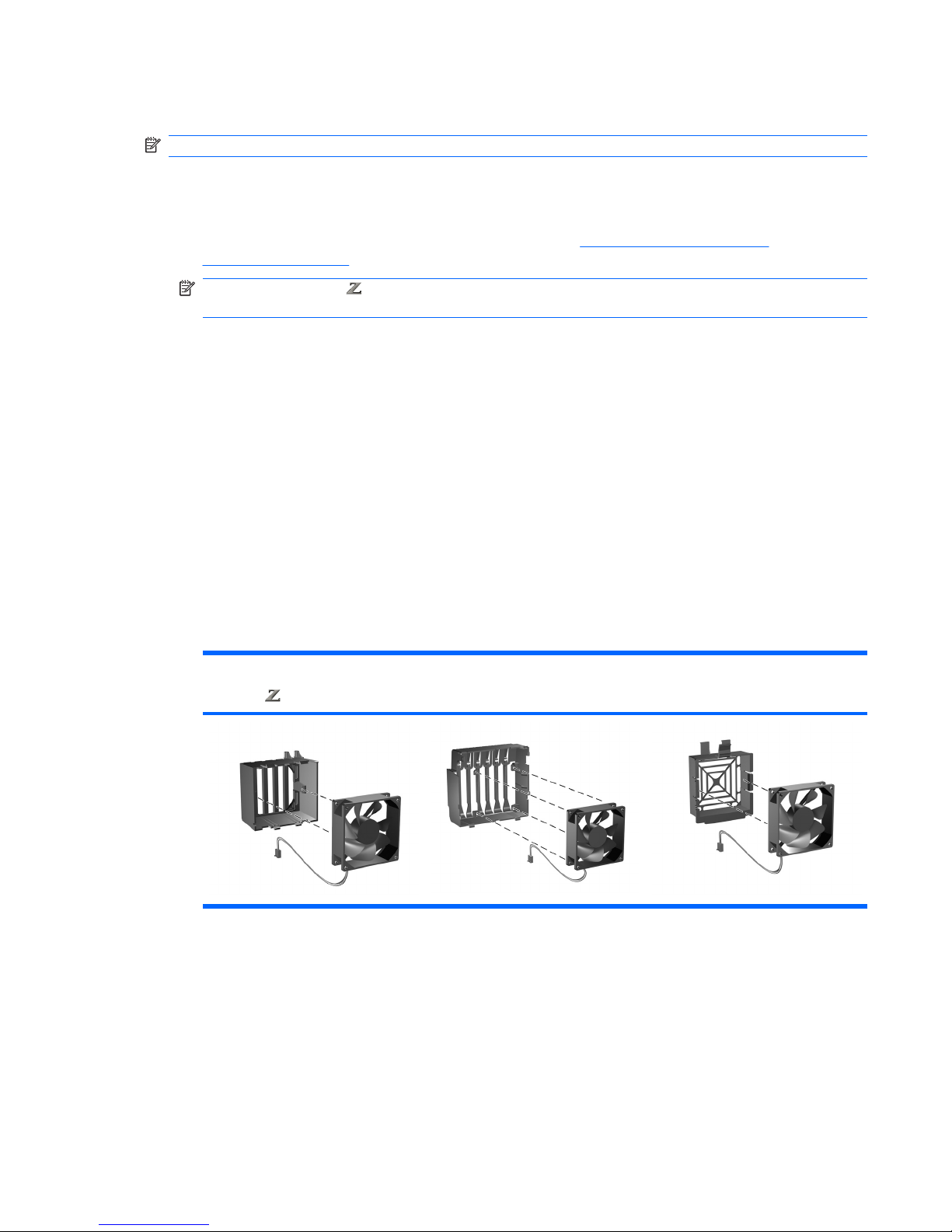

1. Identify the front fan holder specified for your workstation.

Table 1 Identifying the front fan and fan holder

HP xw4000 Workstation series

HP 400 Workstations

HP xw6000 Workstation series HP xw9300 Workstations

2. Align the fan with the label facing inward, toward the holder.

3. Position the wire to enable maximum length to reach the system board.

4. Insert the fan into the holder. If an airflow indicator is present on the fan, make sure it points toward

the holder and the rear of the chassis.

ENWW Step 1—Preparing for component installation 3

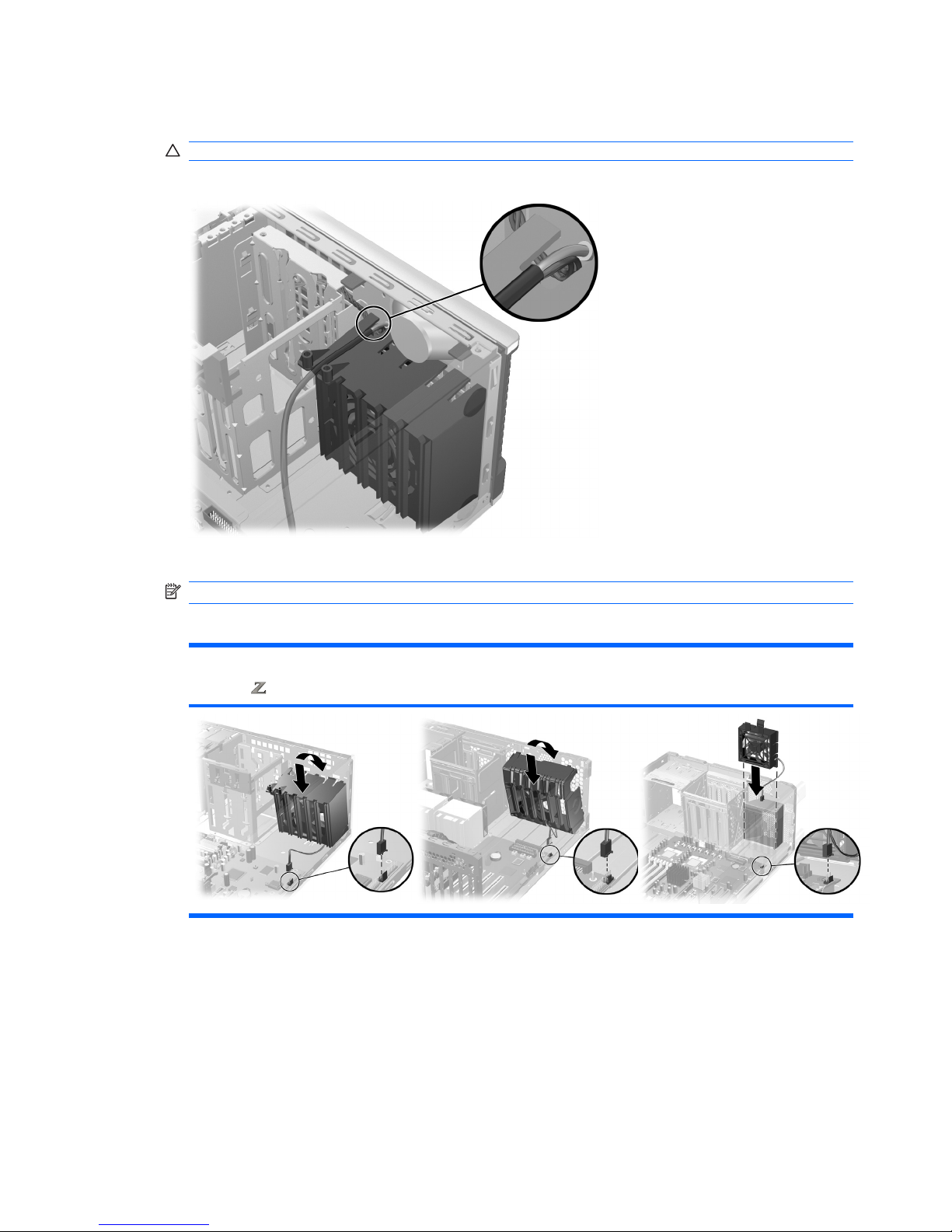

5. Lower the front fan holder and fan assembly into the chassis and snap it into place. Ensure cables

are routed properly to avoid damage to the cables.

CAUTION: Clamping a cable between the card guide and the chassis might damage the cable.

Figure 1 Routing the cables

6. Plug the front fan connector into the front chassis fan header on the system board.

NOTE: To locate system board components, see the service label on the side access panel.

Table 2 Installing the front fan and fan holder

HP xw4000 Workstation series

HP 400 Workstations

HP xw6000 Workstation series HP xw9300 Workstations

4 Front fan and fan holder installation ENWW

Step 3—Reassembling the workstation

1. Reinstall the side access panel.

2. Reconnect external devices and power cord.

3. Restore power to the workstation and all external devices.

Japanese 日本語

This document is available in Japanese. See http://www.hp.com/support/workstation_manuals, then

select your workstation product and select Japanese from the drop down Manual Language menu.

このドキュメントは日本語版が用意されています。http://www.hp.com/support/workstation_manuals

にアクセスし、ご使用のワークステーション製品を選択し、Manual Language ドロップダウンメニ

ューから Japanese を選択してください。

ENWW Step 3—Reassembling the workstation 5
