HP P Class 450/500/550/600/650/700/750 Manuel

ELSA Synergy II/GLoria II User’s Guide

Printed in USA December 1999

Manufacturing Part Number: HP Part No. A1280-90026

Edition 1299

Notice

The information contained in this document is subject to change without

notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

merchantability and ﬁtness for a particular purpose. Hewlett-Packard

shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance,

or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by

photocopied, reproduced or translated to another language without the

prior written consent of Hewlett-Packard Company.

The ELSA logo is a registered trademark of ELSA AG.

Hewlett-Packard Company

3404 E. Harmony Road

Fort Collins, CO 80528-9599

USA

Contents

1. ELSA SYNERGY II and GLoria II Graphics Cards

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

The ELSA Synergy II Graphics Card . . . . . . . . . . . . . . . . . . . . . . . . . .10

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Video Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Available Video Resolutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ELSA GLoria II Graphics Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

GLoria II Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Available GLoria II Video Resolutions . . . . . . . . . . . . . . . . . . . . . . . . .13

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Installing, Updating and Conﬁguring the Cards. . . . . . . . . . . . . . . . . . .15

Installing an ELSA Graphics Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Updating the ELSA Graphics Driver . . . . . . . . . . . . . . . . . . . . . . . . . .18

Conﬁguring the ELSA Graphics Driver . . . . . . . . . . . . . . . . . . . . . . . .18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

A. Regulatory Information and Warranty

Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

HP Hardware Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

HP Year 2000 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Three Year Limited Hardware Warranty . . . . . . . . . . . . . . . . . . . . . . .26

Limitation of Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Limitation of Liability and Remedies . . . . . . . . . . . . . . . . . . . . . . . . . .27

Obtaining On-Site Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . .28

Customer Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Obtaining Parts Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Contents

HP Telephone Support Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

HPSoftwareProductLicenseAgreementand SoftwareProduct Limited

Warranty29

HP Software Product License Agreement . . . . . . . . . . . . . . . . . . . . . . 30

HP Software Product Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . 31

Preface

This document provides an explanation of the features and speciﬁcations of the ELSA

Synergy II and GLoria II AGP graphics boards. There is also a discussion of the graphics

board’s video memory and video resolutions.

Bibliography

For more information, you can go to the following web site:

http://www.elsa.com/

Important Ergonomic Information

It is strongly recommended that you read the ergonomic information before using your HP

VISUALIZE Personal Workstation. Open the Start menu in the task bar and select HP Info.

Then double-click the help topic “Working in Comfort.”

Installation Notice

Products designated in the applicable Hewlett-Packard price list as customer-installable

can be installed by computer-knowledgeable customers who carefully read and follow the

instructions provided. Customers who elect to have the product installed by our ﬁeld

personnel are charged the applicable ﬁeld installation charge, as covered under the

standard terms and conditions. For more information, please contact your local sales

representative.

Revision History

The revision history for each edition of the manual is listed below:

Edition Revision History

E1299 First Printing

Problems, Questions, and Suggestions

If you have any problems or questions with our hardware, software, or documentation,

please contact either your HP Response Center or your local HP representative. If you

have access to a web browser, you can get the latest software and hardware patches at the

following URL:

http://www.hp.com/go/visualizesupport

Documentation Conventions

Unless otherwise noted in the text, this guide uses the following symbolic conventions.

Electrostatic Discharge (ESD) Precautions

Electrostatic charges can damage the integrated circuits on printed circuit boards. To

prevent such damage from occurring, observe the following precautions during board

unpacking and installation:

• Stand on a static-free mat.

• Wear a static strap to ensure that any accumulated electrostatic charge is discharged

from your body to ground.

• Create a common ground for the equipment you are working on by connecting the

static-free mat, static strap, and peripheral units to that piece of equipment.

• Keep uninstalled printed circuit boards in their protective antistatic bags.

• Handle printed circuit boards by their edges, once you have removed them from their

protective antistatic bags.

user-supplied values

Italic words or characters in syntax and command descriptions

represent values that you must supply. Italics are also used in text

for emphasis.

screen display Information that the system displays, commands that you must use

literally, and path names appear in this typeface.

Enter Key caps are presented with a special keycap font as shown in the

left column. (In this document, we refer to the Enter key. On your

keyboard, the key may be labeled either Enter or Return.)

1ELSA SYNERGY II and GLoria II

Graphics Cards

10 Chapter1

ELSA SYNERGY II and GLoria II Graphics Cards

Introduction

This section contains a brief overview of the ELSA Synergy II and GLoria II graphics

cards. This section then provides important safety instructions that you should follow

when handling the ELSA graphics cards.

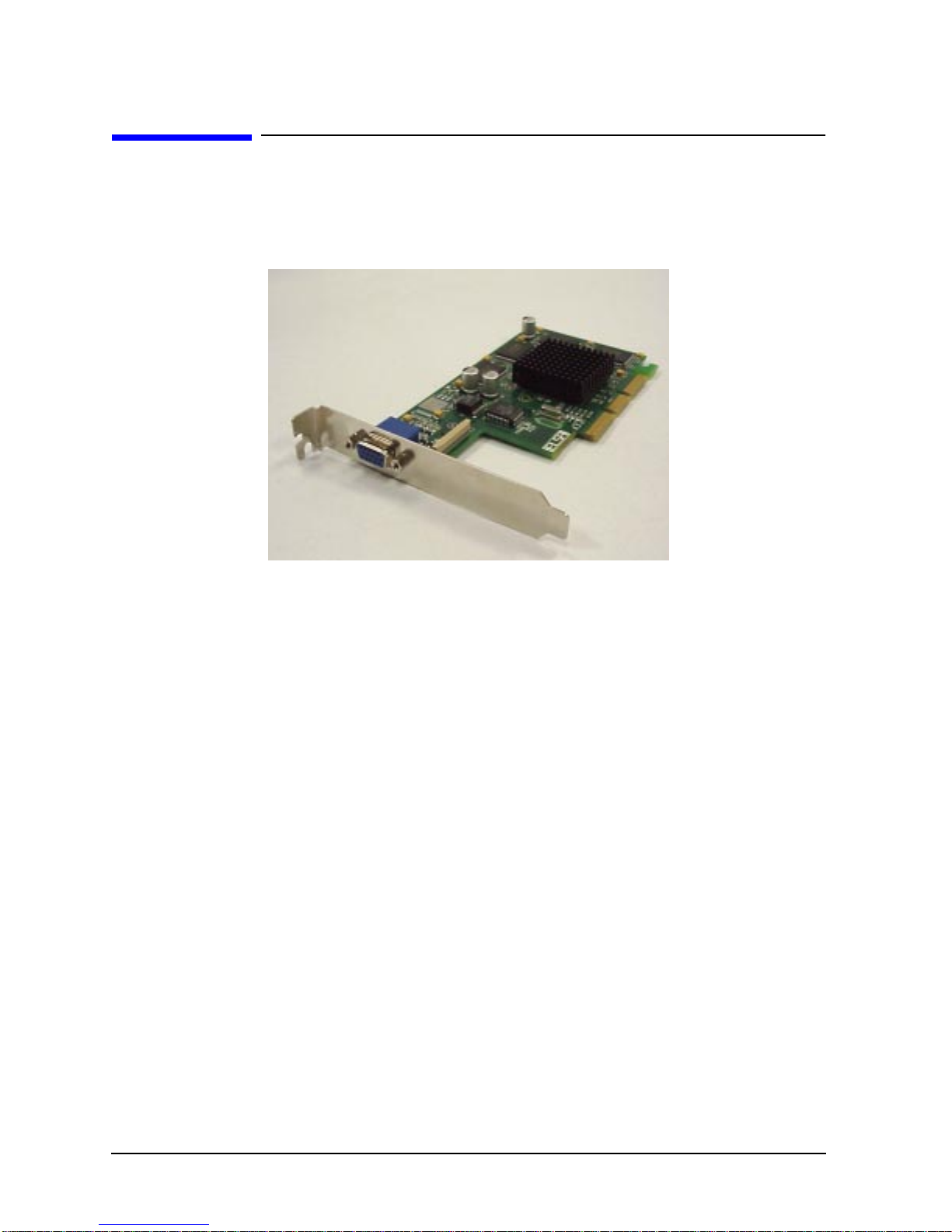

The ELSA Synergy II Graphics Card

You have the option of selecting an ELSA Synergy II graphics card for your HP VISUALIZE

Personal Workstation. This graphics card ﬁts in the AGP or AGP Pro accessory slot. There

is a total of 32 MB of memory installed on the graphics board which cannot be upgraded.

The Synergy II’s TNT2 graphics processor communicates directly with the Pentium III

processor along the AGP bus.

Features

• Optimized all-round capabilities in 2D and 3D

• High resolution with 1920 by 1200 pixels in True color, at 60 Hz max. refresh

• 2D performance and high-power 3D hardware acceleration

• Supports 16:10 wide-format monitors.

Speciﬁcations

• Supports AGP 2x or AGP 4x modes

• Serial EEPROM video BIOS interface (up to 64 KB)

• AGP ATX form factor compliant

• NVIDIA RIVA TNT2 graphics processor

• Pixel clock maximum frequency of 250 MHz
