HP CB001A Manuel utilisateur

CB001A

HP 802.11g printer card

User’s Manual

Rev 0.1

HP 802.11g printer card User’s Manual

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this

equipment.

IMPORTANT NOTE:

FCC / IC Radiation Exposure Statement:

This device complies with FCC RF Exposure limits set forth for an uncontrolled

environment, under 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be

co-located or operating in conjunction with any other antenna or transmitter. This

device was tested for typical lap held conditions that may occur during normal notebook

and PDA use. To comply with FCC RF exposure requirements the user shall use this

product only in intended application as documented in this manual.

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to

channels 1 through 11.

Industry Canada Statement

Operation is subject to the following two conditions:

1) This device may not cause interference and

2) This device must accept any interference, including interference that may cause

undesired operation of the device

HP 802.11g printer card User’s Manual

About this manual

This User’s Manual describes how to install and operate your Compact Flash

Wireless LAN Card. Please read this manual before you install the product.

This manual includes the following topics:

 Product description and features.

 Software installation procedure.

 Specification

HP 802.11g printer card User’s Manual

Table of Contents

About this manual...............................................................3

Chapter 1 - Introduction...................................................5

Features............................................................................................5

What is Wireless LAN?..................................................................6

Wireless LAN Modes......................................................................7

Notes on Wireless LAN Configuration........................................8

Chapter 2 – Driver Installation for Windows....................9

Driver installation for Windows 2000...................................................9

Driver installation for Windows XP....................................................13

Appendix A – Specifications...........................................16

HP 802.11g printer card User’s Manual

Chapter 1 - Introduction

The CB001A CF Card gives you the freedom to work your way, from wherever you

want. An enhanced 802.11g featuring advanced silicon chip design from Marvell

capable of delivering data transfer rates up to 54Mbps.

Features

• Compact Flash Type-I form factor.

• IEEE 802.11g compatible.

• Backward compatible with IEEE 802.11b standard.

• Wire-free access to networked resources from anywhere beyond the desktop.

• Delivers data rate up to 54 Mbps.

• 802.11g: Dynamically shifts between 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

network speed, based on signal strength, for maximum availability and

reliability of connection.

• 802.11b: Dynamically shifts between 11M, 5.5M, 2M, and 1 Mbps network

speed, based on signal strength, for maximum availability and reliability of

connection.

• Allows users move betweenAccess Points without resetting their connection

reconfiguration.

• Built-In PCB antenna with diversity design (Two antennas required).

• Support advanced power management and power saving mode.

• Low CPU utilization through scatter gathers bus-mastering DMAarchitecture.

• Uses 2.4GHz frequency band, which complies with worldwide requirement.

• Fallback rat algorithm that sets the optimum transmission rate based on

actual signal-to-noise ratio and packet loss information

• Supports most popular operating systems: Window 98SE/2000/ME/XP and

WinCE/Linux.

• Ensures great security by providing the 64/128 bits Wired Equivalent Privacy

(WEP) and WiFi Protected Access (WPA) defined in the IEEE standard.

• 802.11i and WPA2 Support

• 802.11e (WMM) Support

• Future driver upgradeable

HP 802.11g printer card User’s Manual

What is Wireless LAN?

Wireless Local Area Network (WLAN) systems offer a great number of

advantages over traditional wired systems. WLAN is flexible and easy to setup

and manage. They are also more economical than wired LAN systems.

Using radio frequency (RF) technology, WLAN transmit and receive data through

the air. WLAN combine data connectivity with user mobility. For example, users

can roam from a conference room to their office without being disconnected from

the LAN.

Using WLAN, users can conveniently access-shared information, and network

administrators can configure and augment networks without installing or moving

network cables.

WLAN technology provides users with many convenient and cost saving features:

• Mobility: WLAN provide LAN users with access to real-time information

anywhere in their organization, providing service opportunities that are

impossible with wired networks.

• Ease of Installation: Installing is easy for novice and expert users alike,

eliminating the need to install network cables in walls and ceilings.

• Scalability: WLAN can be configured in a variety of topologies to adapt to

specific applications and installations. Configurations are easily changed

and range from peer-to-peer networks suitable for a small number of users

to full infrastructure networks of thousands of users roaming over a broad

area.

HP 802.11g printer card User’s Manual

Wireless LAN Modes

Wireless LANs can be configured in one of two ways:

Ad-hoc

Networking

Also known as a peer-to-peer network, an ad-hoc

network is one that allows all workstations and

computers in the network to act as servers to all other

users on the network. Users on the network can share

files, print to a shared printer, and access the Internet

with a shared modem. However, with ad-hoc

networking, users can only communicate with other

wireless LAN computers that are in the wireless LAN

workgroup, and are within range.

Infrastructure

Networking

Infrastructure networking differs from ad-hoc

networking in that it includes an access point. Unlike

the ad-hoc structure where users on the LAN contend

the shared bandwidth, on an infrastructure network the

access point can manage the bandwidth to maximize

bandwidth utilization.

Additionally, the access point enables users on a

wireless LAN to access an existing wired network,

allowing wireless users to take advantage of the wired

networks resources, such as Internet, email, file

transfer, and printer sharing.

Infrastructure networking has the following advantages

over ad-hoc networking:

• Extended range: each wireless LAN computer

within the range of the access point can

communicate with other wireless LAN computers

within range of the access point.

• Roaming: the access point enables a wireless

LAN computer to move through a building and still

be connected to the LAN.

• Wired to wireless LAN connectivity: the access

point bridges the gap between wireless LANs and

their wired counterparts.

HP 802.11g printer card User’s Manual

Notes on Wireless LAN Configuration

When configuring a wireless LAN (WLAN), be sure to note the following points:

• Optimize the performance of the WLAN by ensuring that the distance

between access points is not too far. In most buildings, WLAN Adapters

operate within a range of 100 ~ 300 feet, depending on the thickness and

structure of the walls.

• Radio waves can pass through walls and glass but not metal. If there is

interference in transmitting through a wall, it may be that the wall has

reinforcing metal in its structure. Install another access point to circumvent

this problem.

• Floors usually have metal girders and metal reinforcing struts that interfere

with WLAN transmission.

This concludes the first chapter. The next chapter deals with the hardware

installation of the Adapter.

HP 802.11g printer card User’s Manual

Chapter 2 – Driver Installation for Windows

The following sections cover Compact Flash Wireless LAN Card driver installation in the

Windows Operating Systems.

Note!

You have to install your hardware first before you begin to install the drivers.

Please use extensible card to extend Compact Flash card to Card Bus.

Driver installation for Windows 2000

Follow the steps below to install the Compact Flash Wireless LAN Card drivers for

Windows 2000.

1. Insert the CB001A to CardBus slot of notebook first.

2. After Windows 2000 detects the Compact Flash Wireless LAN Card, the Found

New Hardware Wizard window appears. Click Next to start the installation.

HP 802.11g printer card User’s Manual

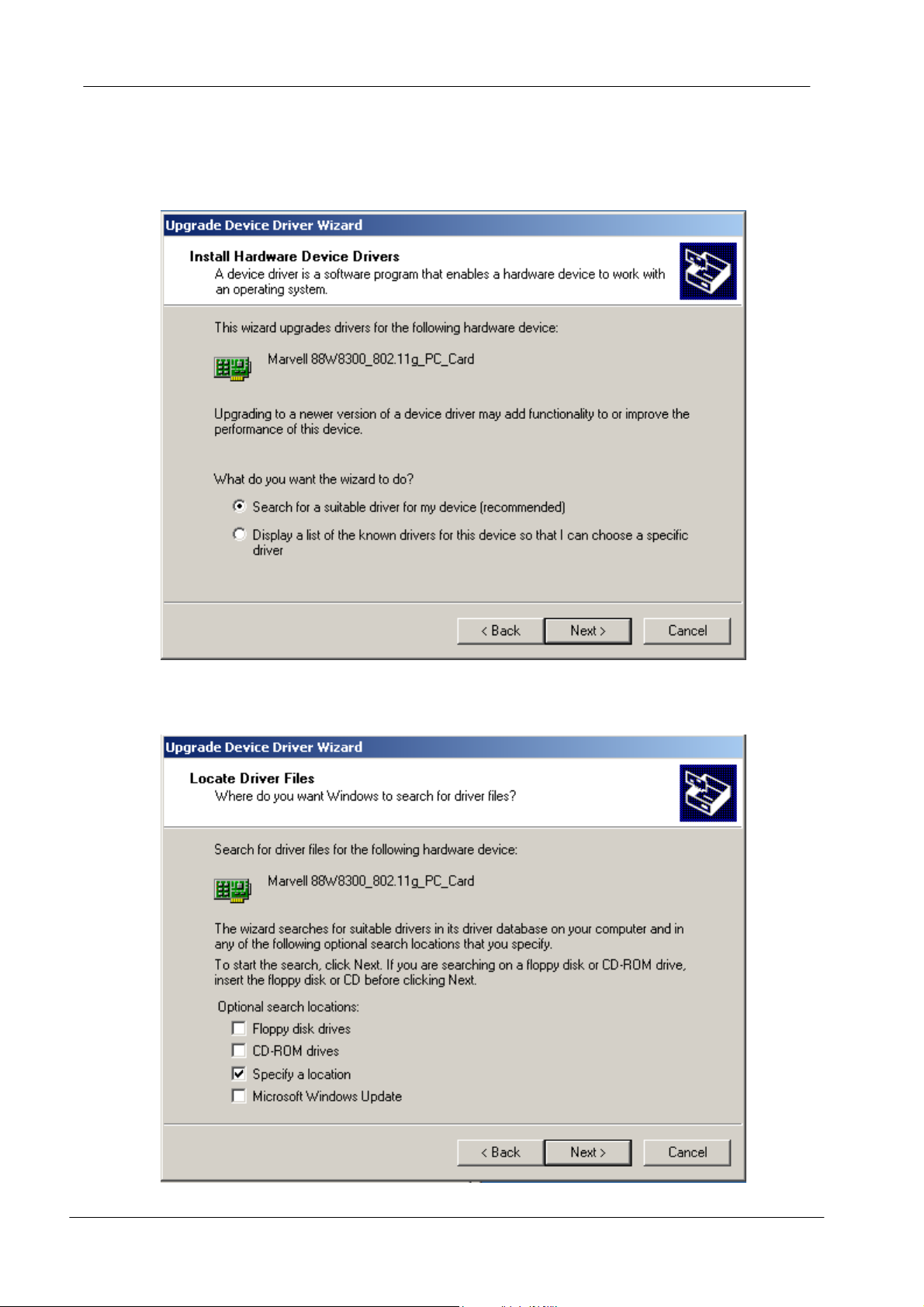

3. A screen appears prompting you to select an installation method. Select Search

for a suitable driver for my device (recommended) and click Next to continue.

4. Ensure that the driver is copied to the PC.

Table des matières

Autres manuels HP Matériel informatique

HP P Class 450/500/550/600/650/700/750 Manuel

HP Xw4600 - Workstation - 2 GB RAM Feuille d'instructions

HP 624189-B21 Manuel utilisateur

HP Z400 - Workstation Manuel utilisateur

HP MCS-200 Manuel utilisateur

HP Xw4600 - Workstation - 2 GB RAM Manuel utilisateur

HP 81200 Manuel utilisateur

HP MCS G2 Guide d'installation

HP 381513-B21 - Smart Array P800 Controller... Manuel utilisateur

HP ML570 - ProLiant - G2 Manuel utilisateur

HP Rp5700 - Point of Sale System Instructions d'installation

HP KVM Server Console Switch G2 Instructions d'utilisation

HP Smart Array B140i Manuel utilisateur

HP Nx9420 - Compaq Business Notebook Manuel

HP D7171A - NetServer - LPr Manuel utilisateur

HP USB 3.0 4-Port SuperSpeed PCIe x1 Card Manuel utilisateur

HP Nc6400 - Compaq Business Notebook Manuel utilisateur

HP P Class 450/500/550/600/650/700/750 Manuel

HP ProLiant DL140 Manuel utilisateur

HP HPE LSWM2XGT2PM Manuel utilisateur

HP 273914-B21 - Smart Array 6404/256 RAID... Manuel utilisateur

HP HP 27113A Manuel

HP Z Turbo Drive Quad Pro Manuel utilisateur

HP AB479A Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
