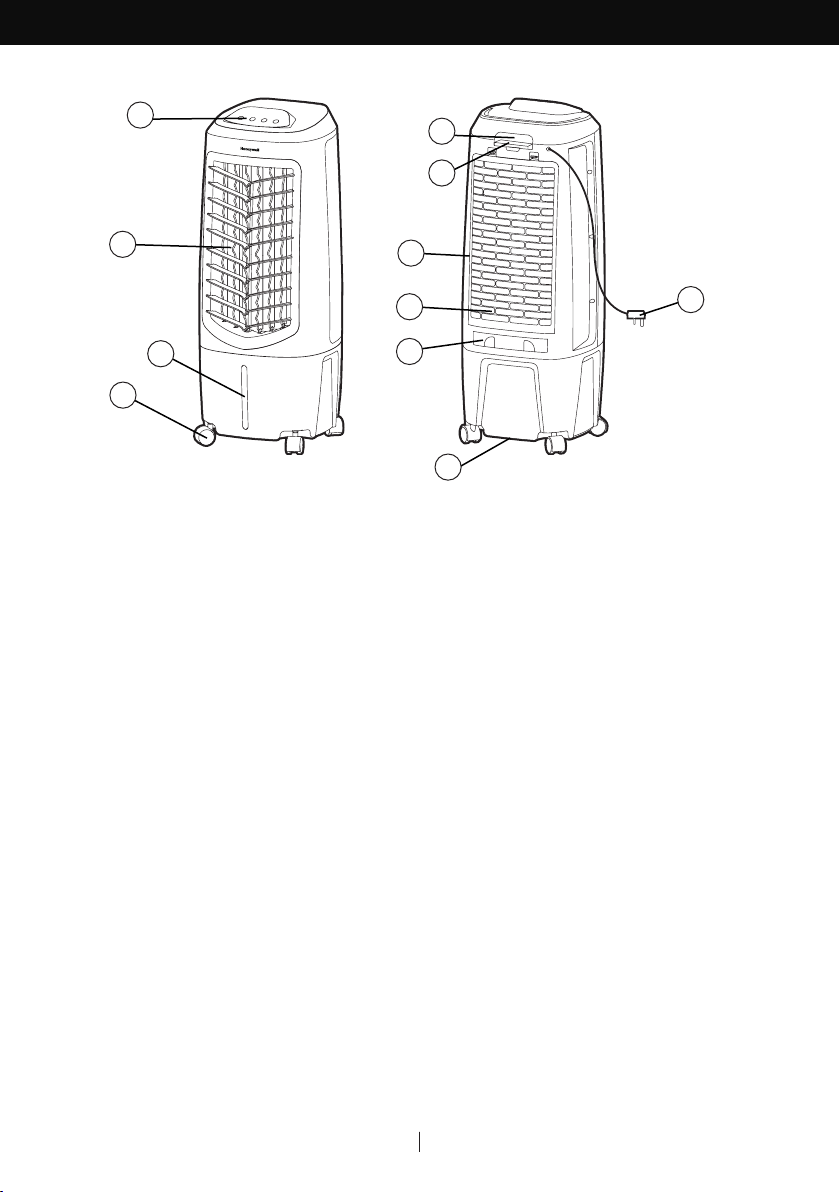

PARTS DESCRIPTION

1) Control Panel 7) Rear Grill & Mesh Filter

2) Louvers 8) Honeycomb Cooling Media

3) Water Level Indicator 9) Water Fill Door

4) Casters 10) Power Cord & Plug

5) Handle 11) Drain Plug

6) Remote Control

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

USE & OPERATION

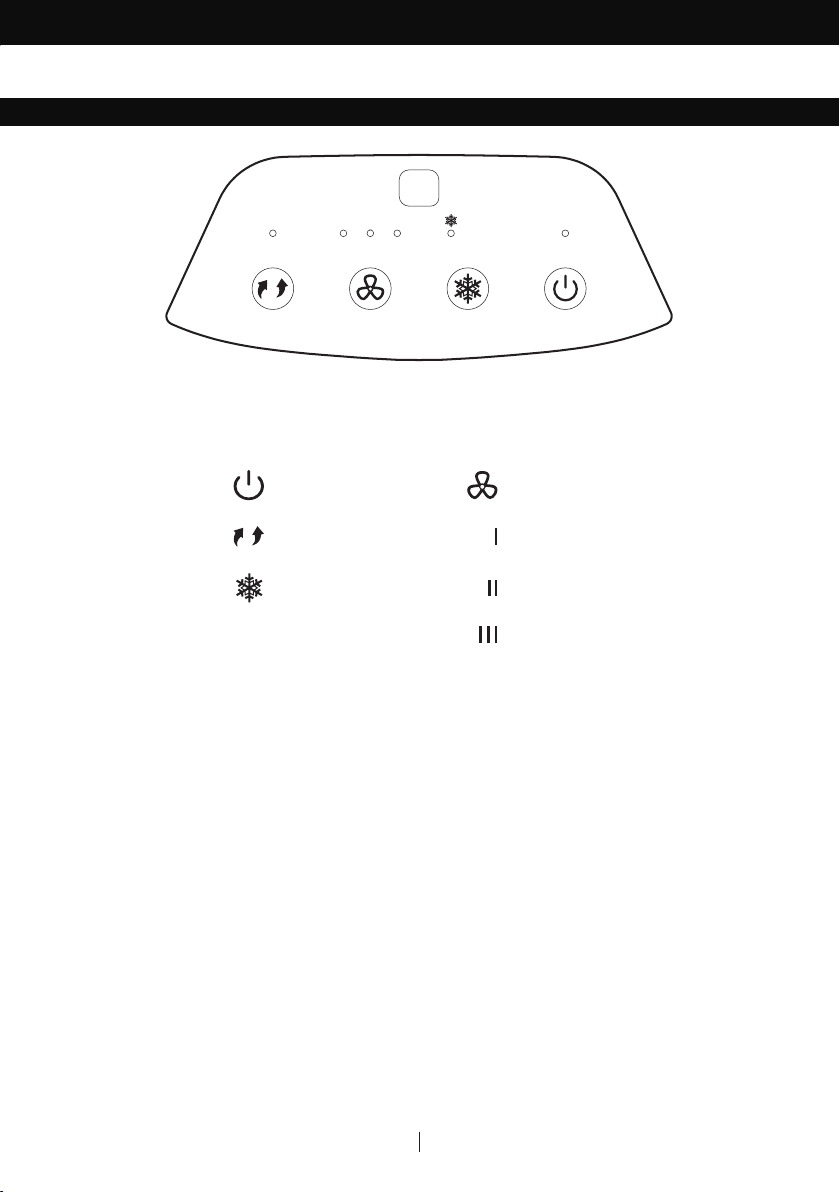

CONTROL PANEL

Icons on Display Screen

Swing

Power

Cool

Speed

= Low

= Medium

= High

I II III

USE & OPERATION (CONTINUED)

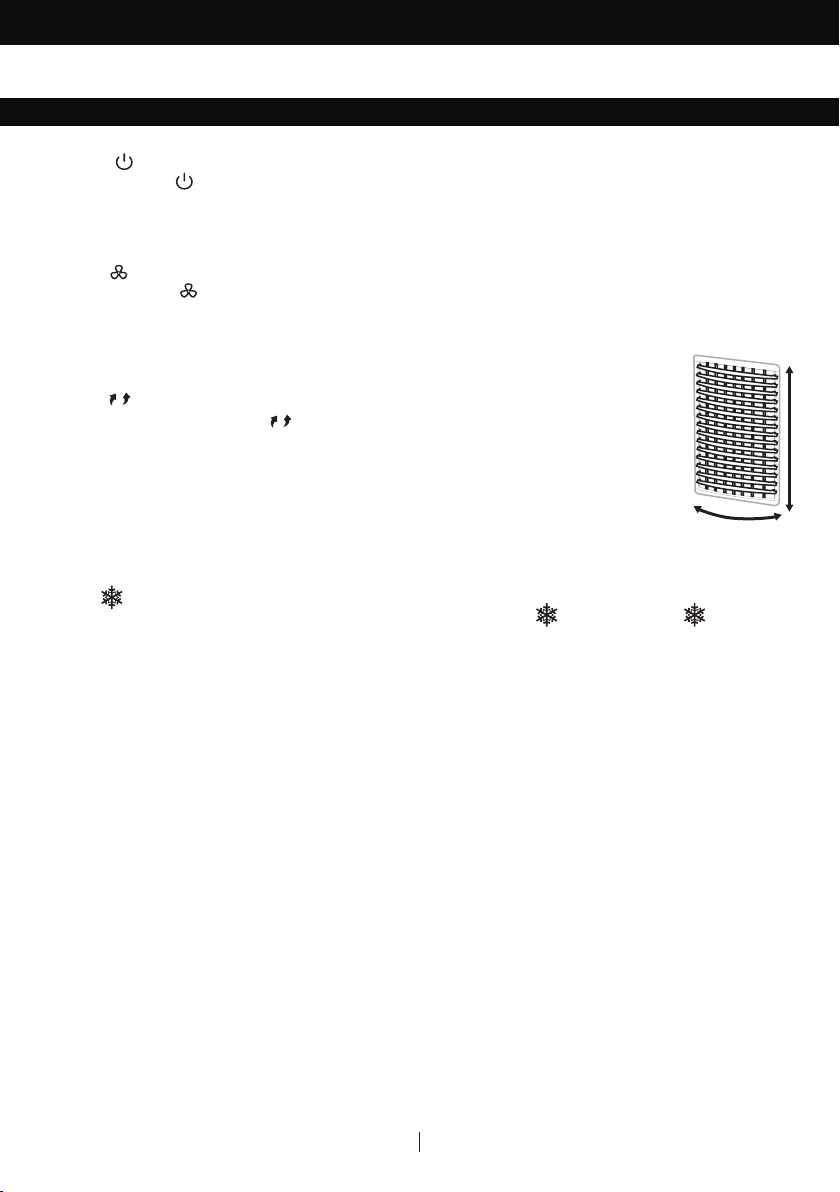

FUNCTION BUTTONS

POWER

Press the button to turn the unit on. The cooler will start automatically at medium speed. After a

few seconds the speed will switch to low. To turn the unit off, press the button again.

SWING

Press the SWING button until is illuminated on the display. The louvers will

begin to move left to right automatically. You can manually adjust the louvers

to change vertical air ﬂow.

SPEED

Press the SPEED button repeatedly to change the speed between | - || - |||.

COOL

You must add water before operating the unit in Cool mode. Press the button until

is illuminated on the display screen. The water pump will operate and you will feel the cooler air after

the Honeycomb Cooling Media is completely wet.

Louver

Movement

USE & OPERATION (CONTINUED)

REMOTE CONTROL

POWER :

ON / OFF

Low / Medium / High

Evaporative Cooling ON / OFF

Controls the motion of the louvers

SPEED

COOL

SWING

NOTE:

•

The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement.

Open the battery compartment at the back of the remote control and insert the battery inside.

Care must be taken to insert the batteries according to the correct polarity (+ / –) markings

shown inside the battery compartment.

Always point the remote control signal transmitter towards the unit when operating. Make sure

that the signal path is not obstructed.

Remove the batteries if the unit is not going to be used for an extended period of time.

Do not drop the remote control.

Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.

Do not mix old and new batteries.

Do not recharge the battery.

Exhausted batteries are to be removed from the product and safely disposed of as per

local regulations.

Do not dispose of batteries in ﬁre. Batteries may explode or leak.

This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin

cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to

death in as little as 2 hours. Always completely secure the battery compartment. If the battery

compartment does not close securely, stop using the product, remove the batteries, and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of

the body, seek immediate medical attention.

The batteries shall be disposed of properly, including keeping them away from children.

Even used batteries may cause injury.

WARNING: Chemical Burn Hazard. Keep batteries away from children.

USE & OPERATION (CONTINUED)

CAUTION: Unplug the unit from the electrical socket before emptying

or reﬁlling the water tank.

Open the Water Fill Door located on the back of the unit.

The Water Level Indicator is located at the front of the unit. Reﬁll the

water tank when water level is low. Do not fill water above the "Max."

water level mark to avoid water droplets collecting on the

louvers. Check the water level in the tank before running the COOL

function. Make sure that the water in the tank is above the minimum

water level mark. Running the unit in COOL mode with inadequate

water may cause pump failure.

Note: The water capacity refers to the total volume of water that can

be contained within the air cooler water tank and water distribution

system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This

can damage the unit and Honeycomb media.

FILLING WITH WATER

Water Fill Door

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

COOLER LOCATION

USE & OPERATION (CONTINUED)

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used

for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in

the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the

minimum level, you will hear a beeping sound and the GREEN LED will ﬂash continuously. The unit

will automatically pause evaporative cooling.

Reﬁll the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug

from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and

switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch

the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low

Water Alarm will sound again if the COOL function is activated while the water tank is still empty.

LOW WATER ALARM*

* Applicable for models with Low Water Alarm feature only.

CLEANING & DRAINING THE WATER TANK

• Move the unit to a location where the water can be drained. Remove the cap from the drain plug

located at the bottom of the unit. Allow the tank to empty.

• Refill the water tank with clean water, up to the maximum level and drain it completely.

• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

• When the product is not in use, store the unit in a dry place out of direct sunlight.

USE & OPERATION (CONTINUED)

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and

electrical socket.

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA

The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.

The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1

for instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Figure 1:

Carefully pull out the rear grill / mesh ﬁlter from the

cooler.

Rinse the rear grill / mesh ﬁlter with clean water and let

it dry before re-installing to the unit.

Carefully pull out the Honeycomb Media from the

Honeycomb Frame.

Replace or clean media with water and a damp cloth as

needed.

WARNING: DO NOT operate the Air Cooler when the

Rear Grill is removed from the Air Cooler, or if there is a

loose-ﬁtting Rear Grill. Doing so can cause serious

injury or dangerous electrical shock.

Honeycomb

Cooling Media

Honeycomb

Frame Rear Grill/

Mesh Filter

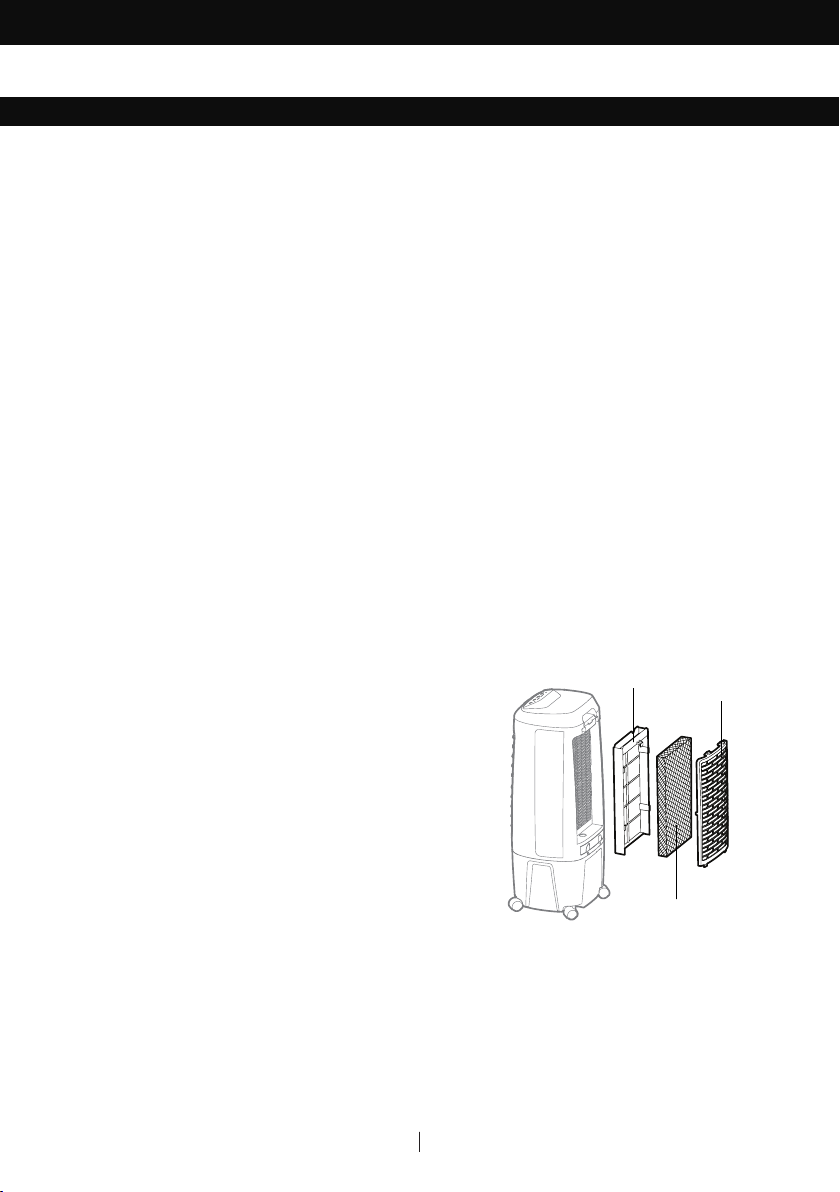

Removing the Mesh Filter and Honeycomb Cooling Media:

DESCRIPTION DES PIECES

1) Panneau de contrôle 7) Grille arrière & ﬁlter

2) Grilles d'aération 8) Système de refroidissement

en nid d’abeilles

3) Indicateur de niveau d'eau 9) Porte de remplissage d'eau

4) Roulettes 10) Cordon electrique

& prise

5) Poignée 11) Bouchon de vidange

6) Télécommande

AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE

MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS

SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON

FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT

ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE

MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.

UTILISATION ET FONCTIONNEMENT

PANNEAU DE COMMANDE

Icônes sur l’écran d’afﬁchage

Oscillation

Interrupteur

Refroidissement

Vitesse

= Faible

= Moyenne

= Élevée

I II III

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Honeywell Climatiseur

Honeywell

Honeywell CS07AE Manuel utilisateur

Honeywell

Honeywell CO25MM Manuel utilisateur

Honeywell

Honeywell MN10 Series Manuel utilisateur

Honeywell

Honeywell MM14CHCS Manuel utilisateur

Honeywell

Honeywell CS071AE Manuel utilisateur

Honeywell

Honeywell MP10CESWW Manuel utilisateur

Honeywell

Honeywell CL201AE Manuel utilisateur

Honeywell

Honeywell MM14CCS Manuel utilisateur

Honeywell

Honeywell ES800 Manuel utilisateur

Honeywell

Honeywell CL15AC Manuel utilisateur

Honeywell

Honeywell CL60PM Series Manuel utilisateur

Honeywell

Honeywell CS10XE Series Manuel utilisateur

Honeywell

Honeywell Genetron ST-20 Manuel utilisateur

Honeywell

Honeywell HJ12CESV Series Manuel utilisateur

Honeywell

Honeywell HM12CESWK Manuel utilisateur

Honeywell

Honeywell CL30XC Manuel utilisateur

Honeywell

Honeywell CS071AE Manuel utilisateur

Honeywell

Honeywell CS074AEKK Manuel utilisateur

Honeywell

Honeywell CS10PE Manuel utilisateur

Honeywell

Honeywell MM14CHCSCS Manuel utilisateur

Honeywell

Honeywell HL12CES Series Manuel utilisateur

Honeywell

Honeywell MO08CESWS6 Manuel utilisateur

Honeywell

Honeywell CL30XC Manuel utilisateur

Honeywell

Honeywell CO70PE Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
