Honeywell HL12CES Series Manuel utilisateur

Portable Air Conditioner

User Manual

Read and save these instructions before use

Climatiseur portatif

Mode d’emploi

Lire ces consignes avant l’utilisation de l’appareil et les conserver

Aire Acondicionado Portátil

Manual del Propietario

Lea y guarde estas instrucciones antes de usar la unidad

Customer Support:

Assistance Au Client:

Servicio de atencion a clientes:

Web: www.jmatek.com

USA: 1-800-474-2147 | [email protected]

CANADA^: 1-888-209-0999 | [email protected]

^ Canada Customer Support service available for models sold in Canada only.

^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.

^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.

Model / Modèle / Modelo:

HL12CES

HL10CES

HL14CES

HL14CHES

Series / Série / Serie

•

DO NOT operate the unit with a damaged plug or loose wall

outlet. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualiﬁed

persons in order to avoid a hazard.

DO NOT cover the air intake and when in use.

DO NOT place objects on or sit on the unit.

Always turn off and unplug the unit when cleaning or

servicing.

DO NOT use the appliance if it is damaged.

If service is needed contact an authorized service agent.

Unplug the unit when stored or not in use.

DO NOT pull or carry the appliance by the power cord.

DO NOT pinch the power cord in the door and DO NOT pull

it along edges or sharp corners.

DO NOT run the power cord under carpeting and rugs.

Use caution to prevent tripping on cord.

DO NOT use the device in the following cases:

- Near a ﬁre source

- In areas where gasoline, paint or other ﬂammable

goods are stored

- In an area where the water can be projected

DO NOT touch the plug or the device with wet hands.

Basic safety precautions should always be followed when

using electrical appliances.

SAFETY

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY

INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH

VERSION AND ANY OTHER LANGUAGE VERSION OF THE

CONTENT OF THIS MATERIAL, THE ENGLISH VERSION

SHALL PREVAIL.

WARNING:

SAFETY (CONTINUED)

This appliance has been manufactured for use in domestic

environments and should not be used for other purposes.

Only use the installation kit provided to install this unit.

DO NOT attempt to extend the hose or install this unit

using other methods other than that shown in this

manual. Improper installation will void any existing

warranties.

DO NOT use an extension cord with this unit.

This appliance can be used by children aged from 8 years

and above, and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Never insert your ﬁngers or rods into the air outlet. Take

special care to warn children of these dangers.

The manufacturer is not liable for injury caused to

persons or property damage due to non-compliance

with maintenance instructions and improper use of the

appliance.

The appliance shall be installed in accordance with national

wiring regulations.

The appliance is not to be used by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction.

Children should be supervised to ensure that they do not

play with the appliance.

•

THANK YOU

USER TIPS

Congratulations on your purchase of this Honeywell Portable Air Conditioner.

Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal

of the appliance, please refer to the below paragraph of the manual.

Cooling, Heating* and Dehumidifying

Operation Fan Operation

Important:

Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize.

Air outlet automatically opens when the unit is turned on, and automatically closes when the unit is

turned off. Manually adjust the air vent located at the top of the unit to adjust the direction of air ﬂow.

Follow installation instructions to set up the unit.

Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.

•

Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator

are housed in a compact unit. The air is dehumidiﬁed and cooled while a ﬂexible hose sends heat

outside. The Portable Air Conditioner includes a window venting kit.

No permanent installation is needed. The unit is easy to move from room to room and offers a truly

ﬂexible air conditioning solution.

Auto Evaporation System - The unit automatically evaporates the condensate through the hose.

There is no need to empty the drainage tank except in humid conditions. Read and follow the

instructions carefully.

To ensure optimal efﬁciency of the product, keep doors and windows closed when it is used as an air

conditioner or dehumidiﬁer. If the product is being used with the fan function only, an open window

could improve air circulation.

*Applicable for models with Heating feature only.

PARTS DESCRIPTION

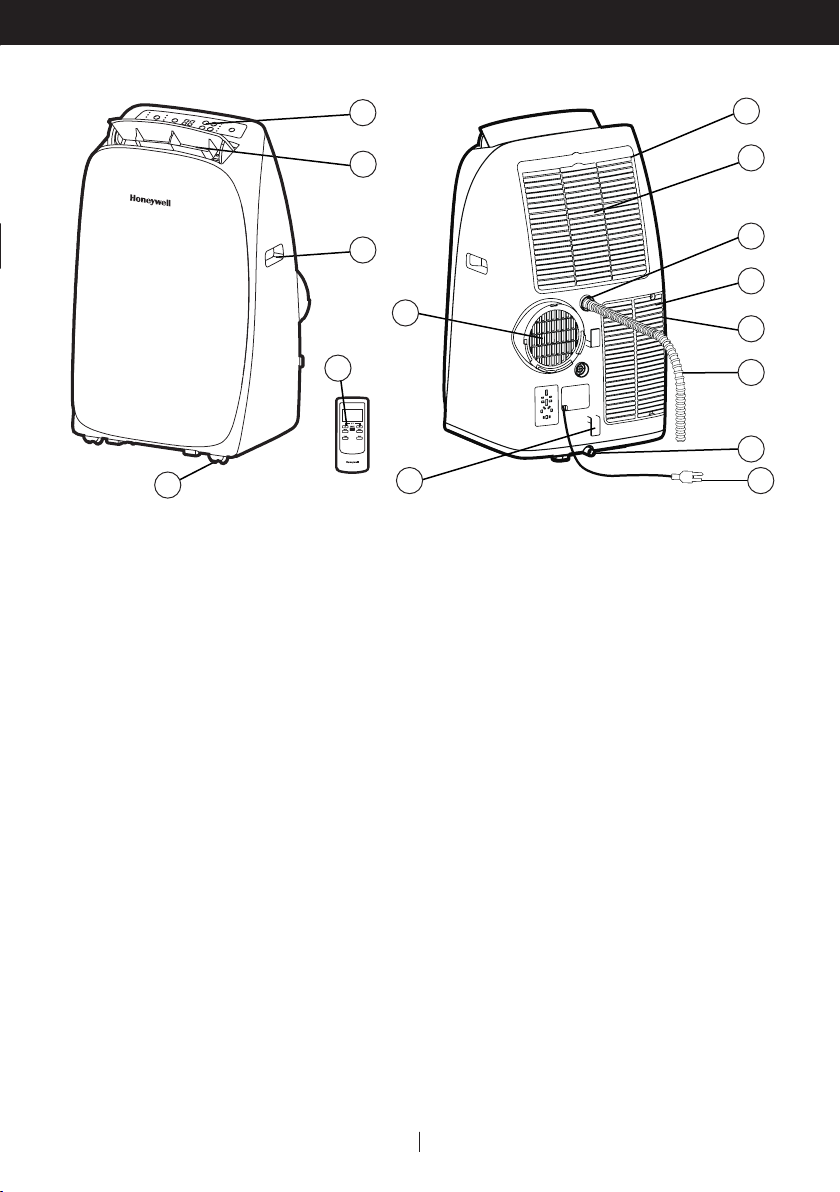

1) Control Panel 9) Upper Dust Filter

2) Air Outlet 10) Upper Rubber Drain Plug

(Dehumidifying Mode)

3) Handle 11) Lower Dust Filter

4) Casters 12) Lower Grill

5) Remote Control 13) Drain Tube

(For Continuous Drain)

6) Hose Connector 14) Lower Rubber Drain Plug

(Air Conditioning Mode)

7) Cord Winder 15) Power Supply Cord

8) Upper Grill

3EN

INSTALLATION

It is important that the installation instructions below are followed for successful installation of this

Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries

regarding these installation procedures.

6 7 8

1 3 4

x1 x2 x1

x1 x1 x1

Installation Kit:

Installation Steps:

Window bracket panel adapter, hose and hose connector are pre-assembled inside the package.1.

2. Adjust the window bracket as per width or height of your window and insert the plastic pin to

ﬁx at the desired position. There is a hole where the hose will be inserted later. Make sure this

hole is not blocked.

Hole for Window Bracket

Panel Adapter and Hose

Plastic Pin

26.6", 36.2" to 52.0"

(67.5 cm, 92 cm to 132 cm)

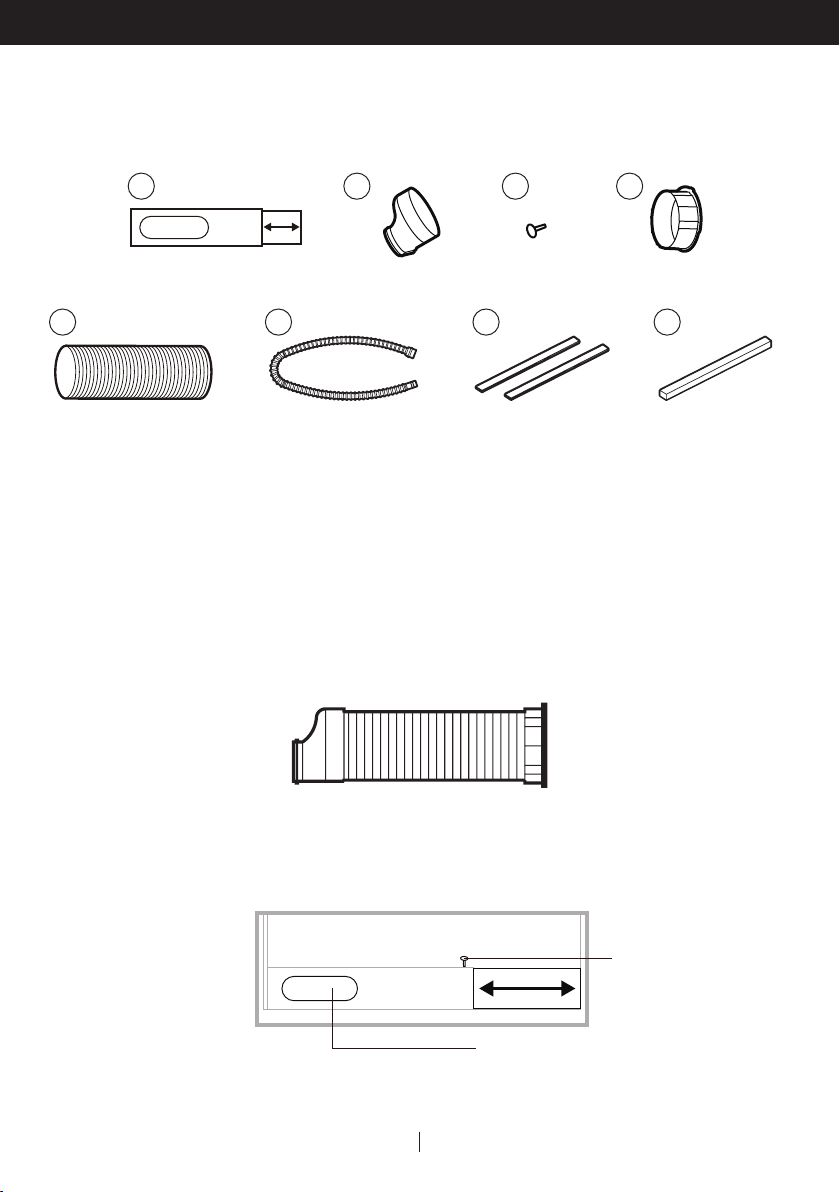

1. Window Bracket Kit (1 Set) 5. Hose (1 Piece)

2. Window Bracket

Panel Adapter

(1 Piece) 6. Drain Tube (refer to Continuous

Draining for Dehumidiﬁer Mode)

(1 Piece)

3. Plastic Pin (1 Piece) 7. Foam Seal (adhesive) (2 Pieces)

4. Hose Connector (1 Piece) 8. Foam Seal (non-adhesive) (1 Piece)

4EN

INSTALLATION (CONTINUED)

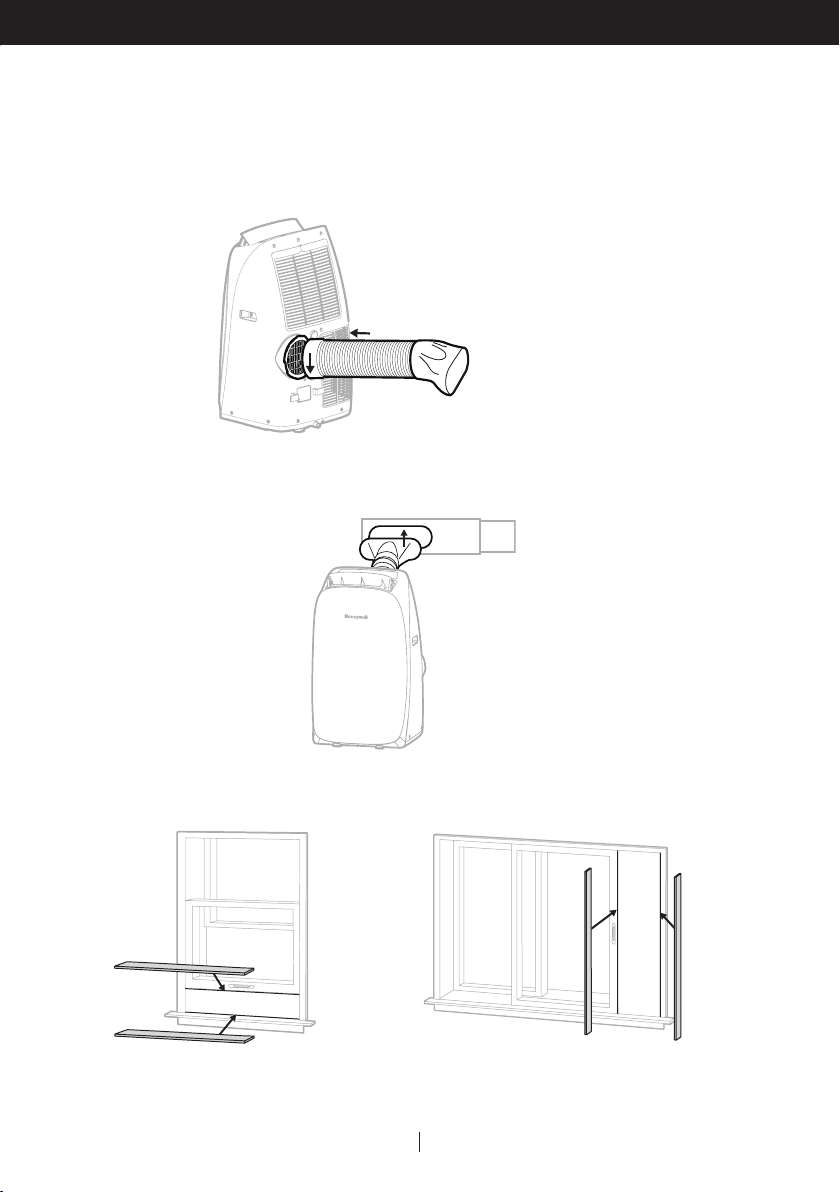

3. Connect the hose to the hose connector on back of the unit. Slide-in the hose connector

downwards until it is locked in place.

Note: After setting the window bracket to the size of your window, please remove it from the window

and follow the instructions below.

Hose:

Dia. 5.9" (15 cm)

Length: 10.6" to 59" (27 cm to 150 cm)

4. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are

tight and installed properly.

Cut the Foam Seal (adhesive) to the proper length and attach them to the window sash

and frame.

Horizontal Sliding Window Vertical Sliding Window

INSTALLATION (CONTINUED)

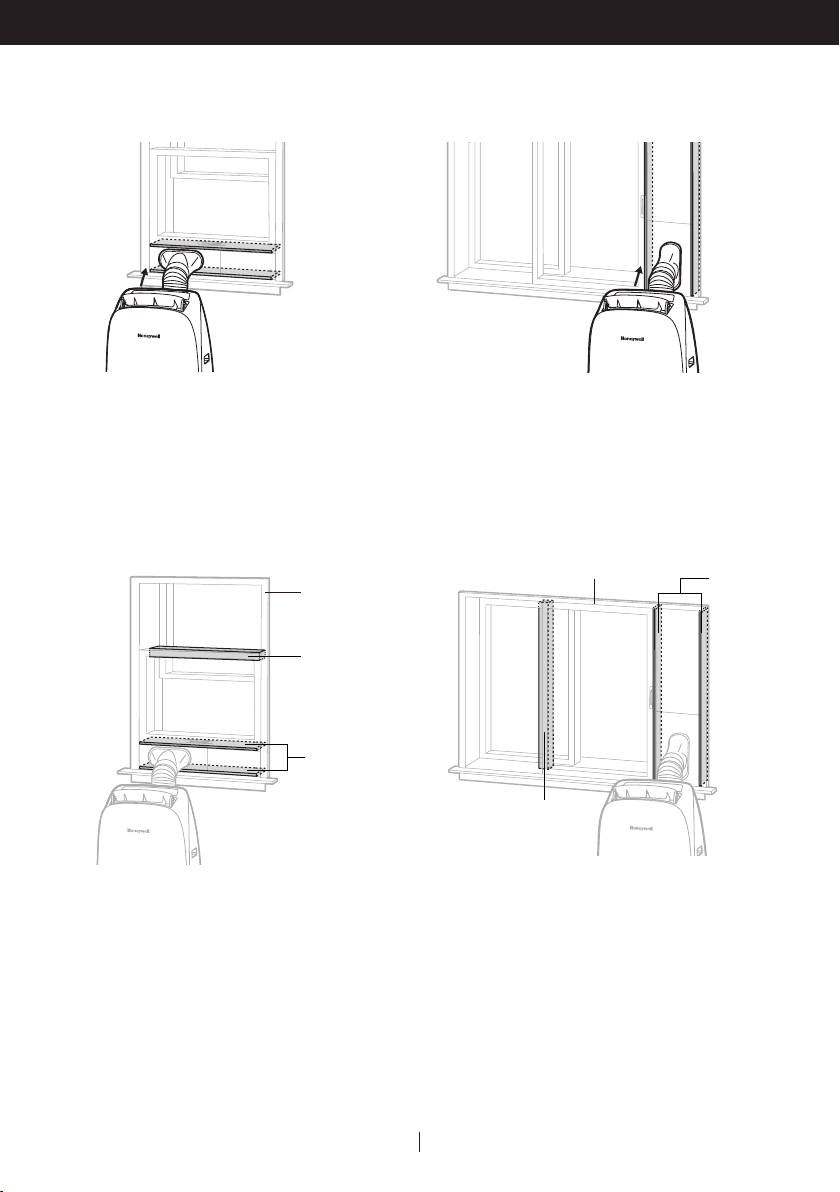

7. Cut the Foam Seal (non-adhesive) to the window length. Stuff the Foam Seal (non-adhesive)

between the inner window sash and the outer window glass to prevent air and insects from

getting into room.

Horizontal Sliding Window Vertical Sliding Window

Foam Seal

(adhesive)

Foam Seal

(non-adhesive)

Foam Seal

(non-adhesive)

Window

Sash Foam Seal

(adhesive)

Window

Sash

8. The Portable Air Conditioner is now ready to use.

Horizontal Sliding Window Vertical Sliding Window

6. Connect the window bracket to the window.

INSTALLATION (CONTINUED)

IMPORTANT:

Do not replace or lengthen the hose as this could cause the unit to malfunction.

The supplied hose has a diameter of 5.9" (15 cm) and can be extended from 10.6" to 59" (27 cm

to 150 cm).

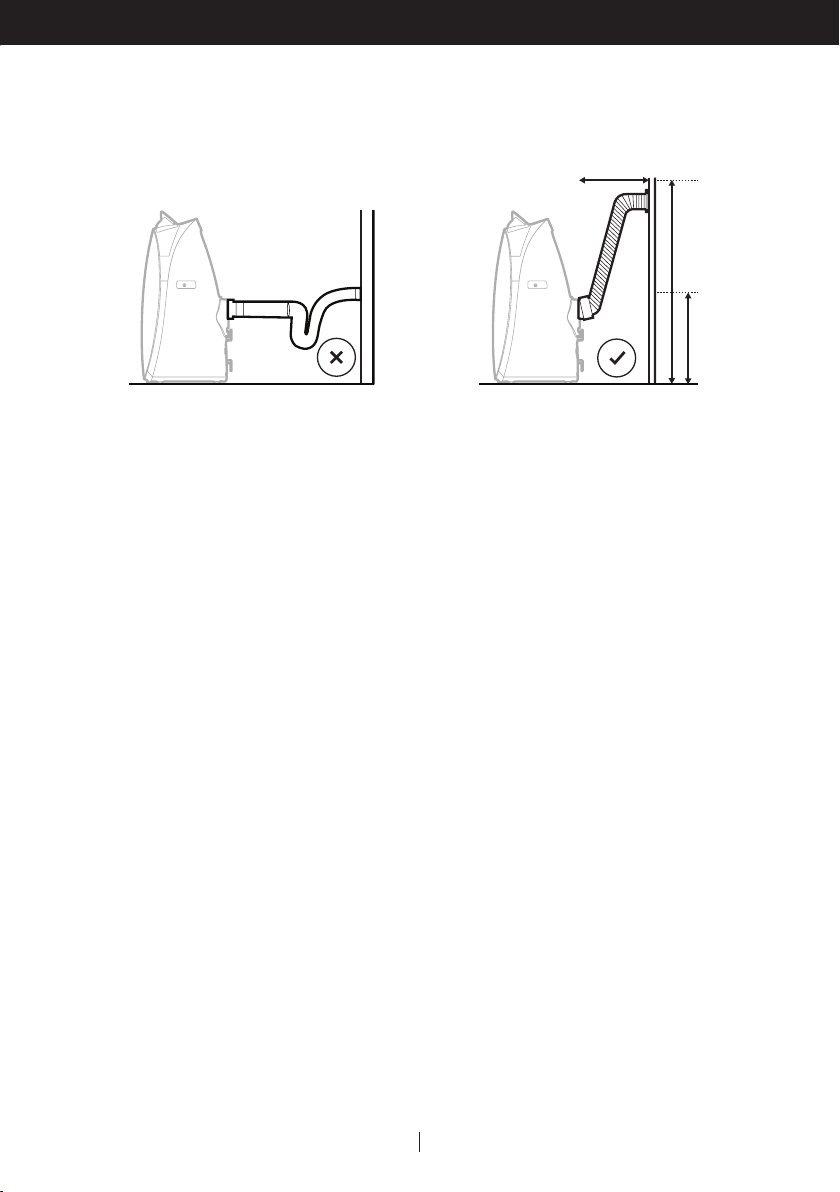

Do not bend (to the extent shown below) the hose. A bent hose will block air and cause the unit to

malfunction or shut-off.

Make sure the back of the unit is at least 20" (50 cm) away from the wall. Do not place the unit in

front of curtains or drapes as this could obstruct the airﬂow.

•

WARNING: Any warranties included with this product will be voided if an extra extension hose is

added to the originally provided installation kit or if the installation is performed differently than the

manufacturer's instructions, without proper consultation. Please contact Customer Support for help

with installation procedures if needed.

Not Recommended Recommended

20" (50 cm)

22" (55.5 cm)

MIN 55.5 cm

43" (110 cm)

USE AND OPERATION

CONTROL PANEL

1) Power Control 4) Timer / Temperature Set Controls

2) Indicator Lights 5) Mode Control

3) Timer Control / Sleep Control 6) Fan Speed Control

FUNCTION BUTTONS

The Power Control turns the unit on and off. When the unit is plugged into an appropriate electrical

outlet, the POWER indicator light will illuminate red indicating the unit is in a Standby Mode, ready

to be switched on at anytime. The air vent will automatically open when the unit is turned ON and

automatically close when unit is turned OFF.

POWER CONTROL

(6) (5) (4) (3) (2) (1)

Condensation may accumulate in the unit.

If the bottom internal tank is full, the WATER FULL light will illuminate and an alarm will beep

for 30 seconds. The unit will not operate until the water has been drained from the bottom drain plug

(refer to Water Condensation Drainage).

After switching the air conditioner off, the compressor will not start immediately.

You must wait about 4 minutes before it switches back on again.

WATER FULL LIGHT
