Honeywell CL201AE Manuel utilisateur

Model / Modelo / Modèle: CL201AE

Power rating / Potencia / Puissance nominale: 250W

Voltage rating / Tensión / Tension nominale: 120V ~ 60Hz

For product inquiries or support / Para consultas del producto o soporte /

Pour les questions sur les produits ou pour du soutien:

www.honeywellaircoolers.com

Portable Evaporative Air Cooler

for Indoor Use

Evaporativo Portátil Enfriador De Aire

para uso En El Interior

Portatif Évaporatif Refroidisseur D'air

pour Usage Intérieur

OWNER’S MANUAL

Read and save these instructions before use

MANUAL DEL PROPIETARIO

Lea y guarde estas instrucciones antes de usar la unidad

MANUEL DU PROPRIÉTAIRE

Lire et conserver ces instructions avant utilisation

Customer Support / Atención al cliente / Soutien au client:

1-800-474-2147

Made in China

Hecho en China

Fabriqué en Chine

QUICK START GUIDE

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Note: Please make sure the household power voltage

matches the product specifications.

10.

SECTION PAGE

INDEX

Read all instructions carefully before setting up and operating the cooler, and please

keep this instruction manual for future reference. This manual is designed to provide

you with important information needed to setup, operate, maintain, and troubleshoot

your cooler. Failure to follow these instructions may damage and/or impair its operation

and void the warranty.

1. THANK YOU...........................................................................................................

2. USER TIPS ............................................................................................................

3. SAFETY .................................................................................................................

4. PARTS DESCRIPTION .........................................................................................

5. USE & OPERATION ..............................................................................................

Control Panel .....................................................................................................

Function Buttons ................................................................................................

CLEANING & MAINTENANCE ..............................................................................

TROUBLESHOOTING GUIDE ...............................................................................

TECHNICAL SPECIFICATIONS ............................................................................

ELECTRICAL WIRING DIAGRAM ......................................................................... 20

SERVICE AND WARRANTY .................................................................................

Remote Control ..................................................................................................

Room Cooling and Humidifying ........................................................................... 13

Filling with Water ................................................................................................

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler.

For optimum cooling from your cooler, fill the water tank to maximum level and load

ice inside the ice compartment before you turn on your air cooler.

Cooler Location - Indoors (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate

cross - ventilation in the room by leaving a door or window open opposite the cooler.

Following these guidelines will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor

or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air

conditioner.

USER TIPS

Energy Efficient, No Compressor

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep

costs low. Warm air is drawn into the cooler through a dust and odor-reducing carbon

filter and enters the Honeycomb Cooling Media. Water pumped from the tank pours

over the Honeycomb Cooling Media. As the warm air passes through the Honeycomb

Cooling Media, the water absorbs the heat, naturally cooling and humidifying the air. A

fan propels the cooled air out into the room. This no-compressor system cools naturally,

efficiently and inexpensively.

Pump

Water

Honeycomb Cooling Media

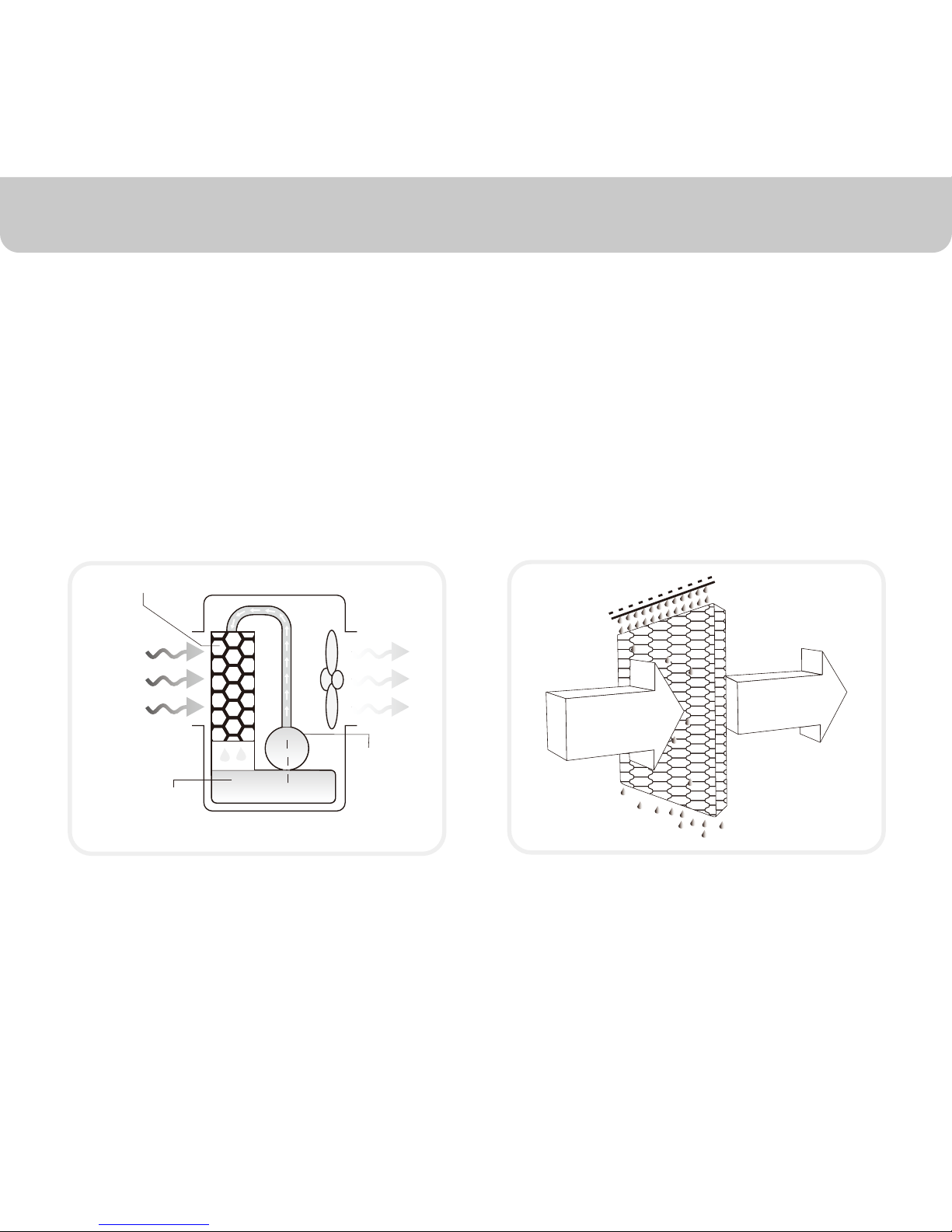

Evaporative Air Cooling Mechanism

Warm and

dry air

Cool and

humid air

USER TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, circulates in the room, then

exits via the door. The maximum cooling effect is felt when a

person is in the flow of air coming out of the evaporative air

cooler.

The evaporative air cooler can also be used to humidify dry

air during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate.

When the product is used for the first time the Honeycomb Cooling Media will have an

odor which will dissipate in a few hours or so of initial use.

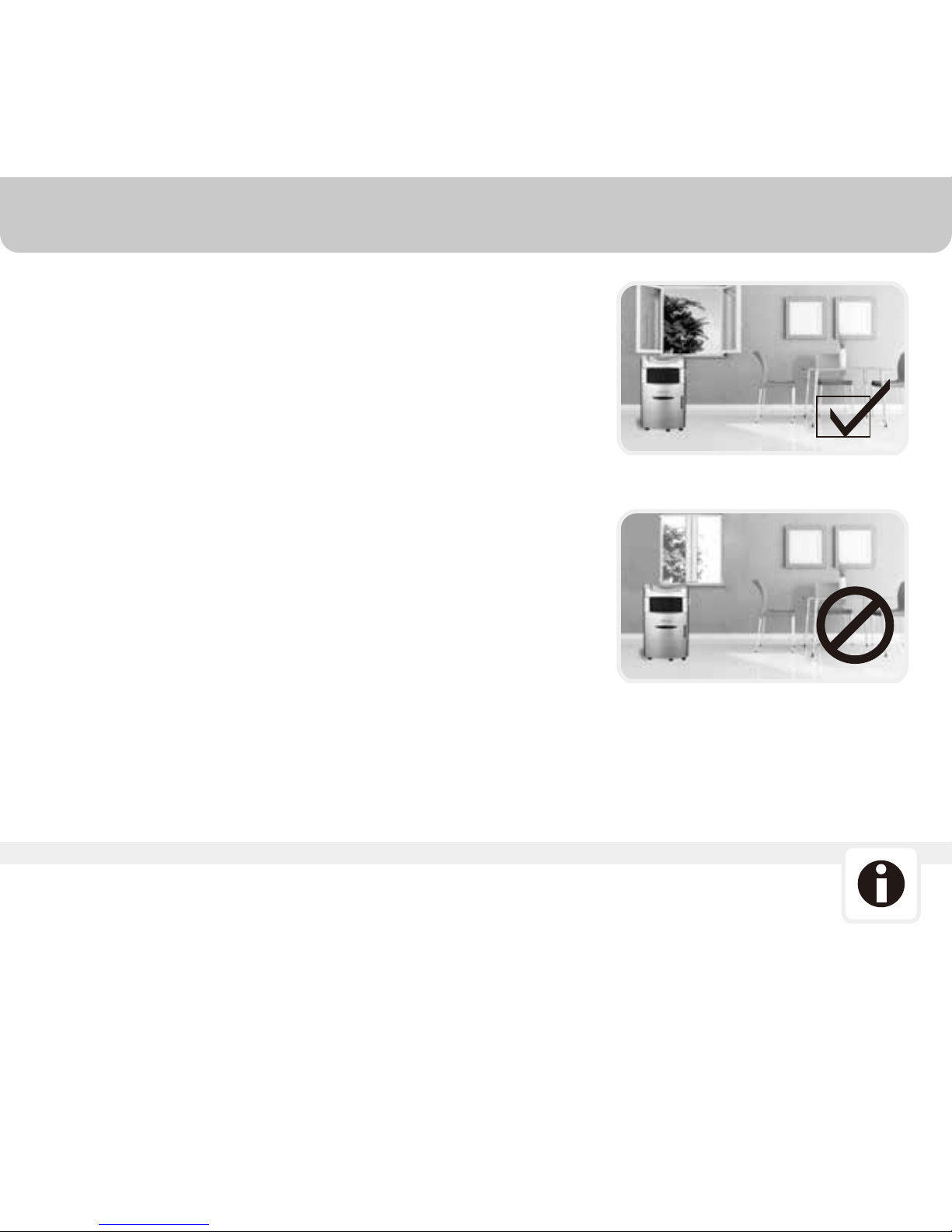

Room with open windows & door

(RECOMMENDED)

Room with closed windows & door

(NOT-RECOMMENDED)

NOTE

SAFETY

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

Your cooler runs on 120 Volt AC, 60 Hz current. Check the

household voltage to ensure it matches the appliance's rate

specification.

Before operating the product remove it from its packaging

and check that it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

Always unplug the product before refilling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

When using the COOL setting, check the water tank to

ensure that it is full. Operation of this cooler on the COOL

setting with an empty tank may result in damage to the

water pump.

WARNING: To reduce the risk of fire or electric shock, do

not use this appliance with any solid state speed control

device.

•

120V ~ 60Hz

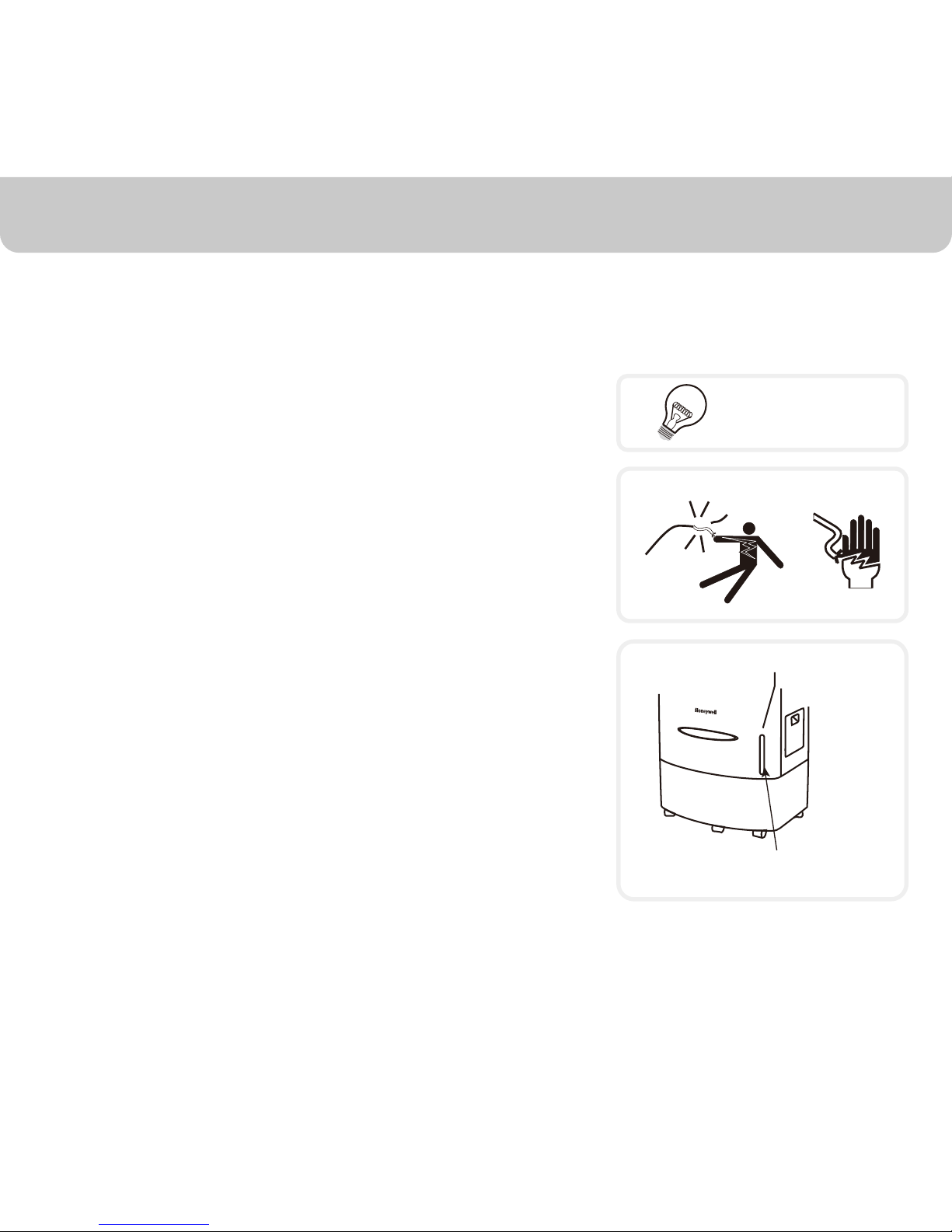

SHOCK HAZARD

WATER LEVEL INDICATOR

SAFETY

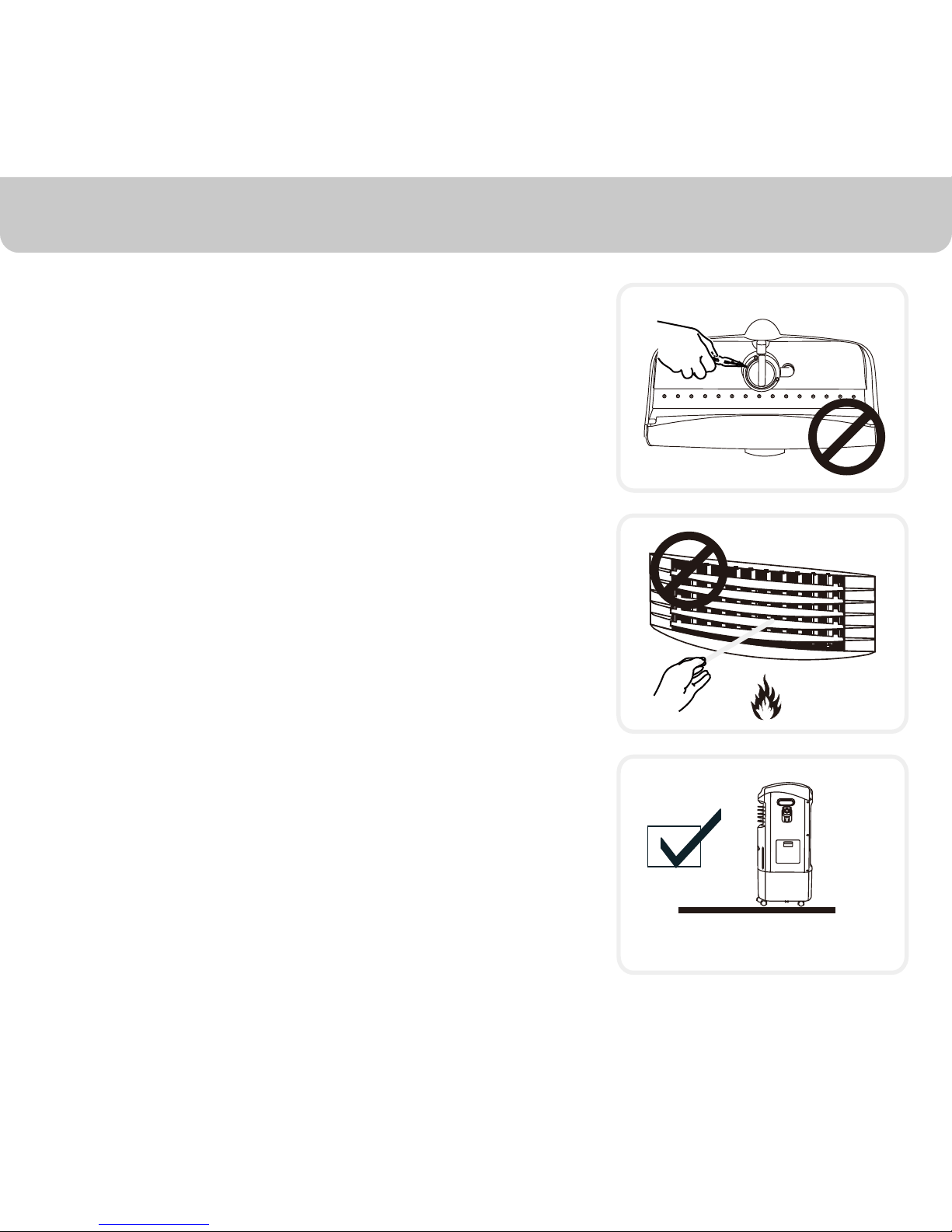

DO NOT attempt to repair or adjust any electrical or

mechanical functions of the cooler, as this may void the

warranty.

DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause electrical shock or fire.

DO NOT operate with the Honeycomb Cooling Media

removed as this will overload and damage the motor.

DO NOT leave the operating appliance unattended for any

extended period of time.

DO NOT let children play with this appliance, packaging or

plastic bags.

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and seek

professional advice.

Place the unit on a level floor.

This product is not intended for use in wet or damp

locations.

DO NOT use in bathrooms. Never locate the product where

it may fall into a bathtub or other water container.

Store in a dry area when not in use.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instructions concerning

the use of the appliance by a person responsible for their

safety.

Always grip the side handles to move the cooler.

•

FLOOR LEVEL

ON/OFF

TIME

SPEED

SWING

COOL

MODE

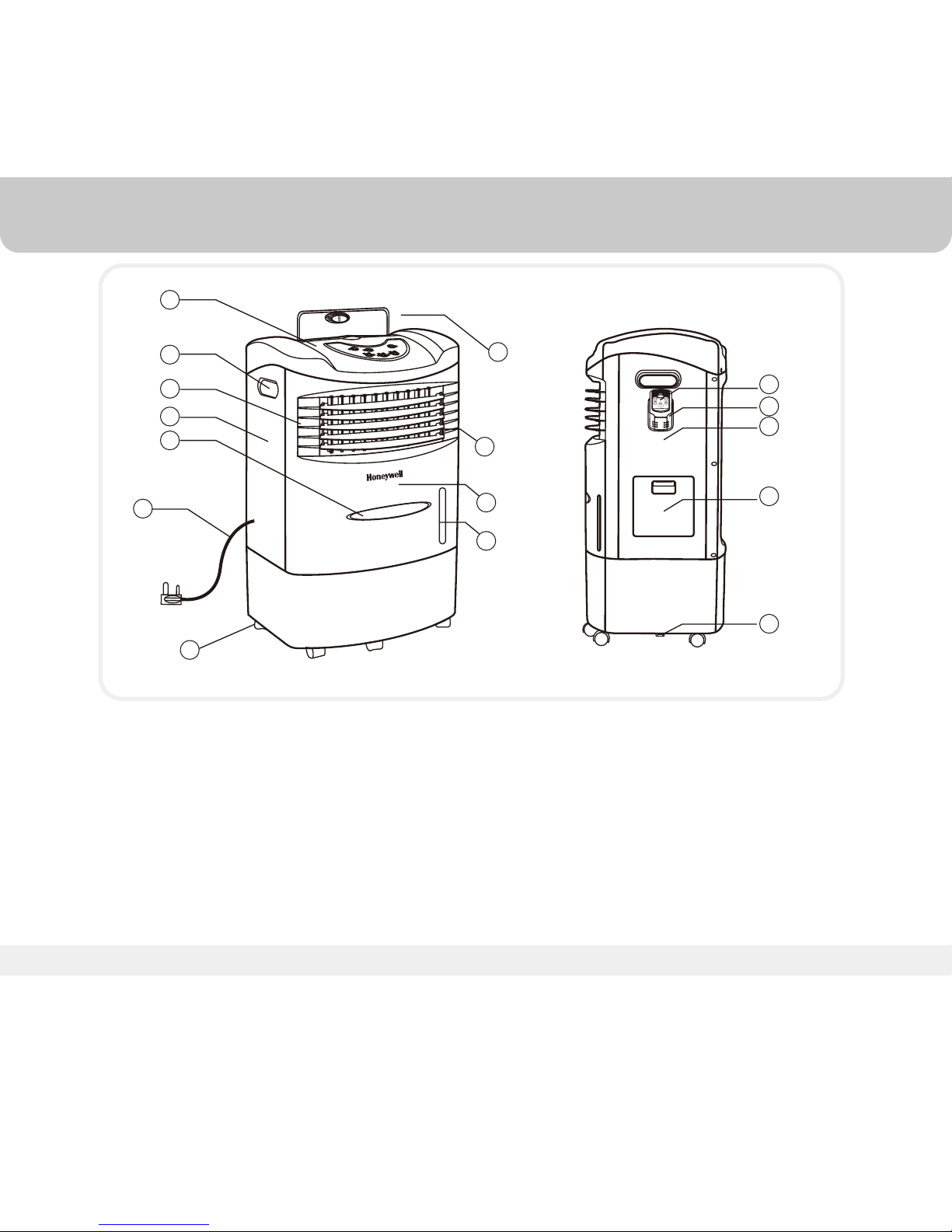

PARTS DESCRIPTION

ACCESSORIES:

Remote Control (2 AAA Batteries not included)

Control Panel

Side Handle

Horizontal Louvers

(Manual movement)

Left Side Panel

Front Cover Ornament

Power Cord & Plug

Casters

Ice Compartment Lid

Vertical Louvers

(Automatic with SWING Button)

Front Panel

Water Level Indicator

Remote Control

Remote Control Holder

Right Side Panel

Water Fill Door

Drain Plug

USE & OPERATION

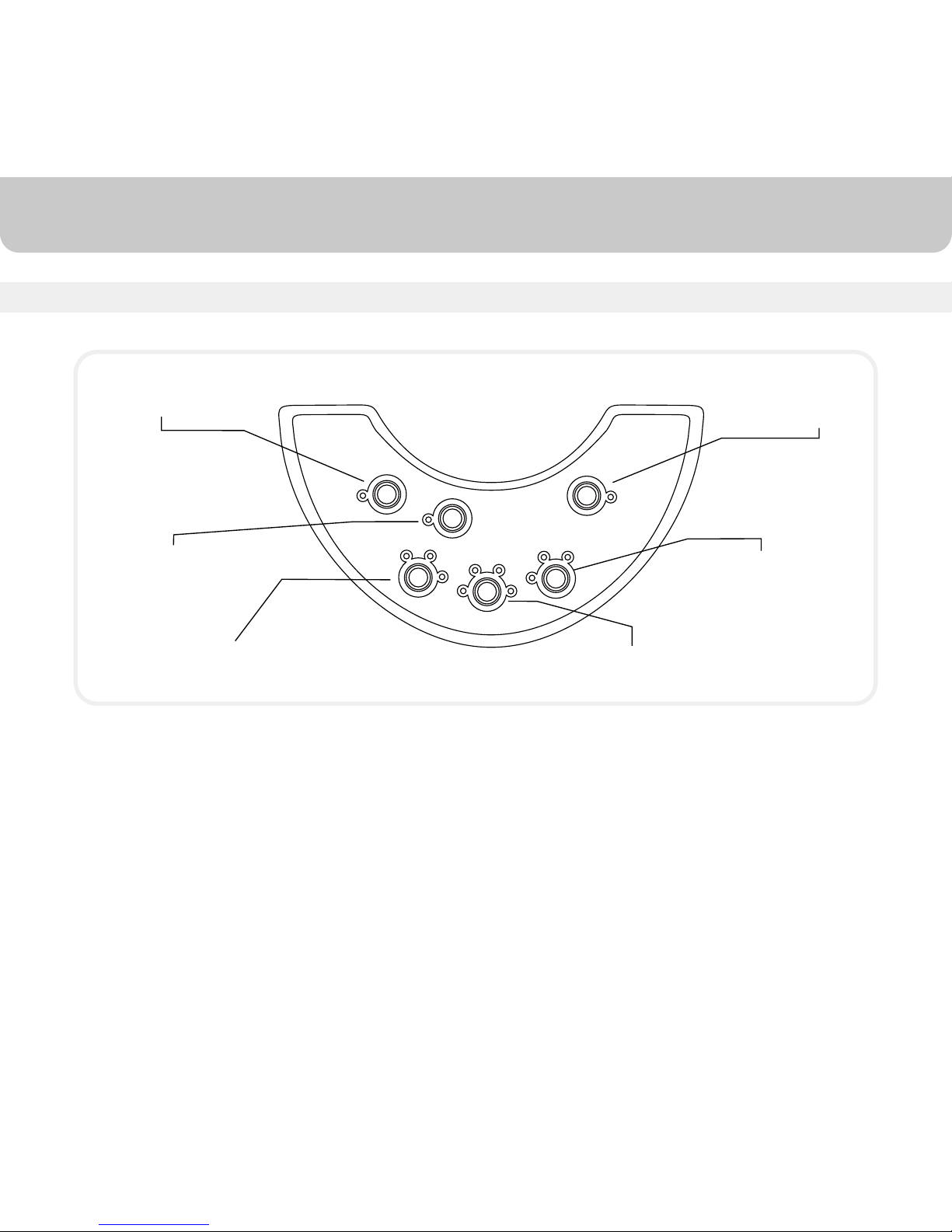

Control Panel

Mode Type Selector

Timer Control

Power Button

Speed Control

Swing Control

COOL

SWING

POWER

SPEED

HIGH MED

LOW

TIMER

1hr

2hr 4hr

8hr

MODE

NATURAL

NORMAL

SLEEP

Cool Button
