Read all instructions carefully before setting up and operating the unit. Keep this
instruction manual for future reference. This manual is designed to provide important
information needed to setup, operate, maintain and troubleshoot your portable air
conditioner. Failure to follow these instructions may void the warranty.
1

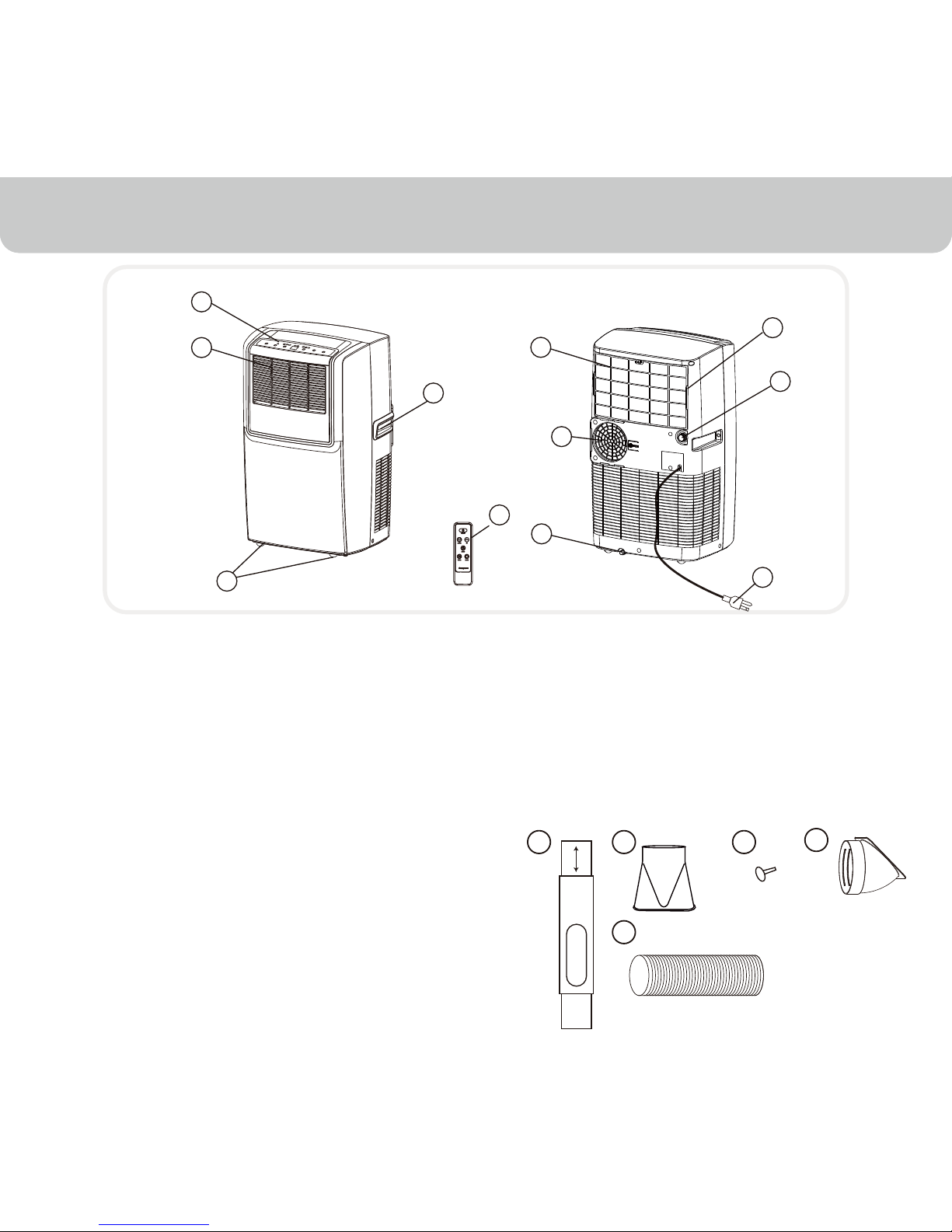

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
1
2
3
4
6
7
10
13
14
15
16
17
INDEX ...............................................................................................................
THANK YOU......................................................................................................
USER TIPS........................................................................................................
SAFETY ............................................................................................................
PARTS DESCRIPTION.....................................................................................
INSTALLATION.................................................................................................
USE & OPERATION..........................................................................................
CLEANING & MAINTENANCE..........................................................................
WATER CONDENSATION DRAINAGE............................................................
TROUBLESHOOTING GUIDE..........................................................................
TECHNICAL SPECIFICATIONS.......................................................................
SERVICE AND WARRANTY.............................................................................
2
Congratulations on your purchase of this versatile Honeywell Portable Air Conditioner.
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser
and evaporator are housed in a compact unit. The air is filtered, dehumidified and cooled while
a flexible air outlet hose sends heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a
truly flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the air
outlet hose. There is no need to empty the drainage tank except in very high humidity conditions.
Read and follow the instructions carefully.
THANK YOU
3
USER TIPS

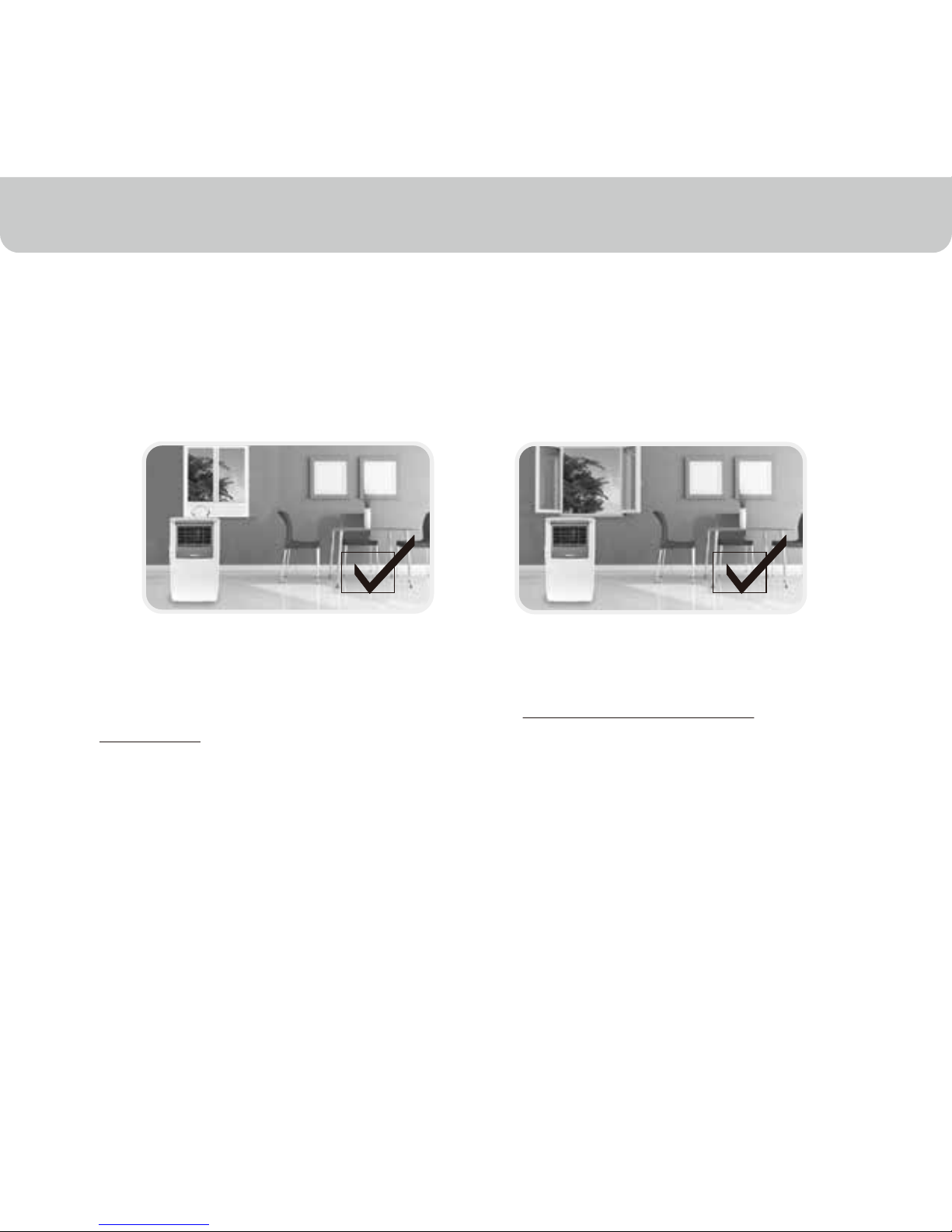

To ensure optimal efficiency of the product, keep doors and windows closed when it
is used as an air conditioner or dehumidifier.
If the product is being used with the fan function only, an open window could improve
air circulation.
Follow installation instructions to set up the unit.
Plug the unit into a properly grounded circuit.
Important: Before installing the unit, place it UPRIGHT for 20 minutes
before use to allow the refrigerant to stabilize.
•
•
Cooling and Dehumidifying Operation Fan Operation
4
SAFETY
WARNING
READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
DO NOT operate the unit with a damaged plug or loose wall outlet. If the power
cord is damaged, it must be replaced by the manufacturer or an authorized service agent.
DO NOT cover the air intake and exhaust when in use.
This appliance is not intended for use by children. Children should be supervised
and should not play on or around the appliance.
DO NOT place objects on or sit on the unit.
Always turn off and unplug the unit when cleaning or servicing.
If service is needed contact an authorized service agent.
Unplug the unit when stored or not in use.
1.
2.
3.
4.
5.
6.
7.
5
DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
Basic safety precautions should always be followed when using electrical appliances.
This appliance has been manufactured for use in domestic environments and
should not be used for other purposes.
8.
9.
10.
11.
12.
SAFETY
6
PARTS DESCRIPTION
12
5
3
x 1
x 1
x 2 x 1
Installation Kit:
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
4
1.
2.
3.
4.
5.
6.
Control Panel (Incl. Signal Receptor)
Air Outlet
Handle
Casters
Upper Drain Plug (De-humidifier Mode)
Air Filter
1.
2.
3.
4.
5.
Window Bracket Kit.............................
Window Bracket Panel Adapter..........
Plastic Pin...........................................
Hose Connector..................................
Plastic Hose........................................
7.
8.
9.
10.
11.
Back Grill
Lower Drain Plug (Air Conditioning Mode)
Power Supply Cord
Exhaust Hose Connector
Remote Control
11
35
6
1
2
4
7
9
10
8
7
INSTALLATION

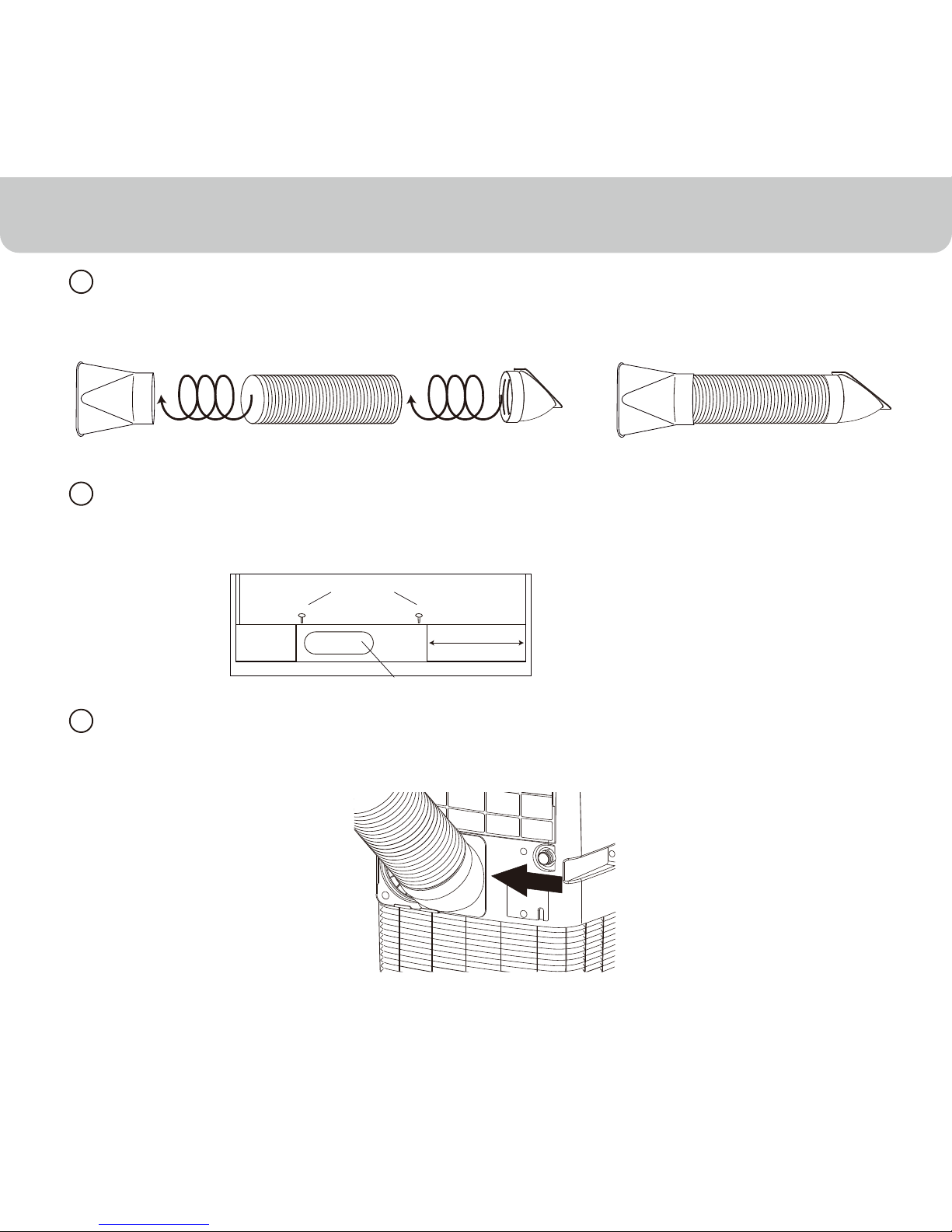

Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
Adjust the window bracket as per width or height of your window and insert the plastic
pins to fix at the desired position. There is a hole where the Plastic Hose will be inserted
later. Make sure this hole is not blocked.
Connect the plastic hose to the hose connector on back of the unit. Slide-in the hose
from right to left until it is locked in place.
Note: Do not install the window
bracket to your window. This step is
required only to adjust it to the
size of your window. The bracket
should be removed from the window
after the size is adjusted.
1
2
3
=
Plastic Pin
Hole for Plastic Hose
8

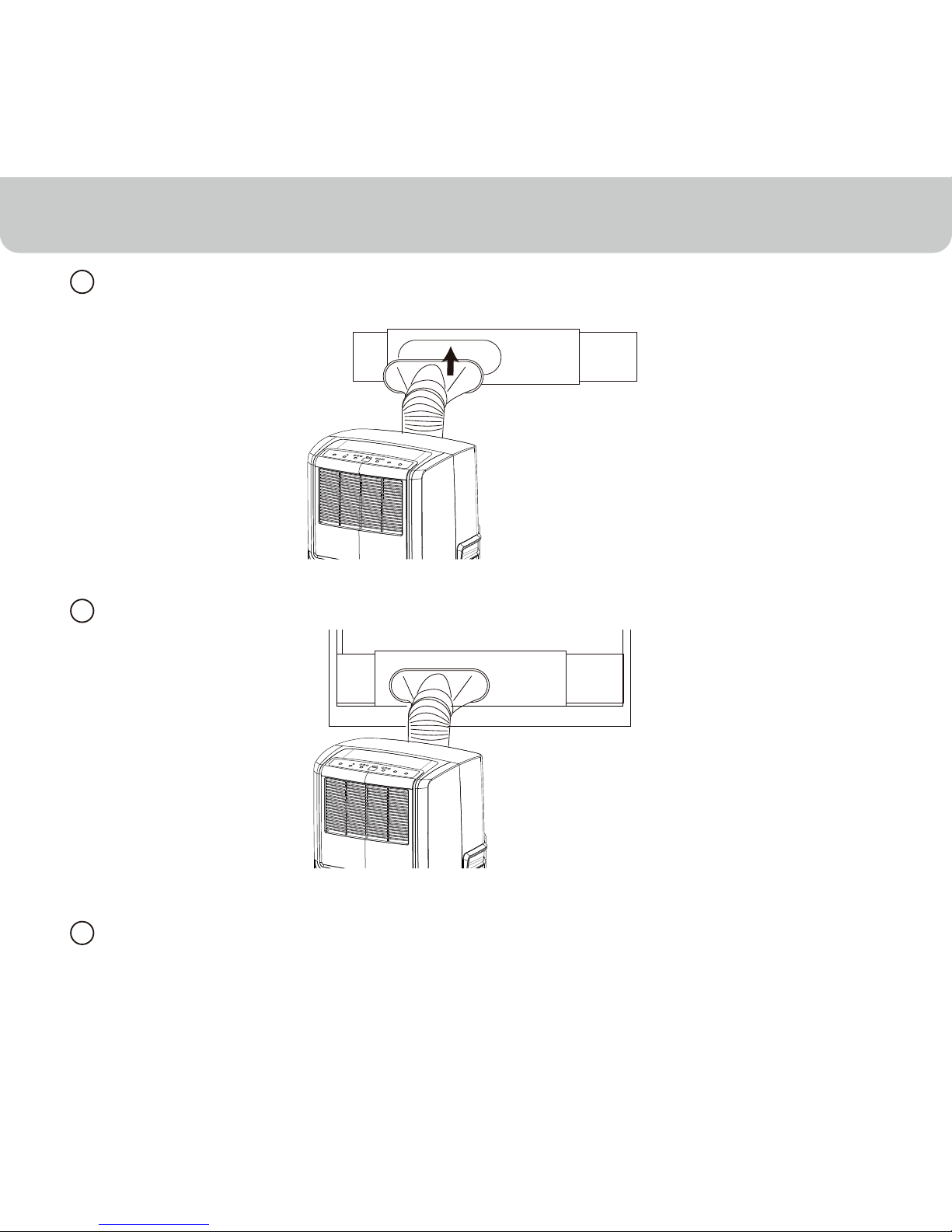

Connect the window bracket to the opposite end of the plastic hose. Ensure that
all connections are tight and installed properly.
Connect the window bracket to the window.
The Portable Air Conditioner is now ready to use.
INSTALLATION
4
5
6
9

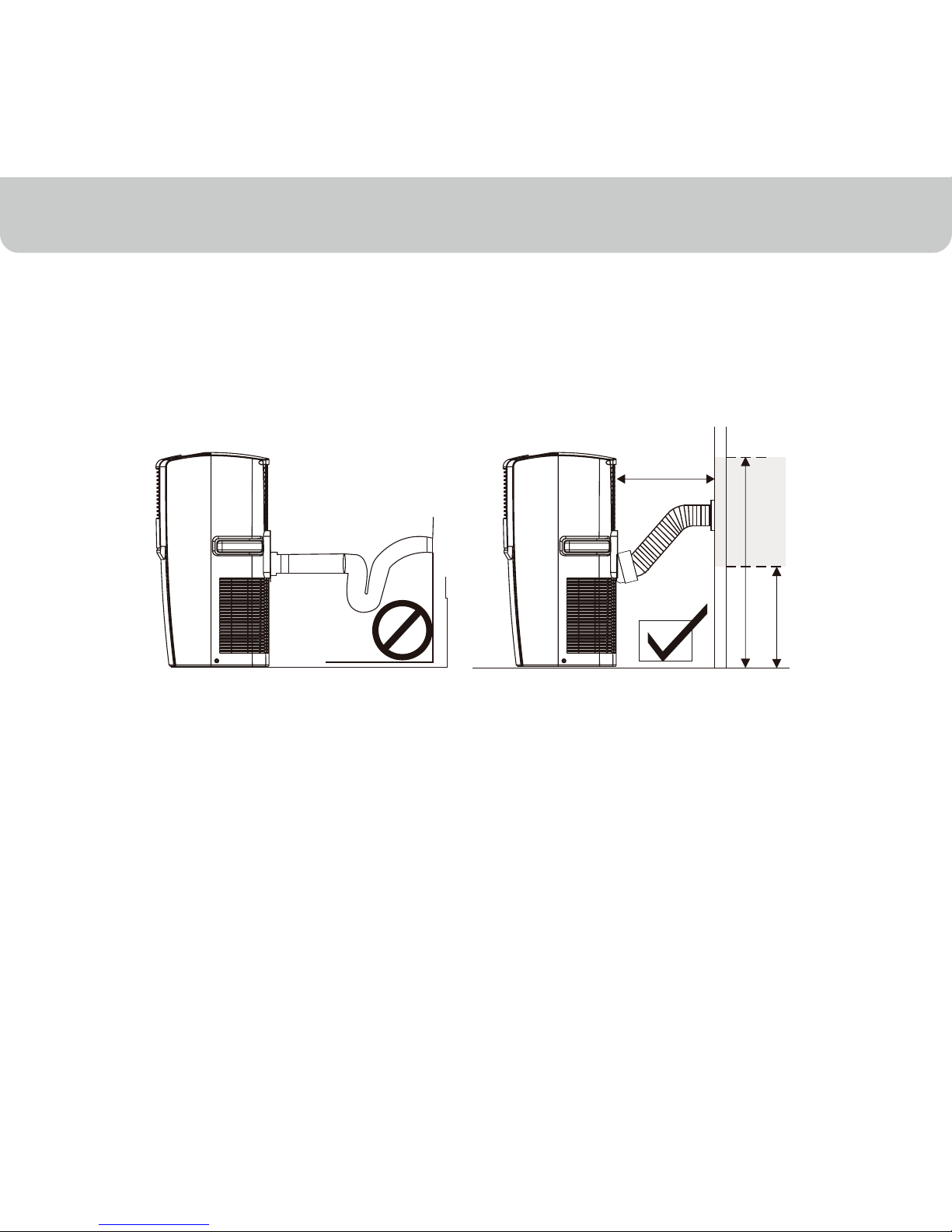

The supplied exhaust hose can be extended from 12 inches (1 foot) to 47 inches
(3.9 feet).
Do not bend (to the extent shown below) the exhaust hose.
A bent hose will block exhaust air and cause the unit to malfunction or shut-off.
The length of the exhaust hose is determined by the product specifications. Do not
replace or lengthen it as this could cause the unit to malfunction.
Make sure the back of the unit is at least 20 inches away from a wall.
Do not place the unit in front of curtains or drapes as this could obstruct the
airflow.
INSTALLATION
Note:
1.
2.
RECOMMENDEDNOT RECOMMENDED
Warning:
•
•
MIN. 14”
20”
MAX. 40”
