Introduction
Thank you for choosing NC8200-4TD switch chassis and NC8200-8C, NC8200-16Q and NC8200-24BC
line cards. This guide is designed to familiarize you with the layout of the switch and describes how
to deploy the switch in your network.
Accessories
Grounding Cable x1Power Cord x2 Mounting Bracket x2
M4 Screw x18 M6 Screw x8 M6 Nut x8
Inner Rail x2 Slide Rail x2 Blank Plate x4
NOTE: NC8200-8C, NC8200-16Q and NC8200-24BC line cards have dust plugs delivered
with them. Keep the dust plugs properly and use them to protect idle optical ports.
Hardware Overview
Switch Chassis Front Panel
NC8200-4TD
DescriptionParts
Blank PlateInstall a blank panel to the empty slot to prevent dust from entering the switch.
Blank Plate
Back Panel Ports
USB MGMT
CONSOLE USB CONSOLE
AFM-NC4TD-FB Status AFM-NC4TD-FB Status AFM-NC4TD-FB Status MGMT
MGMT
Status
Func
ID
CONSOLE
NC8200-4TD
PWR1
FAN1 FAN2 FAN3
PWR2
Ports Description
USB
CONSOLE
MGMT An Ethernet management port
A USB management port for software and conguration backup and
oine software upgrade
An RJ45 console port for serial management
USB CONSOLE A Mini-USB B serial port for serial management
AFM-NC4TD-FB Status AFM-NC4TD-FB Status AFM-NC4TD-FB Status MGMT
MGMT
Status
Func
ID
CONSOLE
NC8200-4TD
PWR1
FAN1 FAN2 FAN3
PWR2
Back Panel
Fan Slots
ASSET TAG Grounding Point
Dual Power Supplies
AFM-NC4TD-FB Status AFM-NC4TD-FB Status AFM-NC4TD-FB Status MGMT
MGMT
Status
Func
ID
CONSOLE
NC8200-4TD
PWR1
FAN1 FAN2 FAN3
PWR2
Back Panel Button
Button Description
FuncReserved function button
Func
AFM-NC4TD-FB Status AFM-NC4TD-FB Status AFM-NC4TD-FB Status MGMT
MGMT
Status
Func
ID
CONSOLE
NC8200-4TD
PWR1
FAN1 FAN2 FAN3
PWR2
Fan Status MGMT ID
Status
Back Panel LEDs
Power Supply Status
LEDs DescriptionStatus
Status
Solid Red
O
O
Solid Green
Solid Yellow
Blinking Green
1. One of the power supply modules or fan modules fails.
2. Only one fan is in the position.
3. The internaltemperature exceeds the threshold,and the
switching service resets.
The system is powered o.
1. The temperature exceeds the threshold.
2. Only two fans are in the position.
3. One of the dual power supplies is not connected with AC
power cord.
The fan is powered o.
The system is operational.
The systemis initializing.
Fan Status Solid Green
Solid Red
The fan is operational.
The fan fails or stops.
NC8200-16Q
Status 1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F
QSFP+
Line Cards Front Panel Ports
NC8200-8C
NC8200-16Q
Ports Description
QSFP+ QSFP+ ports for 40G connection
LEDs DescriptionStatus
O
O
O
Power
Supply Status
Solid Green
There is no power input or the power supplyfails.
Solid Red An error occurs, e.g., overcurrent, overvoltage or fan fault.
Solid Yellow The AC power in redundancy is plugged out.
An alarm is generated but the power module keeps working.
The alarm may be caused by high power, high current, high
temperature, or low fan rotation speed.
Blinking Red
The power inputis normal.
ID
MGMT
Solid Blue
Device location is disabled.
The port is not connected.
Green The port is connected at 1000Mbps.
Yellow The port is connected at 10/100Mbps.
The portis transmitting or receiving data.Blinking
Device location is enabled.
Ports Description
QSFP28QSFP28 ports for 40/100G connection
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
NC8200-8C
1F
2F
3F
4F
5F
6F
7F
8F
Status
QSFP28
NC8200-24BC
Ports Description
SFP28SFP28 ports for 10/25G connection
QSFP28QSFP28 ports for 40/100G connection
SFP28
Status 1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F1 2 3 4
25F
26F
NC8200-24BC
QSFP28
NC8200-16Q
Status 1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
NC8200-8C
1F
2F
3F
4F
5F
6F
7F
8F
Status
Status 1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F1 2 3 4
25F
26F
NC8200-24BC
Status QSFP28
QSFP28
QSFP+Status
SFP28

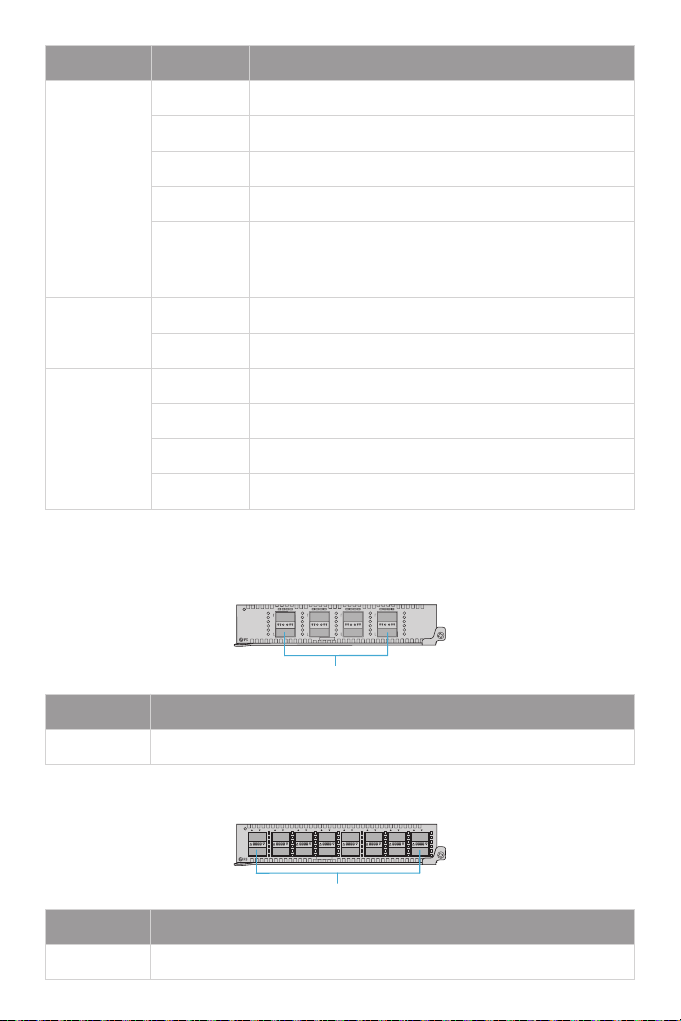

Front Panel LEDs
NC8200-8C
NC8200-16Q
NC8200-24BC
Status QSFP28
Status
QSFP+
Solid Red
Solid Green
Solid Yellow
Blinking Green
The line card fails or resets.
The temperature exceeds the threshold.
The line card is operational.
Solid Green
Blinking Green
The QSFP+ port is NOTconnected.O
O
The QSFP+ port is transmitting or receiving data at 40G.
The QSFP+ port isconnected at40G.
O
QSFP28
(4*10G/4*25G) Solid Green
Blinking Green
The QSFP28 port is NOTconnected.
The QSFP28 port is transmitting or receiving data at 10/25G.
The QSFP28 portis connected at 10/25G.
The line card is powered o.
The line cardis initializing.
O
QSFP28 Solid Green
Blinking Green
The QSFP28 port is NOTconnected.
The QSFP28 port is transmitting or receiving data at 40/100G.
The QSFP28 portis connected at 40/100G.
NOTE: When the 100G interface of the module is split into four 10G or 25G interfaces, the
four indicators represent the status of the split four ports. Otherwise, only the rst of the
four lights will light up.
SFP28 Solid Green
Blinking Green
The SFP28 port is NOT connected.O
The SFP28 port is connected at 10/25G.
The SFP28 port is transmitting or receiving data at 10/25G.
LEDs DescriptionStatus
Before you begin the installation, make sure that you have the following:
Site Environment:
Do not operate it in an area that exceeds an ambient temperature of 40°C.
Installation Requirements
Phillips screwdriver.
Standard-sized, 19" wide rack with a minimum of 2U height available.
Category 5e or higher RJ45 Ethernet cables, ber optical cables and console cable for connecting
network devices.
Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water, heavy dew, and humidity.
The installation site must be well ventilated. Ensure that there is adequate airow around the
switch.
The switch should be installed at least 2U (88.9mm) away from devices to its sides.
Be sure that the switch is level and stable to avoid any hazardous conditions.
Ensure rack and working platforms are well earthed.

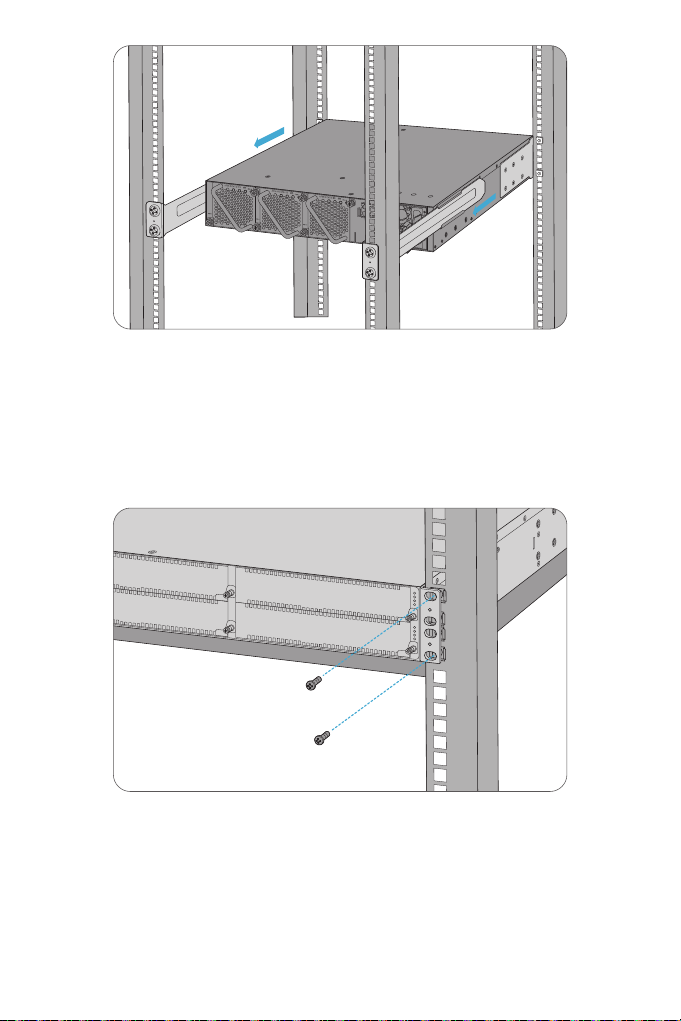

1. Secure the mounting brackets and inner rails to the two sides of the switch chassis with eighteen
M4 screws.
2. Attach the slide rails to the rack using four M6 screws and nuts.
Rack Mounting
Mounting the Switch
3. Align inner rails with the front of the slide rails. Slide the inner rails into the slide rails, keeping the
pressure even on both sides.
4. Attach the switch to the rack using four M6 screws and nuts.
