FS N5860 Series Manuel utilisateur

L3 DATA CENTER SWITCHES

N5860 and N8560 Series 10G/25G/100G Switches

Quick Start Guide V1.0

Status

N8560-64C

Link

MGMT

CONSOLE

ACT

1F 2F 5F 6F 9F 10F13F14F17F18F21F22F25F26F29F30F33F34F37F38F41F42F45F46F49F50F53F54F57F58F61F62F

3F 4F 7F 8F 11F12F15F16F19F20F23F24F27F28F31F32F35F36F39F40F43F44F47F48F51F52F55F56F59F60F63F64F

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F14F15F16F17F18F19F20F 21F22F23F24F25F26F27F28F 29F30F31F 32F33F 34F35F 36F37F 38F 39F40F41F 42F 43F 44F 45F46F 47F 48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

N8560-48BC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F25F26F27F28F29F30F31F 32F33F34F35F 36F 37F38F39F40F41F42F43F44F45F46F 47F48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

N5860-48SC

Introduction

Thank you for choosing N5860 and N8560 Series 10G/25G/100G Switches. This guide is designed to

familiarize you with the layout of the switch and describes how to deploy the switch in your network.

Accessories

Grounding Cable x1Power Cord x2 Mounting Bracket x2 M4 Screw x14

M6 Screw x8 M6 Nut x8 Inner Rail x2Slide Rail x2

N5860-48SC/N8560-48BC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F25F26F27F28F29F30F31F32F33F34F35F36F37F38F39F40F41F42F43F44F45F46F47F48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

MGMT CONSOLE

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F25F26F27F28F29F30F31F32F

SYS PSU FAN

Link ACT

ASSETTAG

N8560-32C

N5860-48SC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F25F26F27F28F29F30F31F32F33F34F35F36F37F38F39F40F41F42F43F44F45F46F47F48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

Status

N8560-64C

Link MGMT

CONSOLE

ACT

1F 2F 5F 6F 9F 10F13F14F17F18F21F22F25F26F29F30F33F34F37F38F41F42F45F46F49F50F53F54F57F58F61F62F

3F 4F 7F 8F 11F12F15F16F19F20F23F24F27F28F31F32F35F36F39F40F43F44F47F48F51F52F55F56F59F60F63F64F

N8560-48BC

N5860-48SC

N8560-64C

N8560-32C

NOTE: The switches have dust plugs delivered with them. Keep the dust plugs properly

and use them to protect idle optical ports.

Grounding Cable x1Power Cord x2 Mounting Bracket x2 M4 Screw x12

M6 Screw x8 M6 Nut x8 Inner Rail x2Slide Rail x2

N8560-32C

Grounding Cable x1Power Cord x2 Mounting Bracket x2 M4 Screw x18

M6 Screw x8 M6 Nut x8 Inner Rail x2Slide Rail x2

N8560-64C

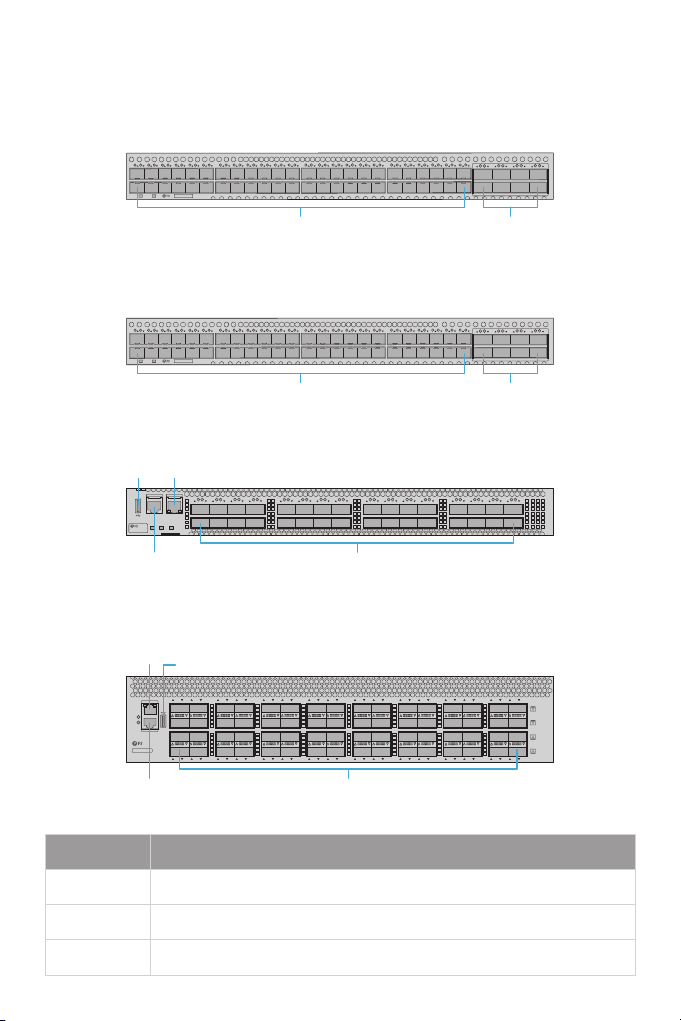

Hardware Overview

Front Panel Ports

Ports Description

SFP+

SFP28

QSFP28

SFP+ ports for 1/10G connection

SFP28 ports for 10/25G connection

QSFP28 ports for 40/100G connection

N5860-48SC

N8560-48BC

N8560-32C

N8560-64C

N5860-48SC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

QSFP28SFP+

N8560-48BC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

QSFP28SFP28

Status

N8560-64C

Link MGMT

CONSOLE

ACT

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

MGMT USB

CONSOLE QSFP28

MGMTUSB

CONSOLE QSFP28

MGMTCONSOLE

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F 16F 17F18F19F20F21F 22F 23F24F25F 26F 27F 28F 29F30F31F32F

SYS PSU FAN

Link ACT

ASSET TAG

N8560-32C

Back Panels

Ports Description

USB

MGMT

CONSOLE

A USB management port for software and conguration backup and oine

software upgrade

An Ethernet management port

An RJ45 console port for serial management

N5860-48SC

N8560-48BC

N8560-32C

N8560-64C

Fan Slots

Power Supply

Grounding Point

Grounding PointASSET TAG

AFM-N48SC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48SC-FB AFM-N48SC-FB AFM-N48SC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

AFM-N48BC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48BC-FB AFM-N48BC-FB AFM-N48BC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

PSU1 FAN1 FAN2 FAN3 FAN4 FAN5 PSU2

AFM-N64C-FB AFM-N64C-FB AFM-N64C-FB

1 2

Status Status Status

PWR1

PWR2

ASSET TAG

Power Supply

Grounding Point

Fan SlotsPower Supply

Power Supply

ASSET TAG

Fan SlotsPower Supply Power Supply

Ports Description

USB

MGMT

CONSOLE

A USB management port for software and conguration backup and oine

software upgrade

An Ethernet management port

An RJ45 console port for serial management

ESDESD port for wearing ESD wrist strap

Back Panel Ports

N5860-48SC

N8560-48BC

N8560-32C

CONSOLE

USB

MGMT

AFM-N48SC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48SC-FB AFM-N48SC-FB AFM-N48SC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

AFM-N48BC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48BC-FB AFM-N48BC-FB AFM-N48BC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

USB

MGMT

Back Panel Button

N5860-48SC

FUNC

AFM-N48SC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48SC-FB AFM-N48SC-FB AFM-N48SC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

PSU1 FAN1 FAN2 FAN3 FAN4 FAN5 PSU2

ESD

Status

N8560-64C

Link MGMT

CONSOLE

ACT

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

Button Description

FUNCReserved function button

Front Panel LEDs

N5860-48SC

N8560-48BC

N5860-48SC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

QSFP28SFP+

Satus/ID

N8560-48BC

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F

100G

49F 50F 51F 52F 53F 54F 55F 56F

Status ID

QSFP28SFP28

Satus/ID

N8560-48BC

AFM-N48BC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48BC-FB AFM-N48BC-FB AFM-N48BC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

FUNC

N8560-64C

Status

QSFP28

Link/ACT

LEDs Status Description

Status

Solid Red

Blinking Green

1. One of the power supply modules or fan modules fails.

The systemis powered o.

The systemis initializing.

Solid Green The system is operational.

Solid Yellow

O

Solid Blue

1. The temperature gets to the warning threshold.

Device location is disabled.

Device location is enabled.

Link/ACT

O

Link Solid Green

ACT Blinking Yellow

The port is not connected.

The port is connected at 10/100/1000Mbps.

The portis transmitting or receiving data.

2. For N8560-64C: Only 2 fans are in the position.

For N5860-48SC and N8560-48BC: Only 3 fans are in the position.

3. One of the dual power supplies is not connected with AC

power cord.

O

2. For N8560-64C: There are less than2 fans.

For N5860-48SC and N8560-48BC: There are less than3 fans.

3. The internal or partial temperature exceeds the warning

working temperature,and the switching service resets.

SFP+

O

Solid Green

Blinking Green

The SFP+ port is NOT connected.

The SFP+ port is connected at 1/10G.

The SFP+ port is transmitting or receiving data at 1/10G.

SFP28

O

Solid Green

Blinking Green

The SFP28 port is NOT connected.

The SFP28 port is connected at 10/25G.

The SFP28 port is transmitting or receiving data at 10/25G.

QSFP28

O

Solid Green

Blinking Green

The QSFP28 port is NOT connected.

The QSFP28 port is connected at 40/100G.

The QSFP28 port is transmitting or receiving data at 40/100G.

N8560-32C

LEDs Status Description

SYS

O

Blinking Green

Solid Red

Solid Green

The systemis powered o.

1. One of the power supply modules or fan modules fails.

2. There are less than4 fans.

3. The internal or partial temperature exceeds the warning

working temperature, and the switching service resets.

The systemis initializing.

The system is operational.

Solid Yellow

Solid Red

1. The temperature exceeds the threshold.

2. One of the fans is not in the position.

3. One of the dual power supplies is not connected with AC

power cord.

The power supply module is in an abnormal state.

PSU Solid Green

Solid Yellow

The power supply module is operational.

One of the dual power supplies is not connected with AC

power cord.

FAN

Solid Green

Solid Red

Solid Yellow

The fan is operational.

1. The fan is in an abnormal state.

2. There are less than 4 fans.

Only 4 fans are in the position.

SYS

QSFP28Link/ACT

FAN

PSU

MGMTCONSOLE

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F11F12F13F14F15F 16F 17F18F19F20F21F 22F 23F24F25F 26F 27F 28F 29F30F31F32F

SYS PSU FAN

Link ACT

ASSET TAG

N8560-32C

Back Panel LEDs

N5860-48SC

N8560-48BC

N8560-32C

Fan Status

Fan Status Status

StatusPower Supply Status Power Supply Status

Power Supply Status

AFM-N48SC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48SC-FB AFM-N48SC-FB AFM-N48SC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

Power Supply Status

Fan Status

LEDs Status Description

QSFP28

O The port is NOT connected.

Solid Green

Blinking Green

The port is connected at 100G.

The port is transmitting or receiving data at 100G.

Solid Yellow

Blinking Yellow

The port is connected at 40G.

The port is transmitting or receiving data at 40G.

Link/ACT

Link O The port is not connected.

Link Solid Green

Link Solid Yellow

The port is connected at 1000Mbps.

The port is connected at 10/100Mbps.

ACT O

ACT Blinking Green

The port is not transmitting or receiving data.

The port is transmitting or receiving data.

Link/ACT

ID Link/ACT

AFM-N48BC-FB

Status Status Status

Status

FUNC

Link ACT

Status

AFM-N48BC-FB AFM-N48BC-FB AFM-N48BC-FB

PWR1

PWR2

1 2 3

MGMT

CONSOLE

PSU1 FAN1 FAN2 FAN3 FAN4 FAN5 PSU2

Power Supply Status Power Supply Status

Autres manuels pour N5860 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels FS Changer

FS NC8200 Series Manuel utilisateur

FS S3900 Series Manuel utilisateur

FS PoE+ Series Manuel utilisateur

FS S3150-8T2FP Manuel utilisateur

FS PoE+ Series Manuel utilisateur

FS S5810 Series Manuel d'utilisation

FS S5860-48SC Manuel d'utilisation

FS S5810 Series Manuel utilisateur

FS S3150-8T2FP Manuel utilisateur

FS S5810 Series Manuel utilisateur

FS S1900-8T Manuel utilisateur

FS S3150-8T2FP Manuel utilisateur

FS S5850-24XMG-U Series Manuel utilisateur

FS IES3110 Series Manuel utilisateur

FS S5850-24S2C-DC Manuel utilisateur

FS Fiberstore S8050-20Q4C Manuel utilisateur

FS IES5100-24FS Manuel utilisateur

FS S5850-24XMG Manuel utilisateur

FS S3700-24T4F Manuel utilisateur

FS S5900-24S4T2Q Feuille d'instructions

FS S1900-8TP Manuel utilisateur

FS S3270 Series Manuel d'utilisation

FS S5850-24S2Q-DC Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
