FS S5300-12S Manuel utilisateur

クイックスタートガイド

Guide de Démarrage Rapide

V1.0

Quick Start Guide

Quick Start Anleitung

ETHERNET SWITCH

S5300-12S

ETHERNET-SWITCH

SWITCH ETHERNET



S5300-12S

CONSOLE

SYS

159

812

PWR

2417

68910 11 12

Introduction

Thank you for choosing the S5300-12S Switch. This guide is designed to familiarize you with the

layout of the switch and describes how to deploy it in your network.

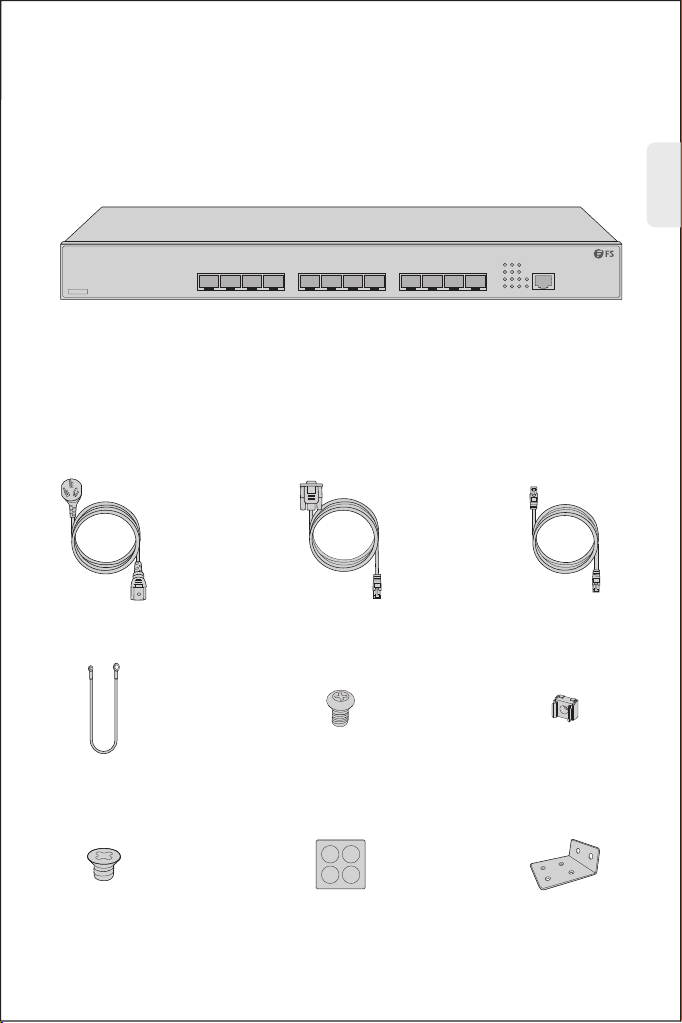

Accessories

Console Cable x1Power Cord x2

Grounding Cable x1

Ethernet Cable x1

M3 Screw x8

S5300-12S

Rubber Pad x4 Mounting Bracket x2

M6 Cage Nut x4M6 Screw x4

S5300-12S 1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

Hardware Overview

Front Panel LEDs

Front Panel Ports

LEDs State Description

SYS

PWR

Link/ACT

The system is operating normally.

The device is powered on.

The port is sending and receiving trac.

SFP+

NOTE: The accessories may vary from illustration, please prevail in kind.

S5300-12S 1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

S5300-12S 1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

SYS

Link/ACT

PWR

CONSOLE

Blinking Green

Solid Green

Blinking

NOTE: This power cord cannot be used with other devices, and other power cords should

not be used with this device.

Installation Requirements

Before the installation, make sure that you have the following conditions

ready:

Phillips screwdriver, related bolts and ESD tools.

Standard-sized, 19" wide rack with a minimum of 1U height available.

Fiber optic cables and ber transceivers.

Site Environment

Ensure that the operating temperature is maintained at 0°C~45°C.

Ensure that the operating humidity is maintained at 5%~95%.

The installation site must be free from leaking, dripping water, heavy dew, or humidity.

Keep the installation site dust-free.

The installation site must be well-ventilated. Ensure that there is adequate airow around the

switch.

Ensure that the switch is level and stable to avoid any hazardous conditions.

Ensure that the rack and the working platform are well-earthed.

Do not disassemble the enclosure of the device.

Cut o the power supply before cleaning the device. Do not use any liquid to wipe the device.

Keep the device away from electric lines of force, lamps and power grids.

Ensure that the rack and the working platform are rm enough to support the weight of a switch

and its accessories for installation.

Ports Description

SFP＋

CONSOLE

SFP+ ports for 10G connection

An RJ45 console port for serial management

S5300-12S

2 3 41 65

Mounting the Switch

1. Attach four rubber pads to the bottom of the switch.

2. Place the switch on a stable desk.

Desk Mounting

NOTE: Do not place heavy objects on the switch.

S5300-12S

1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

IES5100-24FS

1. Secure the mounting brackets to the two sides of the switch with screws.

Rack Mounting

1 5 9

4 8 12

PWR

SYS

CONSOLE

7 8 10 11 129

S5300-12S

1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

2. Install the switch on the rack with screws and cage nuts.

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the switch back panel with the screw and

washers.

Grounding the Switch

CAUTION: The earth connection must not be removed unless all supply connections have

been disconnected.

POWER

Input: 100-240Vac

Freq:50/60Hz

1. Plug the compatible SFP+ transceiver into the SFP+ port.

2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to

another ber device.

1. Insert the RJ45 connector into the RJ45 console port of the switch.

2. Connect the DB9 female connector of the console cable to the serial port on the computer.

Connecting the SFP+ Ports

S5300-12S

1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

Connecting the Console Port

S5300-12S

1 5 9

4 8 12

PWR

SYS

CONSOLE

2 3 41 6 7 85 10 11 129

WARNING: Do not install the power cord while the power is on.

1. Plug the AC power cord into the power port on the back panel of the switch.

2. Connect the other end of the power cord to an AC power source.

Connecting the Power

Conﬁguring the Switch

Step 1: Connect a computer to an Ethernet port of the switch using the network cable.

Step 2: Set the IP address of the computer to 192.168.1.x ("x" is any number from 2 to 254). Set the

subnet mask of the computer to 255.255.255.0.

Conguring the Switch Using the Web-Based Interface

POWER

Input: 100-240Vac

Freq:50/60Hz

Step 3: Open a web browser, type http://192.168.1.1 and enter the default username and password,

admin/admin.

OK Cancel

General

IP address:

Subnet mask :

Default g a te w a y :

Yo u c an get IP settings assigneda u t omatically i f y o u r n e t w o r k

supports this capabilit y . Othe r wis e , y o u need to a s k y our net w o r k

administrator for thea ppropriate IP settings .

In ter net Protoco l Version 4 ( TC P/IPv4) Proper ties

Use the foll owing IP address:

Obtainan IP addres s automatically

Preferred DNS server:

Alternate DNS server:

Validate settings upon exit Advanced...

. . . 21168192

0255

255255

. . .

ObtainDNS ser ver addre ss automatically

Use the foll owing DNS s erv er addr esses:

Step 4: Click Login to display the web-based conguration page.

Username

Password

admin

*****

Conguring the Switch Using the Console Port

Step 1: Connect a computer to the console port of the switch with the console cable.

Step 2: Start the terminal simulation software, such as HyperTerminal on the computer.

Step 3: Set the parameters of the HyperTerminal: Baud rate to 115200, Data bits to 8, Parity to None,

and Stop bits to 1.

Step 4: After setting the parameters, click Connect to enter.

Troubleshooting

The Power System Is Not Working

Quick Connect

Protocol: Serial

Flow Control

DTR/DSR

RTS/CTS

XON/XOFF

Save sessionShow quick connect on startup

The port may be manually entered or selected from the list.

Open in a tab

Cancel

COM3

115200

None

Port:

Baud rate:

Data bits:

Parity:

Stop bits:

Name of pipe:

Connect

1. Check if the switch power cable is connected correctly.

2. Check if the power supply of the switch matches the required power supply.
