FS S1900-5T Manuel utilisateur
V1.1
Quick Start Guide
Quick-Start Anleitung
Guide de Démarrage Rapide
ETHERNET UNMANAGED SWITCH
SWITCH ETHERNET NON GÉRÉ
ETHERNET UNMANAGED SWITCH
S1900-5T
1PWR 2 3 4 5
S1900-5T
Introduction
S1900-5T
Thank you for choosing S1900-5T switch. This guide is designed to
familiarize you with the layout of the switch and describes how to
deploy the switch in your network.
1PWR 2 3 4 5
S1900-5T
Accessories
Grounding Cable x1
Expansion Tube x2
(Inner diameter: 2.5mm,
length: 25mm)
Power Adapter x1
Rubber Pad x4
Grounding Screw x1
M3 Screw x2
(M3*25mm)
1EN
Front Panel LEDs
Back Panel Ports
Hardware Overview
PWR RJ45
Ports Description
RJ45 10/100/1000BASE-T ports for Ethernet connection
1PWR 2 3 4 5
S1900-5T
LEDs Status Description
PWR
RJ45
Green Switch is powered on.
Power supply is absent or abnormal.
10/100/1000BASE-T port is linked.
The RJ45 port is transmitting or receiving packets
at 10/100/1000Mbps.
O
Green
O Port is not linked.
Blinking Green
54321
RJ45
2 EN
54321
Back Panel
Power Supply
Site Environment:
Do not operate it in an area that exceeds an ambient
temperature of 45°C.
The installation site must be free from leaking or dripping
water, heavy dew, and humidity.
Ensure wall and working platforms are well earthed.
The installation site must be well ventilated. Ensure that there is
adequate air ow around the switch.
Be sure that the switch is level and stable to avoid any
hazardous conditions.
Do not install the equipment in a dusty environment.
Installation Requirements
Before you begin the installation, make sure that you
have the following:
Desktop mounting: ESD bracelet (or ESD gloves)
Wall mounting: ESD bracelet (or ESD gloves), ladder, marker,
hammer drill, rubber hammer, screwdriver
3EN
1. Attach four rubber pads to the bottom.
2. Place the chassis on a desk.
1. Drill two suitable holes, press two expansion tubes into the two
holes respectively.
Mounting the Switch
Desk Mounting
Wall Mounting
1PWR 2 3 4 5
S1900-5T
4 EN
2. Insert the screw into the expansion tube respectively.
3. Hang the switch on the two screws.
5EN
1PWR 2 3 4 5
S1900-5T

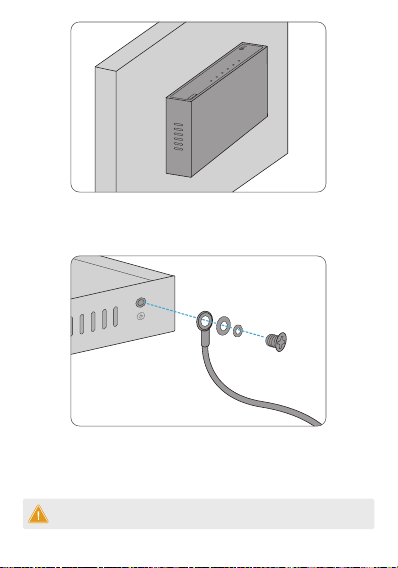

4. Installation is completed.
1. Connect one end of the grounding cable to a proper earth ground,
such as the wall in which the switch is mounted.
2. Secure the grounding lug to the grounding point on the left side of
the switch with the washer and screws.
Grounding the Switch
CAUTION: The earth connection must not be removed unless all supply
connections have been disconnected.
6 EN
54321
1. Plug the DC power cord into the power port on the back of the
switch.
2. Connect the other end of the power adapter to an DC power source.
Connecting the Power
WARNING: Do not install power adapter while the power is on.
7EN
54321
Connecting the RJ45 Ports
1. Connect an Ethernet cable to the RJ45 port of a computer, printer,
network storage, or other network devices.
2. Connect the other end of the Ethernet cable to the RJ45 port of the
switch.
8 EN
Support and Other Resources
Download https://www.fs.com/download.html
Help Center https://www.fs.com/service/help_center.html
Contact Us https://www.fs.com/contact_us.html
Product Warranty
FS ensures our customers that any damage or faulty items due to our
workmanship, we will oer a free return within 30 Days from the day
you receive your goods. This excludes any custom made items or
tailored solutions.
Warranty: S1900-5T Switch enjoys 2 years limited warranty
against defect in materials or workmanship. For more details
about warranty, please check at
https://www.fs.com/policies/warranty.html
2
Return: If you want to return item(s), information on how to
return can be found at
https://www.fs.com/policies/day_return_policy.html
