Preface

Dear consumers,

Thank you for choosing our products. For your best experience,

please read the instructions before operating the Printer. Our 3D team

will always be ready to provide you the best service. Please contact us

via the phone number or e-mail address provided on the last page of the

instruction when you encounter any issue with the Printer.

For a better experience in using our product, you may learn how to

use the Printer in the following ways:

1. View the accompanied instructions and videos in the storage card.

2. Visit our official website www.creality.com You will find relevant

software/hardware information, contact details and operation and

maintenance instructions on the website.

WARNING

Introduction

Use the 3D Printer

Load Filament

Level the Platform

Start Printing

WARNING

1. Do not use the printer any way other than described herein in order to avoid personal injury or property damage.

2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust

environment.

3. Please place your printer under a stable environment in order to achieve hight print quality.

4. Before using experimental or exotic filaments, we suggest using standard filaments such as ABS or PLA to calibrate and test the

machine.

5. Do not use any other power cable except the one supplied. For your safety, you must use a grounded three-prong power outlet.

6. Do not touch the nozzle or printing surface during operation as they may be hot. Keep hands away from machine while in use to avoid

burns or other personal injuries.

7. Do not wear gloves or loose clothing when operating the printer. Such cloths may become tangled in the printers moving parts leading

to printer damage, burns, or personal injuries.

8. When cleaning debris from the printer hot end, please use the provided tools. Do not touch the nozzle when heated. This maybe cause

personal injury.

9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove dust, adhered printing

plastics or any other material off the frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to clean the print surface before

every print for consistent results.

10. Children under 10 years of age should not use the printer without supervision.

11. Users shall abide by the laws and regulations of the country and region where the equipment is located (used), adhere to professional

and ethical standards, and pay attention to their safety obligations. In all cases, the use of our products or equipment for any illegal

purposes is strictly prohibited. The company is not liable for any legal responsibility arising from any violation.

Introduction

13 Antivibration feet

14 Filament Holder

15 Y-axis motor

16 Y-axis limit switch

11 Storage card＆USB

12 Z-axis motor

7Leveling nut

8Hot end

9X-axis limit switch

10 X-axis motor

1BL Touch

2broken filament detecting

device

3Hot Bed

4Main control box

5Power switch

6Touch screen

General List



F:Z-axis Frame



D:2040 Aluminum







Tool List

 Image Name Qty

Wrench &

 1set





1set

Spatula

Pliers



Nozzle Cleaner

Power Cable



Spare Parts 1set

USB

A:Top Frame

M5X25

8pcs

2040 Aluminum

proﬁle(4Pcs)

Bottom Frame

Ready:

Step 1. Keep the front of the Bottom Frame facing you.

Step 2. Take one of the Aluminum frame pieces and place it in the corner of the bottom frame , On top of the frame, and lined up

with the corner. Notice the hole at the top of piece facing left and right, in relation to the front of the printer. Use 2 M5x25

screws and washers to secure part to the bottom frame.

Step 3. Install the remaining 2 aluminum proﬁle in the same way as Step 3.

Note: Please note that

the hole at the top of piece

facing left and right, in

relation to the front of the

printer.

Frame Assembly Pt. 1

Note:

1. Tighten the four screws on the

top, then tight the side screws.

2.Facing your top-side Y-axis

passive block, you can adjust it to

adjust the timing belt tightness

Front

8pcs

M5X25

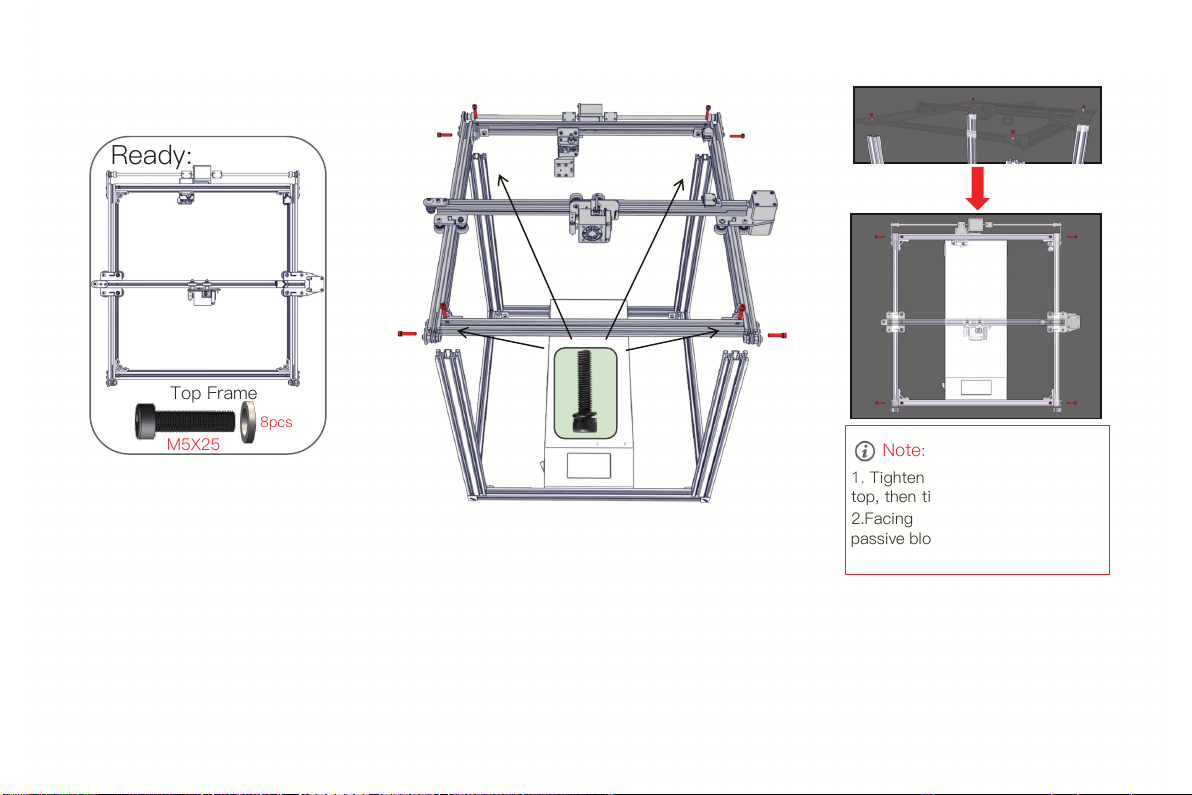

Ready:

Top Frame

Step 1. Make sure the front of the bottom frame is facing you .

Step 2. 1) Place the Top frame on top of all four aluminum frames.

2) Line up the pre-drilled screw holes on tops of aluminum frame with the holes on top of Top frame and tighten in

place with an M5x25 screw and washer at each corner.

3) After 4 screws on top are tightened, use 4 M5x25 screws and washers to fasten corner brackets in each corner of Top

frames, into corresponding holes on outside edge of aluminum frame

Frame Assembly Pt. 2

Behind

8pcs

M5X30

Lift Z-axis Frame Right Z-axis Frame

Ready:

Step 1. Make sure the front of the boom frame is facing you 

Step 2. Place ouble Z-axis frame insie of previously assemblefram The ouble Z-axis frame is mounteon the leanright 2040 aluminum

pro of the top frame anmust be alignewith the aluminum pro Making sure the motor is on the boom, aach the frame to

the lower anupper assembly with a M5x30 screw anwasher at each corn The upper anlower assembly extrusions will have

correspoing pre- holes for these screw

Step 3.

Aer the installan of the ouble Z-axis frame is complete, please check if your Y-axis can move smoothlyIf the movement is

hiereanthe aluminum pro is rubbe, please ajust the eccentric nut anreassemble your Z-axis fram

Frame Assembly Pt. 3

8pcs

M4X10 M5X8

2pcs

M5 T-nut

Step 1. Make sure the front of the base(bis facing youPlace the hot beon the support plate of the ouble Z -axis frame analign with the

pro holes on it

Step 2. Using 8 M4x10 screws, connect the hot beto the support plate on the Z-axis fram Make sure the hot beis t anall six

screws are securely fastene

Step 3. Subsequently, pass the M5x8 socket heacap screw through the threaehole on the of the metal plate ent bracket , then pass

the M5 T-nut angently turn the M5 T-nutDo not htenRotate the M5 T-nut that has been installeon the metal plate ent

bracket into a posin parallel to the groove of the aluminum pro aninsert it into the aluminum pro The M5 T-nut below the

metal plate ent bracket is parallel to the groove of the 2040 aluminum pro anis inserteinto itThe upper M5 T-nut on the

metal plate ent bracket is parallel to the 2040 aluminum pro aninlai, then hten the screw with a n Allen key anhten

the M5 T-nut to a posin perpenicular to the groove of the aluminum pro

Hot Bed

Filament Holder

Front

Frame Assembly Pt. 4 1

Select the correct input voltage to

match your local mains (230V or 115V

Bed Cable Connection

Nozzle Cable Connection

BL Touch Connection

Broken filament detecting device Connection

5Pin

3Pin

Cable Connection
