Boya BY-PM300 Manuel utilisateur
USB MICROPHONE
MODEL: BY-PM300
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch • Manuel d'utilisation
2
English
3 –14
Čeština
15 –26
Slovenčina
27 –38
Magyar
39 –50
Deutsch
51 –61
Français
62 –73
3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
4
Instruction Manual
Thanks for purchasing BOYA!
BY-PM300 is a desktop USB microphone, compatible with most Android phones and
Windows/Mac computers. With excellent cardioid pickup pattern, BY-PM300 is
focused on picking up sound in front of the of the microphone and effectively reduces
unwanted background noise. It is ideal for home-studio recording, podcasting, vocal
performance, and more.
BY-PM300 features gain control, headphone volume control and mute function. The
3.5mm headphone jack enables real-time monitoring. Detachable desktop stand
allow you to adjust the microphone at the desired angle.
Package contents
BY-PM300 Microphone
Type-C to USB-A Cable
Type-C to Type-C Cable
Cautions
1. If you do not intend to use the microphone for a long period of time, remove
the USB Cable.
2. Do not touch the microphone while you are recording, because this will cause noise
to be recorded.
3. Do not let the microphone close to high-voltage equipment or to devices that emit
strong electromagnetic fields, otherwise, it may cause the noise to be recorded.
4. Do not use or leave the microphone in hot, humid places.
5
Product structure
1. Power Indicator
Mode
Indicator
Power on
Solid blue light
Power off
Light off
Mute on
Solid red light
2. Gain control
Turn the knob to adjust gains for microphone input level
3. Headphone volume/mute control
Turn the knob to adjust the headphone volume
Short press the knob to mute/unmute the microphone
4. Locking knob for angle adjustment
5. Desktop stand
6. Type-C audio output
7. 3.5 mm headphone output
8. Locking knob for stand
9. Type-C to Type-C audio output cable
10. Type-C to USB-A audio output cable
6

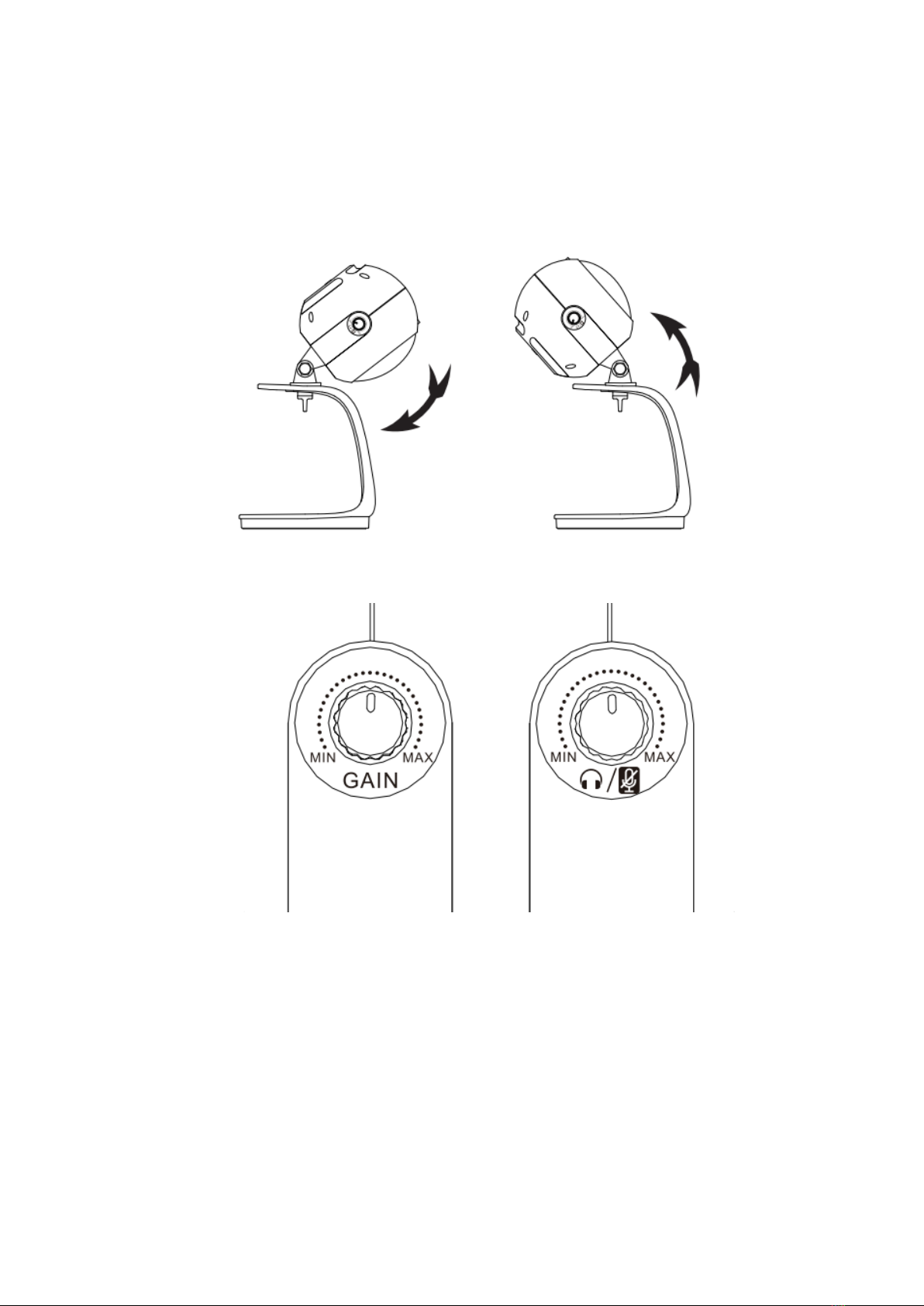

How to use
1. Loosen the locking knob, adjust the microphone at the desired angle, then tighten
the knob.
2. Turn the gain control and the volume control knobs to 50 % level position before
recording.
Note: 50 % is recommended. Please turn it up/down according to your needs.
3. Connect the microphone to a computer with the supplied cable.
4. Connect your headphone to the 3.5 mm headphone jack for real-time monitoring.
7

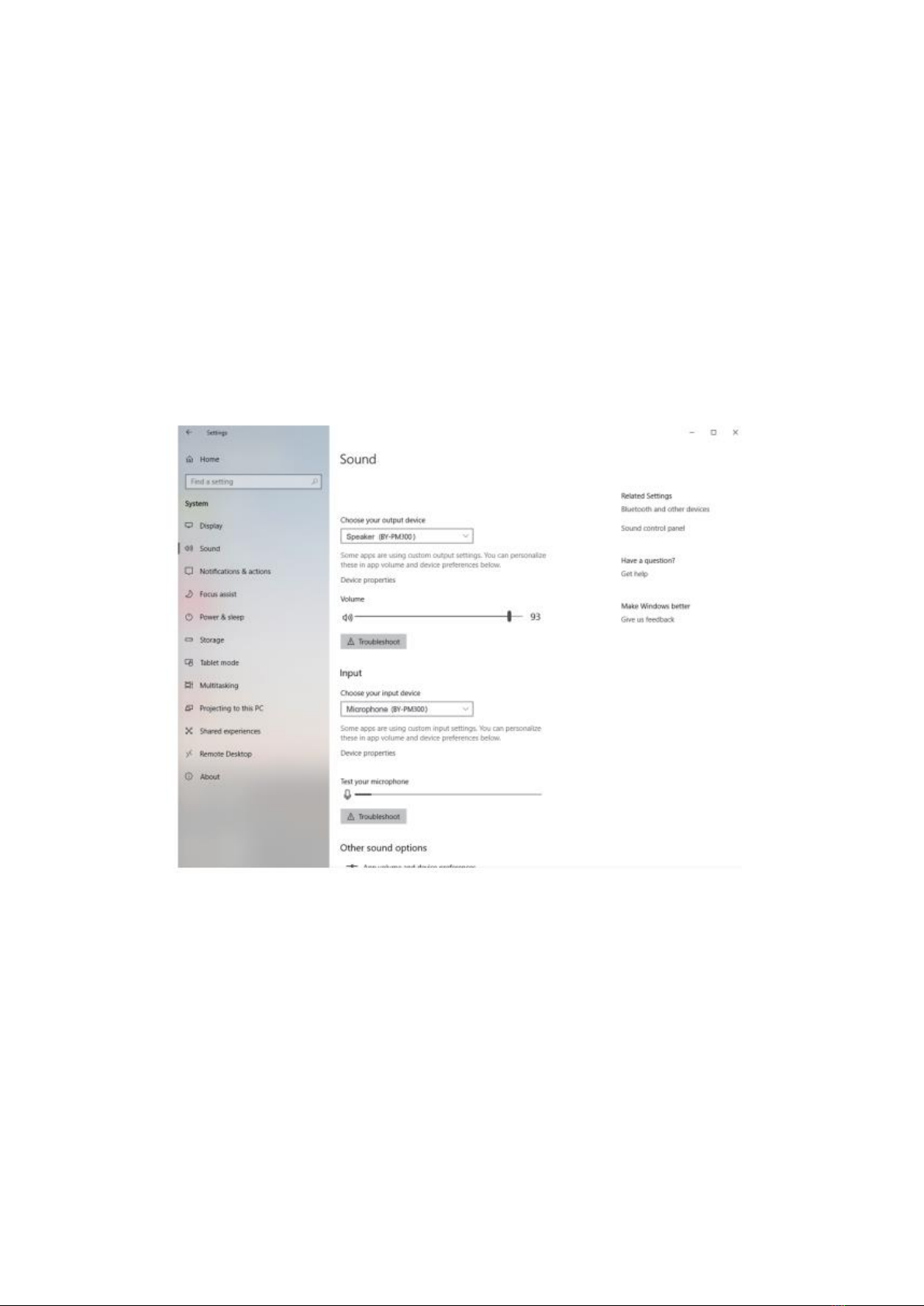

Setup for Windows 10
1. Connect the microphone to your computer using the supplied USB-A cable.
2. Go to “Setting”, choose ”Sound” as shown.
3. Select “Speaker BY-MP300” as output device.
4. Select “Microphone BY-PM300” as Input device.
8
Setup for Windows 7
1. Connect the microphone to your
computer using the supplied USB-A
cable.
2. From the “Setting Menu”, select the
“Control Panel”.
3. Go to “Control Panel”, select “Hardware
and Sound”.
4. Select “Sound”
5. Select “Speaker BY-PM300” as the default device
in the “Sound”, under “Playback” menu
9
6. Select “Microphone BY-PM300” as the
default device in the “Sound”, under
“Recording” menu.
Setup for Apple System
1. Connect the microphone to your computer using the supplied cable.
2. Go to Apple Icon -›System Preferences -› Sound Icon.
10
3. Select “BY-PM300” under “Input” tab.
4. Select “BY-PM300” under “Output” tab.
Features
High-quality desktop USB microphone.
Ideal for home-studio recording, podcasting, vocal performance, etc.
Compatible with most Android phones, Windows/Mac computers.
Gain control, headphone volume control and mute function.
3.5 mm headphone jack for real-time monitoring.
Excellent cardioid polar pattern.
Durable detachable microphone desktop stand.
