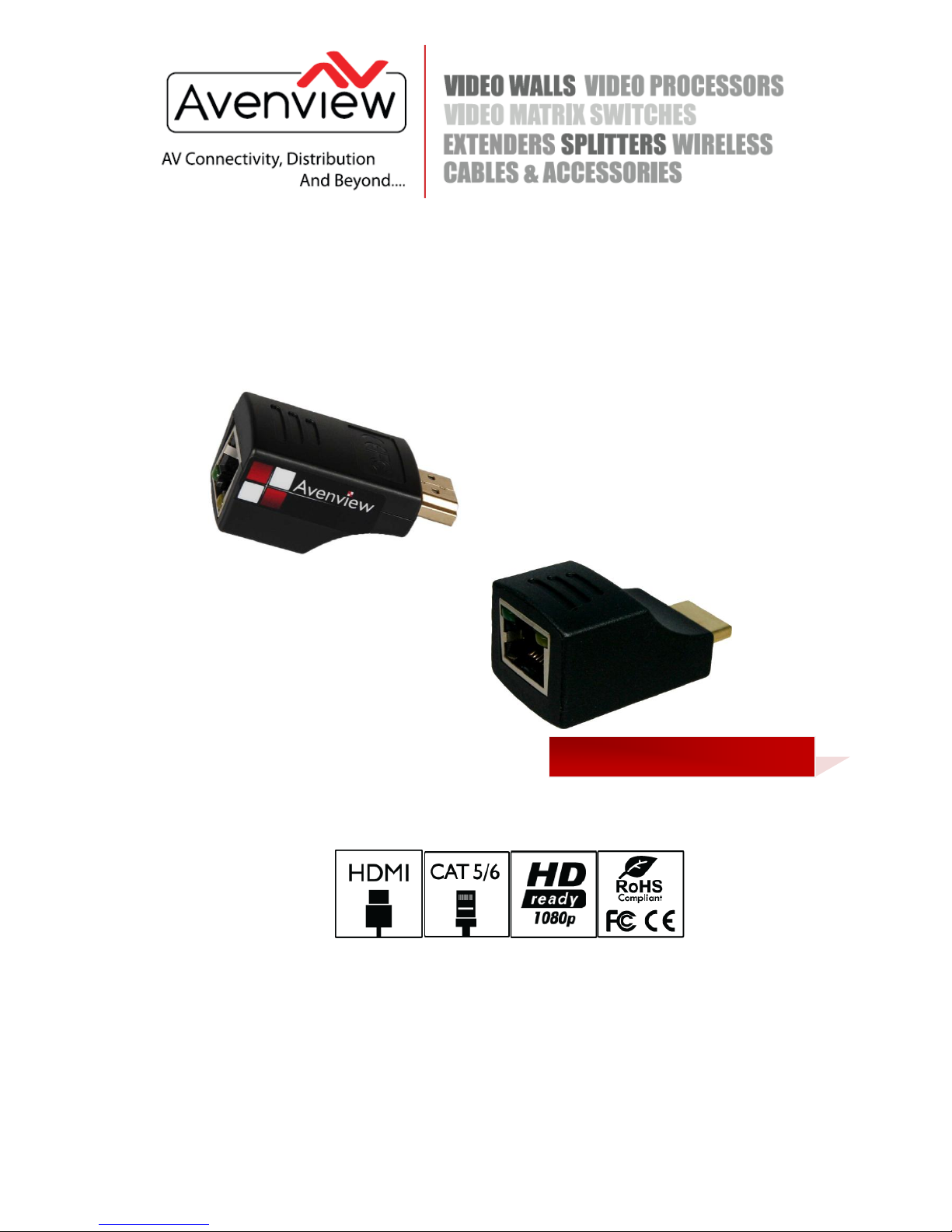

Avenview HDM-C5-R-M Manuel utilisateur

HDMI Extender over Single CAT5

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes

no representations or warranties with respect to the accuracy or completeness of the contents of this publication and

reserves the right to make changes to specifications and product descriptions at any time without notice. No license,

whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set

forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any

express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: HDM-C5-R-M

Page|2

www.avenview.com

TABLE OF CONTENTS

SECTION 1: GETTING STARTED ........................................................................................................ 3

1.1 IMPORTANT SAFEGUARDS................................................................................................. 3

1.2 SAFETY INSTRUCTIONS......................................................................................................3

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)...........4

2. INTRODUCTION .................................................................................................................5

2.1 PACKAGE CONTENTS ........................................................................................................6

2.2 BEFORE INSTALLATION .....................................................................................................6

2.3 APPLICATION DIAGRAM..................................................................................................... 7

3. PANEL DESCRIPTION..........................................................................................................8

4. INSTALLATION (HDM-C5-R-M)..........................................................................................9

5. EXAMPLE INSTALLATION FOR EXTENDED DISPLAY (HDM-C5XD-S)......................... 9

6. GENERAL TROUBLESHOOTING......................................................................................10

SECTION 2: SPECIFICATIONS...........................................................................................................11

Page|3

www.avenview.com

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview HDM-C5-R-M, HDMI Passive Extender over Single CAT5 Mini has been tested for

conformance to safety regulations and requirements, and has been certified for international use.

However, like all electronic equipment’s, the HDM-C5-R-M should be used with care. Read the following

safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

Page|4

www.avenview.com

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

Warning symbols

Description

ONLY USE THE PROVIDED POWER CABLE

OR POWER ADAPTER SUPPLIED. DO NOT

TAMPER WITH THE ELECTRICAL PARTS.

THIS MAY RESULT IN ELECTRICAL SHOCK

OR BURN.

DO NOT TAMPER WITH THE UNIT.

DOING SO WILL VOID THE WARRANTY

AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE

TO STATIC. PLEASE ENSURE IF RACK

MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED

ENVIROMENT.

Page|5

www.avenview.com

2. INTRODUCTION

The HDM-C5-R-M, HDMI Single CAT5 Passive Extender Mini extends your HDMI transmission distance

up to 15m (65ft) at 1280 x 720 and 12m (40 ft) at 1920x1080 resolutions. With HDM-C5-R-M, users can

transmit high quality digital video applications through one cost effective CAT-5e LAN cables to the

remote monitor or projector, instead of using short and expensive HDMI cables. The VIDEO SOURCE will

continue to send the digital video even when the monitor is not connected. The user can then disconnects

the monitor, place it in a remote location and reconnect it without rebooting the operating system.

The HDM-C5-R-M includes ONE unit: A receiving unit. The powered transmitting unit is connected to

your HDMI Source and the passive receiving unit is connected to the monitor. While successfully

connected, the two LED lights on the RJ-45 connector will blink. With compact size, HDM-C5-R-M is the

most cost effective choice for bringing your impressive digital video to the remote display.

-Extends the transmission length from the sources up to up to 15m (65ft) at 1280 x 720 and 12m

(40 ft) at 1920x1080 resolutions. Units can used as Transmitter or Receiver

-Direct CAT5/6 plug-in at any Avenview Powered Transmitter Out and IN Receiver

Page|6

www.avenview.com

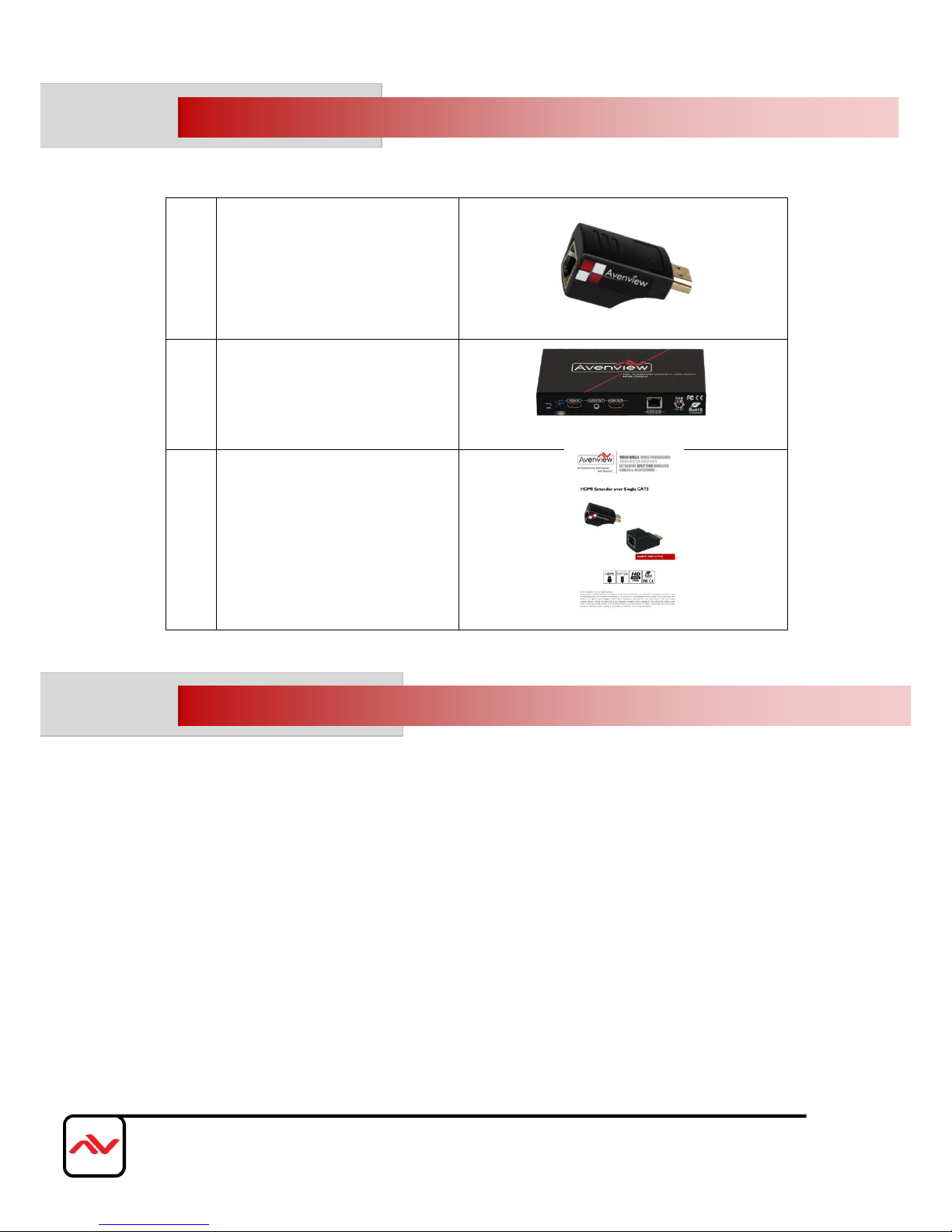

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

-HDM-C5-R-M

-HDM-C5-XD-S

SOLD SEPERATELY

User’s Manual

2.2 BEFORE INSTALLATION

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C)

or high humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then

it may cause a fire.

Do not twist or pull by force ends of the UTP cable. It can cause malfunction.

Page|7

www.avenview.com

2.3 APPLICATION DIAGRAM

Page|8

www.avenview.com

3. PANEL DESCRIPTION

INPUT PANEL (Receiver, HDM-C5-R-M)

1. HDM OUTPUT (MALE Connector)

2. CAT-5/6 OUT from to powered TX

INPUT PANEL (Transmitter, HDM-C5XD-S) Rear

3. Input signal format indicator

( Bright: HDMI Single )

(Dim: DVI Signal)

4. DIP Switch (See Section 3.1)

5. HDMI IN: Connect HDMI

source

6. Audio Out: Plug in Local Speaker

7. HDMI OUT: HDMI Local

Output

8. HDMI Signal Out: RJ45 connection to

connect to HDM-C5XD-SR,

HDM-C5-3X-R or HDM-C5-R-M

9. Power Connector: 5V 4A DC

Page|9

www.avenview.com

4. INSTALLATION (HDM-C5-R-M)

To setup Avenview HDM-C5-R-M please follow these steps for connecting to a device:

1. Turn off all devices including monitors / TV.

2. Connect a CAT 5/6 UTP/STP cable between the two HDM-C5-R-M & HDM-C5-R-M.

3. Connect to a HDMI source.

4. Power on the HDMI display.

5. Power on HDMI Sources.

6. Also can be connected with HDM-C5-R-M to compatible devices listed below with a

CAT5E/CAT6 cable-:

-HDM-C5XD-SR

-HDM-C5SP-8SR

-HDM3D-C5-3X-S

-HDM3D-C5-SP4/8

5. EXAMPLE INSTALLATION FOR EXTENDED DISPLAY (HDM-C5XD-S)

To setup optional Avenview HDM-C5XD-S please follow these steps:

1. Turn off all devices including Monitors /HDTV.

2. Connect a Local HDMI display to the HDMI out of the HDM-C5XD-S and then connect a

Receiver/Speaker to the 3.5mm audio socket.

3. Connect a Ethernet (UTP, STP) cable to CAT5 IN which is connected to CAT5 OUT on

HDMI-C5-R-M.

4. Plug in 5V 4A DC Power (supplied).

5. Power on the HDMI display.

6. Power on HDMI Sources.

NOTE: SEE APPLICATION DIAGRAM ON PAGE 7

Page|10

www.avenview.com

6. GENERAL TROUBLESHOOTING

PROBLEM

POSSIBLE SOLUTION

NO IMAGE

Check if cables connection to the source and the display are correct.

Ensure that display device supports 480p, 720p and 1080p resolution

SCREEN DEFECTS

APPEAR

This product supports up to 1080p resolution.

Check the HDMI connection

If outputting from a PC. Check the maximum resolution range of the

graphics card.

Check the resolution of display equal to to resolution output of the

graphics card.

LEARN EDID TO

TRANSMITTER

(Only From Example 5)

To learn the EDID of HDMI display for respective resolutions signals.

Connect the HDTV to the HDMI local output via HDMI cable

Set pin#1 at on [] first then connect the HDMI input to HDTV

through a HDMI cable. Wait for 20 seconds. The EDID learning

procedure will be finished. If you want to learn the EDID from another

HDTV, you must set pin#1 at off [] first and repeat this procedure
