Avenview DVI-C5-LC-R Manuel utilisateur

www.avenview.com

Cat5 DVI-D + Audio Series

User’s Guide

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.

www.avenview.com

Table of Contents

Getting Started....................................................................................................................................... 3

Key Features........................................................................................................................................... 3

Panel Description ................................................................................................................................... 4

DVI-C5-2 2 Port DVI-D + Audio Transmitter ....................................................................................... 4

DVI-C5-4 4 Port DVI-D + Audio Transmitter ....................................................................................... 4

DVI-C5-8 8 Port DVI-D + Audio Transmitter ....................................................................................... 5

Cable and Accessories............................................................................................................................ 5

Installation and Operation ..................................................................................................................... 6

DVI-C5-LC-R Transmitter Installation ................................................................................................. 6

Selection of Cable............................................................................................................................... 6

Multi-Port DVI-C5-2/4/8 Transmitter Installation.............................................................................. 8

Monitor and Speaker Connection through RJ45 and RJ11 Ports....................................................... 9

Installation of Multiple Transmitters ........................................................................................... 10

Specifications ....................................................................................................................................... 11

DVI Transmitter and Transceiver ..................................................................................................... 11

www.avenview.com

Getting Started

The Cat5/5e/6 DVI-D + Audio Extender system consists of a Transmitter and a Receiver. The system

can extend DVI-D and audio signals over Cat5/5e/6 cable and 4-wire phone cable. By taking

advantage of low-cost Cat5/5e/6 FTP cable, the Cat5 DVI-D Extender can simplify installation, extend

AV signal and save cost.

The Cat5 DVI-D Extender system is perfect for digital signage and public information display

applications where crystal-clear, high-resolution digital video needs to be shown without distance

limitations.

Key Features

Multiply one DVI-D and Audio source to 2/4/8 DVI-D and Audio outputs over Cat 5/5e/6 and 4-wire

phone cable.

Video Amplifier Bandwidth: 1.65GHz

Maximum distance and resolution between Transmitter and Receiver are:

DVI Input: Transmitting over standard DVI cable up to 10 meters (30 feet)

DVI Output: Transmitting over standard DVI cable at 1920x1200 up to 10 meters (30 feet)

RJ45 Output and using longer range Receiver DVI-C5-LC-R:

-800x600 @ 100 meters (330 feet)

-1024x768 @ 70 meters (230 feet)

-1280x1024 @ 60 meters (200 feet)

-1920x1200 @ 35 meters (115 feet)

DVI Input / Output Connector: DVI-D

Audio Type and Distance: Stereo over 4-wire phone cable up to 100 meters (330 feet)

Input for one DVI-D + Audio, Output for one DVI-D + Audio connection and 1/2/4/8 sets of RJ45 and

RJ11 connections to transmit DVI-D and Audio signal using Cat 5/5e/6 and 4-wire phone cable.

Built-in EDID simulation in Receivers.

Computer can boot up DVI signal without connecting a local monitor.

LED Status to indicate the DVI activity.

Stackable capacity to expand the AV broadcasting.

Magnetic pad and attachable metal plate for single port receiver, initial preset range of frequency is

up to 1920x1200

www.avenview.com

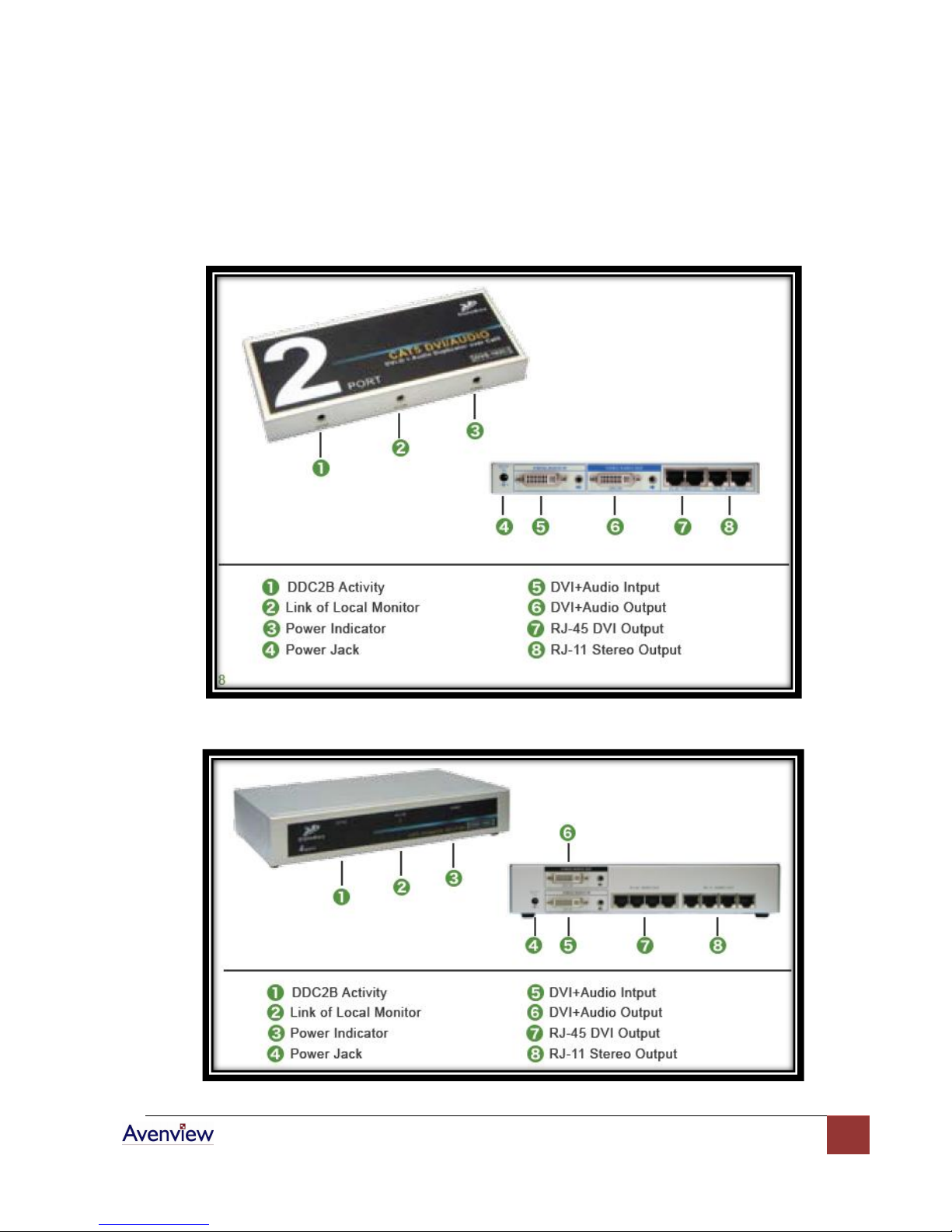

Panel Description

DVI-C5-2 2 Port DVI-D + Audio Splitter / Extender

DVI-C5-4 4 Port DVI-D + Audio Splitter / Extender

www.avenview.com

DVI-C5-8 8 Port DVI-D + Audio Transmitter

Cable and Accessories

DVI Integrated AV Cable 1.8m

www.avenview.com

Installation and Operation

DVI-C5-LC-R Installation

a. Device Connection: Plug power adapter to DVI-C5-LC-R, the orange LED above RJ45 should

turn ON to indicate the power on status. The other LED should turn off, since there is no

input of video signal from “ SYSTEM LINK” port.

b. The “STATUS” LED in the front panel will turn ON as the EQ/FOCUS control switch to the left

end and the EQ/FOCUZ will stay on AUTO. This will not function until the Receiver gets video

signal from “SYSTEM LINK” port.

c. Connect DVI monitor’s DVI cable to the Receiver.

Selection of Cable

a. Most makes and versions of Cat 5/5e/6 cables will work with DVI-C5-LC-R Receiver.

However, since the quality and characteristics of Cat 5/5e/6 cables varies it has been found

that some perform better than others. The major factor influencing the transmitting

distance is the skew property of the cables. Skew represents the difference in propagation

delay between the fastest and slowest set of wire pairs. A lower skew will mean a longer

video transmitting distance.

www.avenview.com

b. Skew Property: A Cat 5/5e/6 cable with a skew lower than 15ns/100m should enable a

cascading length of < 80m (275 ft) at 800x600, <50m at 1024x768, and < 40m at

1280x1024.

c. Termination: The RJ45 terminations to the Cat 5/5e/6 cable must be made to the EIA 568B

specifications.

1. Orange White

2. Orange

3. Green White

4. Blue

5. Blue White

6. Green

7. Brown White

8. Brown

The EIA/TIA definition of 568B in the pin assignment

JACK POSITION

PAIR 2

PAIR 3

PAIR 1

PAIR 4

www.avenview.com

d. Connect the Cable: Plug one end of the cable to DVI-C5-LC-R Receiver’s RJ45 “SYSTEM LINK”

port. The Receivers connected monitor should display now and the green LED above

DVI-C5-LC-R’s RJ45 port should turn ON to reflect the DVI signal activation. For DVI-C5-LC-R,

you can manually adjust the EQ/FOCUS to have the best DVI display. The display DVI

resolution will also relate to the distance been extended. It will be better to test prior to

actual installation and should not exceed the suggested frequency and corresponding

distance.

Installation Diagram of DVI-C5-LC-R

Multi-Port DVI-C5-2/4/8 Splitter / Extender Installation

a. First Time Setup: Turn off the DVI output device (PC or DVD Player) and monitors.

b. Connection: Connect local DVI monitor and speaker to the “VIDEO/AUDIO OUT” of the

transmitter and take one DVI integrated cable DVI-C5-180AT), plug DVI end to

“VIDEO/AUDIO IN” port of transmitter and the other end of the cable to PC’s DVI-D video

and speaker ports.

c. Connect power adapter.

d. Turn ON your DVI output device and monitor to confirm the function of display. The “LINK”

LED of the transmitter should turn Orange to indicate the connection of a local DVI monitor

and the “ACTIVE” LED should turn Blue to indicate an activated DVI-D signal.

e. The transmitter has built in an EDID simulator, when you connect local DVI monitor, the

transmitter will automatically record the EDID from DVI monitor. When you not connecting

DVI monitor locally, the transmitter will simulate the EDID communication like a regular

monitor and activate the DVI signal of PC.

www.avenview.com

Local Connection of Multi-Port Transmitter

Monitor and Speaker Connection through RJ45 and RJ11 Ports

a. Refer to previous section for Receiver to install and prepare the cable to be connected.

b. RJ45 VIDEO with DVI-C5-LC-R: If the video connection is HDMI type, then you will need to

use appropriate DVI-HDMI adapter to connect. The supported DVI-D resolution and distance

is similar to regular DVI cable. It supports 800x600@100m, 1024x768@70m,

1280x1024@60m, 1920x1200@35m.

c. RJ11 AUDIO: The RJ11 ports in the back of the Transmitter support Stereo Audio for each

connector. Prepare one 4-wire phone cable or use 4 wires out of the Cat 5/5e/6 cable to

make the RJ11 connector. The pin definition of RJ45 is one to one and the supported length

is greater than 50 meters (longer than the supported length of DVI-D)

Connection Diagram of 2-Port Transmitter

www.avenview.com

General Troubleshooting

Problem

Possible Solution

Off-Center Screen Image, Odd

Colors or No Picture

Try adjusting the brightness, sharpness, contrast, and color

balance controls of your monitor.

Try adjusting the centering and positioning controls of your

monitor to position the picture on the screen.

No Image

Ensure that the monitor cable is securely fastened to the DVI

and Monitor port.

Installation of Multiple Transmitters

a. Multiple Transceivers: By using additional DVI-C5-R Transceivers, it is possible to extend the

system almost indefinitely to remote DVI-D displays.

b. From “VIDEO / AUDIO OUT”: Use one set of standard DVI/Audio cable. Connect one end

from “VIDEO / AUDIO OUT” of first layers Transmitter and the other end to “DVI / AUDIO IN”

port of the second layer’s Transmitter (as shown below).

Installation Diagram of Multiple DVI Transmitters
