KVM-C5 Series

User’s Guide

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.

www.avenview.com

Table of Contents

Getting Started....................................................................................................................................... 3

Key Features........................................................................................................................................... 3

Panel Description ................................................................................................................................... 4

Transmitter KVM-C5-S and Receiver KVM-C5-R ................................................................................ 4

Installation and Operation ..................................................................................................................... 5

VGA-C5-S Transmitter Installation ..................................................................................................... 5

KVM-C5-R Receiver Installation ......................................................................................................... 6

Specifications ......................................................................................................................................... 9

www.avenview.com

Getting Started

The Smart KVM Extender can extend the KVM control (Keyboard / Video / Mouse) up to 300m (1000

ft) over a single Cat5e cable. Built-in matured KVM technology and video signal processing can

extend KVM signal correctly and provide a premium video resolution of up to 2048x1536@300m

(1000 ft).

KVM-C5 is perfect for centralized computer management. By adapting KVM switch or KVM Drawer,

you can control multiple computers on a rack locally or in a remote location. This unit is also suitable

for office to secure all PCs in a computer room and extend KVM console to every desktop to ease

the maintenance, save desktop space and prevent PC to be accessed through USB or other network.

Built-in smart keyboard and mouse simulation, it can support advanced function of Logitech or

Microsoft mouse and work on any PS/2 PC or by using a USB to PS/2 converter to extend a USB

interface computer (Ex: SUN / Mac).

The KVM Extender is designed not only to provide accurate KVM signal, but also easy to install. It

provides a magnetic pad and a attachable metal plate, so you can place the KVM Extender very

easily on the surface of PC or any preferred place like wood or concrete.

Key Features

Extend the Keyboard / Video / Mouse of PC or KVM Switch by Cat 5 / 5e / 6 cable

Supported VGA Resolution and Distance: up to 2048x1536 @ 300m (1000 ft

Supports VGA, SVGA, XGA, TFT-LCD with DDC2B

Supports PS/2 type PC or KVM Switch application

Plug & Play

Supports MS-DOS, Windows, FreeBSD, Linux, Unix, Novell

Auto KVM model detection for optimum setup

Supports advanced function of Logitech and Microsoft Mice

Manual signal control (Gain & Focus) for different extended distance and achieving the best quality

Integrated 3-in-1 KVM cable for PC or KVM Switch connection

Transmitter and Receiver build with FOUR color LEDs to indicate system status

Equipped with magnetic pad and metal plate for easy installation

www.avenview.com

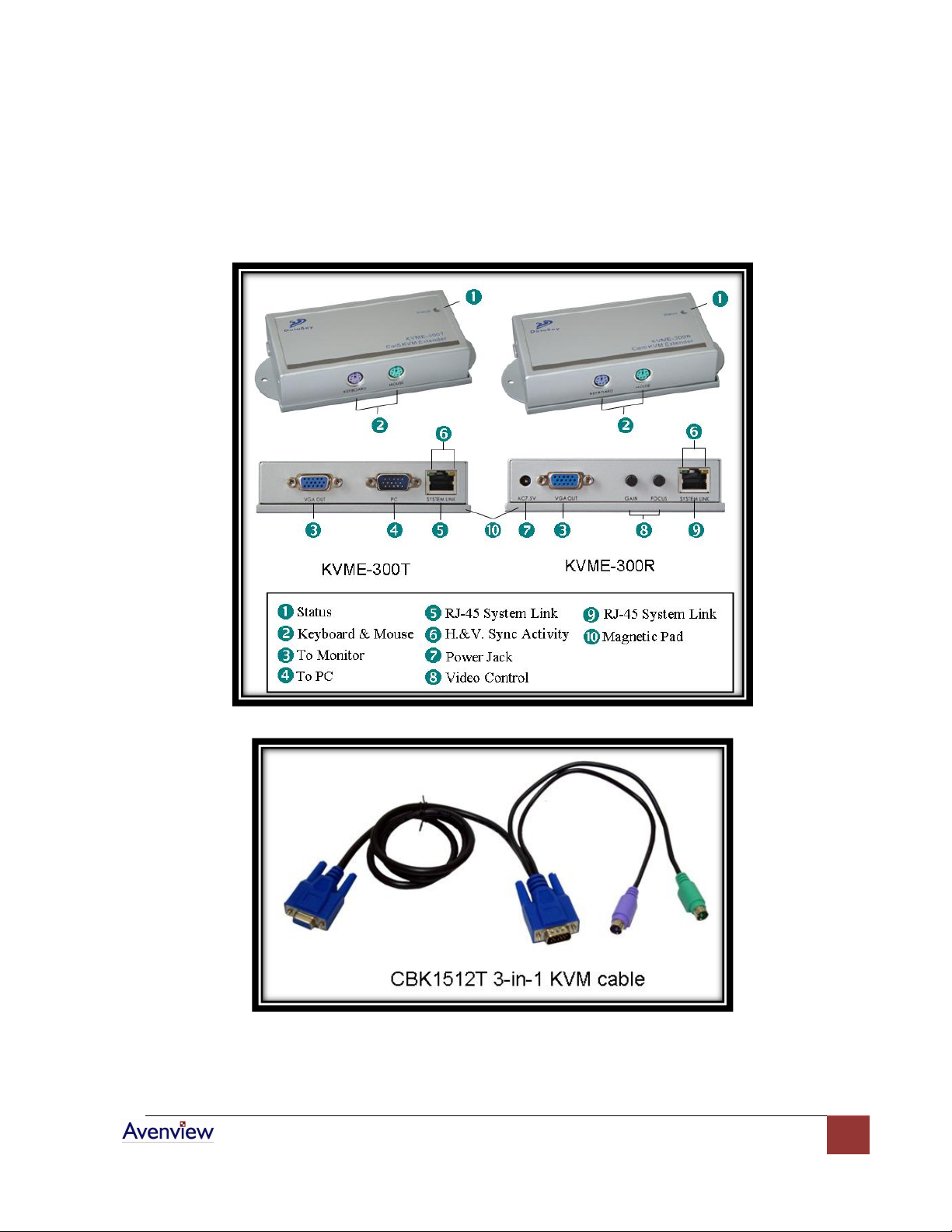

Panel Description

Transmitter KVM-C5-S and Receiver KVM-C5-R

www.avenview.com

Installation and Operation

VGA-C5-S Transmitter Installation

a. Site Selection: In your first time installation, place Transmitter (VGA-C5-S) near the PC or

KVM Switch console you want to extend.

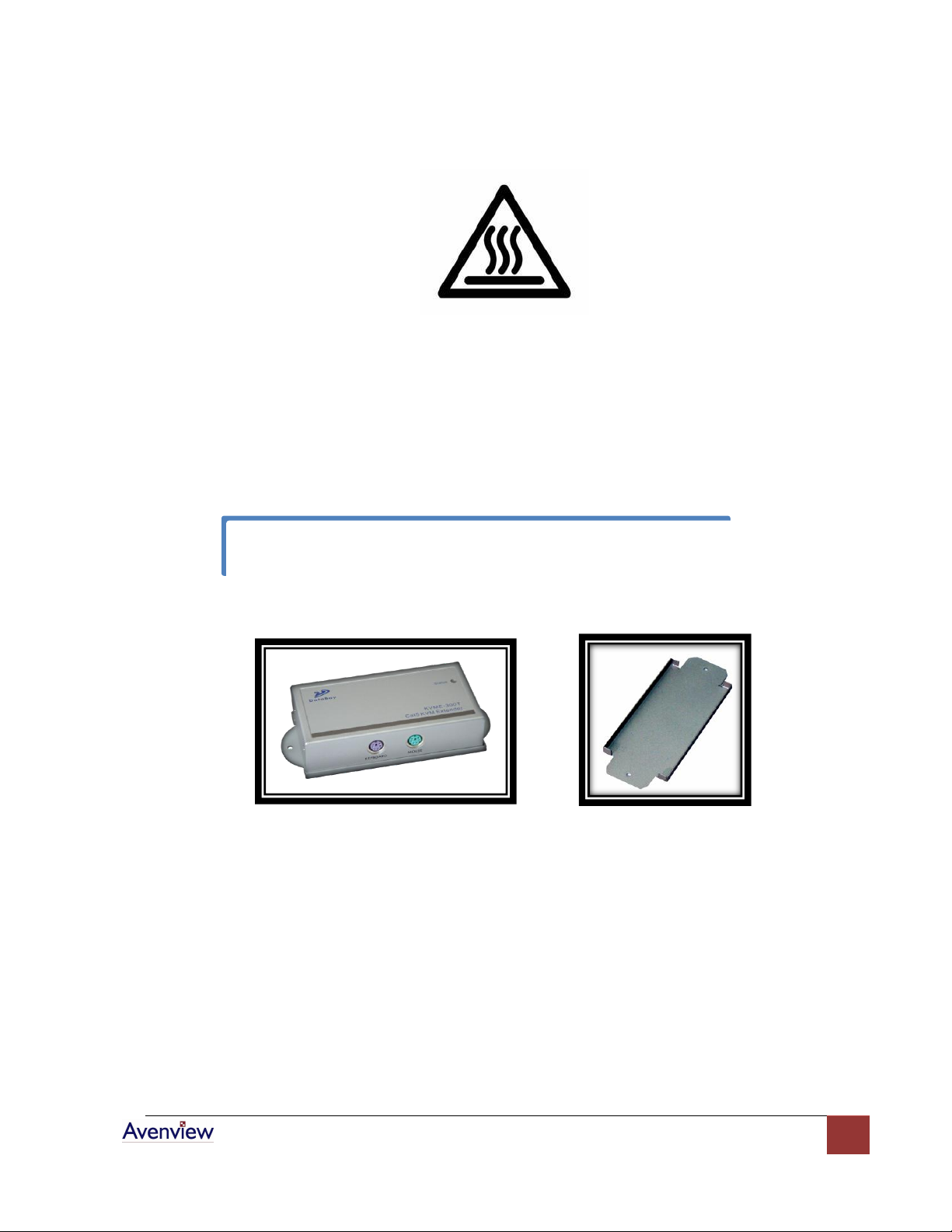

Unit attached with Rack Mounting Kit

b. Device Connection: Connect Keyboard / Video / Mouse to Transmitter. Use 15 Pin

Integrated 3-in-1 KVM Cable, and connect the 15 Pin end to the Transmitter and other end

of the cable to corresponding Keyboard / Video / Mouse port of PC or KVM Switch.

You can use magnetic pad to attach the unit on a metal plane or use attachable Rack

Mounting Kit to fix the unit on selected area by screw.

www.avenview.com

Installation Diagram of KVM-C5-S Transmitter

c. Function Test: Power ON your PC, the Transmitter will take the power from the PC’s PS/2

connection. The front “PC ON” LED of the Transmitter will keep blinking Green to indicate

the unconnected status of System Link. The LEDs above RJ45 will turn ON to indicate the

activation of Video Signal.

KVM-C5-R Receiver Installation

a. Site Selection: Place KVM-C5-R Receiver in an appropriate place.

Cable Selection: For best VGA signal, use Cat 5e or Cat 6 cable.

b. Power ON: Plug power adapter to the Receiver and connect Keyboard / Video / Mouse to

Receiver. The LEDs of unit should keep blinking to indicate the unconnected status of the

cable.

Test the functionality of the monitor and ensure that Keyboard and Mouse are working

properly to finish the installation of the Transmitter.

You can use magnetic pad to attach the unit on a metal plane or use attachable Rack

Mounting Kit to fix the unit on selected area by screw.

www.avenview.com

Installation Diagram of KVM-C5-R Receiver

c. Connect Cable: Plug two ends of Cat 5 / 5e / 6 cable to Transmitter and Receiver’s RJ45

“SYSTEM LINK” ports. Now the LEDs above RJ45 should turn on to indicate the activation of

Video Signal and correct connection of the cable.

Connection Diagram of KVM Extender

www.avenview.com

d. Function Test: After installation, you will be able to control Keyboard / Video / Mouse from

the Receiver. During the operation of Receiver, the STATUS LED of the Transmitter will turn

on Red to indicate the operation of the Receiver.

e. Manual VGA Adjustment: The video quality can be manually adjusted by the Control of

GAIN and FOCUS at the back of the Receiver unit.

General Troubleshooting

Problem

Possible Solution

Screen Defects Appear

Check that VGA resolution and frequency is not over the

limit of monitor display.

Check your current resolution, refresh rate and color depth

settings in the Settings and Monitor tabs in your Display

Properties dialog.

Off-Center Screen Image, Odd

Colors or No Picture

Try adjusting the brightness, sharpness, contrast, and color

balance controls of your monitor.

Try adjusting the centering and positioning controls of your

monitor to position the picture on the screen.

No Image

Ensure that the monitor cable is securely fastened to the

VGA and Monitor port.

Try to connect monitor directly to a PC to ensure basic

functionality of these devices.

Check if the Receiver’s power adapter is AC 7.5V with a

capacity of over 1Amp.

Keyboard or Mouse Problem

Ensure that Keyboard and Mouse cables are connected at

appropriate ports.

Restart the PC to ensure it is properly detected.

Connected Keyboard / Video / Mouse directly from

Transmitter to your PC or KVM Switch to verify basic

function.

www.avenview.com

Specifications

Model

KVM-C5-S

KVM-C5-R

Description

Transmitter

Receiver

Keyboard

PS/2 Female

Mouse

PS/2 Female

Video

D-Sub 15 Female

To PC / KVM Switch

Integrated D-Sub 15 pin KVM Cable

System Link

RJ45

LED Display

Status, H. Sync, V. Sync

Max Resolution &

Distance

2048x1536@300m (1000 ft)

Power Consumption

PS/2 AC 7.5V, 250mA

AC 7.5V, 250mA

Dimension (LxWxH)

62 x 113 x 29 mm

Operating Temperature

0 - 50°C

Storage Temperature

-20 ~ 60°C

Humidity

10 ~ 90%
