SECTION 1: GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
•Any product, on which the serial number has been defaced, modified or removed.
•Damage, deterioration or malfunction resulting from:
•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
•Repair or attempted repair by anyone not authorized by us.
•Any damage of the product due to shipment.
•Removal or installation of the product.
•Causes external to the product, such as electric power fluctuation or failure.
•Use of supplies or parts not meeting our specifications.
•Normal wear and tear.
•Any other causes which does not relate to a product defect.
•Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The Avenview HDM-C6IPX-SET, HDMI Extender has been tested for conformity to safety regulations and requirements, and has
been certified for international use. However, like all electronic equipment’s, the HDM-C6IPX-SET should be used with care.
Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
!Do not dismantle the housing or modify the module.
!Dismantling the housing or modifying the module may result in electrical shock or burn.
!Refer all servicing to qualified service personnel.
!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
!Keep the module away from liquids.
!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
!Have the module checked by a qualified service engineer before using it again.
!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1. GETTING STARTED
www.avenview.com Page 2
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
www.avenview.com Page 3
2. INTRODUCTION
HDM-C6IPX-SET, HDMI extender set is an upgraded version of Avenview's popular HDM-C6IP-SET designed to provide an extra
distance, extra IR support and the main difference it is network friendly - can be added to your exsiting network. Having a few years
experience with HDMI over IP we have engineered a newer chipset providing extra PPI in resolution and lower bandwidth. So the
user can extend any HD display with the resolutions of 1080p/60Hz up to 394 feet (120 meters) away from your HDMI or DVI-D
source. Thanks to the use of the TCP/IP protocol, you can transfer your high-definition video over anyexisting TCP/IP network. See
below three examples:
A: The Tx and Rx units can extend 120 meters over a single CAT5/6 cable connection point to point.
B: The Tx can be connected to a Gigabit switch to establish a IP address therefore sending 1080p video signals to multiple
Rx connected to the Gigabit switch and the HDMI displays.
C: Multiple Tx’s can be connected to a Managed Gigabit switch with VLAN/IGMP support therefore sending 1080p video
signals to Rx connected to the Gigabit switch to show different sources on the HDMI displays.
•Extends HDMI up to 120m over single CAT5E/6
•Supports HDMI, EDID, Support HDCP
•Supports resolution HDTV / 1080Pp/60Hz, Vesa (1920 x 1080)
•Supporting the point to point transmission function currently which can be expanded to the multi-point to point
transmission function.
•Requires a managed Gigabit switch with VLAN/IGMP support to have a soultion with multiple sources (Transmitters).
Standard Gigabit switch can only support one transmitter.
•The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and to allow duplicate IP addresses across
the VLAN domains.
•Each VLAN acts as independent HDMI over IP Channel on the network.
•Number of Tx and Rx that can be used is dependent on bandwidth of the switch (Recommended Gigabit switch
10/1000).
•Unmanaged switches can be cascaded up to 3 layer network, allowing the farthest display to be located up to 394
meters away from the source device. Each receiver can be located up to 120 meters away from each switch.
•Uses H.264 technology to process image compression on a fixed bandwidth.
www.avenview.com Page 4

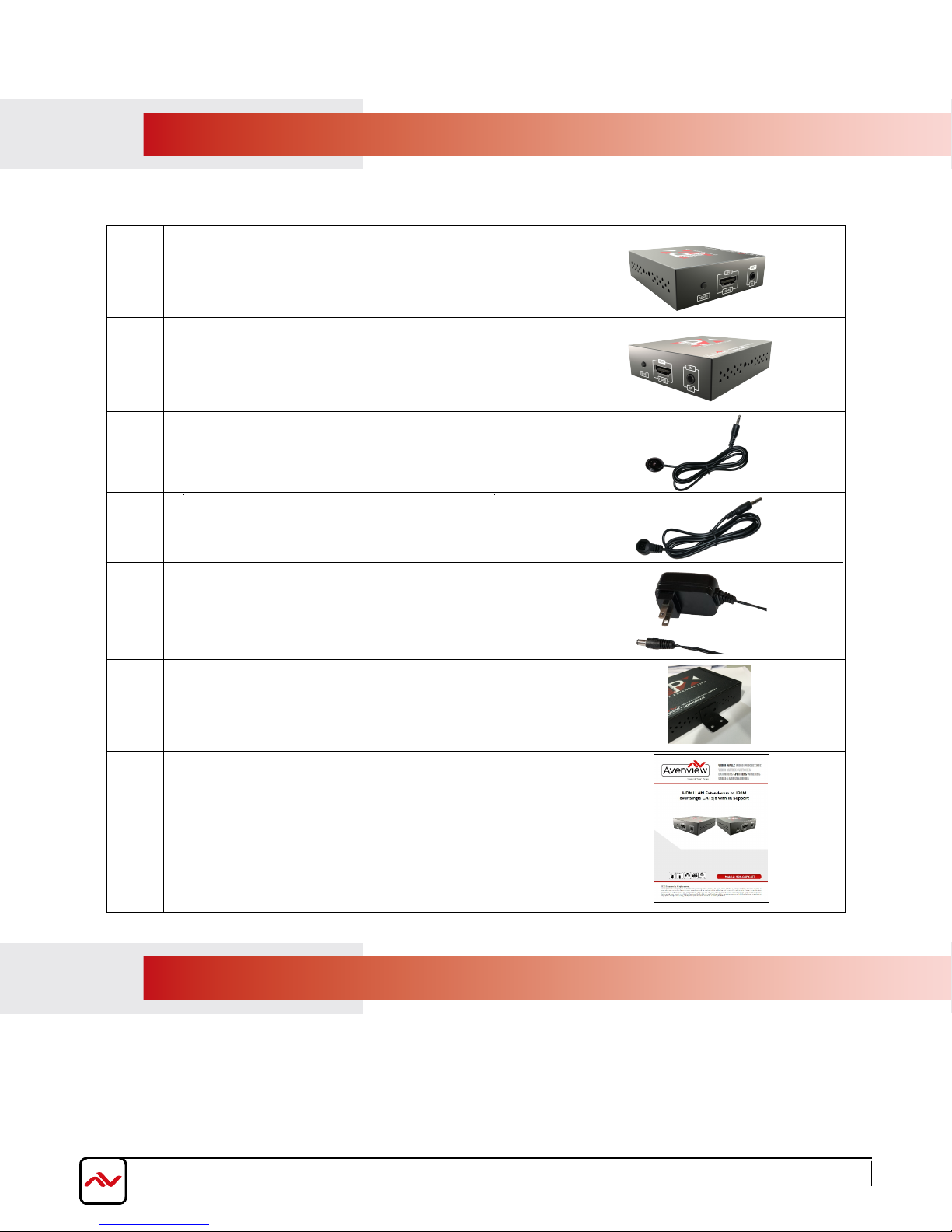

2.1 PACKAGE CONTENTS
Before you start the installation of HDM-C6IPX-SET, please check the A. STANDARD package contents.
1HDMI IPX TRANSMITTER X 1
2HDMI IPX RECEIVER X 1
5POWER ADAPTER (5VDC) X 2
7USER’S MANUAL X1
2.2 BEFORE INSTALLATION
•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
3IR EXTENDER
4IR BLASTER
6Mounting Bracket
X 1
X 1
www.avenview.com Page 5
2.2.1 APPLICATION DIAGRAM
www.avenview.com Page 6
2.2.2 BEFORE INSTALLATION
www.avenview.com Page 7
2.3 DEVICE DESCRIPTION & LAYOUT
This product is SDFNDJHGDVDVHWZKLFKLQFOXGHV a Transmitter and a Receiver.
2.3.1 Front Panel & Rear Panel (Transmitter, HDM-C6IP;-S)
2 CAT5E/6 OUT:Plug in a Cat-5E/6 cable to link and send
data (video and audio) to the Reciever unit or network switch.
1 +5V DC: Connect to the 5v DC power supply
Power LED will light BLUE.
4 LINK LED: When connected to RX or network switch the
LED will light GREEN.
2.3.2 Front Panel & Rear Panel (Receiver, HDM-C6IP;-R)
123 4
3 DATA LED: When data is transmitting from the
source the led will continuously flash YELLOW.
5 RESET: To rest the unit when no link is established 6 HDMI IN: Connect to HDMI source Max 35ft via HDMI Cable
7 IR: Plug the IR Blaster cable for IR signal being recieved. Place IR Blaster within direct site of the device being controlled
2 CAT5E/6 OUT: Plug in a Cat-5E/6 cable to link and receive
data (video and audio) IURPWKHVHQGHUXQLW or network switch.
1 +5V DC: Connect to the 5V DC power supply
Power LED will light BLUE.
3 DATA LED: When data is transmitting from the
source the led will continuously flash YELLOW.
5 RESET: To rest the unit when no link is established
4 LINK LED: When connected to RX or network switch the LED
will light GREEN.
6 HDMI OUT:Connect to HDMI display Max 35ft via HDMI Cable
7 IR IN: Plug the IR Extender cable for IR signal being received. Place IR Extender within direct line of site with the IR Remote.
5 6 7
5 6 7
123 4
Important Please do not connect the HDM-C6IPX-SET to a POE network switch this will damage and the
units will be come non functional.
