AFe Power Magnum FORCE Manuel utilisateur

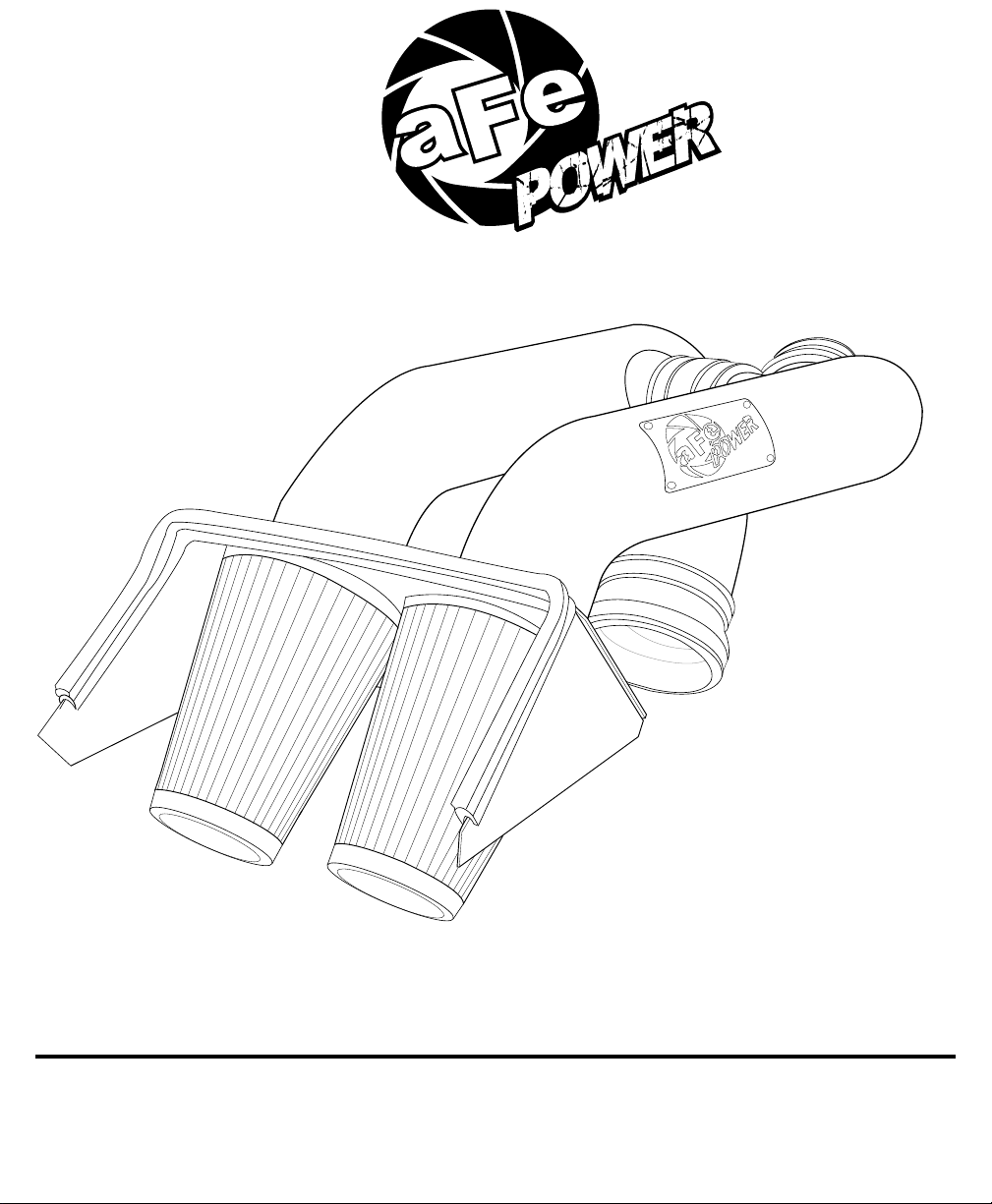

advanced FLOW engineering Magnum FORCE Stage-2 Air Intake System

Instruction Manual P/N: 51-12642-1B / 54-12642-1B / 52-12642-1H

Make: Ford Model: F-150 Year: 2015-2021 Engine: V6-2.7L (tt) EcoBoost

Make: Ford Model: F-150 Year: 2015-2016 Engine: V6-3.5L (tt) EcoBoost

(CARB exempt 15-16 under D-550-28 only)

Label Qty. Description Part Number

A1 2 Air Filter (Pro DRY S) 21-90069 (51-12642-B/52-12642-H)

A2 2 Air Filter (Pro 5R) 24-90069 (54-12642/52-12642-H)

B1 1 Tube #1 of 2 05-12642B1 (For 51/54-12642-B)

B2 1 Tube #2 of 2 05-12642B2 (For 51/54-12642-B)

B3 1 Tube #1 of 2 05-12642H1 (For 52-12642-H)

B4 1 Tube #2 of 2 05-01242H2 (For 52-12642-H)

C1 1 Housing 05-12642B3 (For 51/54-12642-B)

C2 1 Housing 05-12642L3 (For 52-12642-H)

D 1 Coupling, Straight 05-01242

E 1 Coupling, Reducer 05-01358

F 1 Coupling, Reducer 05-01331

G 2 Clamp #060 03-50002

H 1 Clamp #072 03-50010

I 2 Clamp #032 03-50016

J 1 Clamp #052 03-50008

K 1 Grommet 03-50050

L 1 Seal Trim (23") 05-00072

M 1 Cover 05-12188-B (*Optional)

N 3 Screws 03-50113 (*Optional)

O 1 Vent Insert 05-01405

Installation will require the following tools:

8mm Nut Driver, Flat Head Screwdriver

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

NOTE: Retain factory parts for future use.

Page 2

aFepower.com

Page 3

A1 A2

C1/C2

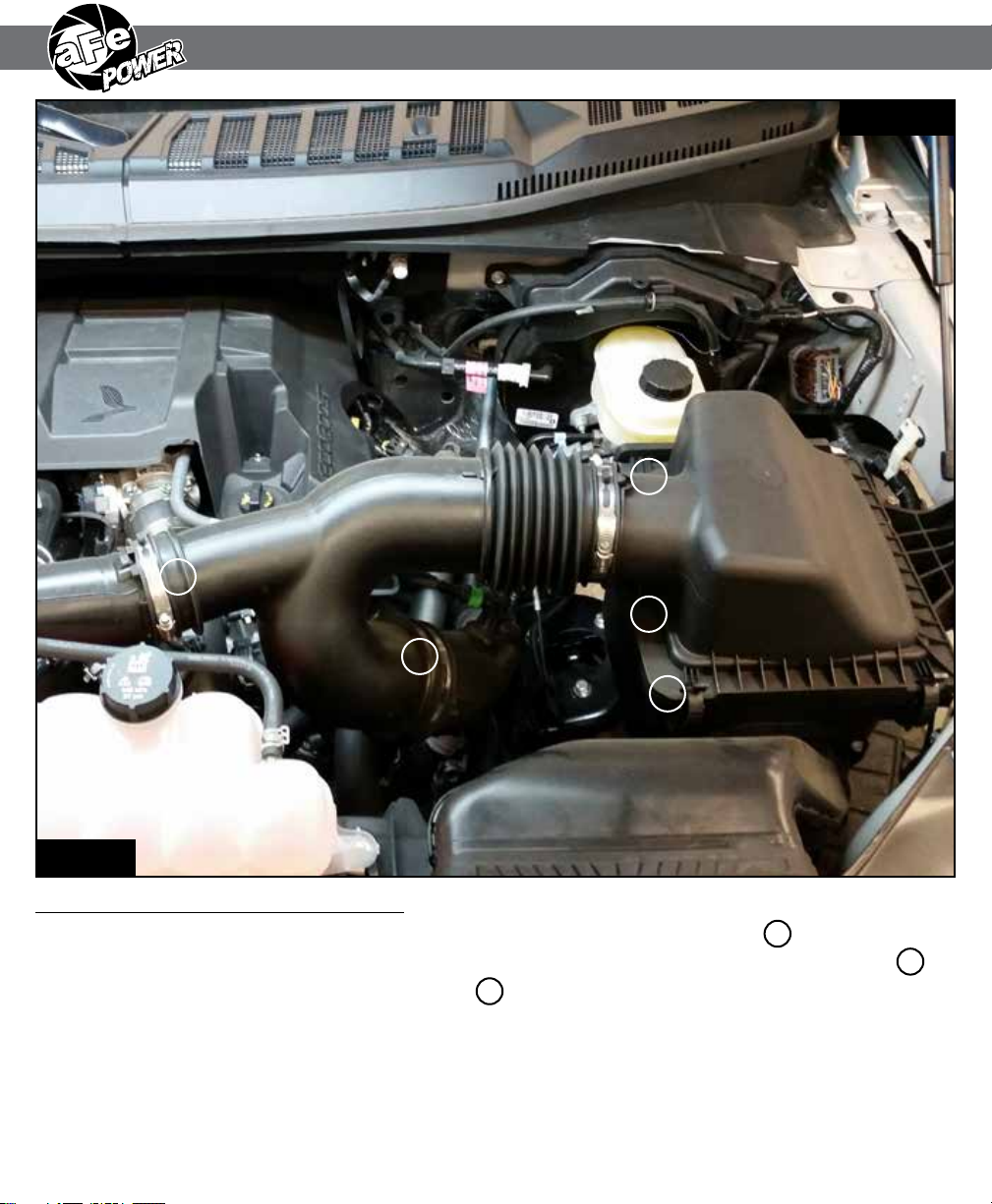

Refer to Figure A for steps 1-4

Step 1: Disconnect the Manifold Air Pressure (MAP) sensor plug from stock airbox. 1

Step 2: Loosen the OE intake clamps using an 8mm nut driver from the left and right side runners. 2

Step 3: Unclamp the top portion of the OE airbox. 3

Step 4: Remove the OE intake and the top portion of the OE airbox by pulling straight up and out of the

vehicle.

REMOVAL

Page 4

Figure A

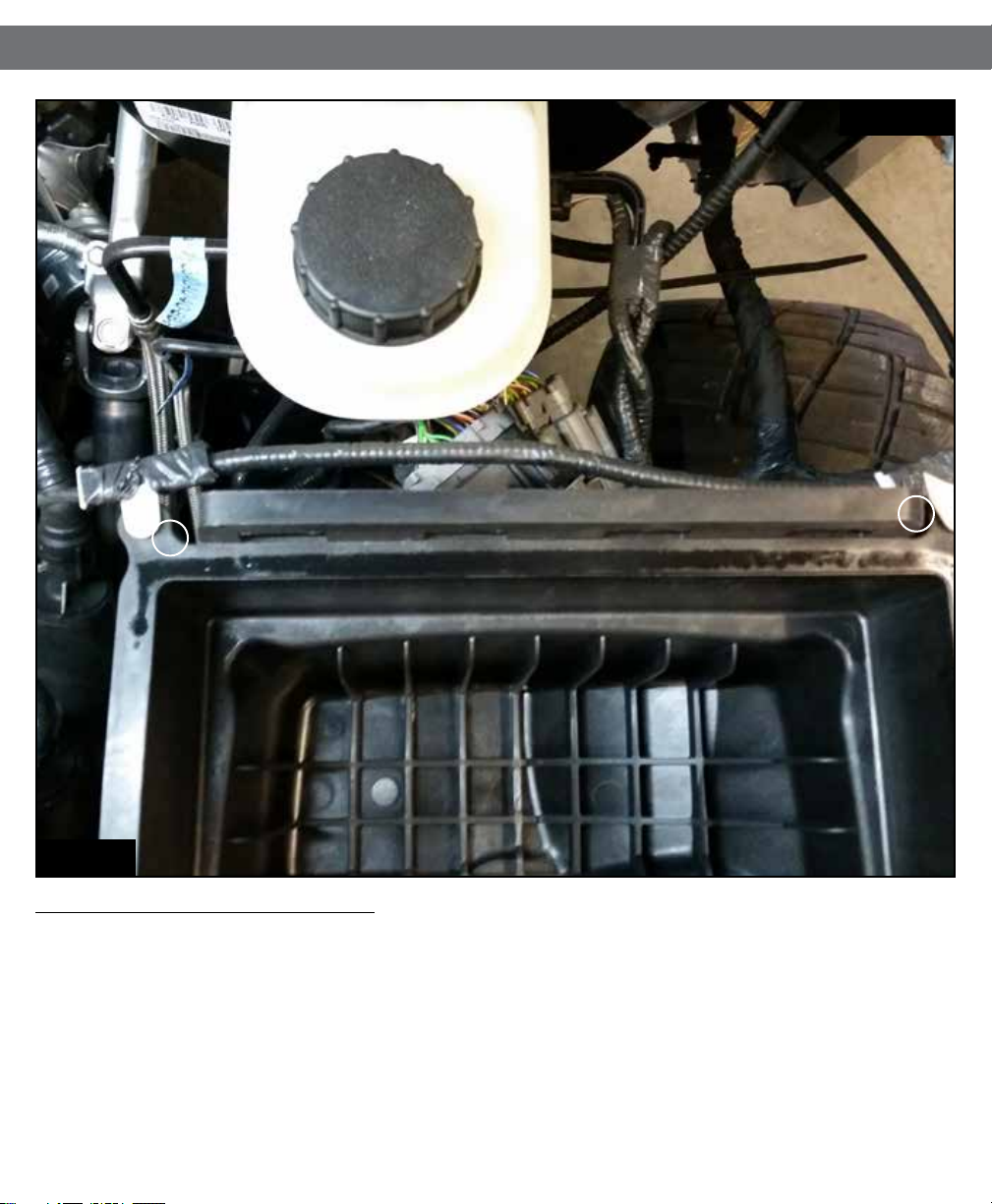

Refer to Figure B for step 5

Step 5: Carefully remove plastic wire harness clips from back edge of lower airbox.

Figure B

Page 5

REMOVAL

aFepower.com

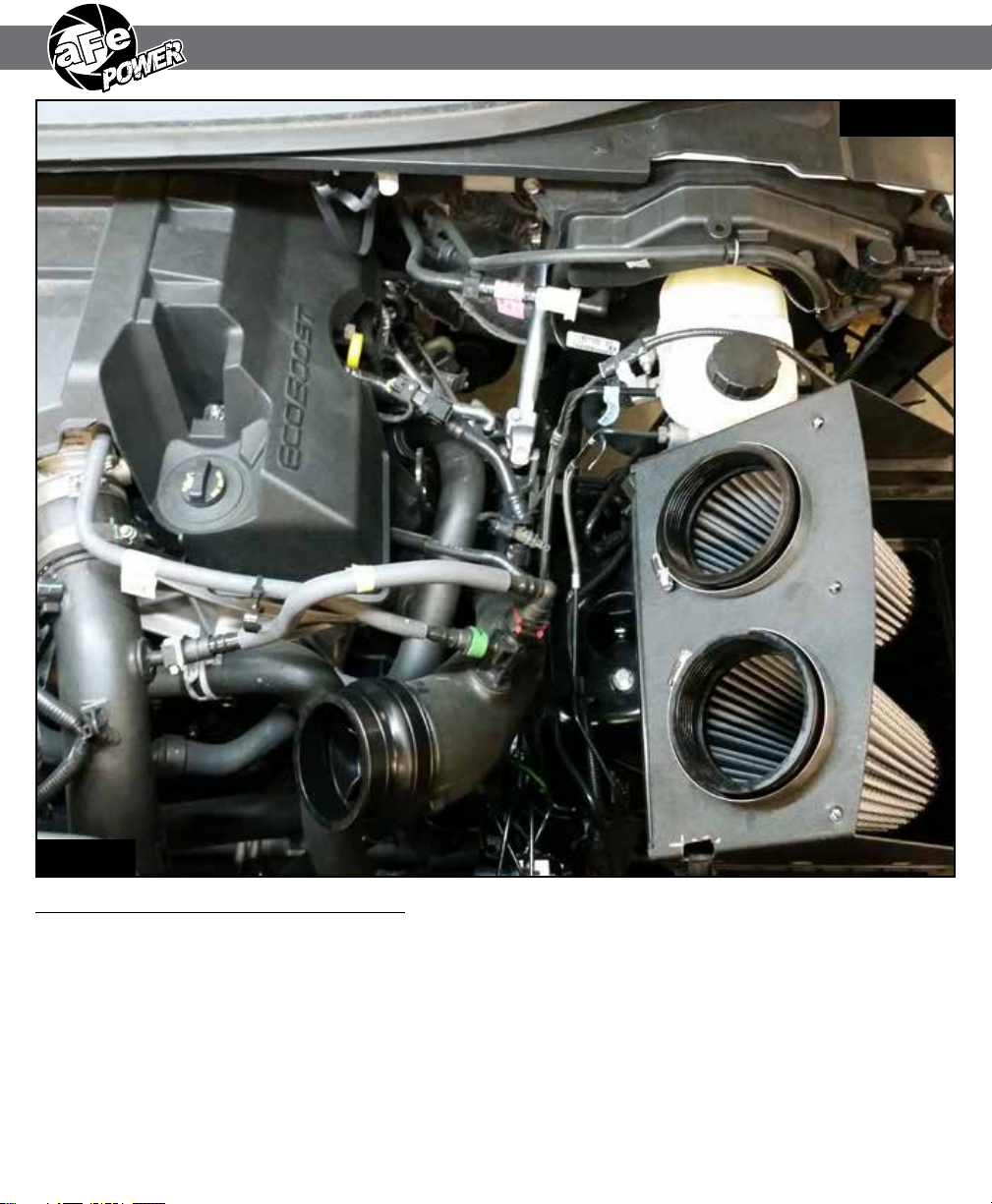

Refer to Figure C for steps 6-7

Step 6: Install aFe housing and fasten clips.

Step 7: Insert ﬁlters and place clamps loosely.

Page 6

INSTALL

Figure C

aFepower.com

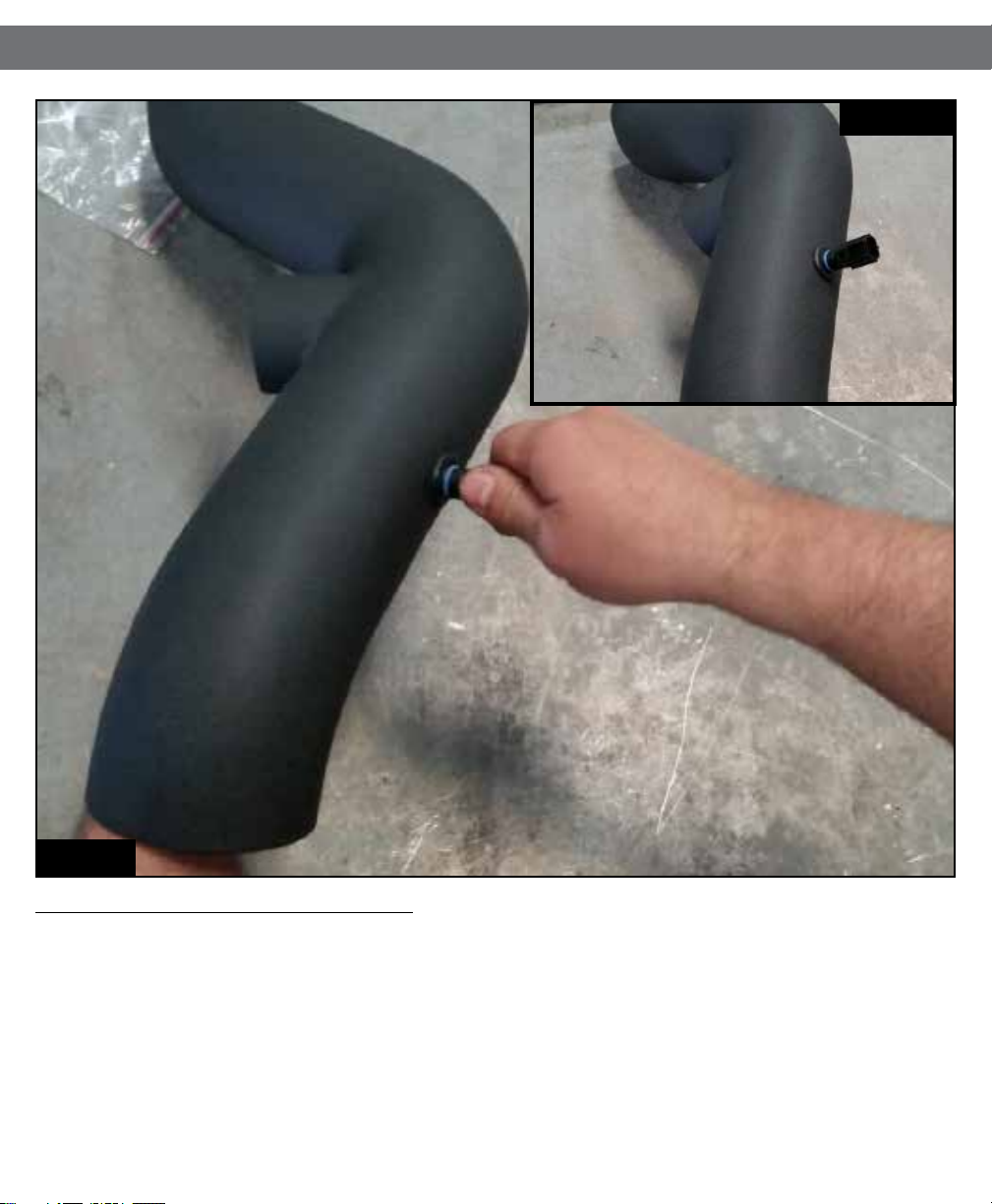

Refer to Figure D for steps 8-9

Step 8: Remove the MAP sensor from the OE intake 1/4 turn counter-clockwise.

Step 9: Install the MAP sensor on the rear aFe intake tube using the provided grommet. The grommet

can be held inside the tube to give support while inserting.

Figure D

Page 7

INSTALL

Refer to Figure E for steps 10-14

Step 10: Install the small straight coupling on the cross over tube, install clamps, but do not tighten.

Step 11: Fit tubes into the remaining couplers. Adjust for best ﬁt and tighten all clamps.

Step 12: Connect sensor harness.

Step 13:Install edge trim on housing if no cover is to be used.

Step 14: Remove trim if using optional cover.

NOTE: Proceed to the following pages for vent insert on 2016 models.

Figure E

INSTALL

Page 8

Page 9

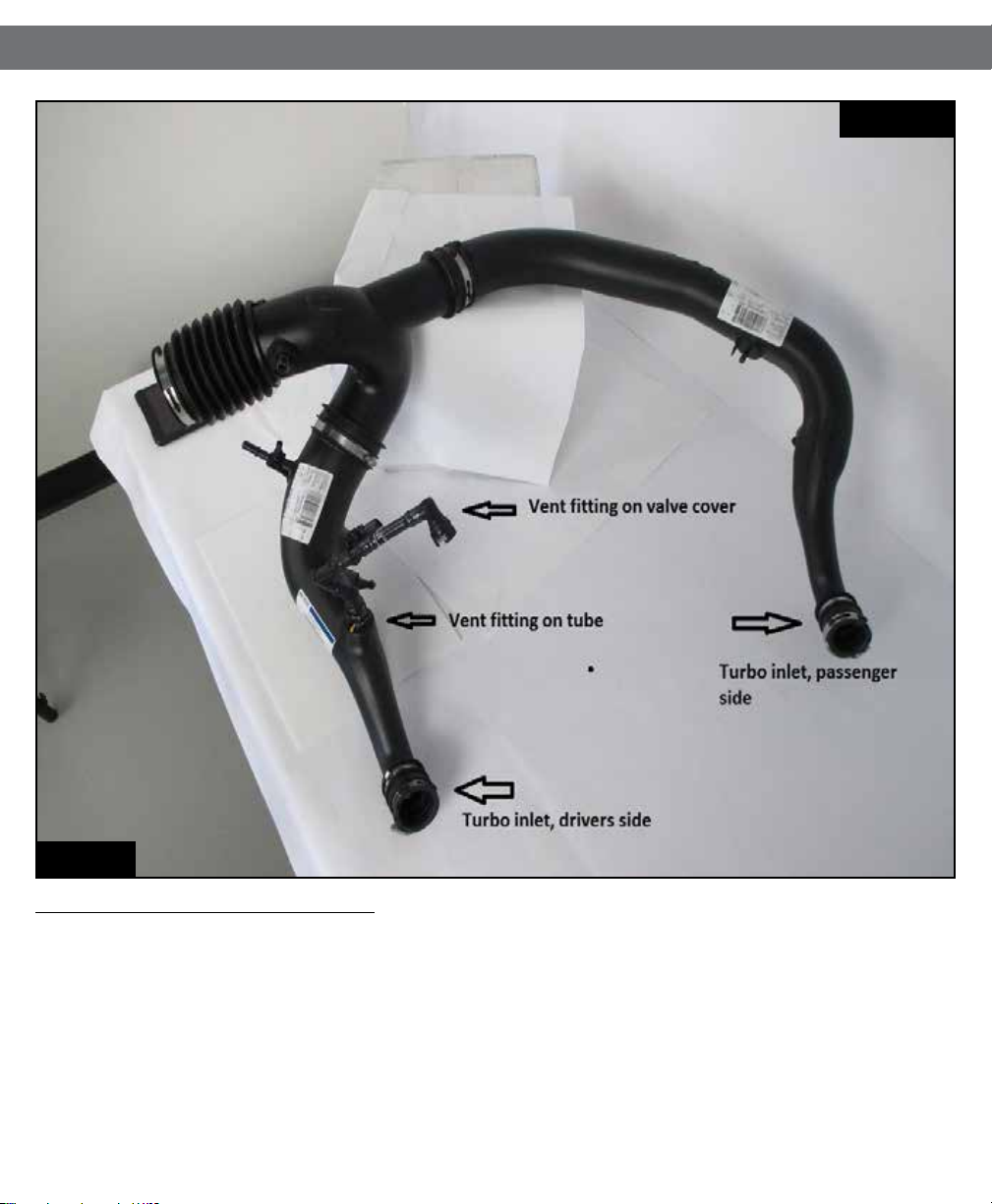

(These procedures should be done with the inlet tubes installed on the engine. It is shown off the vehicle

for better illustration.)

Step 15: Locate the o.e. plastic tube feeding the driver’s side turbo inlet.

aFepower.com

Refer to Figure F for Step 15

Figure F

INSTALL

Vent insert installation:

Page 10

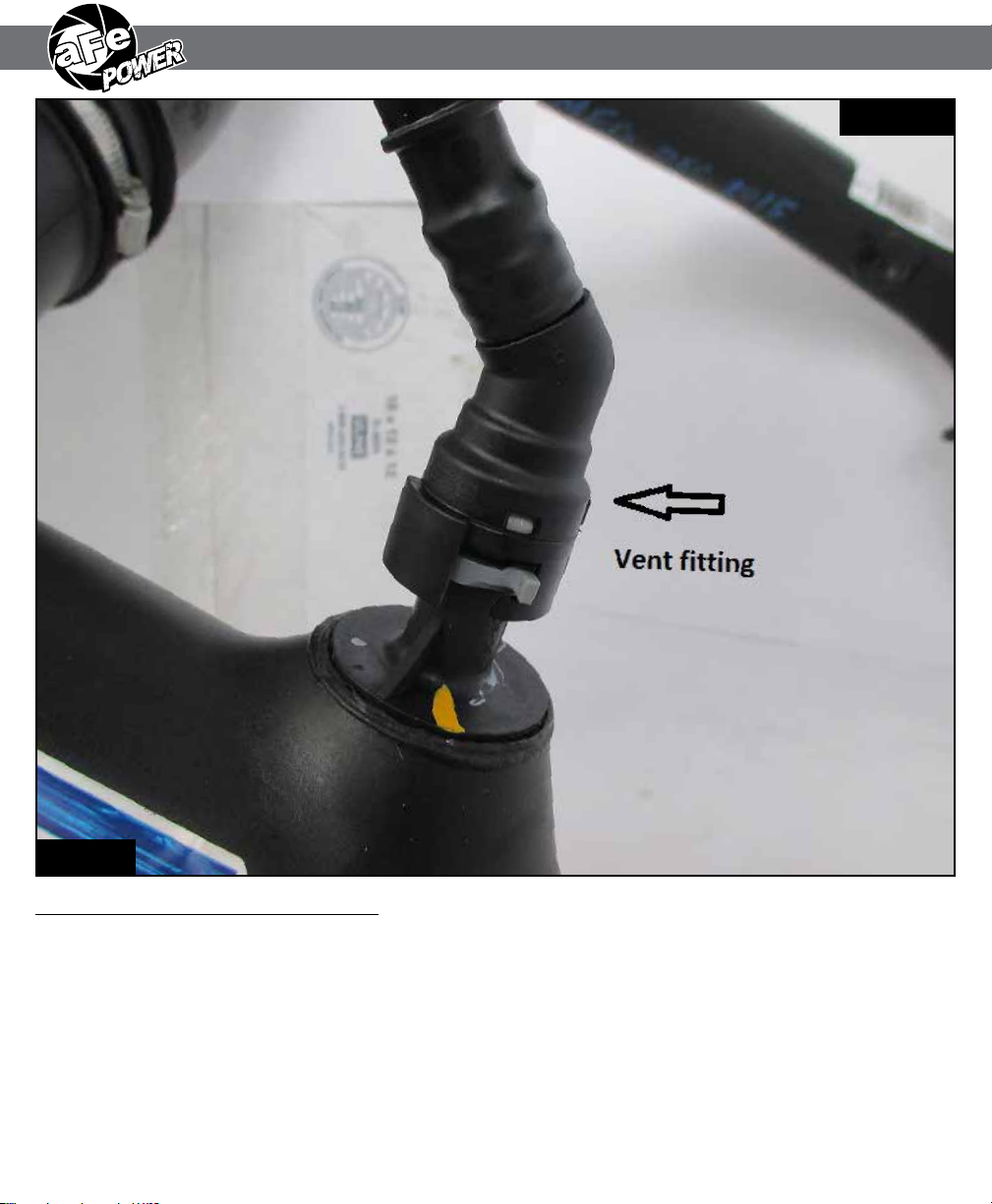

Refer to Figure G for Step 16

Step 16: Locate the valve cover vent tube that feeds into driver’s side turbo inlet. It is not

necessary to remove the engine cover.

Figure G

INSTALL
