AFe Power 52-10002D Manuel utilisateur

advanced FLOW engineering Rapid Induction Cold Air Intake System

Instruction Manual P/N: 52-10002D / 52-10002R______________________________

Make: RAM Model: 1500 Year: 2019-2021Engine: V6-3.6L

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• For technical support please call 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

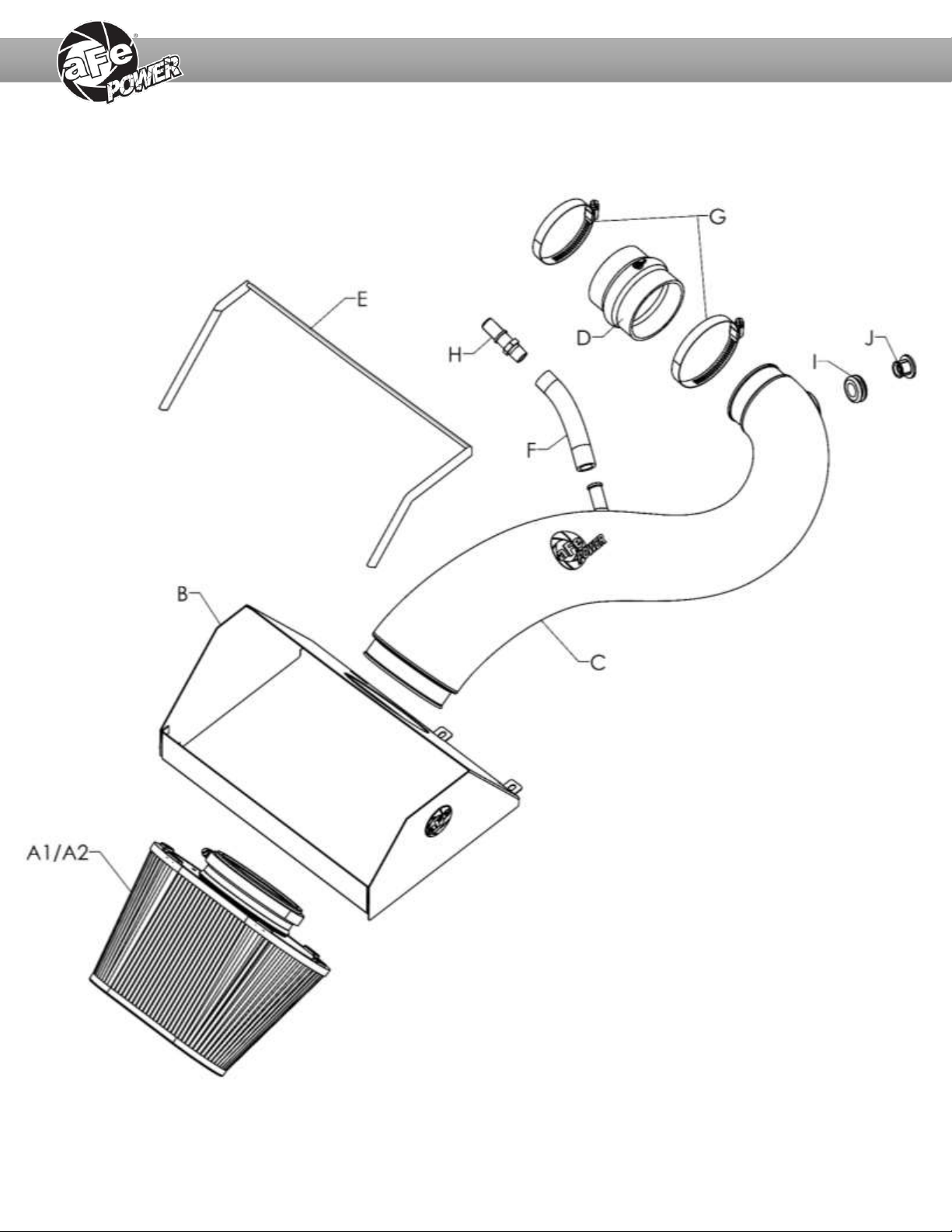

Label

Qty.

Description

Part Number

Air Filter (Pro DRY S)

21-90108

Air Filter (Pro 5R)

24-90108

Housing

05-5413020B2

Tube

05-5210002B1

Coupling, Silicone Reducer: (3-1/4” x 3-1/8”)ID x 3”L

05-01330

Seal, Trim (32” L)

05-00072

Silicone Hose, 5/8” ID (6”L)

05-01502

Clamp, #048

03-50007

Fitting, 5/8” Barb to CCV

03-50659

Grommet

03-50167

Fitting, Air Temperature Sensor

05-01454

Installation will require the following tools:

8mm nut driver, 10mm deep socket and driver, 6” driver extension

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

Page 3

Page 4

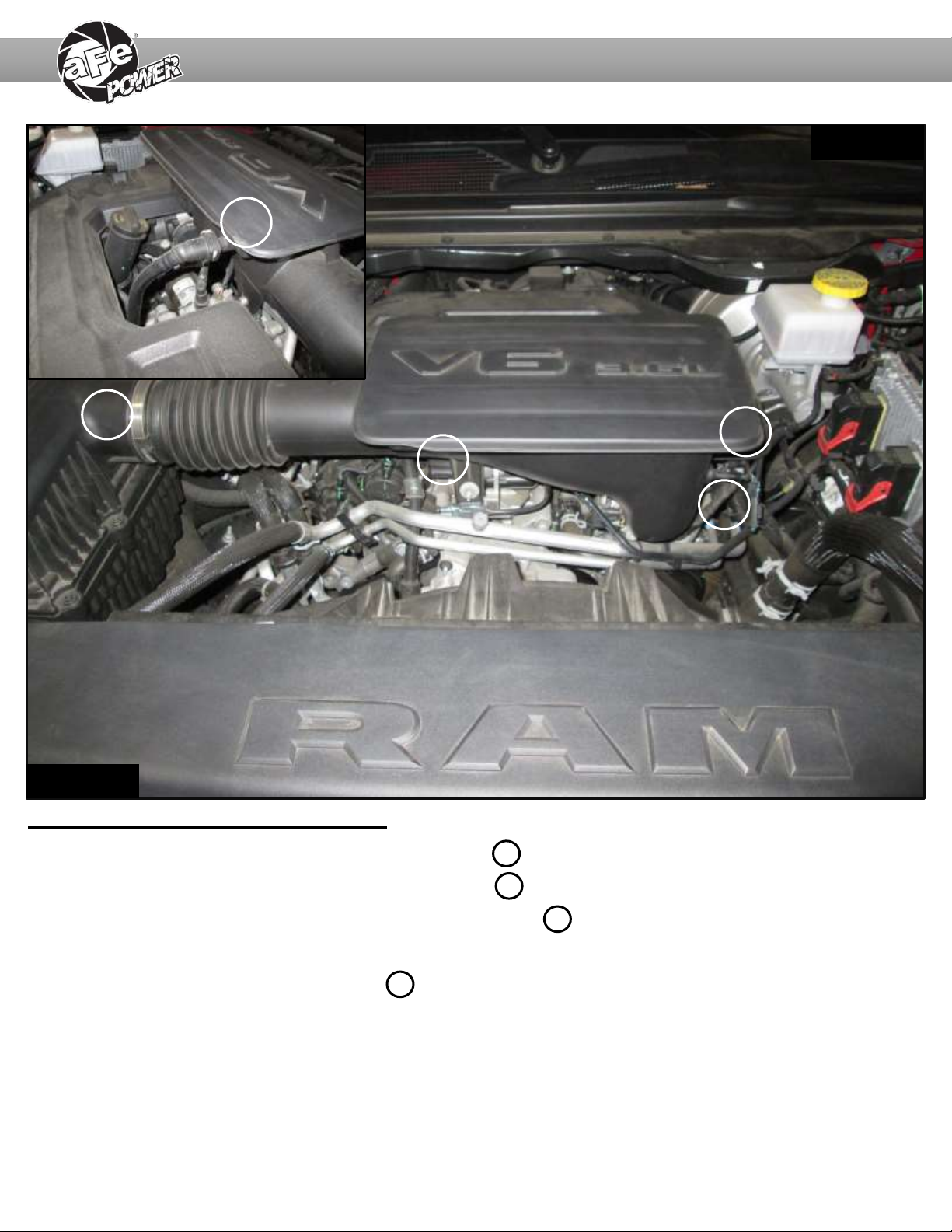

Refer to Figure A for Steps 1-5

Step 1: Using an 8mm nut driver, loosen the two clamps 1 at the throttle body and factory filter housing.

Step 2: Disconnect the temperature sensor wire harness 2 .

Step 3: Using a 10mm deep socket and driver, remove the nut 3 securing the factory intake tube to the

valve cover and set aside.

Step 4: Disconnect the quick connect fitting 4 on the back side of the factory intake tube.

Step 5: Remove the factory intake tube from the vehicle.

REMOVAL

Figure A

Page 5

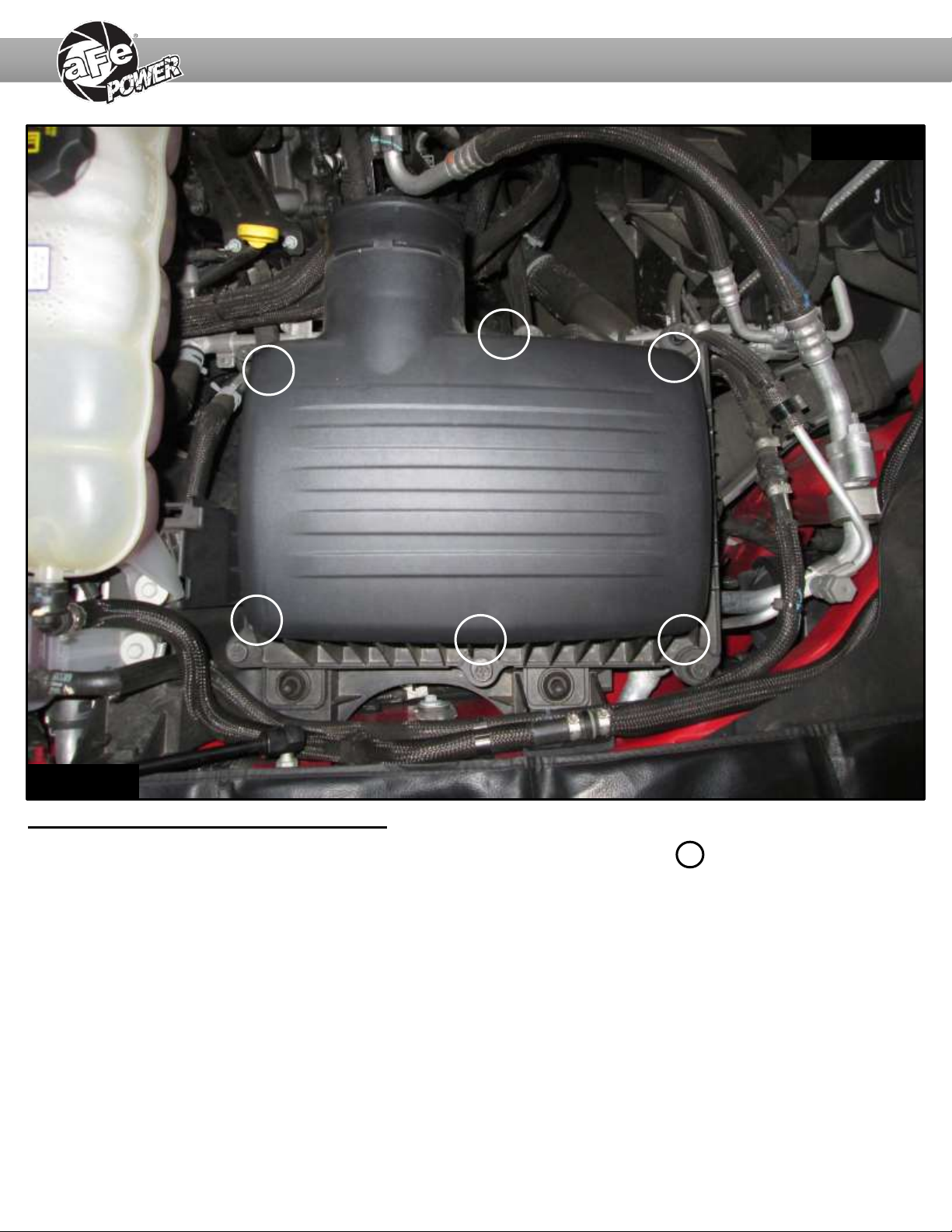

Refer to Figure B for Steps 6-7

Step 6: Using a 10mm socket and driver with extension, remove the 6x screws 5 around the factory filter

housing, and remove the cover.

Step 7: Remove the factory air filter.

REMOVAL

Figure B

Page 6

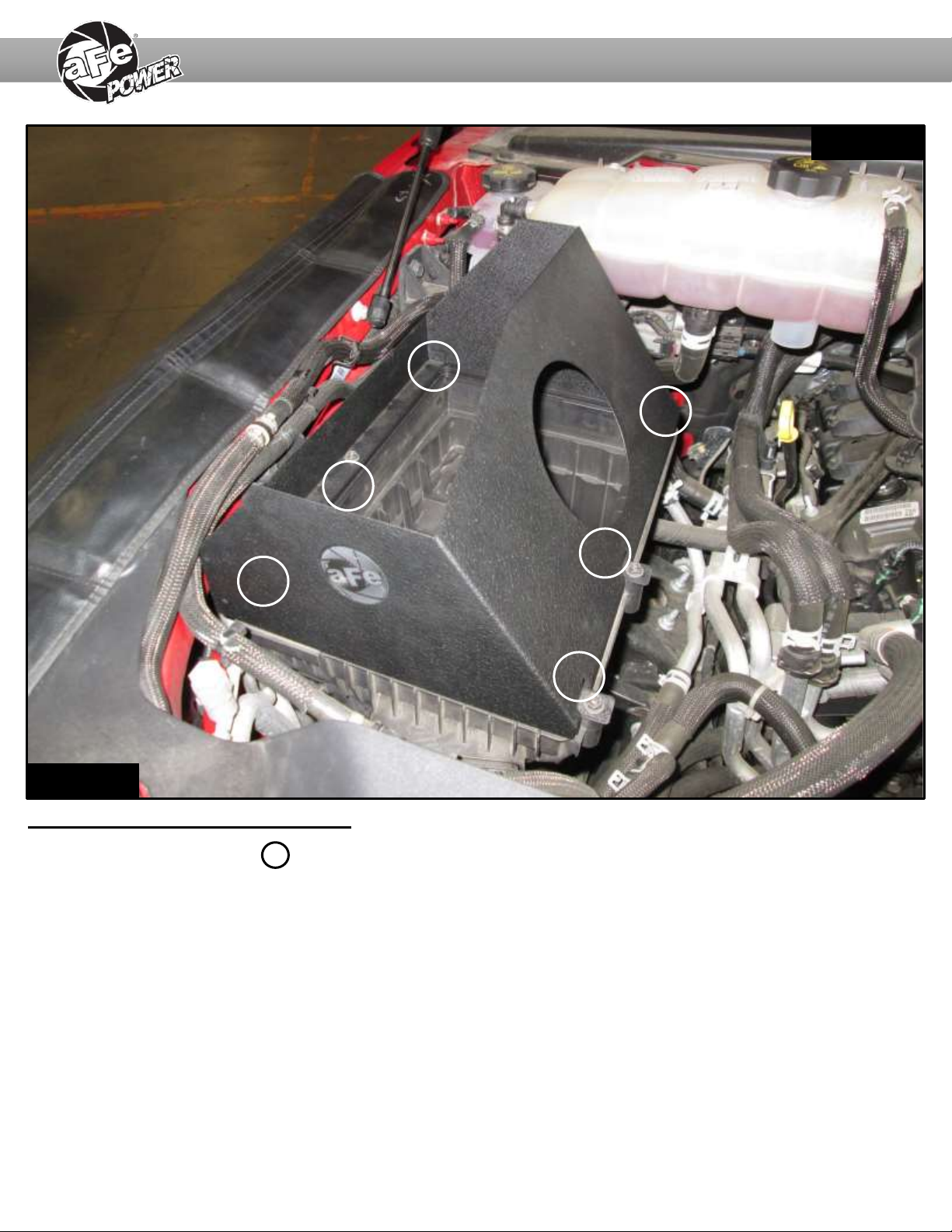

Refer to Figure C for Step 8

Step 8: Using the 6x screws 6 removed in step #6, secure your aFe POWER filter housing to the top of the

factory filter housing and tighten using a 10mm socket with extension.

Figure C

INSTALL

Page 7

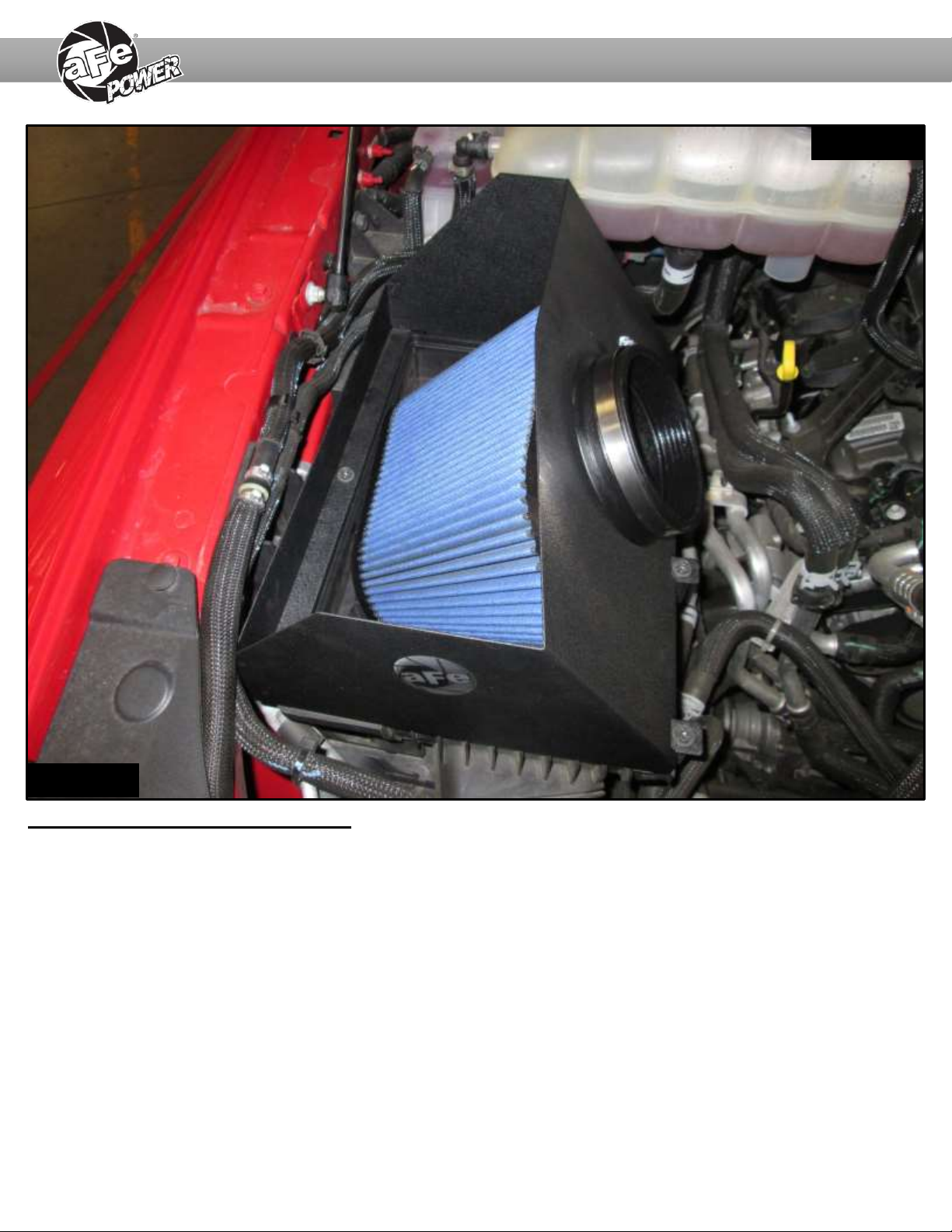

Refer to Figure D for Step 9

Step 9: Install your aFe POWER air filter into the filter housing by removing the clamp, then sliding the filter

flange through the opening on the housing and pressing gently until the filter snaps into place. Place the

filter clamp loosely on the filter flange when finished.

INSTALL

Figure D

Page 8

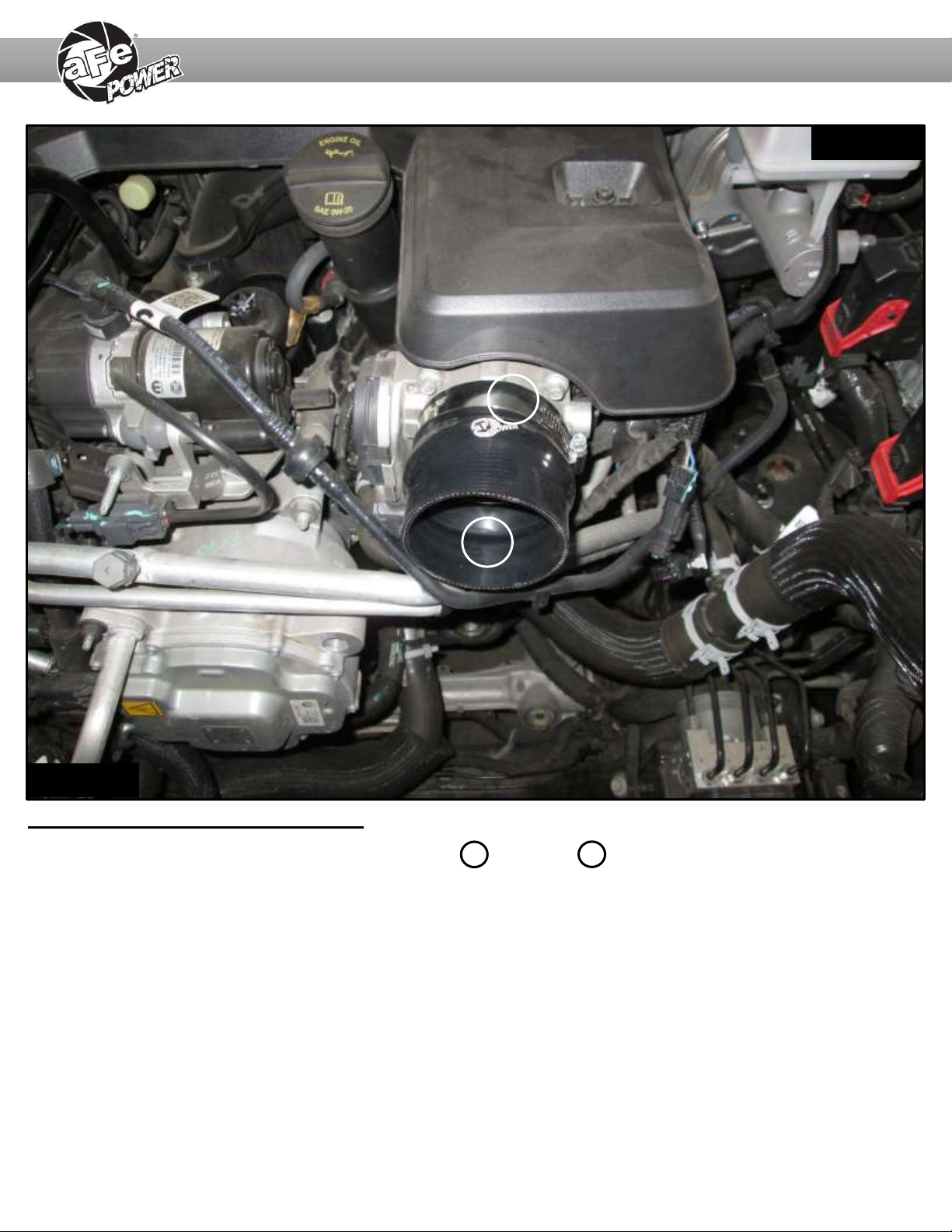

Refer to Figure E for Step 10

Step 10: Install the supplied silicone reducer coupler 7 and clamp 8 with the smaller end on the throttle

body. Tighten the clamp using an 8mm nut driver.

INSTALL

Figure E

Page 9

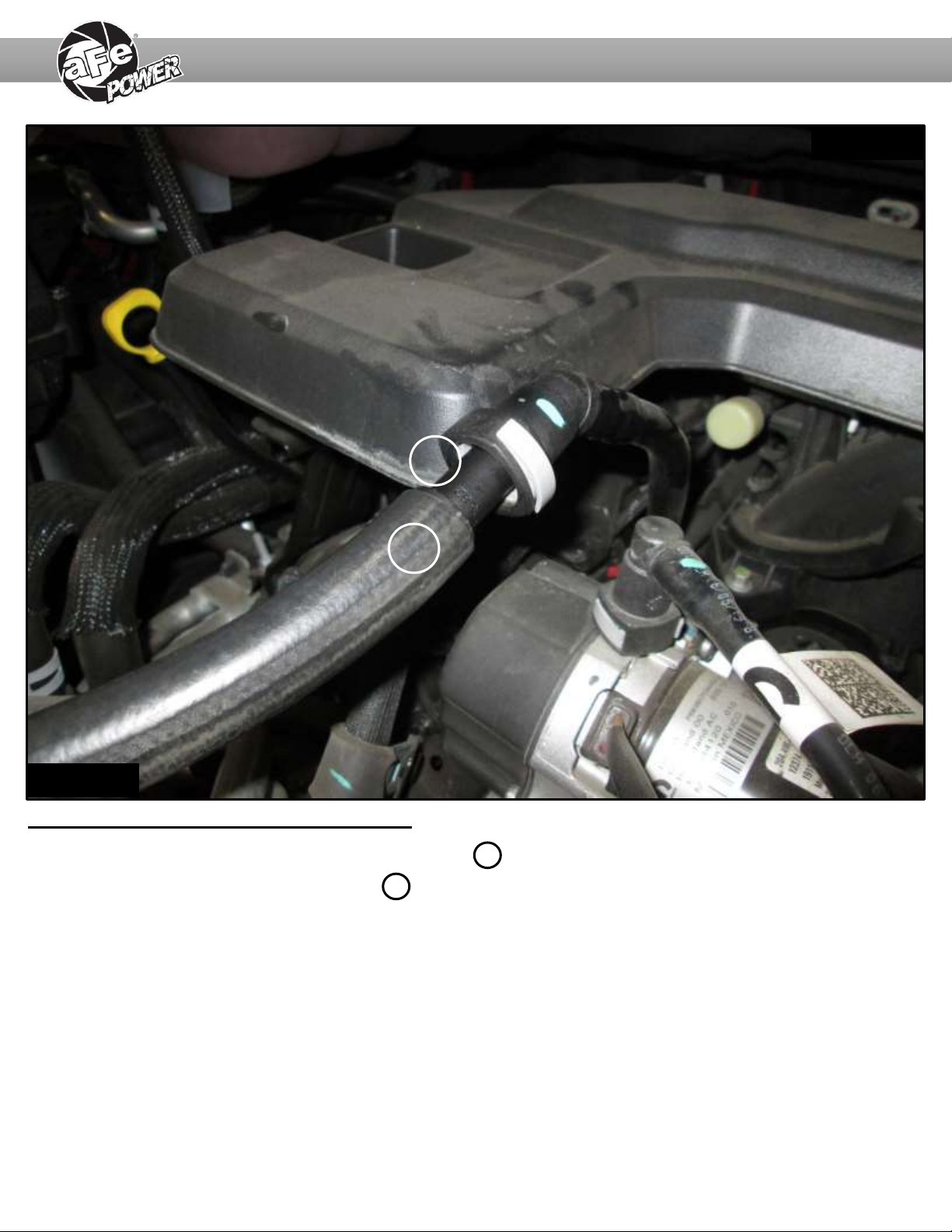

Refer to Figure F for Steps 11-12

Step 11: Install the supplied male quick connect fitting 9 into the factory female fitting.

Step 12: Attach the supplied silicone hose 10 to the barbed end of the fitting.

INSTALL

Figure F

Page 10

Refer to Figure G for Step 13

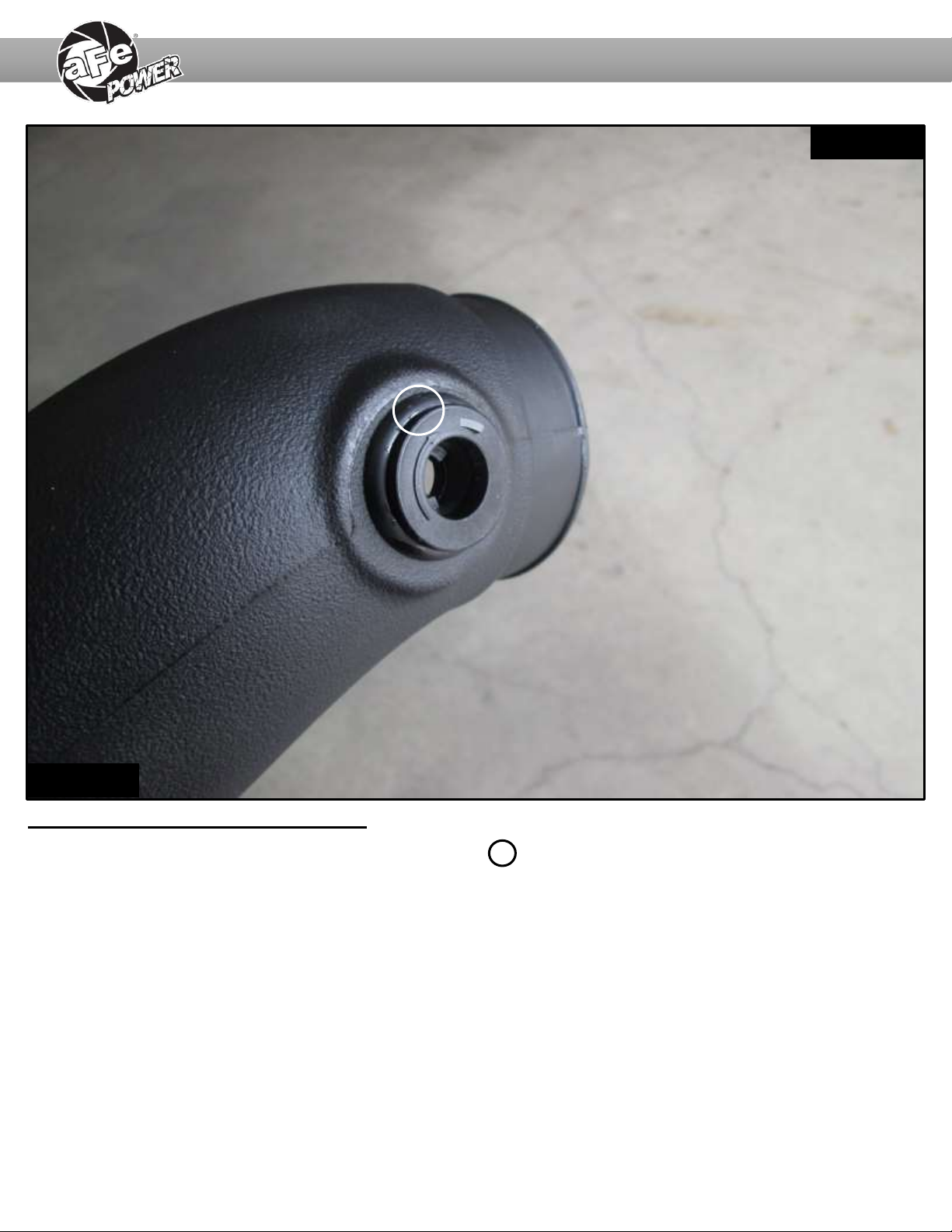

Step 13: Install the supplied rubber grommet and fitting 11 into your aFe Power intake tube as shown. A

small amount of silicone grease may be used to ease the install of the fitting into the grommet.

INSTALL

Figure G
