AFe Power 46-70270 Manuel utilisateur

advanced FLOW engineering

Instruction Manual P/N: 46-70270 / 46-70272

Make: Dodge/RAM Model: 1500 Year: 1994-2016 Axle: Corporate 9.25-12 Bolt

Installation will require the following tools:

13mm socket / wrench, 15mm socket / wrench, 21mm socket / wrench, Socket driver, 14mm socket /

wrench, 5/16 Allen, Gasket Scraper, Oil Drain Pan and Lint free rags.

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

Page 2

Retain factory parts for future use.

Attention installer / Vehicle owner:

The aFe differential cover is designed to ﬁt the factory axle supplied as original equipment. For some

applications, or due to the use of certain factory options and / or after market equipment, there may be

clearance problems between the aFe differential cover and other vehicle systems.

It is the responsibility of the installer / vehicle owner to ensure that no other vehicle

component come into contact with the aFe differential cover. Contact with any other vehicle

component, or any modiﬁcation made to the aFe differential cover, automatically voids the

warranty. aFe assumes no liability, expressed or implied, for damage or injury to persons or

property.

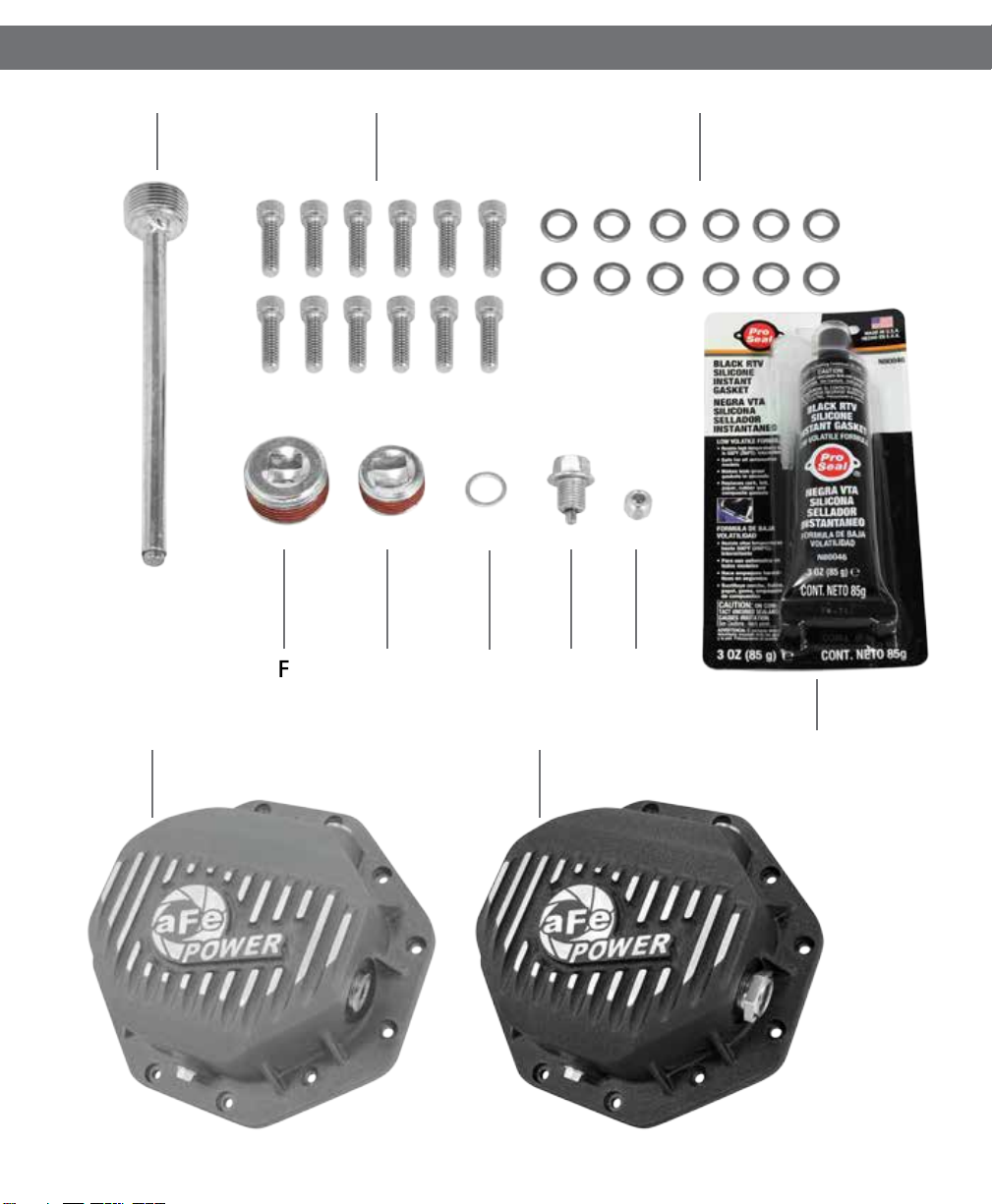

Label Qty. Description Part Number

A1 1 Diff. Cover - Machined Fins (Un-Painted) 05-60445A

A2 1 Diff. Cover - Machined Fins 05-60445B

B 1 Plug, Hex Hd Socket: 1/8 NPT (Zn Plt) 03-50029

C 1 Plug, 3/4-14 NPTF, 6” Deep Reach (46-70272) 03-50223

D 1 Plug, 3/4-14 NPTF (46-70270) 03-50391

E 1 Plug, M12 x 1.25 (46-70272) 03-50385

F 1 Plug, 1"-11.5 NPT (46-70270) 03-50390

G 12 Screws, Socket Head Cap: 5/16-18 x 1.0 S/S 03-50227

H 1 Washer, Aluminum: M12 03-50384

I 12 Washer, Flat: 5/16 AN S/S 03-50228

J 1 RTV Silicone, Black Instant Gasket 05-60096

K 1 Porthole View Gauge (Installed in 46-70272) 03-50224

aFepower.com

Page 3

C G I

DHE B

A1 A2

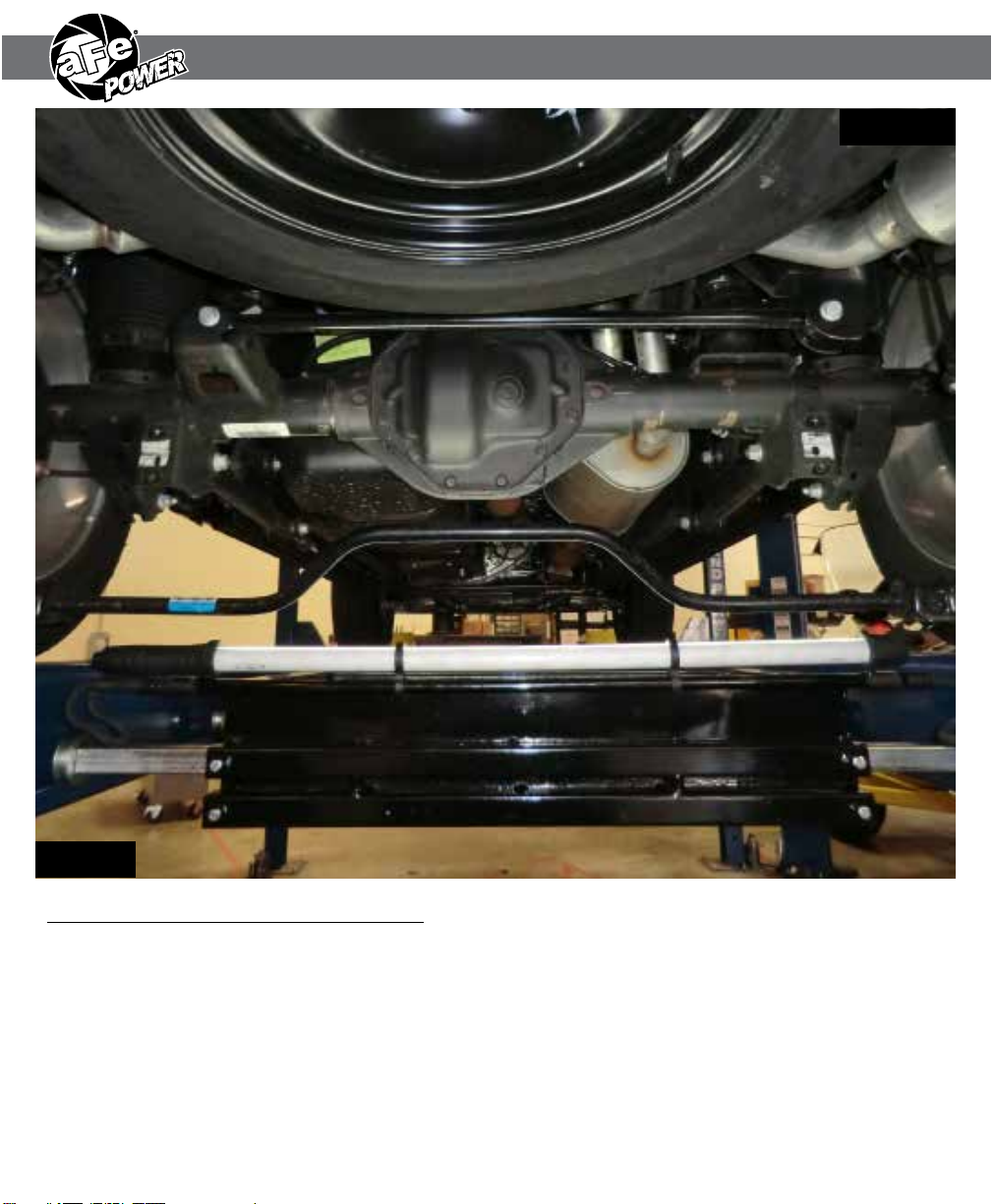

Refer to Figure A for steps 1-3

Step 1: Park your truck on level ground and apply the parking brake.

Step 2: Using a 15mm socket, remove the sway bar from the rear axle.

Step 3: Using a 21mm socket and wrench, remove the rear panhard bar.

Page 4

REMOVAL

Figure A

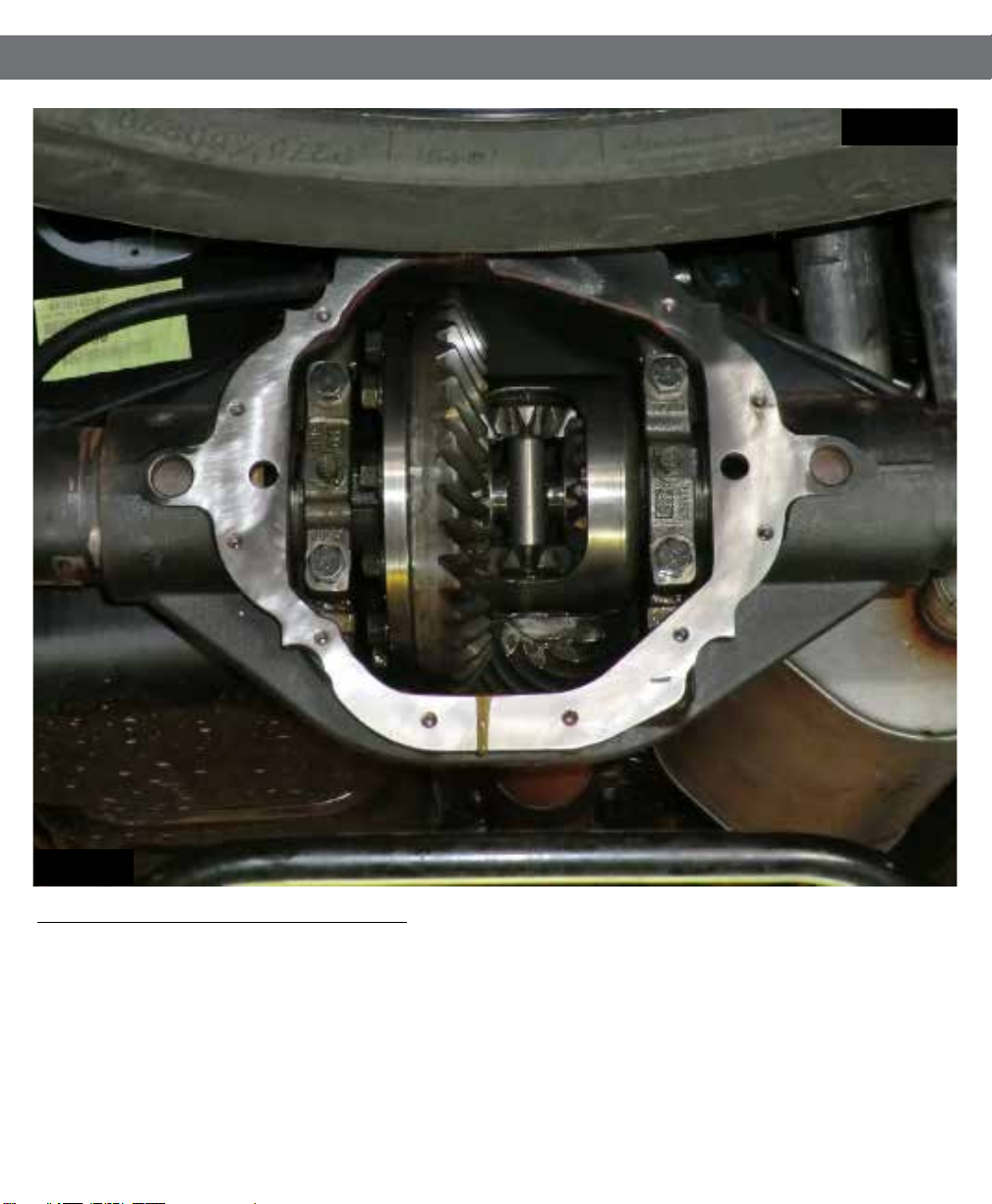

Refer to Figure B for steps 4-9

Step 4: Place a drain pan under the rear differential cover.

Step 5: Using a 13mm socket, remove all but 1 of the bolts from the differential cover leaving the last

bolt in one of the top holes. Loosen but do not remove the last bolt.

Step 6: Using a gasket scraper, start at the bottom and carefully insert between the cover and the

differential housing. Pry the cover off. Remove last bolt and cover from differential.

Step 7: Allow all the oil to drain.

Step 8: Using a gasket scraper, carefully remove the old gasket material until the sealing surface is clean.

Do not gouge the differential sealing surface.

Step 9: Using a lint free rag, wipe all remaining oil and old gasket from differential housing.

aFepower.com

Page 5

REMOVAL

Figure B

Page 6

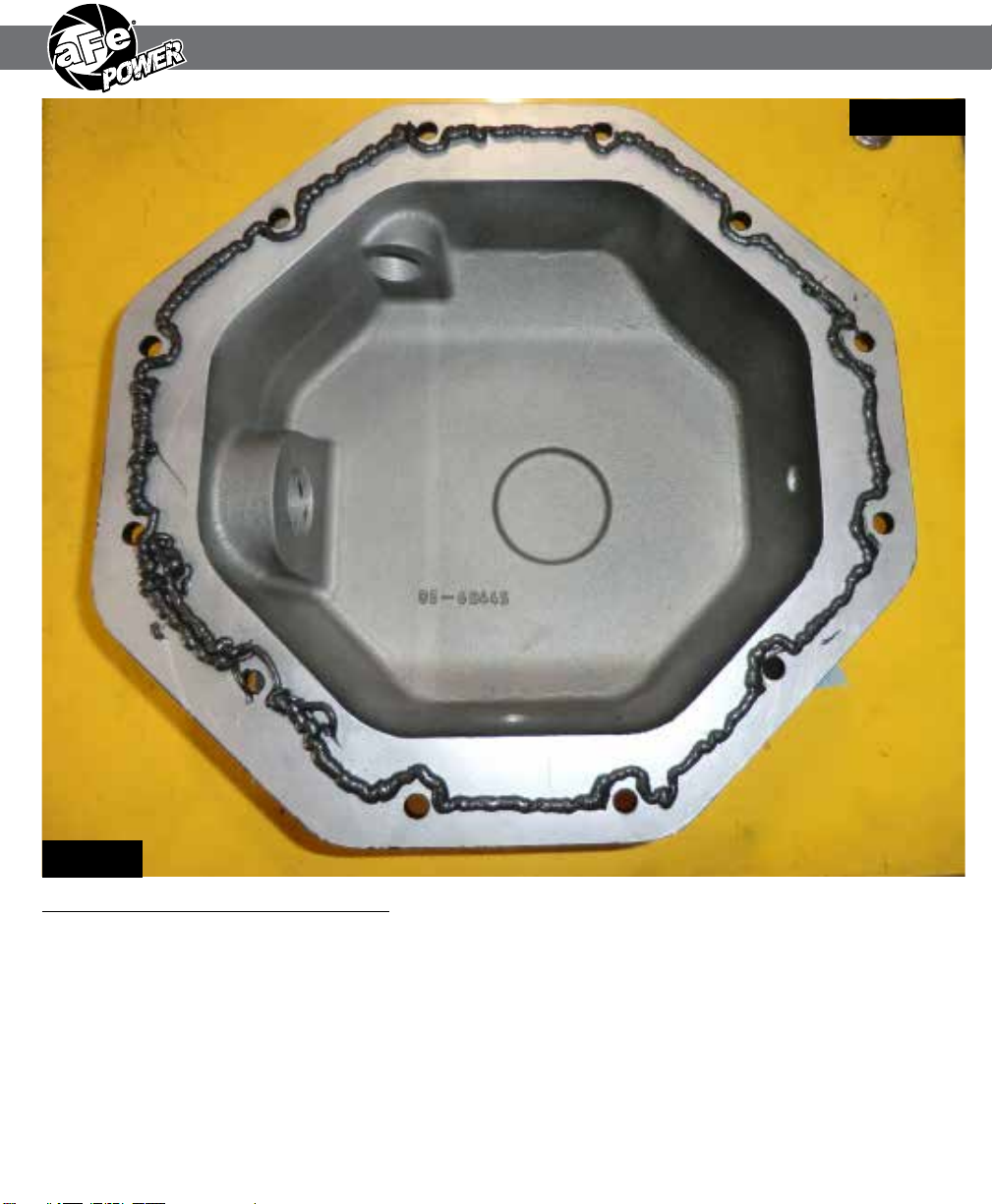

Refer to Figure C for step 10

Step 10: Using the silicone provided lay a continuous line around the cover

(as shown in the photo above).

Figure C

INSTALL

REMOVAL

aFepower.com

Page 7

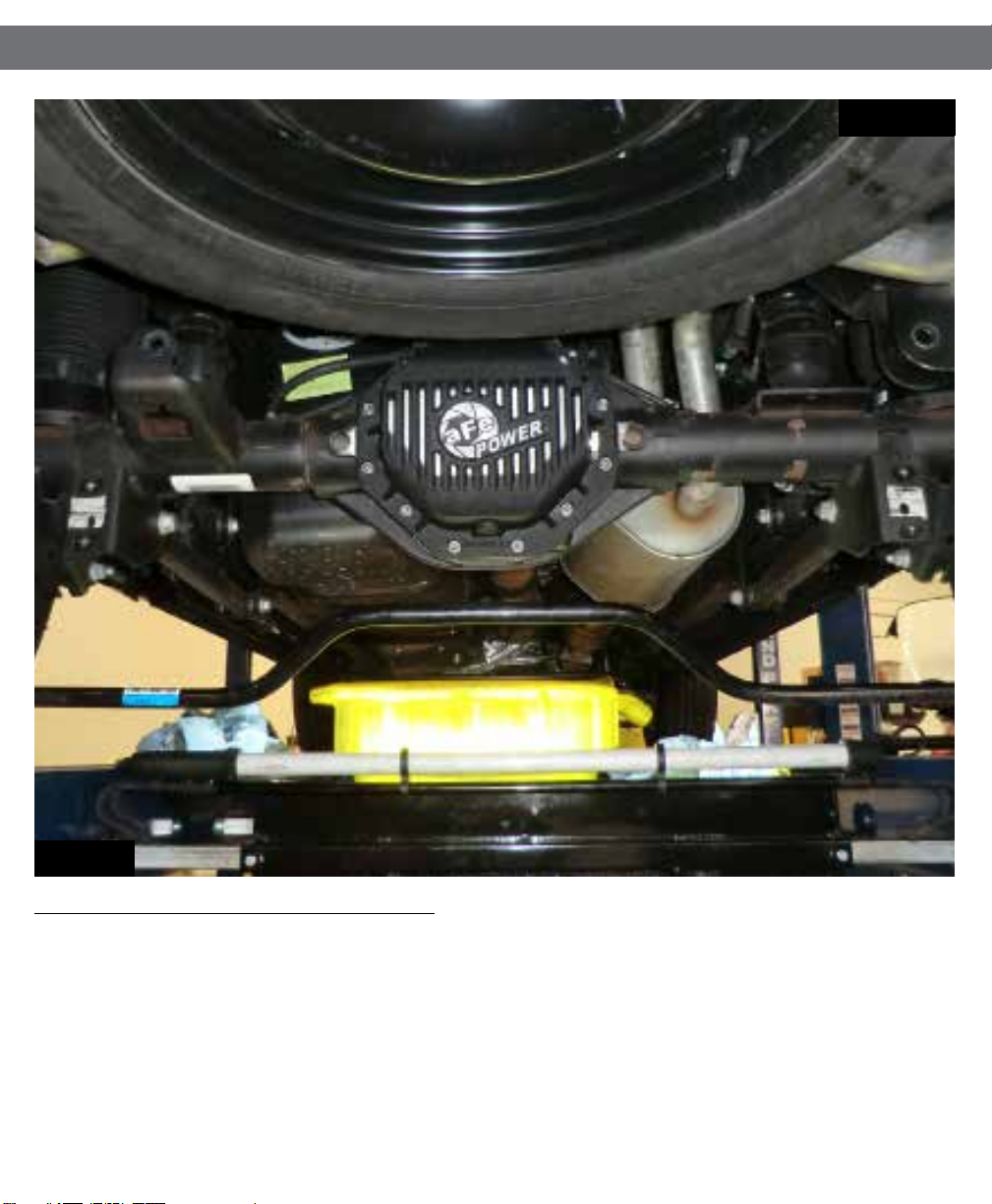

Refer to Figure D for steps 11-12

Step 11: Position the cover by aligning the bolt holes. Start one of the new allen head bolts at the top

bolt hole. Continue around the cover until all bolts are started.

Step 12: Using a 5/16 allen socket, torque all allen head bolts to 12-16 ft. lbs.in a cross tightening

pattern.

Figure D

INSTALL

Page 8

Refer to Figure E for step 13

Step 13: Using a 14mm socket, install the drain plug and crush washer into the aFe differential cover.

INSTALL

Figure E

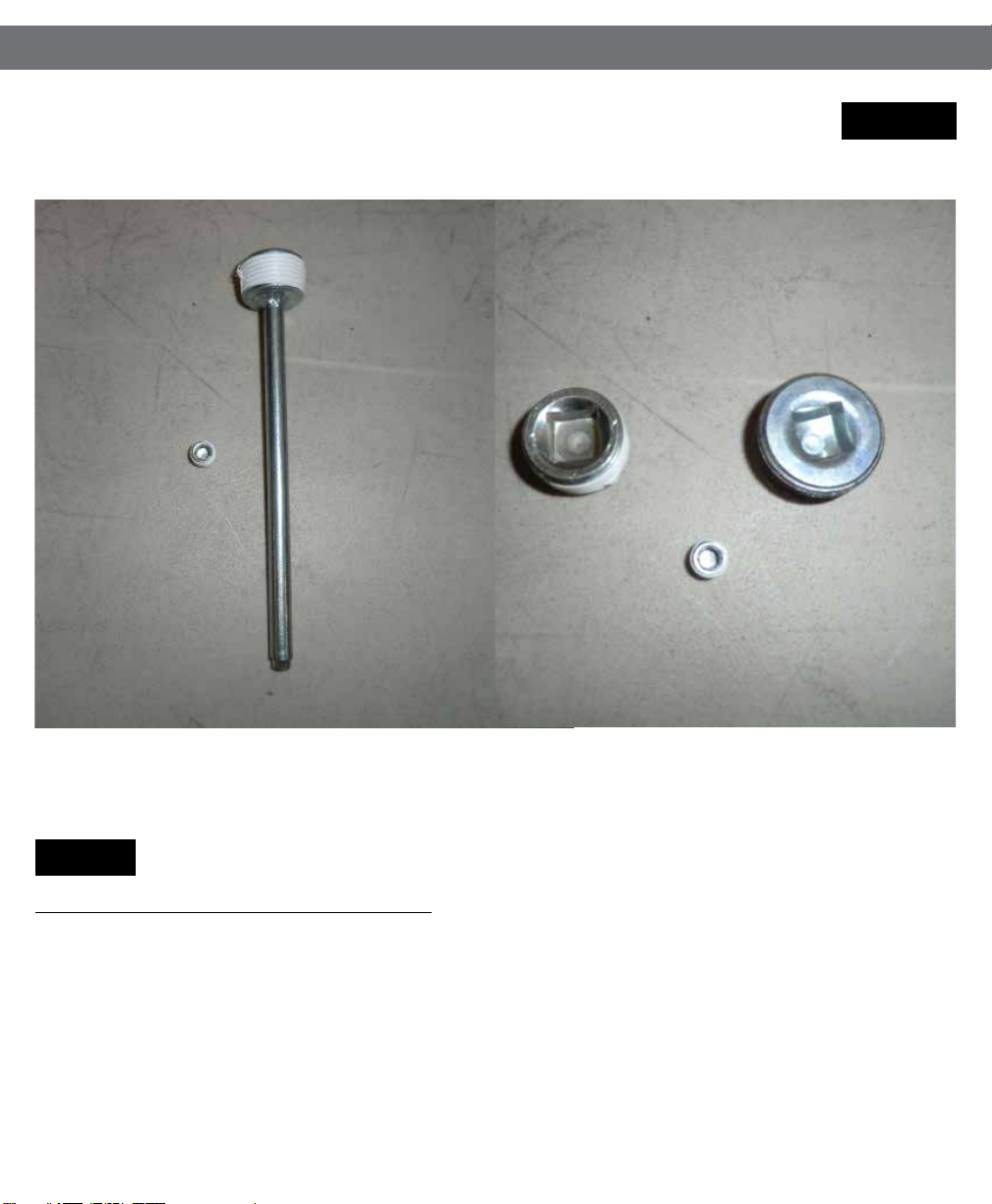

Refer to Figure F for steps 14-15

Step 14: Apply teﬂon pipe sealant tape on the threads of the NPT plug components before installing.

When installing kit number 46-70270 only:

Step 15: Install the 1” NPT plug in the passenger side of the aFe differential cover.

aFepower.com

Page 9

Figure F

INSTALL

Page left blank intentionally

Page 10

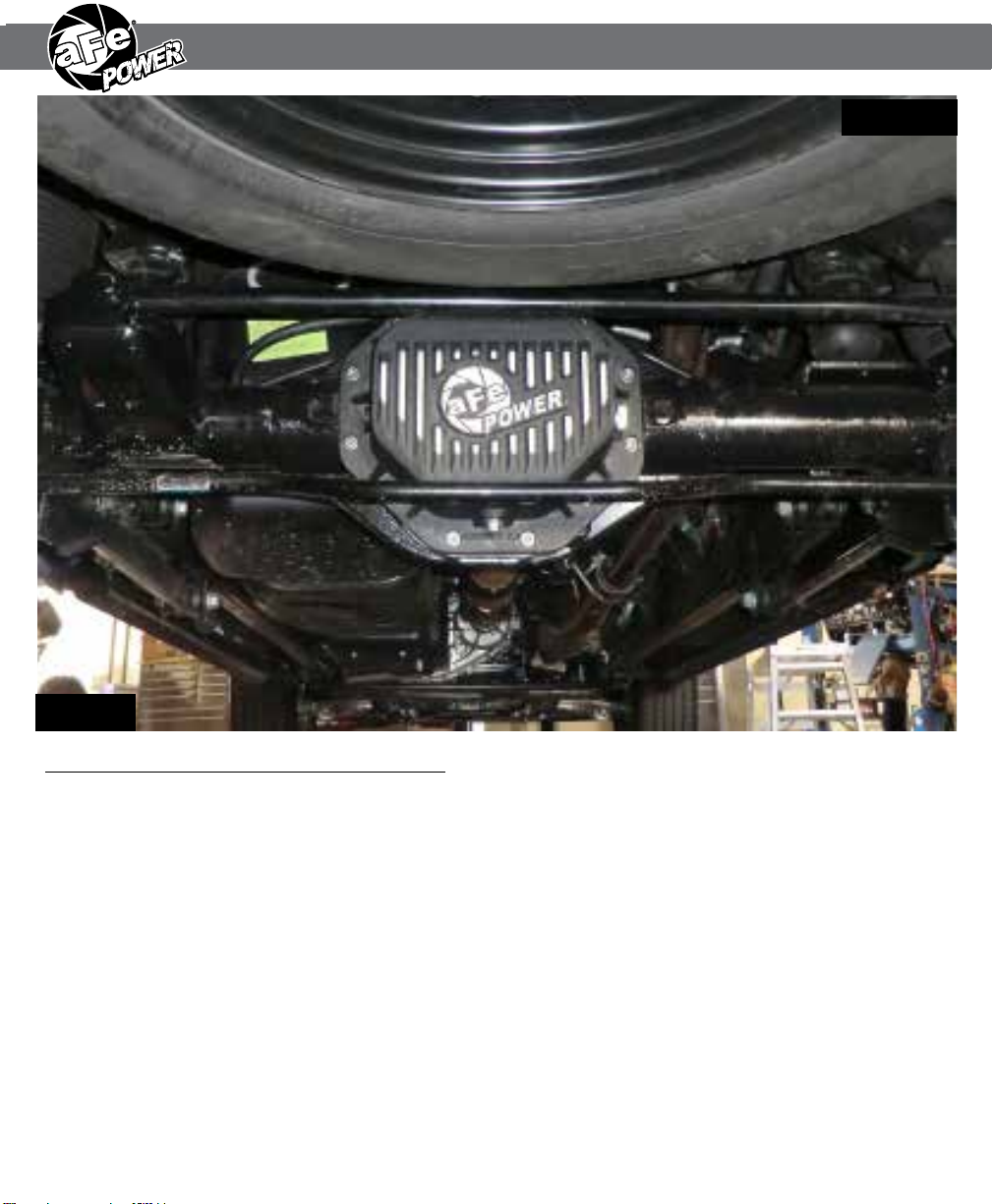

Refer to Figure G for steps 16-18

Step 16: Fill the aFe differential cover with new gear oil. Gear oil will run out of the 1/8 NPT hole on the

driver’s side of the aFe differential cover when it is ﬁlled. Install the provided 1/8 NPT plug in the

oil level hole and tighten.

When installing kit number 46-70272 only:

Step 17: Install the supplied 6" deep reach magnet in the top ﬁll hole and tighten using 1/2" ratchet

torque wrench. DO NOT OVER TIGHTEN.

When installing kit number 46-70270 only:

Step 18: Install the supplied ¾" NPT plug in the top ﬁll plug hole and tighten using 1/2" ratchet torque

wrench. DO NOT OVER TIGHTEN.

NOTE: If your vehicle has been modiﬁed or “lifted” and the axle has been rotated, you will need to

establish the correct oil level for your vehicle. NOTE: if ﬂuid is overﬁlled, it can be drained

to the proper level through the side oil level port.

INSTALL

Figure G
