Cold Air Intake System

Instruction Manual P/N: 57-10018D / 57-10018R_____________________________

Make: Chevrolet Model: Camaro ZL1 Year: 2017-2023Engine: V8-6.2L (sc) LT4

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• For technical support please call 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

Air Filter (Pro 5R)

24-90112

Air Filter (Pro DRY S)

21-90112

Tube

05-5710018C1

Housing

05-5710018B2

Scoop

05-74210B3

Coupling, Silicone Bellow

05-01605

Fitting, SAE 9.89 to 1/8" NPT

05-01692

Clamp, T-bolt (3-13/16" - 4-1/8") (SS)

03-50265

Seal, Trim: 13/32" dbl. Bulb (32"L)

05-01534

Screw, Torx: M4x8mm

03-50491

Installation will require the following tools:

T-20 Torx driver, 8mm nut driver, 11mm deep socket & driver, 15mm wrench or adjustable wrench

Warranty Information available at https://afepower.com/contact#warranty

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

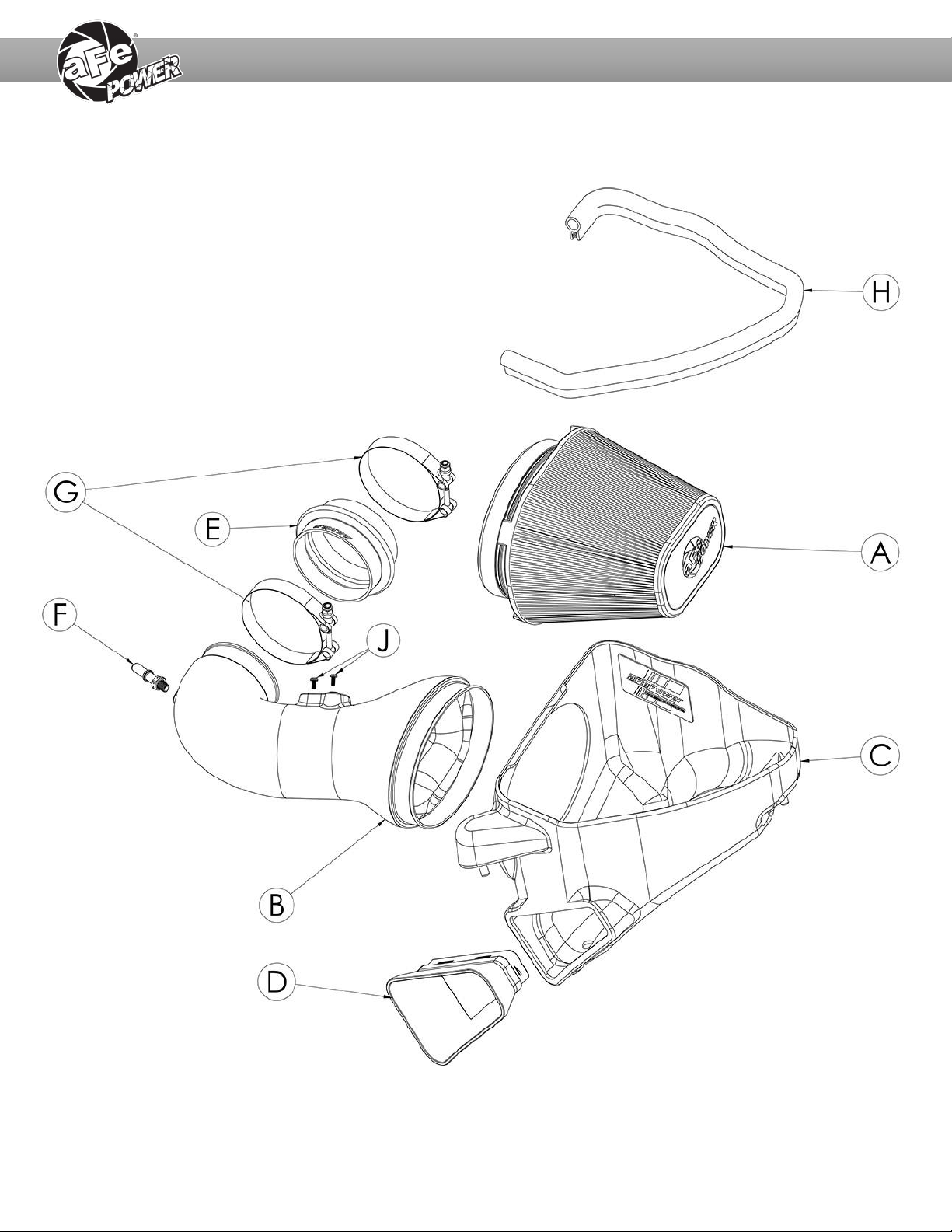

Page 3

Page 4

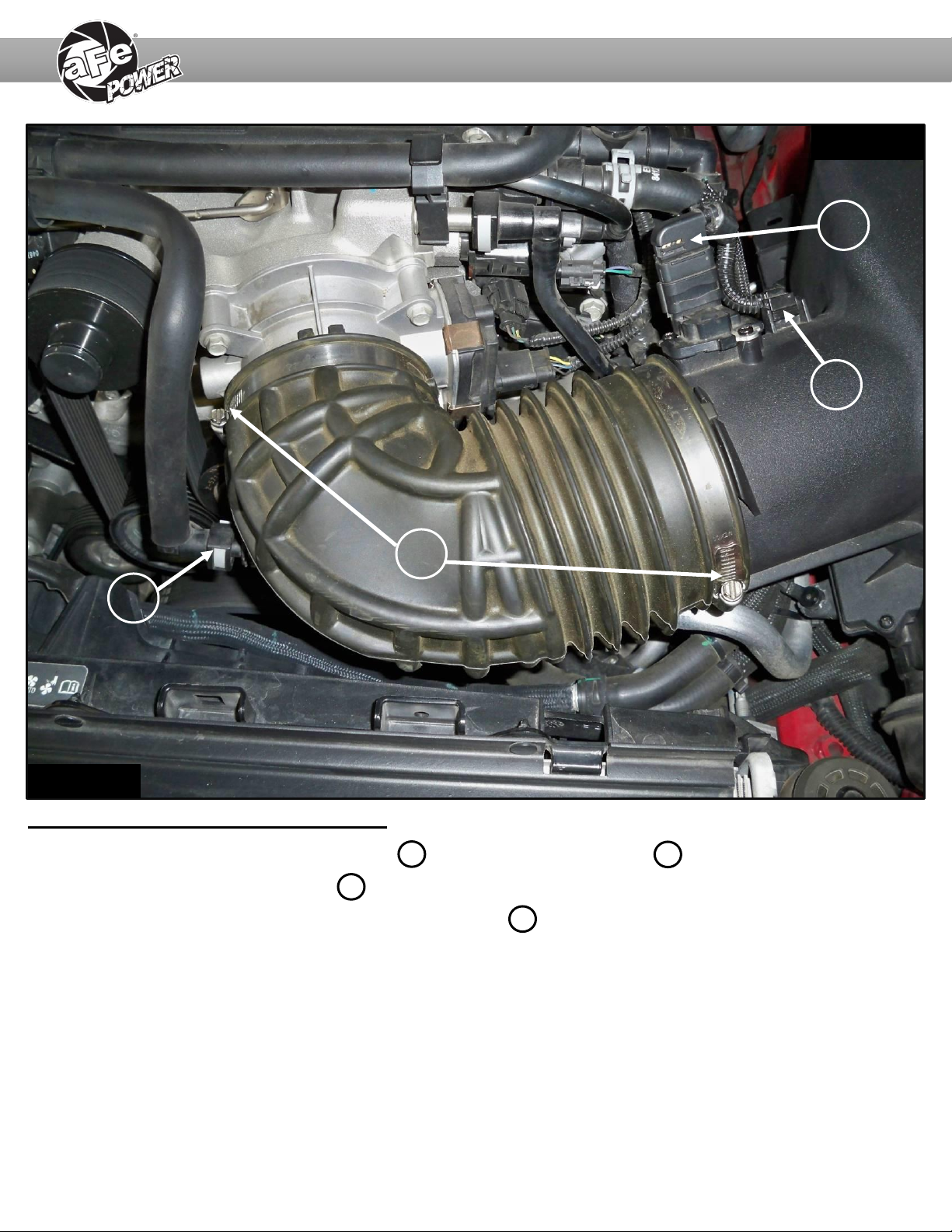

Refer to Figure A for Steps 1-4

Step 1: Disconnect the mass air flow sensor 1 and the wiring harness clip 2 .

Step 2: Disconnect the breather hose 3 from the intake tube.

Step 3: Use an 8mm nut driver to loosen the stock clamps 4 at the throttle body and the airbox.

Step 4: Remove the stock intake tube.

REMOVAL

Figure A

Page 5

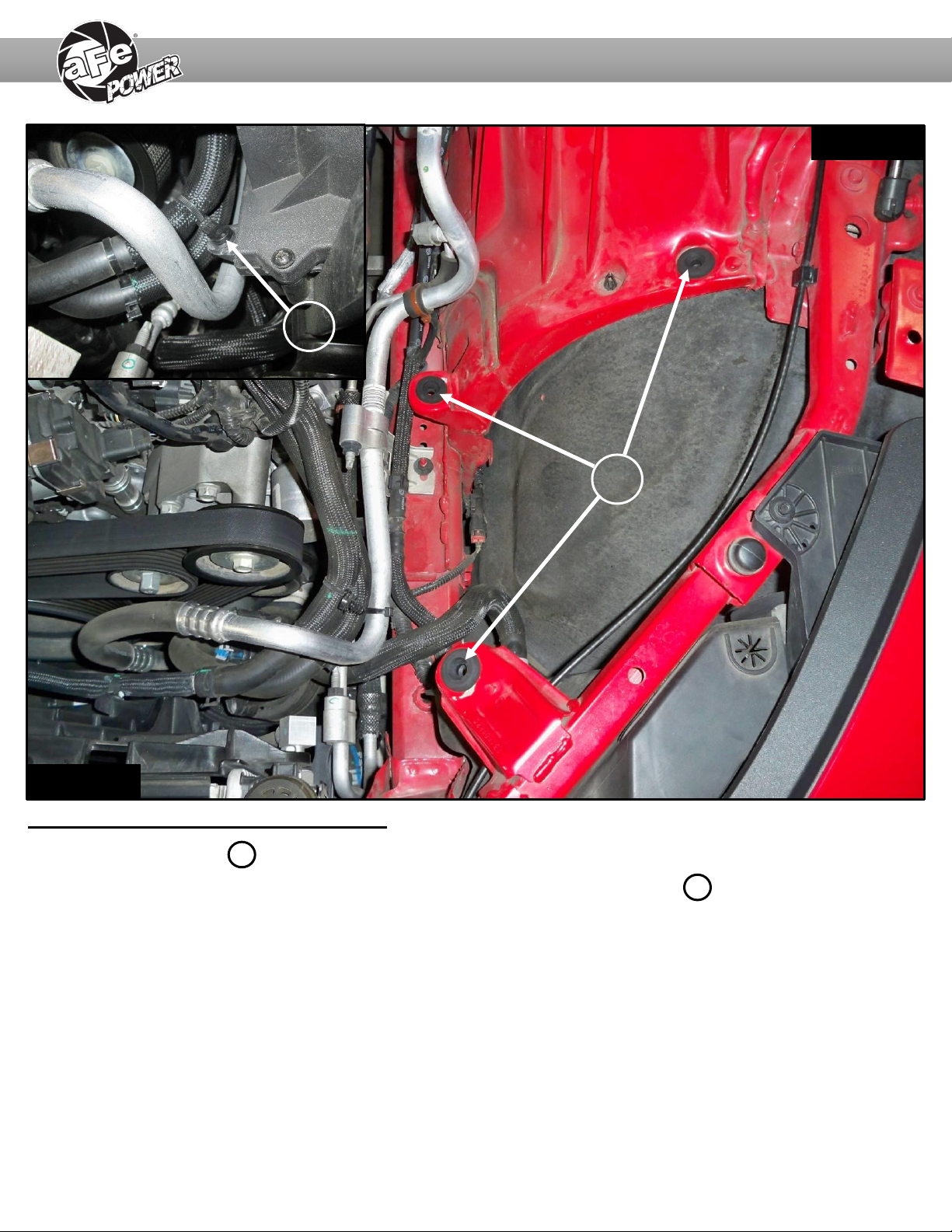

Refer to Figure B for Steps 5-6

Step 5: Remove the clip 5 holding the coolant line to the airbox.

Step 6: Remove the airbox by pulling up to release from its mounting grommets 6 . Make sure the

mounting grommets are still in the chassis mounting tabs. If they pulled out and are stuck in the lower

half of the airbox, remove them from the airbox and insert them back on the chassis mounting tabs.

REMOVAL

Figure B

Page 6

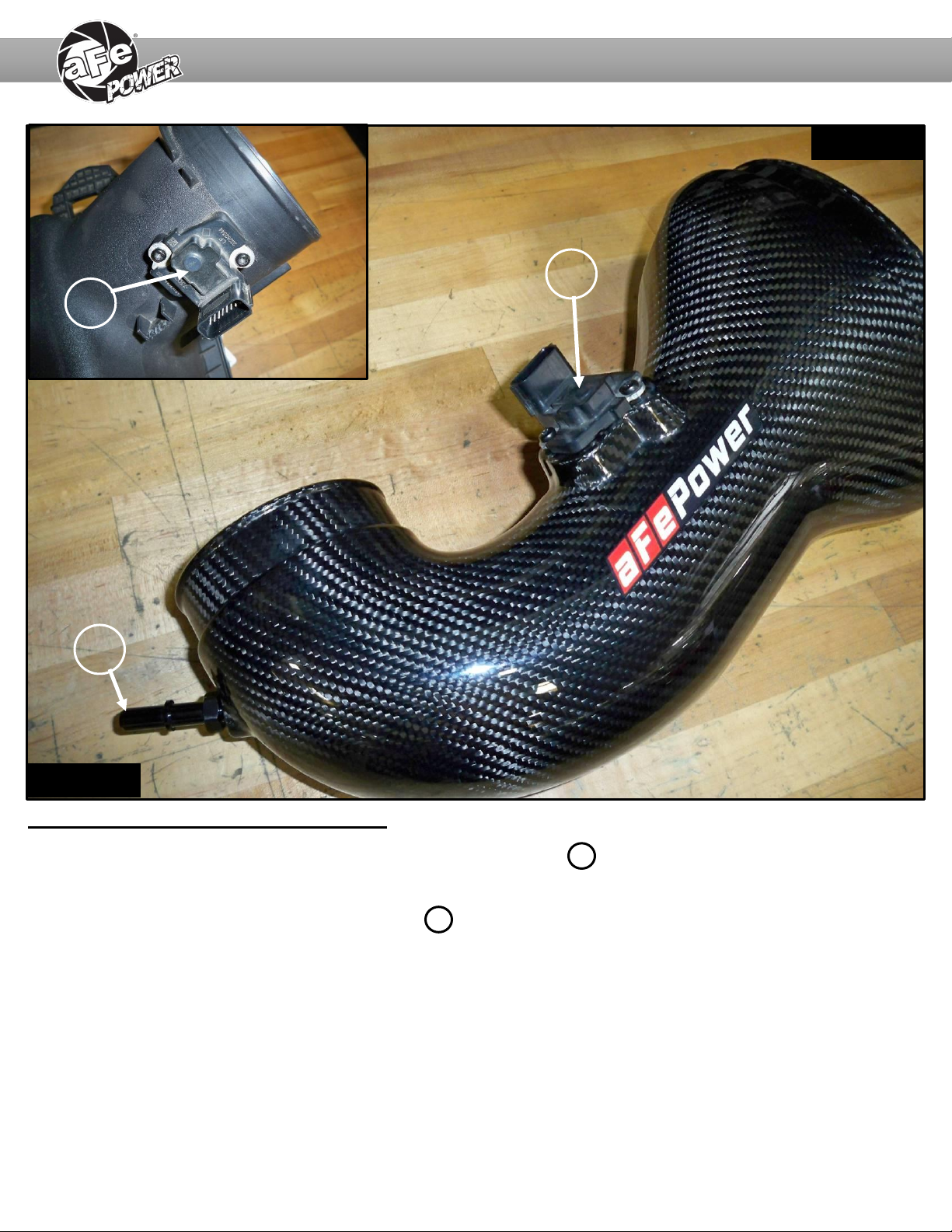

Refer to Figure C for Steps 7-8

Step 7: Using a Torx T20 driver, remove the mass air flow sensor 7 from the upper half of the airbox and

install it into the aFe POWER intake tube using the two provided M4 torx screws.

Step 8: Install the supplied aluminum vent fitting 8 into the aFe intake tube using a 15mm wrench or

adjustable wrench.

INSTALL

Figure C

Page 7

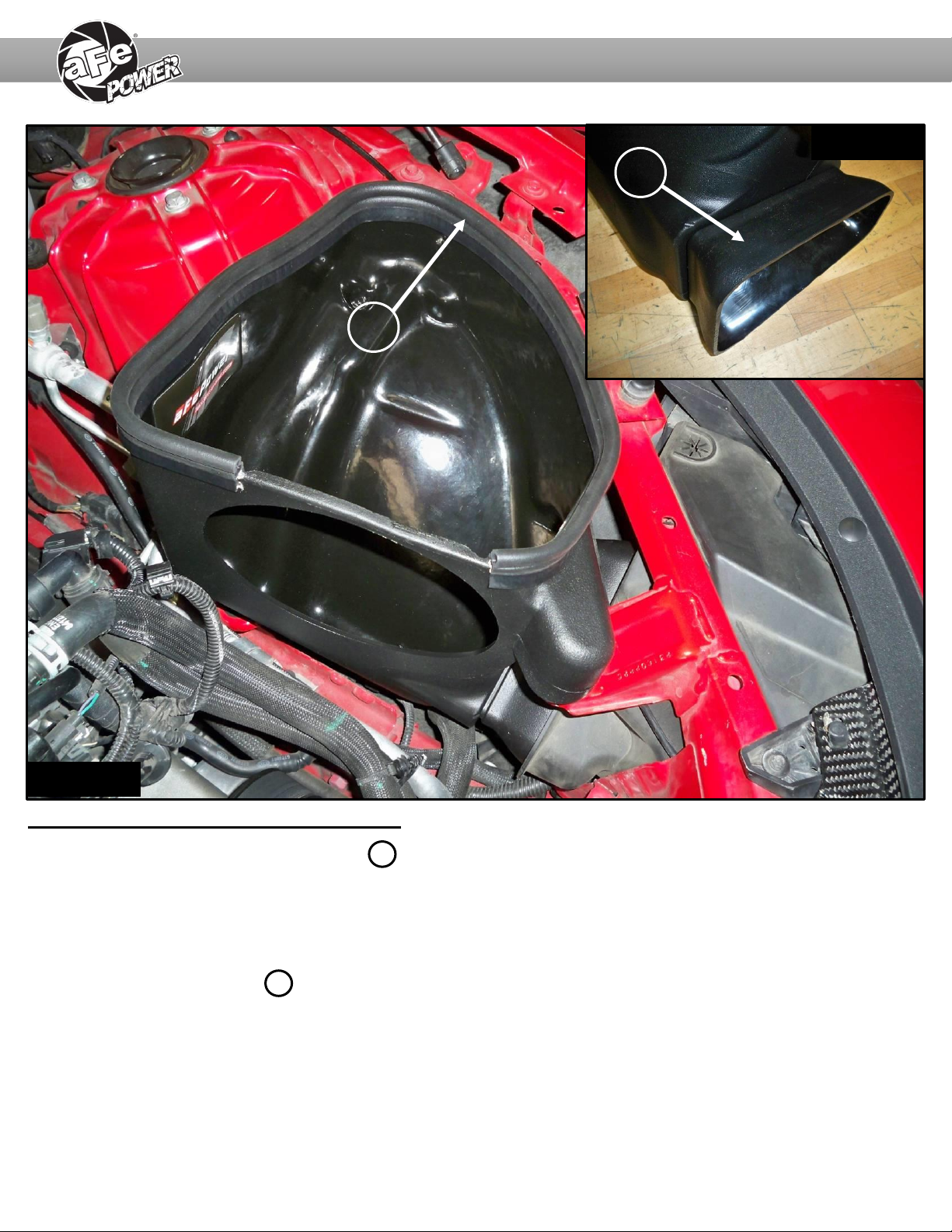

Refer to Figure D for Steps 9-11

Step 9: Install the supplied air inlet scoop 9 into the aFe POWER housing.

Step 10: Install the aFe POWER housing assembly into the vehicle by pushing down the housing pins into

the mounting grommets. Make sure the pins are completely through the mounting grommets and the

scoop is in the rubber inlet opening cavity.

Step 11: Install the seal trim 10 on the top opening of the aFe POWER housing as shown. Trim to fit.

Figure D

INSTALL

Page 8

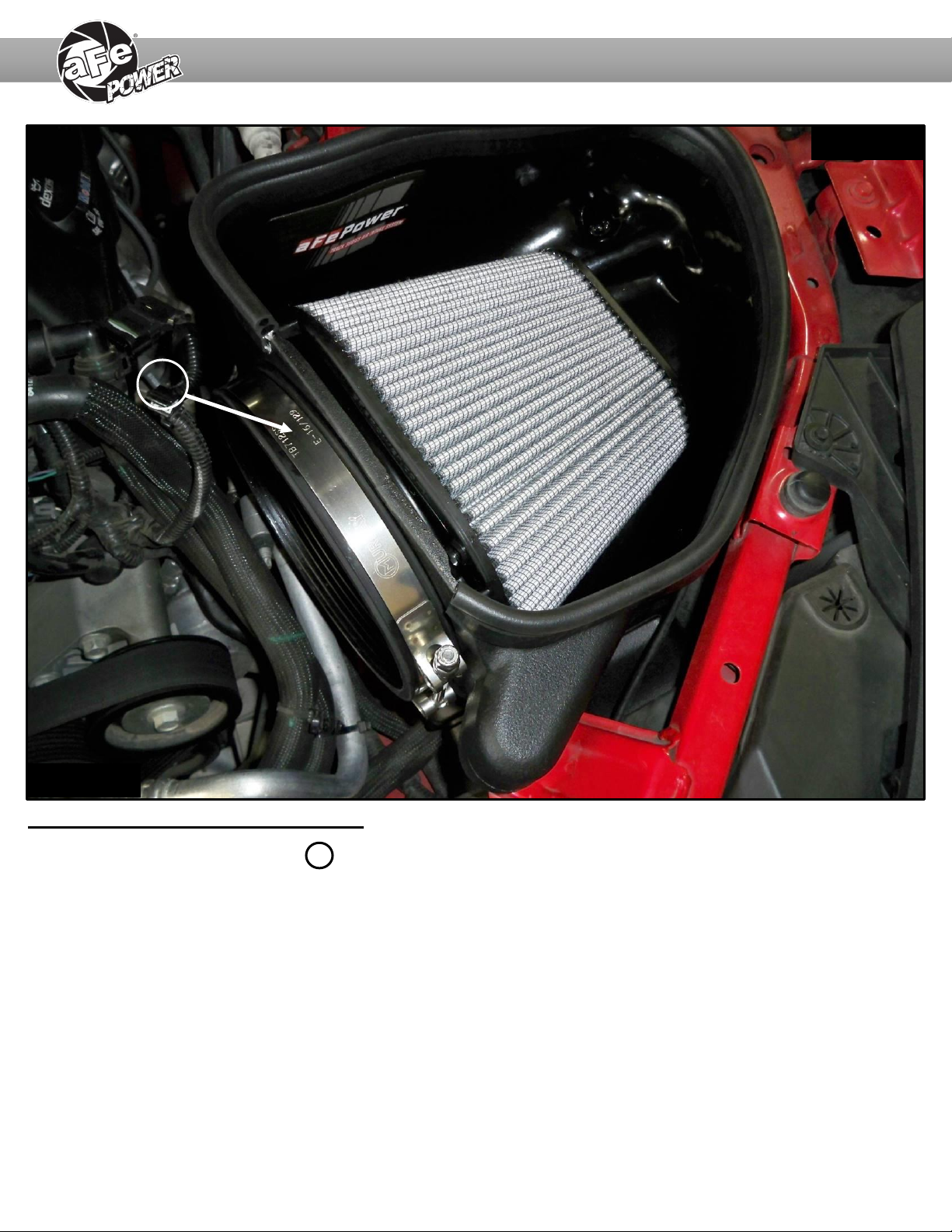

Refer to Figure E for Step 12

Step 12: Remove the filter clamp 11 from the aFe POWER filter. Slide the aFe POWER filter into the aFe

POWER housing from the top. Then guide the filter flange through the oval opening in the housing and

snap in the filter. Place the filter clamp on the filter flange.

INSTALL

Figure E

Page 9

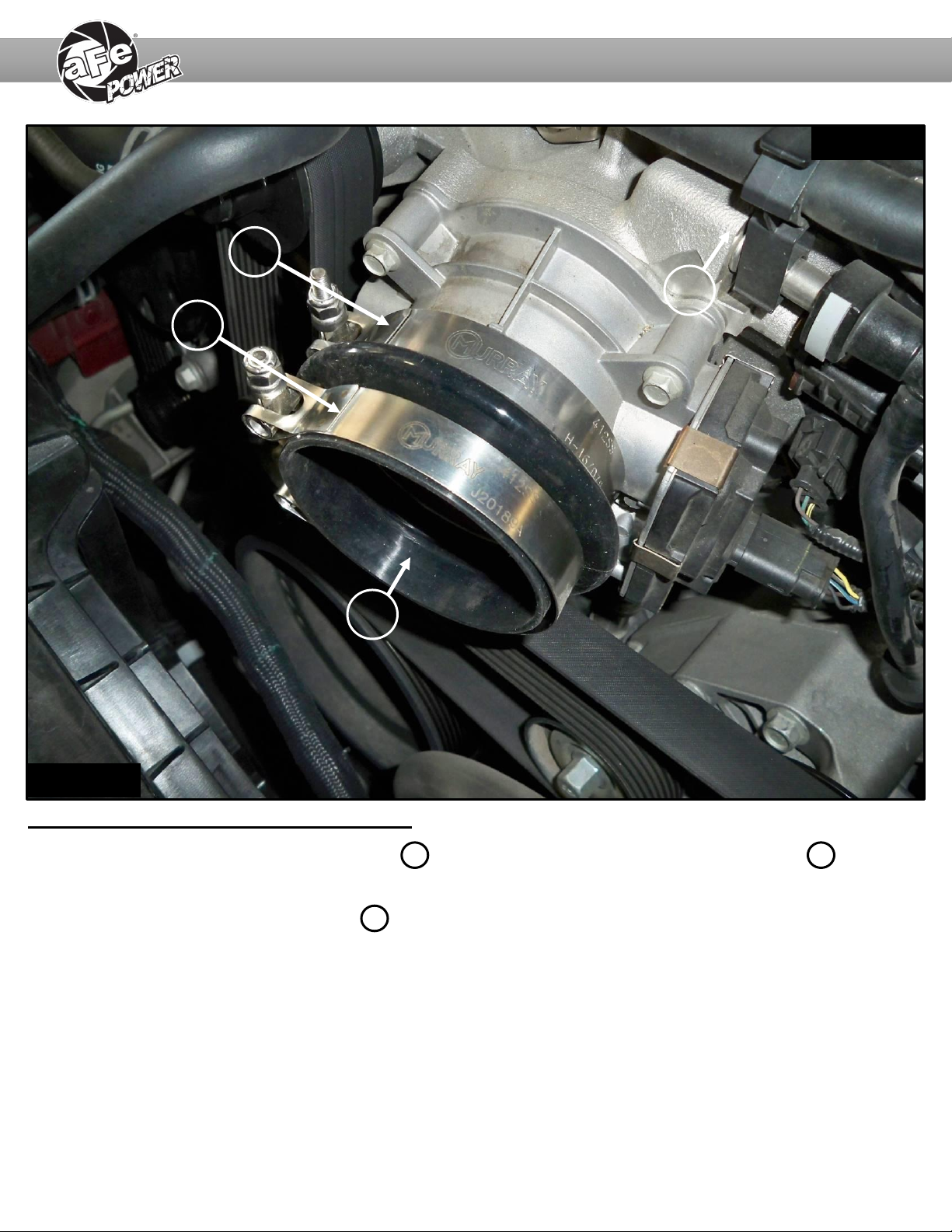

Refer to Figure F for Steps 13-14

Step 13: Install the supplied silicone coupling 12 onto the throttle body with the supplied clamp 13 as shown

and tighten the clamp using an 11mm deep socket and driver.

Step 14: Place the other supplied clamp 14 on the silicone coupling as shown. Do not tighten this clamp.

INSTALL

Figure F

Page 10

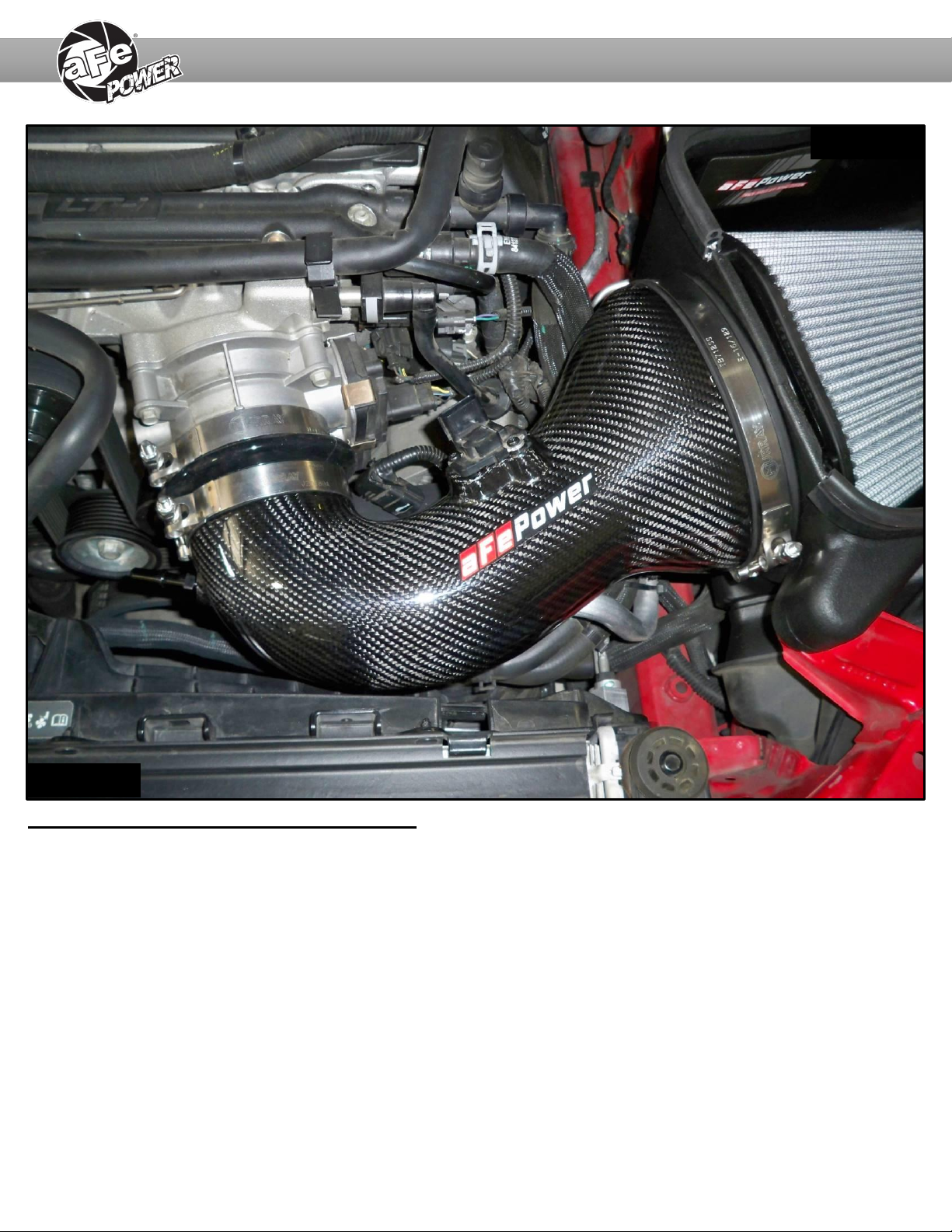

Refer to Figure G for Steps 15-16

Step 15: Install the aFe POWER intake tube into the vehicle. Slide the tube into the throttle body coupling

first, then into the air filter.

Step 16: Align the aFe POWER intake tube and clamps correctly, then using a 11mm deep socket and

driver tighten all the clamps.

INSTALL

Figure G
