AFe Power 52-10001D Manuel utilisateur

Rapid Induction Cold Air Intake System

Instruction Manual P/N: 52-10001D / 52-10001R______________________________

Make: Ford Model: Ranger Year: 2019-2021Engine: L4-2.3L (t)

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

Air Filter (Pro 5R)

24-90113

Air Filter (Pro DRY S)

21-90113

Tube

05-5210001B1

Housing

05-5210001B2

Adaptor, Air Temp Sensor

05-01454

Clamp, 048 (2-9/16" - 3-1/2 ")

03-50007

Grommet, Rubber

03-50167

Coupling, Silicone Hump: 3"ID x 2-1/4"L

05-01245

Fitting, Large

05-01339

Seal Trim (length 32”)

05-00072

Installation will require the following tools:

Panel clip remover or small flat-head screwdriver, 7mm & 8mm nut drivers.

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

Page 3

A1/A2

Page 4

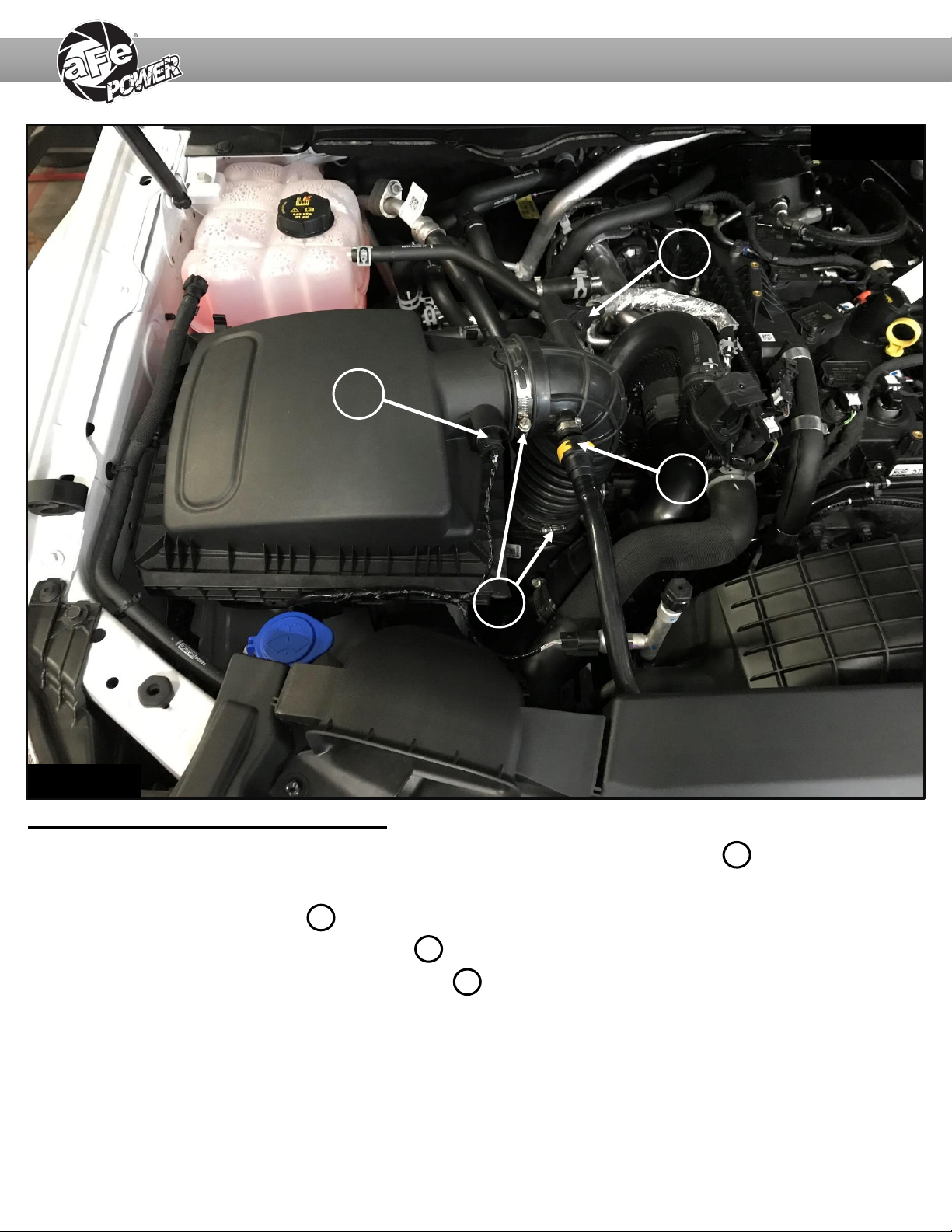

Refer to Figure A for Steps 1-4

Step 1: Using a panel clip remover or flat head screwdriver, remove the coolant line 1 attached to the

factory intake tube.

Step 2: Disconnect the vent hose 2 from the factory upper intake tube.

Step 3: Disconnect the air temperature sensor 3 .

Step 4: Using a 7mm nut driver, loosen the clamps 4 attaching the factory upper intake tube. Remove the

factory intake tube and set aside.

REMOVAL

Figure A

Page 5

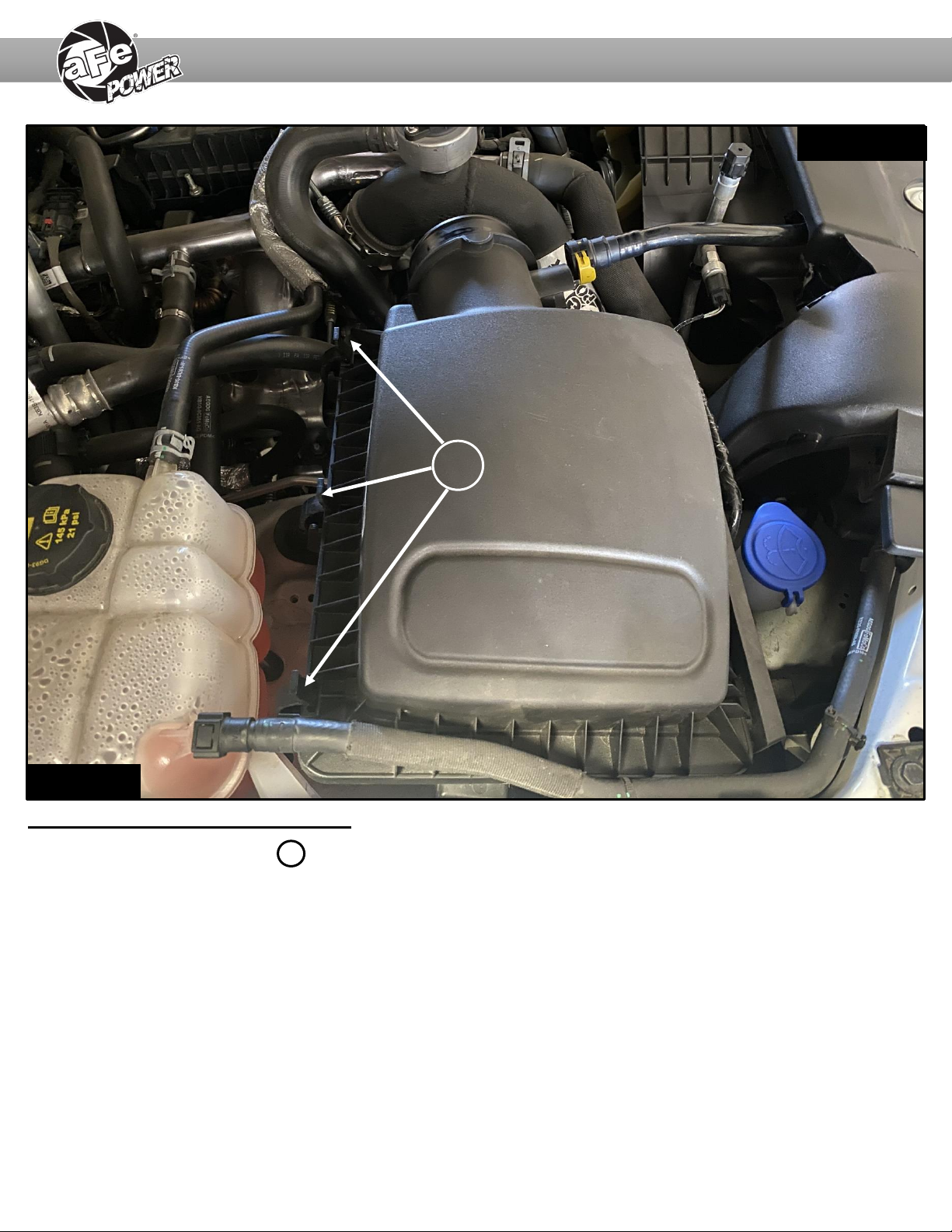

Refer to Figure B for Step 5

Step 5: Release the 3 clamps 5 on the back of the factory housing and remove the factory upper housing

along with the factory air filter.

REMOVAL

Figure B

Page 6

Refer to Figure C for Steps 6-7

Step 6: Remove the filter clamp 6 from the aFe POWER air filter. Slip the aFe POWER Air Filter onto the

aFe POWER housing, snapping the filter in place. Place the clamp back on the filter flange.

Step 7: Install the assembled aFe POWER air filter and housing onto the lower portion of the factory housing

by sliding in the 3 tabs 7 and securing the 3 spring clips from step 5.

INSTALL

Figure C

Page 7

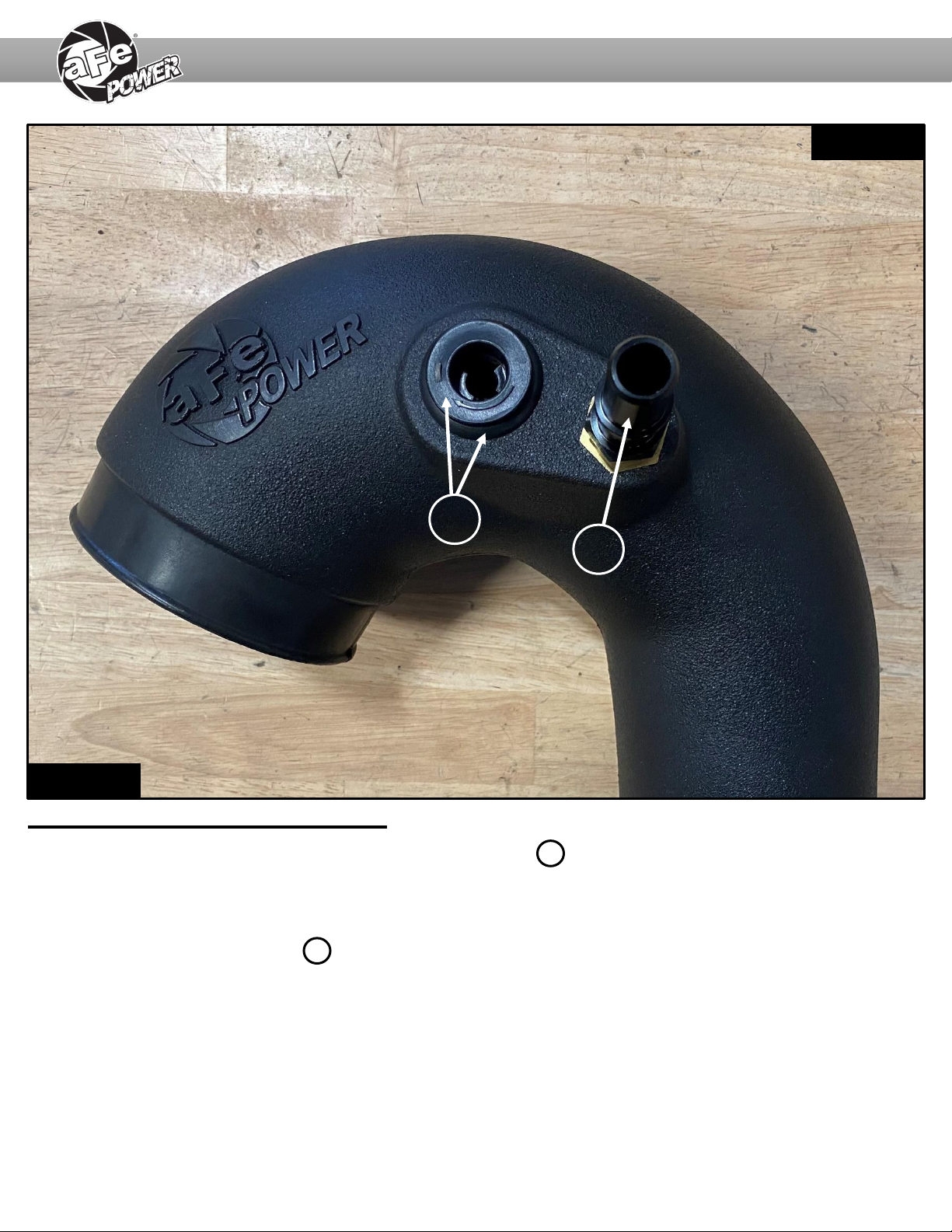

Refer to Figure D for Steps 8-9

Step 8: Install the rubber grommet and air temp sensor fitting 8 onto your aFe POWER intake tube as

shown.

*NOTE: Use a dab of oil or dish soap on the air temp sensor fitting to help install into rubber grommet.

Step 9: Install the supplied fitting 9 onto your aFe POWER intake tube using an adjustable wrench.

*NOTE: Exposed threads shown are normal. This is an NPT thread.

INSTALL

Figure D

Page 8

Refer to Figure C for Step 10

Step 10: Remove the air intake temperature sensor 10 from your factory housing and set aside.

INSTALL

Figure C

Page 9

Refer to Figure D for Steps 11-12

Step 11: Install the air intake temperature sensor 11 removed from step 10 onto the aFe POWER intake

tube.

Step 12: Install the silicone wrapped coupling 12 onto your aFe POWER intake tube along with the

supplied clamp (#048) and tighten.

INSTALL

Figure D

Page 10

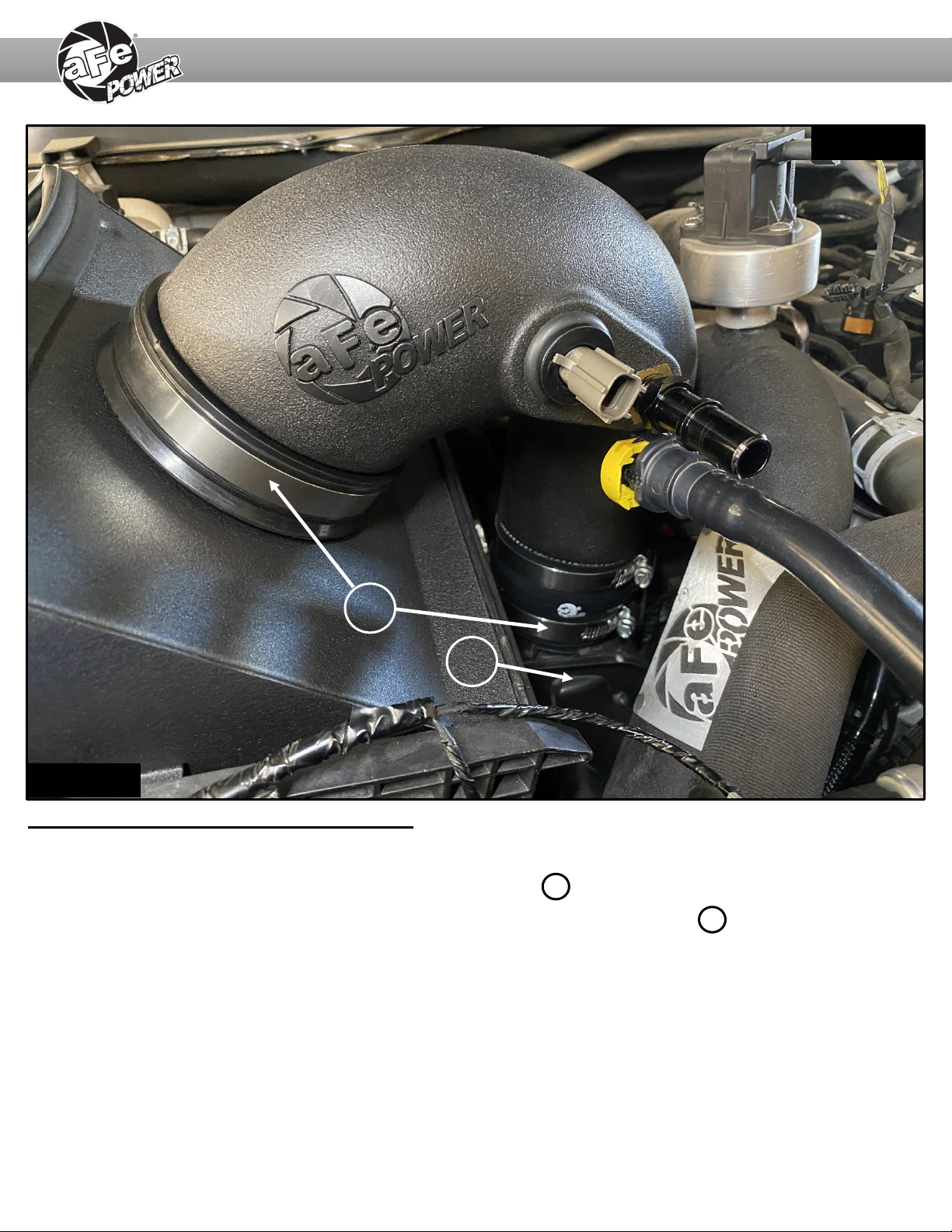

Refer to Figure E for Steps 13-15

Step 13: Install the aFe POWER intake tube assembly into the vehicle beginning at the air filter.

Step 14: Slip the aFe POWER intake tube onto the turbo inlet 13 along with the clamp (#048).

Step 15: Align the aFe POWER intake tube and coupler, then tighten the clamps 14 using an 8mm nut

driver.

INSTALL

Figure E
