AFe Power 50-70007D Manuel utilisateur

Momentum HD Cold Air Intake System

Instruction Manual P/N: 50-70007D / 50-70007T__ __ ________________________

Make: Ford Model: Super Duty F-250/F350 Year: 2020-2021 Engine: V8-6.7L (td)

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• For technical support please call 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

Air Filter (Pro 5R)

24-91061

Air Filter (Pro DRY S)

21-91061

Tube

05-5070007B1

Housing

05-5070007B2

Coupling, Silicone Bellows

05-01430

Clamp, T-bolt (4-9/16" - 4-7/8")

03-50319

Seal, Trim

05-01553

Clamp, T-bolt (8-5/16" - 8-5/8")

03-50267

Plug, Silicone

05-01429

Screw, Torx: M4x10mm

03-50490

Retainer Clip

05-01554

Fixing Clamp, 3/4"ID

03-50234

Washer, Flat: M6

03-50070

Screw, Hex Hd: M6x1x20, Gr 8.8

03-50057

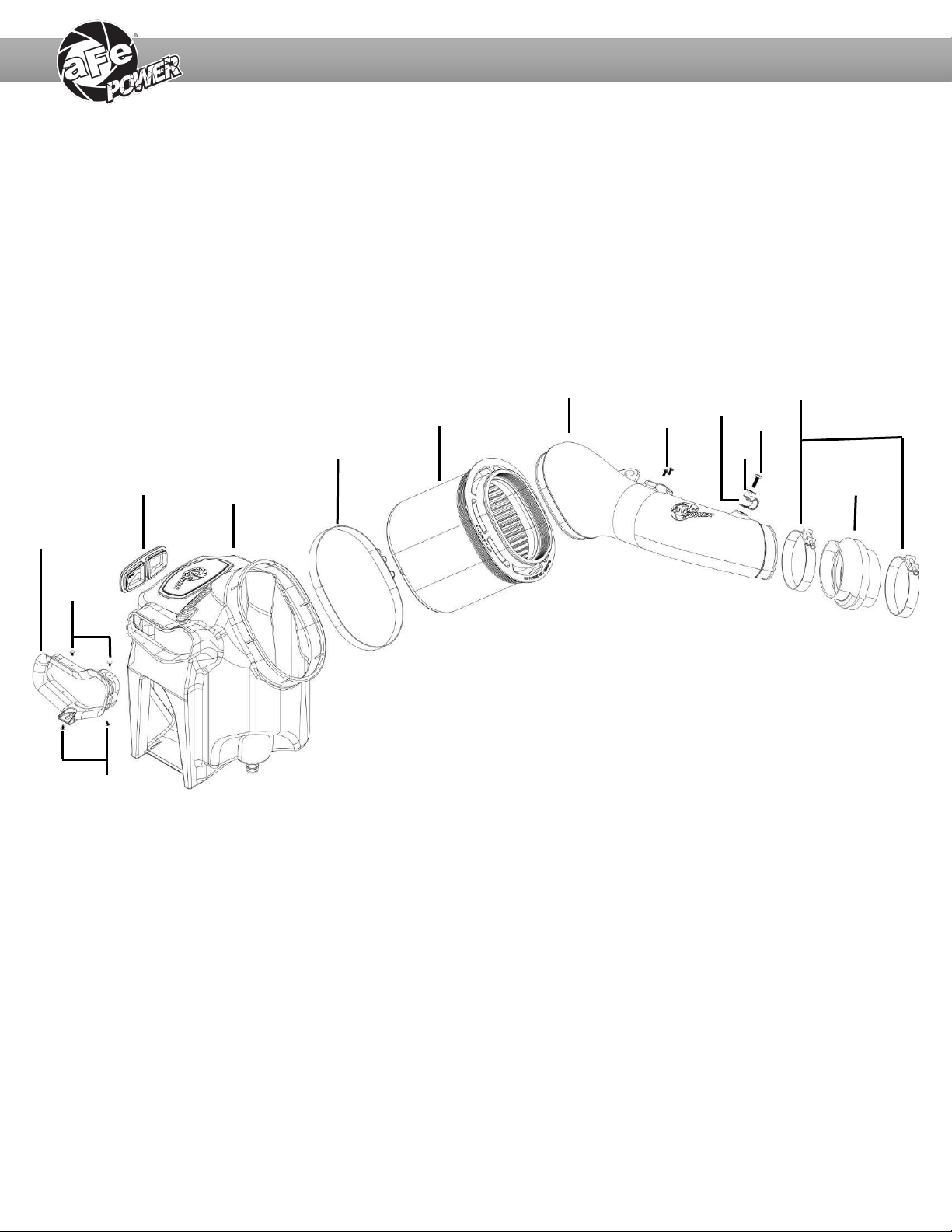

Installation will require the following tools:

Panel clip remover, T20 Torx driver, 7mm & 10mm nut drivers, 7mm socket, 10” extension, 11mm deep

socket and driver

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

Page 3

A1/A2

Page 4

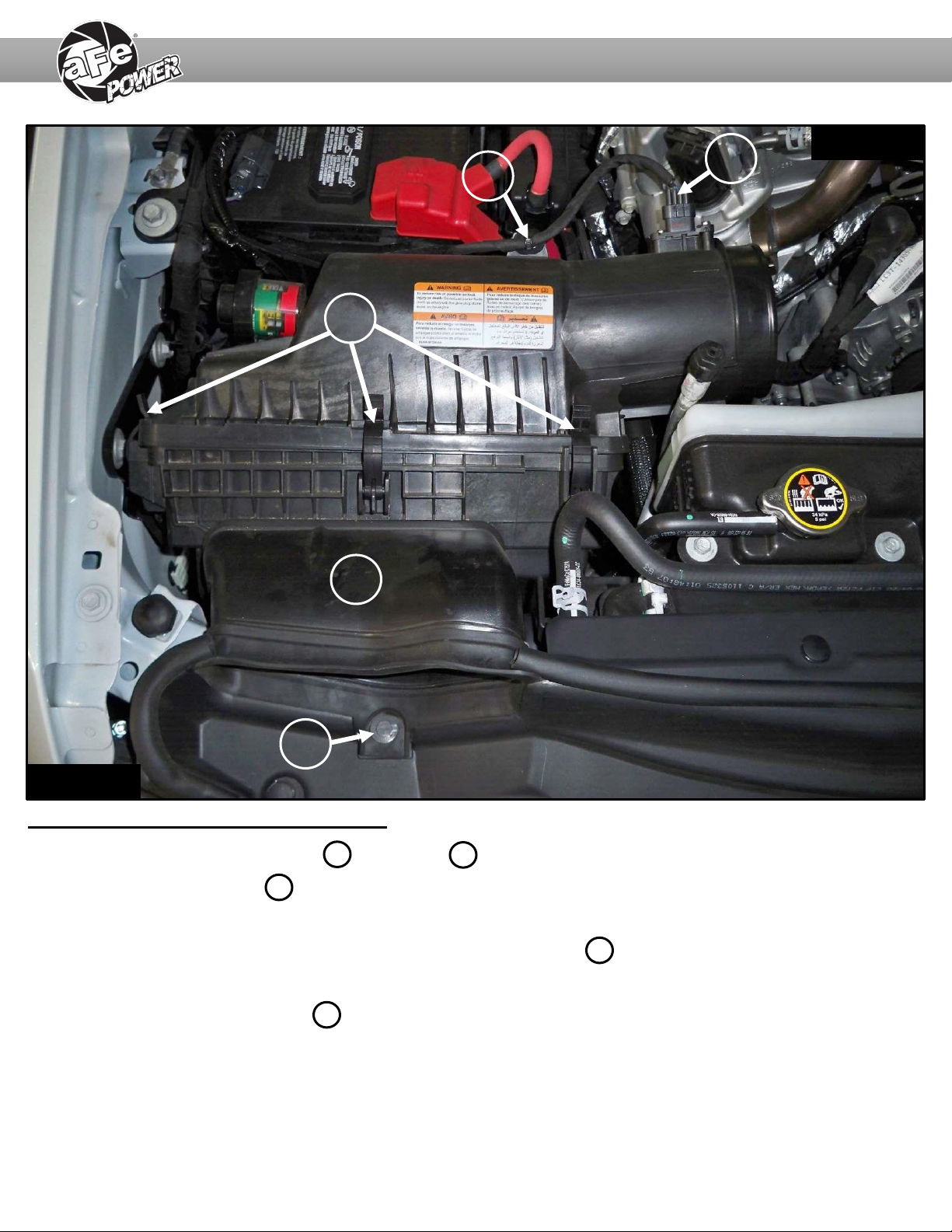

Refer to Figure A for Step 1

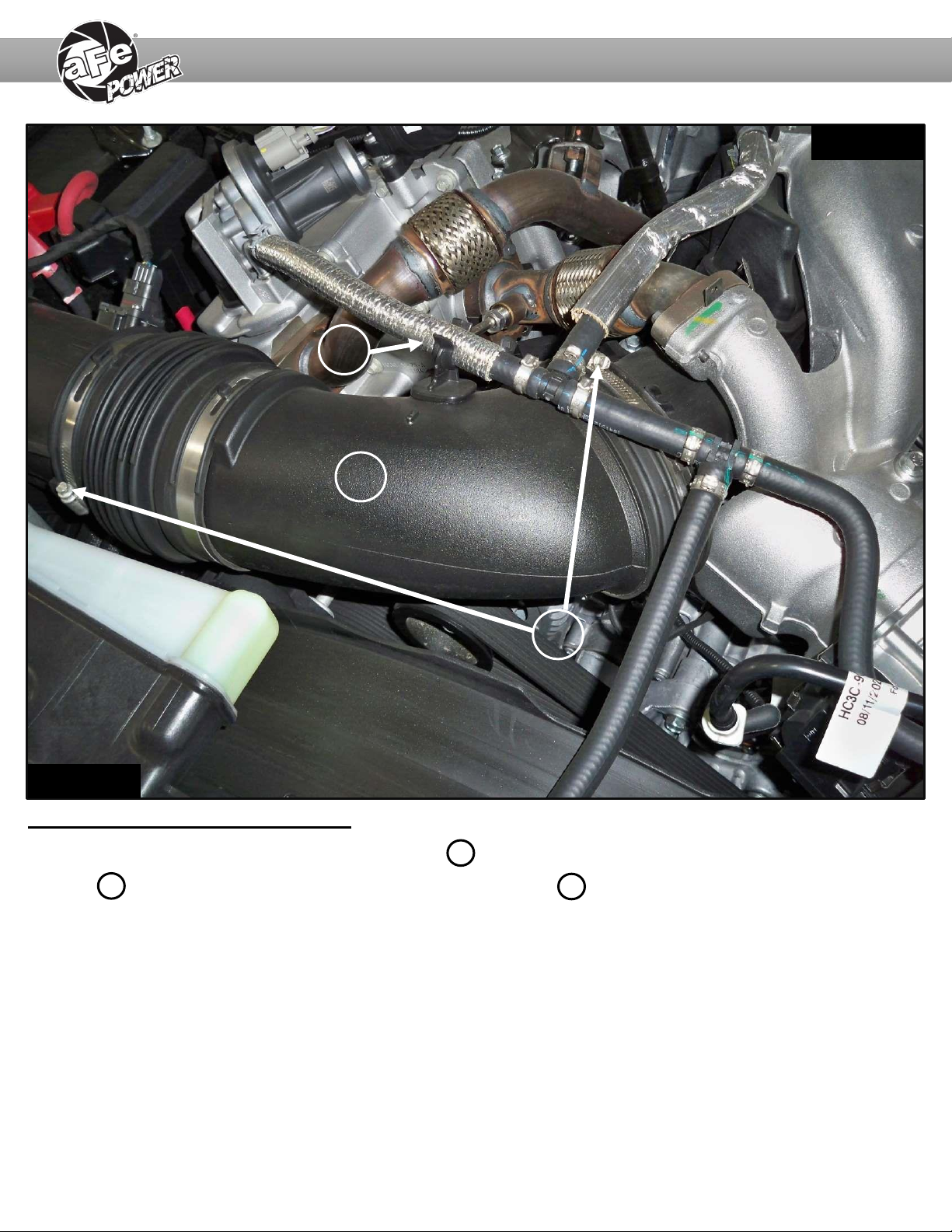

Step 1: Using a 7mm nut driver, loosen the clamps 1 at the turbo inlet and the air filter cover. Remove the

hose 2 from the intake tube clip and remove the intake tube 3 .

REMOVAL

Figure A

Page 5

Refer to Figure B for Steps 2-6

Step 2: Disconnect the MAF sensor 4and the clip 5 holding the harness.

Step 3: Unclip the three taps 6 from the air filter cover.

Step 4: Remove the air filter cover and air filter.

Step 5: Using a panel clip remover, remove the retaining plastic clip 7 holding part of the scoop seal down

and set aside for later use.

Step 6: Snap out the plastic scoop 8 from the air filter housing.

REMOVAL

Figure B

Page 6

Refer to Figure C for Steps 7-8

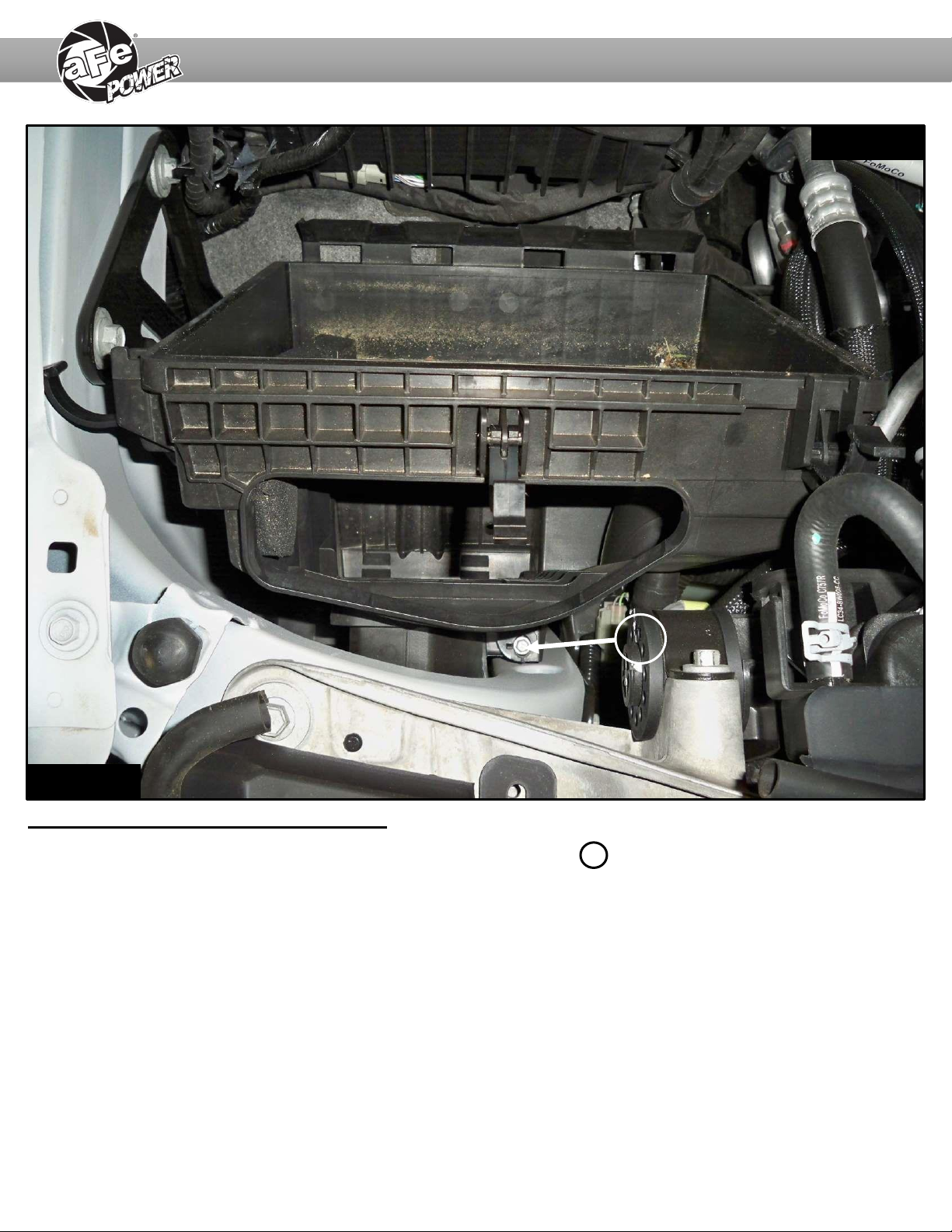

Step 7: Using a 7mm socket, extension & driver, remove the screw 9 holding the air filter housing to the

grill inlet duct.

Step 8: Remove the air filter housing by pulling it straight up from its mounting grommets.

REMOVAL

Figure C

Page 7

Refer to Figure D for Steps 9-10

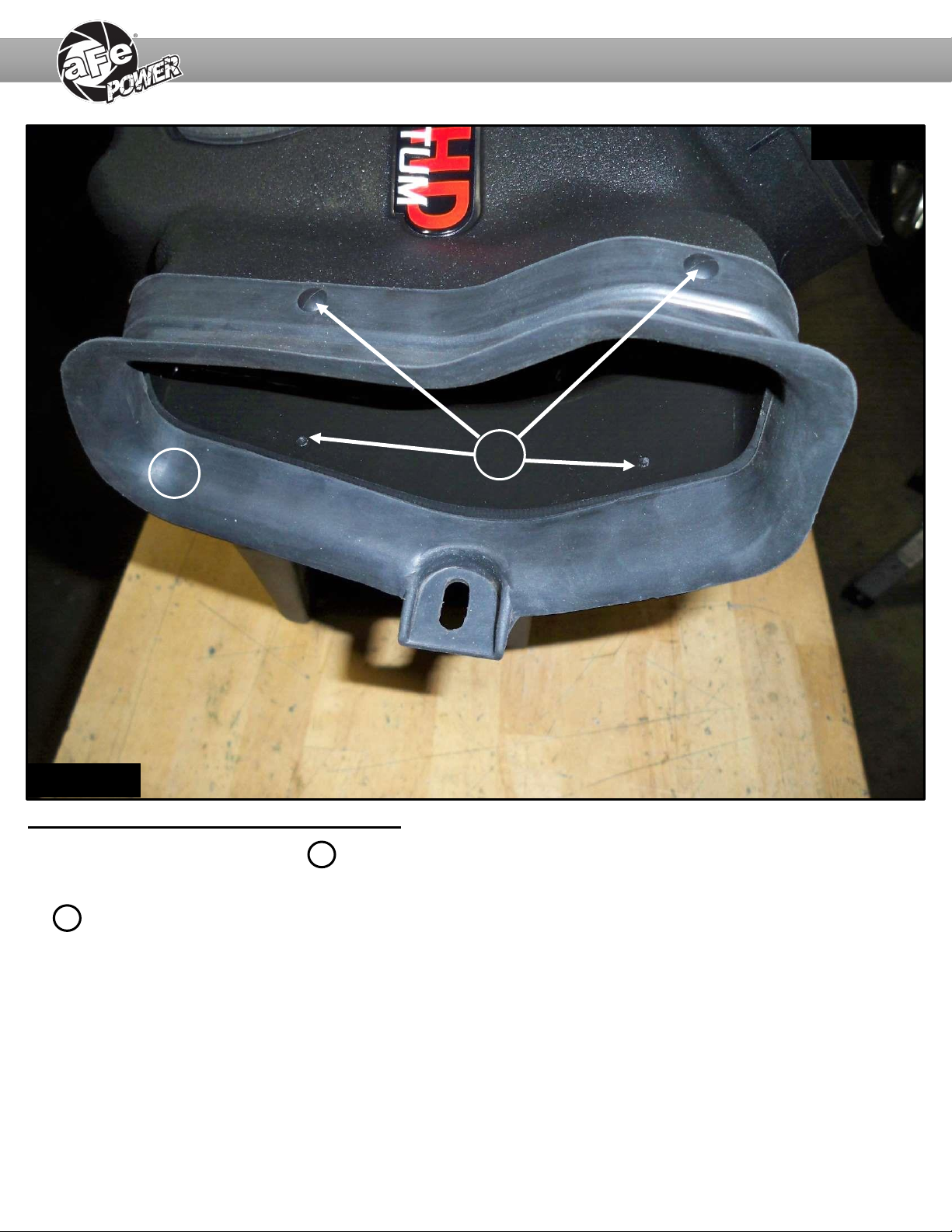

Step 9: Place the scoop seal trim 10 on the scoop opening of the aFe POWER housing.

Step 10: Align the holes from the scoop seal trim and the aFe POWER housing. Insert all four retainer clips

11 fully into the cavities and make sure the seal trim is secure to the aFe POWER housing.

INSTALL

Figure D

Page 8

Refer to Figure E for Step 11

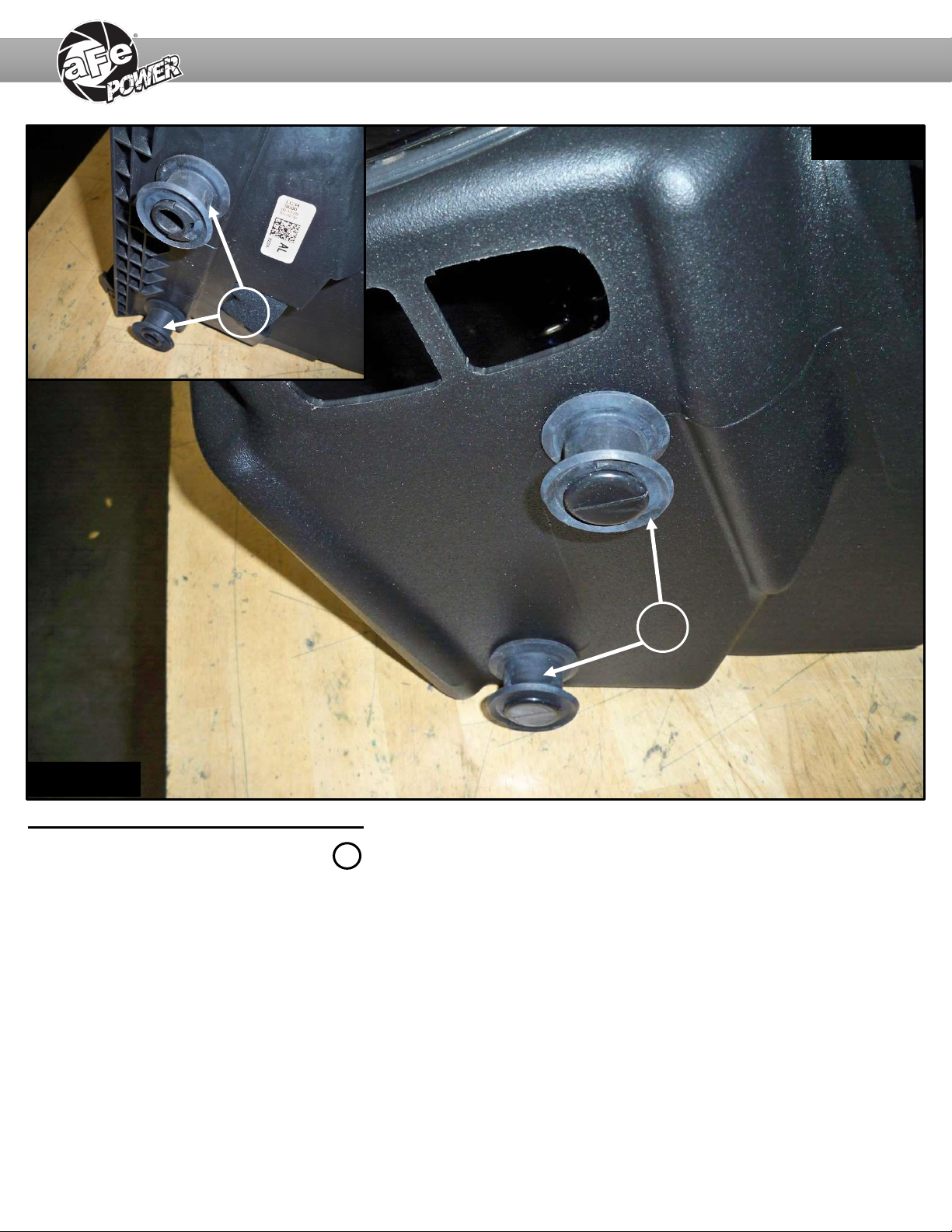

Step 11: Remove the two grommets 12 from the air filter housing and install them onto the aFe POWER

housing. Make sure they are fully seated past the bead.

INSTALL

Figure E

Page 9

Refer to Figure F for Steps 12-13

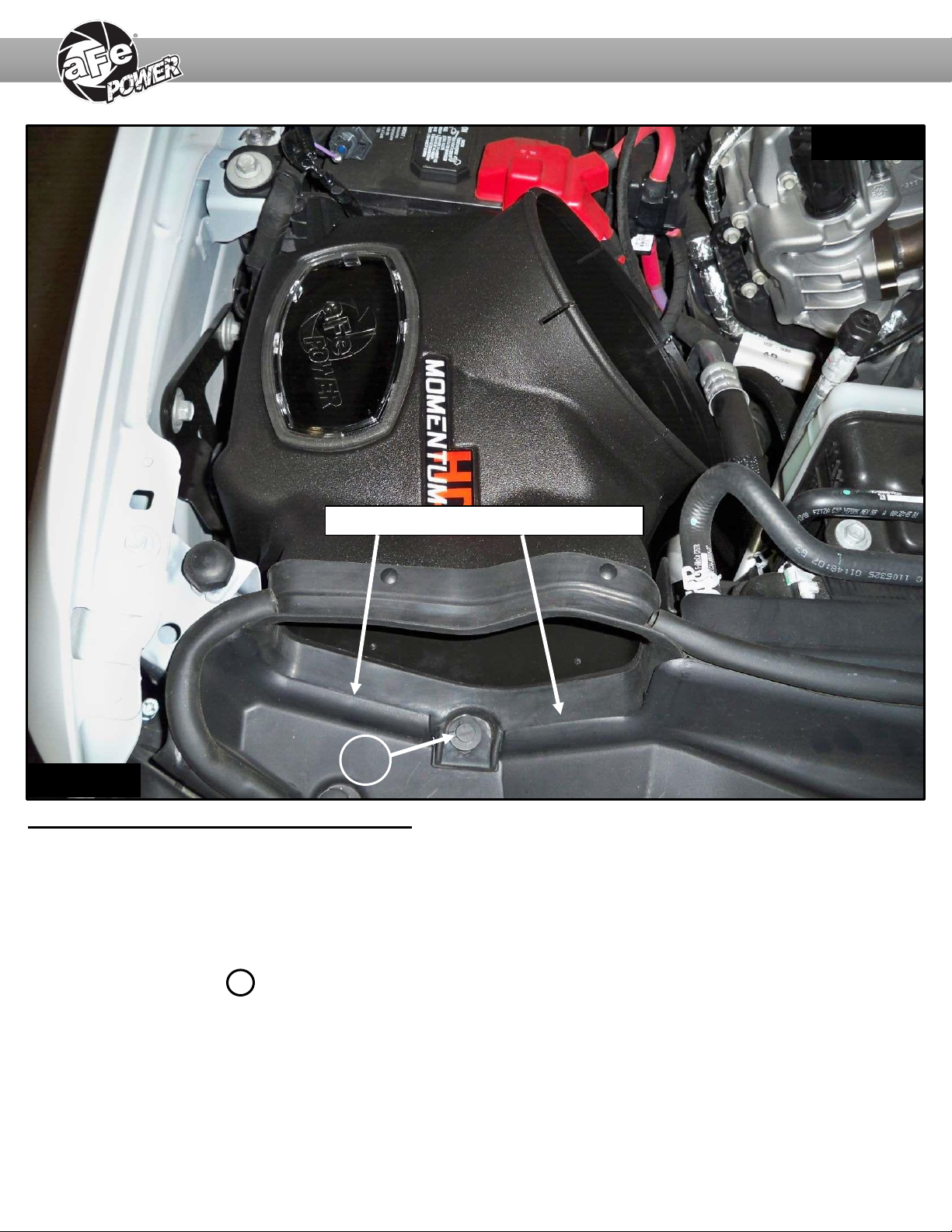

Step 12: Install the aFe POWER housing on to vehicle. Make sure the bottom mounting pin is fully seated in

the mounting grommet and the two side mounting pins with grommets are fully engaged on the mounting

bracket.

Step 13: Make sure the scoop seal trim seats behind the plastic trim cover (please see picture). Install the

retaining plastic clip 13 removed on step 5 to secure the trim seal.

INSTALL

Figure F

TRIM SEAL TO BE BEHIND PLASTIC TRIM

Page 10

Refer to Figure G for Steps 14-16

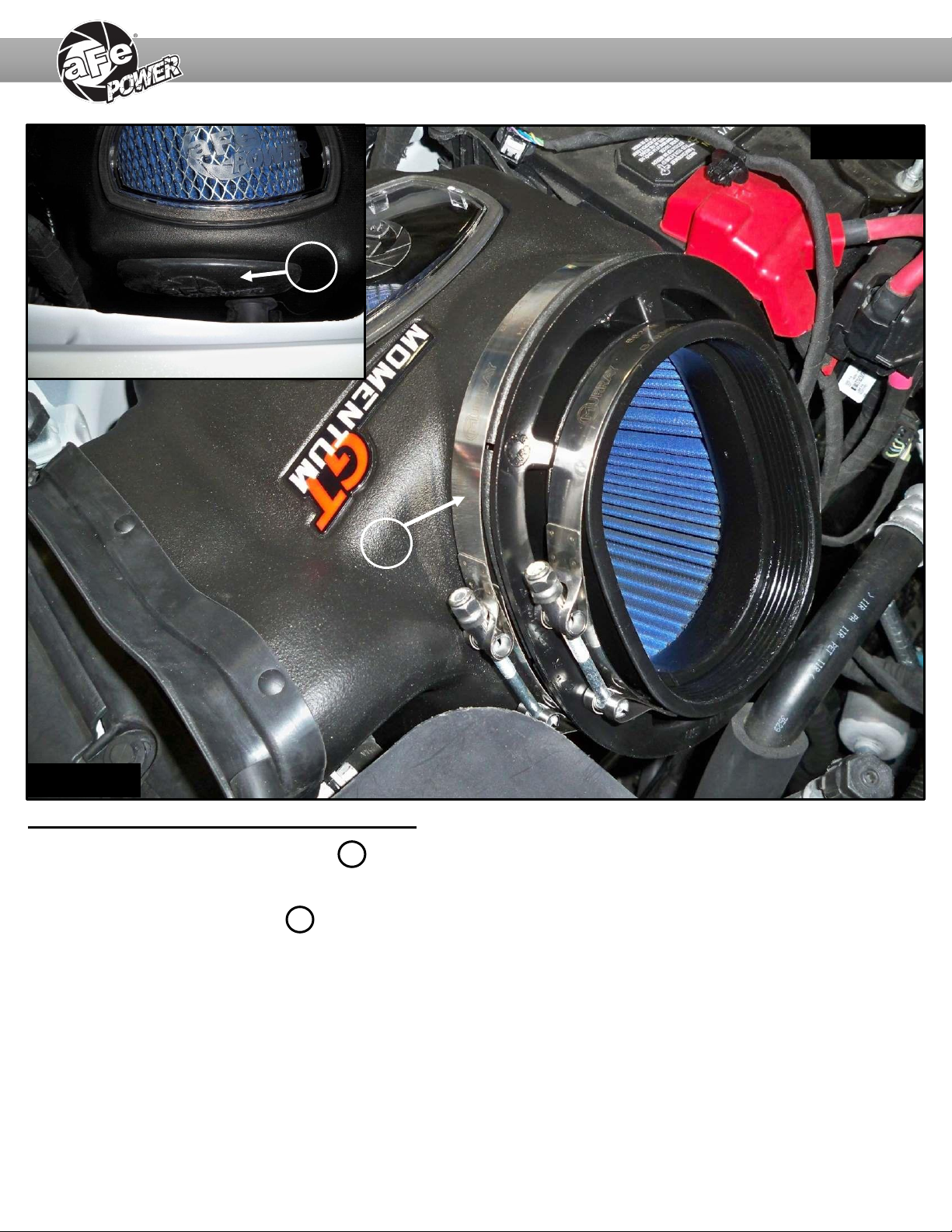

Step 14: Slide the large T-Bolt clamp 14 over the air filter opening on the aFe POWER housing.

Step 15: Slide the aFe POWER filter with clamp into the housing. Do not tighten the clamps.

Step 16: Use the provided plug 15 to close the additional air inlet if you want to completely seal the airbox.

Best performance gain is obtained by having more air flow (no plug).

INSTALL

Figure G
