AFe Power 54-10468 Manuel utilisateur

advanced FLOW engineering

Instruction Manual P/N: 54-10468/-L/-R/-N/-GN/-GR

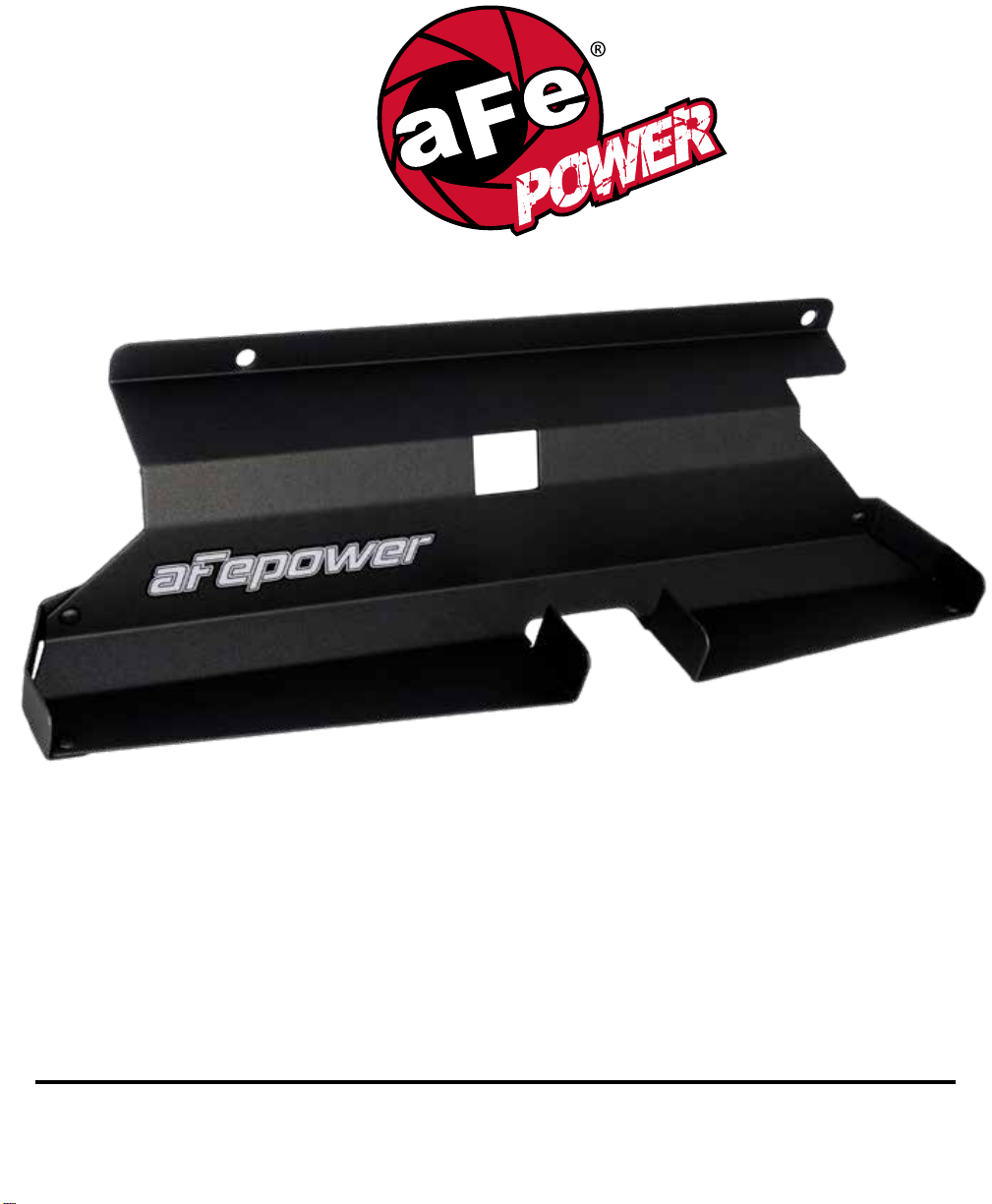

Make: BMW Model: 3-Series/M3 (E46) Year: 1999-2007 Engine: L6

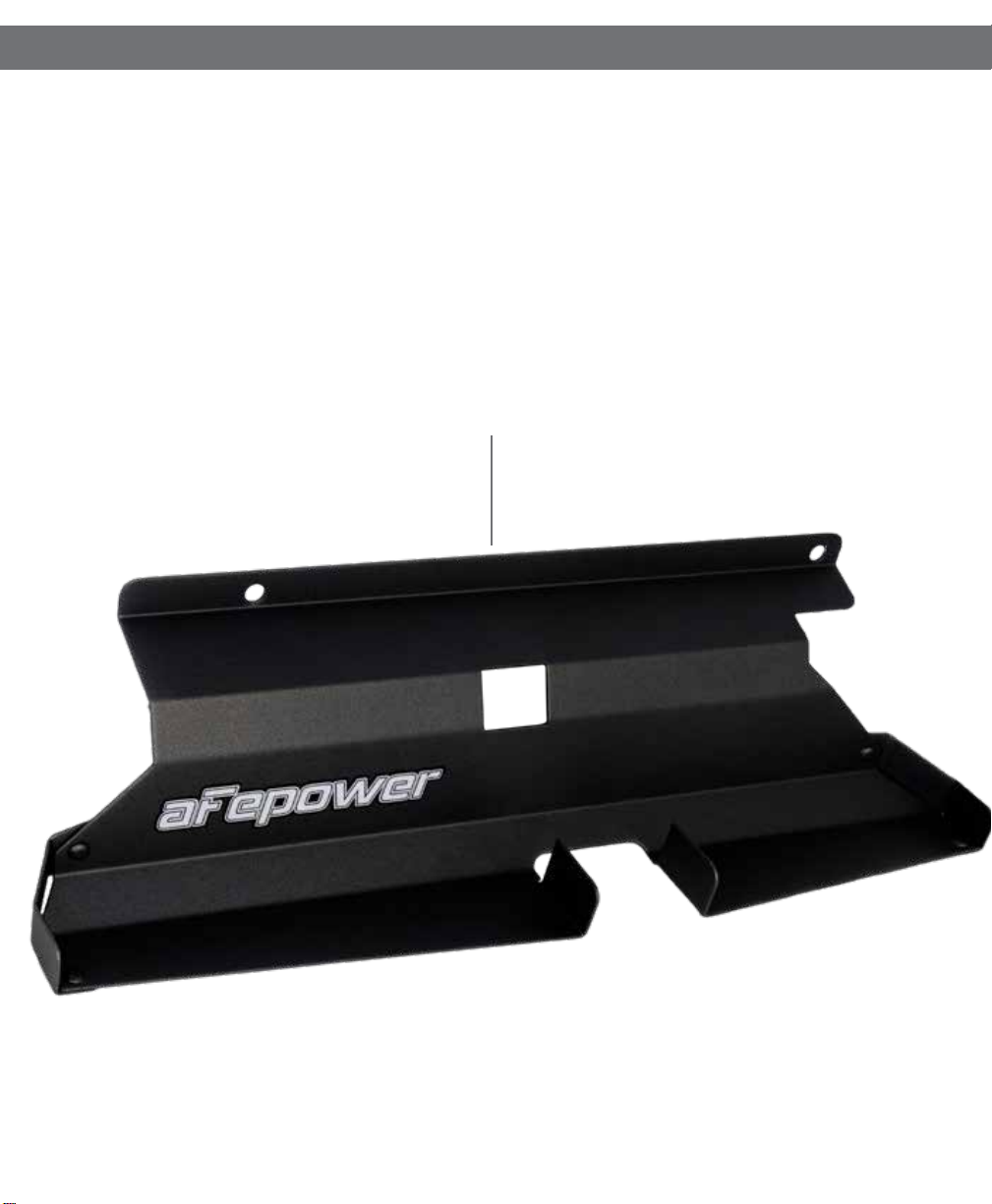

Label Qty. Description Part Number

A 1 Scoop 05-01045 (Black)

05-01045L (Blue)

05-01045R (Red)

05-01045GN (Green)

05-01045N (Orange)

05-01045GR (Gray)

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

• Retain factory parts for future use.

Page 2

Emission Disclaimer:

This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle

registered wit the state of California Department of Motor Vehicles.

Warranty Information available at: https://afepower.com/contact#warranty

Label Qty. Description Part Number

A 1 Scoop 05-01045 (Black)

05-01045L (Blue)

05-01045R (Red)

05-01045GN (Green)

05-01045N (Orange)

05-01045GR (Gray)

aFepower.com

Page 3

A

Refer to Figure A for step 1

Step 1: Remove plastic pins on ram air duct. (Save for later installation)

Page 4

1

FigureA

REMOVAL

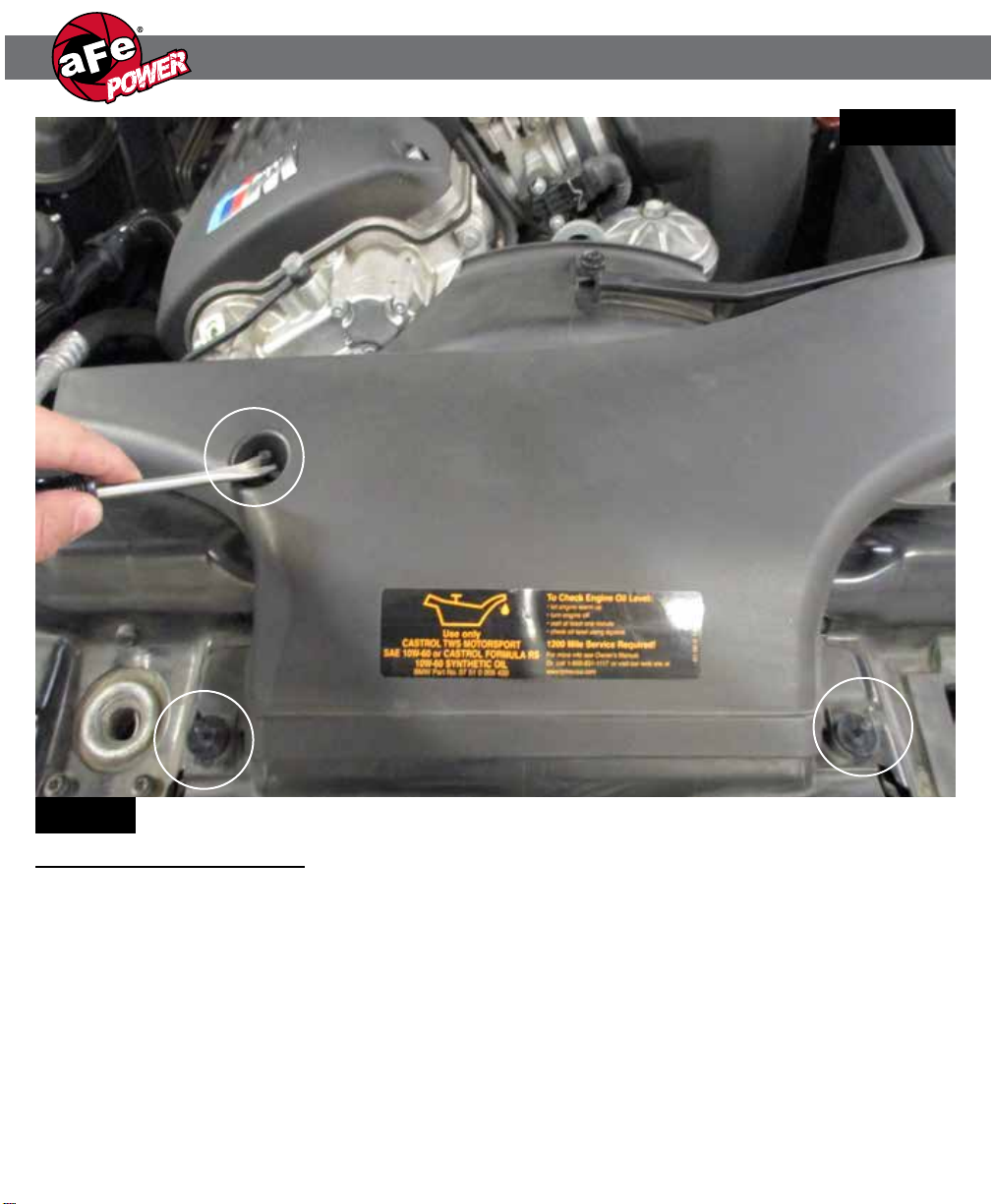

Step 2: Remove air inlet duct and OE screws.

aFepower.com

Page 5

3

Refer to Figure B for step 2

2323 3 232

3

REMOVAL

FigureB

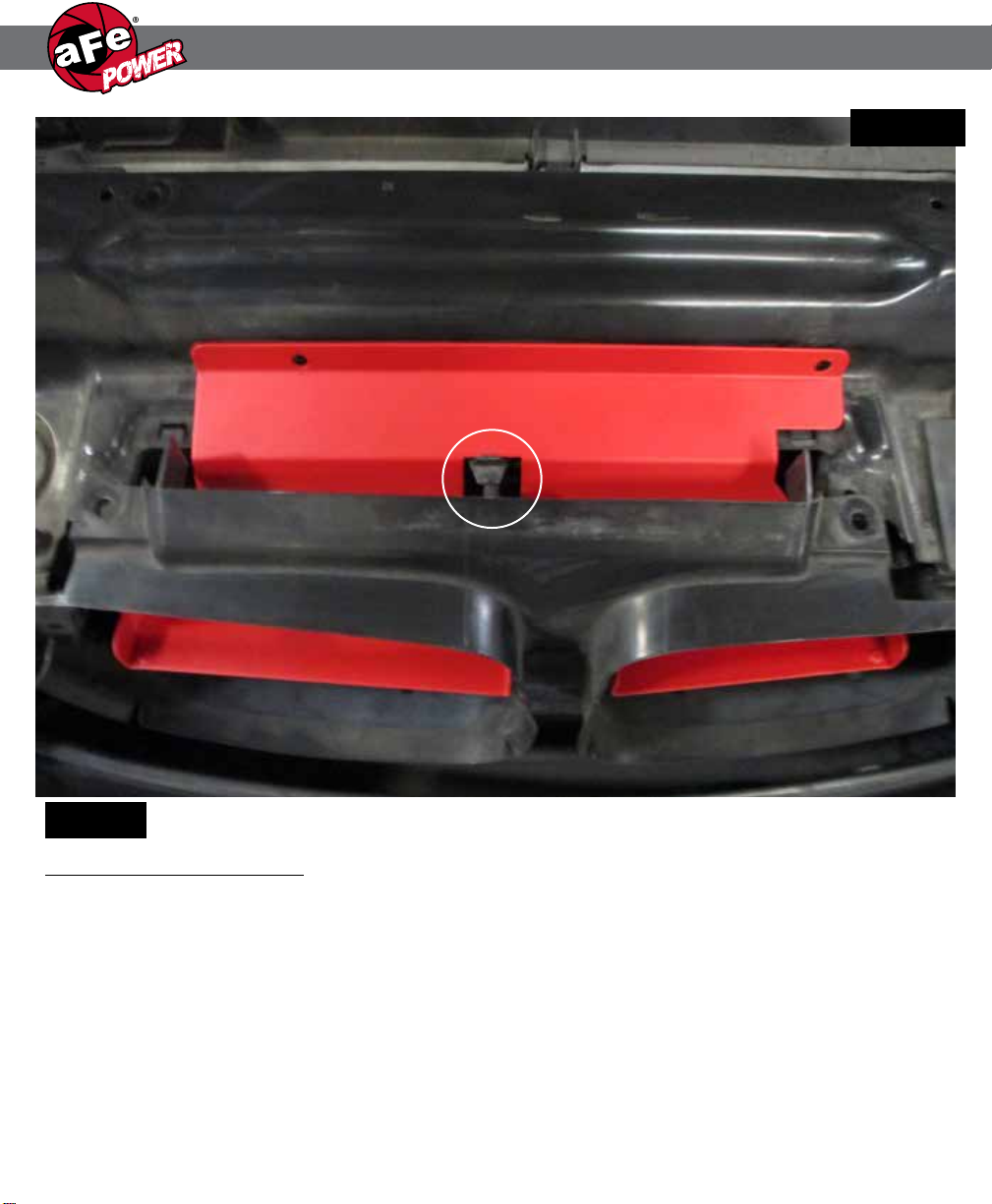

Refer to Figure C for step 3

Step 3: Insert DAS. Position scoop hole on plastic tab support

Page 6

3

INSTALL

Figure C

Refer to Figure D for step 4

Step 4: Install DAS by using OE screws.

aFepower.com

Page 7

INSTALL

Figure D

Page 8

Refer to Figure E for step 5

Step 5: Re-install air duct using plastic pins removed in step 1. Installation is now complete.

Thank you for choosing aFe Power!

INSTALL

Figure E

aFepower.com

Page 9

Page left blank intentionally

Page 10
