AFe Power 54-82039 Manuel utilisateur

advanced FLOW engineering

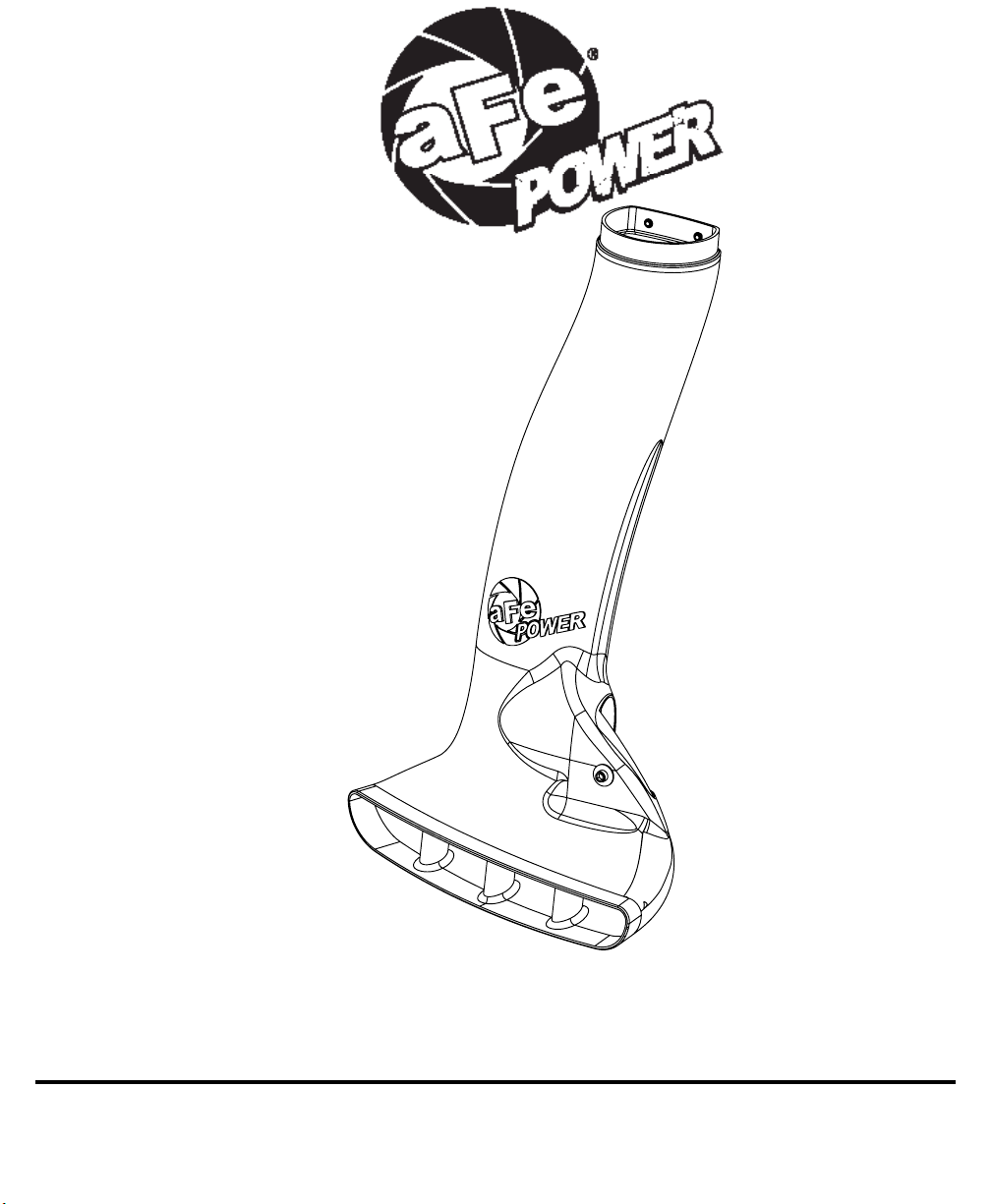

Dynamic Air Scoop D.A.S.

Instruction Manual P/N: 54-82039

Make: Dodge Model: RAM 2500/3500 Year: 2010-2012 Engine: L6-6.7L (td) Cummins

Label Qty. Description Part Number

A 1 Scoop, Rotomold 05-82039B1

B 2 Push-In Rivets 05-60055

C 1 Nut, Hex Head 03-50244

D 2 Washer, M8 03-50065

E 1 Screw, Hex Socket 03-50245

Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public streets or high-

ways is strictly prohibited in California and others states that have adopted California

emission regulations.

•Please read the entire instruction manual before proceeding.

•Ensure all components listed are present.

•If you are missing any of the components, call customer support at 951-493-7185.

•Ensure you have all necessary tools before proceeding.

•Do not attempt to work on your vehicle when the engine is hot.

•Disconnect the negative battery terminal before proceeding.

•Retain factory parts for future use.

Page 2

Warranty Information available at: https://afepower.com/contact#warranty

Emissions Disclaimer:

This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department

of Motor Vehicles.

aFepower.com

Page 3

C

D

E

B

A

D

Refer to Figure A for Steps 1-3

Step 1: Slide aFe scoop from under the bumper and connect it to aFe housing.

Step 2: Bolt scoop to frame of truck using furnished M8 screw, washers and nuts.

Step 3: Attach scoop and housing together using push-in 5 plastic.

Page 4

55

INSTALL

Figure A

Refer to Figure B for Steps 4

Step 4: Your installation is now complete, Enjoy!

aFepower.com

Page 5

Figure B

INSTALL

Page left blank intentionally.

Page 6

aFepower.com

Page 7

Page left blank intentionally.

advanced FLOW engineering, inc.

252 Granite Street Corona, CA 92879

https://afepower.com/contact
