AFe Power 54-12742 Manuel utilisateur

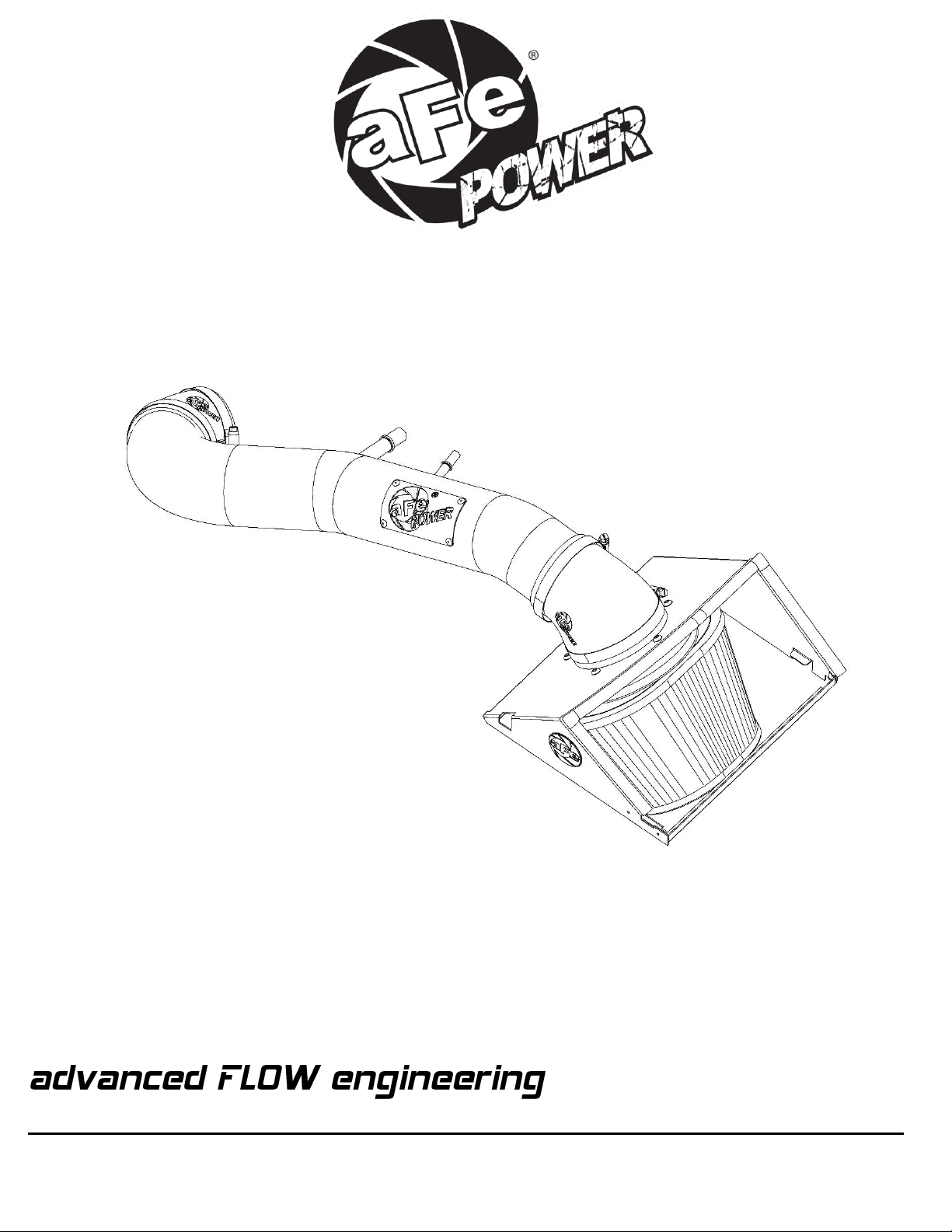

Magnum Force Stage-2

Instruction Manual P/N: 54-12742 / 51-12742 d

Make: FORD Model: F-150 Year: 2015-2020 Engine: V8-5.0L

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

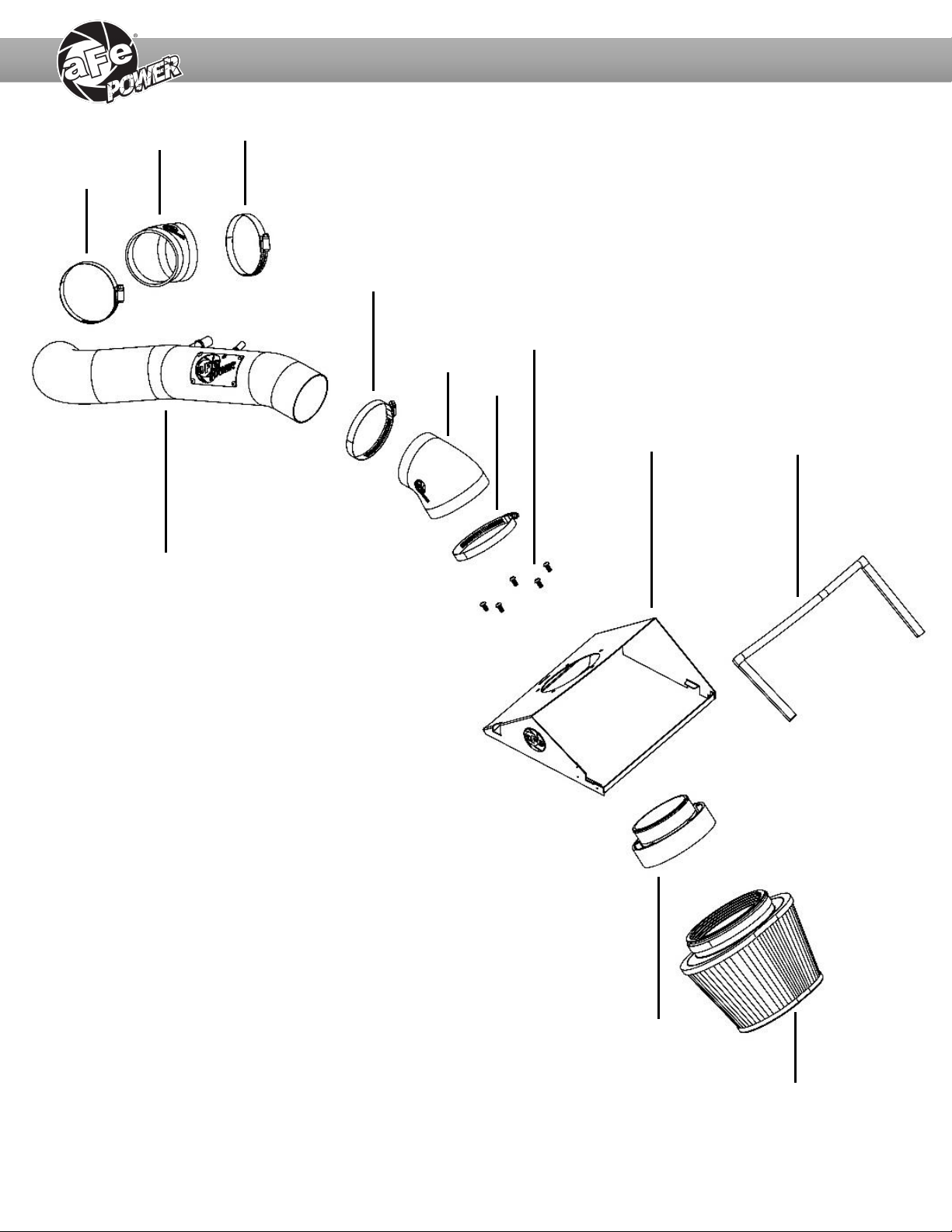

Air Filter (Pro 5R) For 54-12742

24-91040

Air Filter (Pro DRY S) For 51-12742

21-91040

Tube: 54-12742 (Wrinkle Black)

05-12742B3

Housing: 54-12742

05-12742B2

Coupling, Silicone Elbow Rdcr: 4.15” x 3.5” x 49 Deg

05-01353

Coupling, Silicone: 3-1/2”ID x 30 Deg

05-01494

Clamp, 056 (3-1/16” – 4”)

03-50009

Clamp, 064 (2-1/2” – 4-1/2”)

03-50006

Screw, Btm Hd Socket: M6x1x12

03-50102

Adaptor, Injection Molded: 5.5”

05-00611

Seal, Trim 7/16” (23 inches)

05-00072

Installation will require the following tools:

7mm, 8mm, Nut Drivers or Ratchet and Sockets, Flat Head Screwdriver

Warranty Information available at: https://afepower.com/contact#warranty

Page 3

A1/A2

Page 4

Refer to Figure A for Steps 1-3

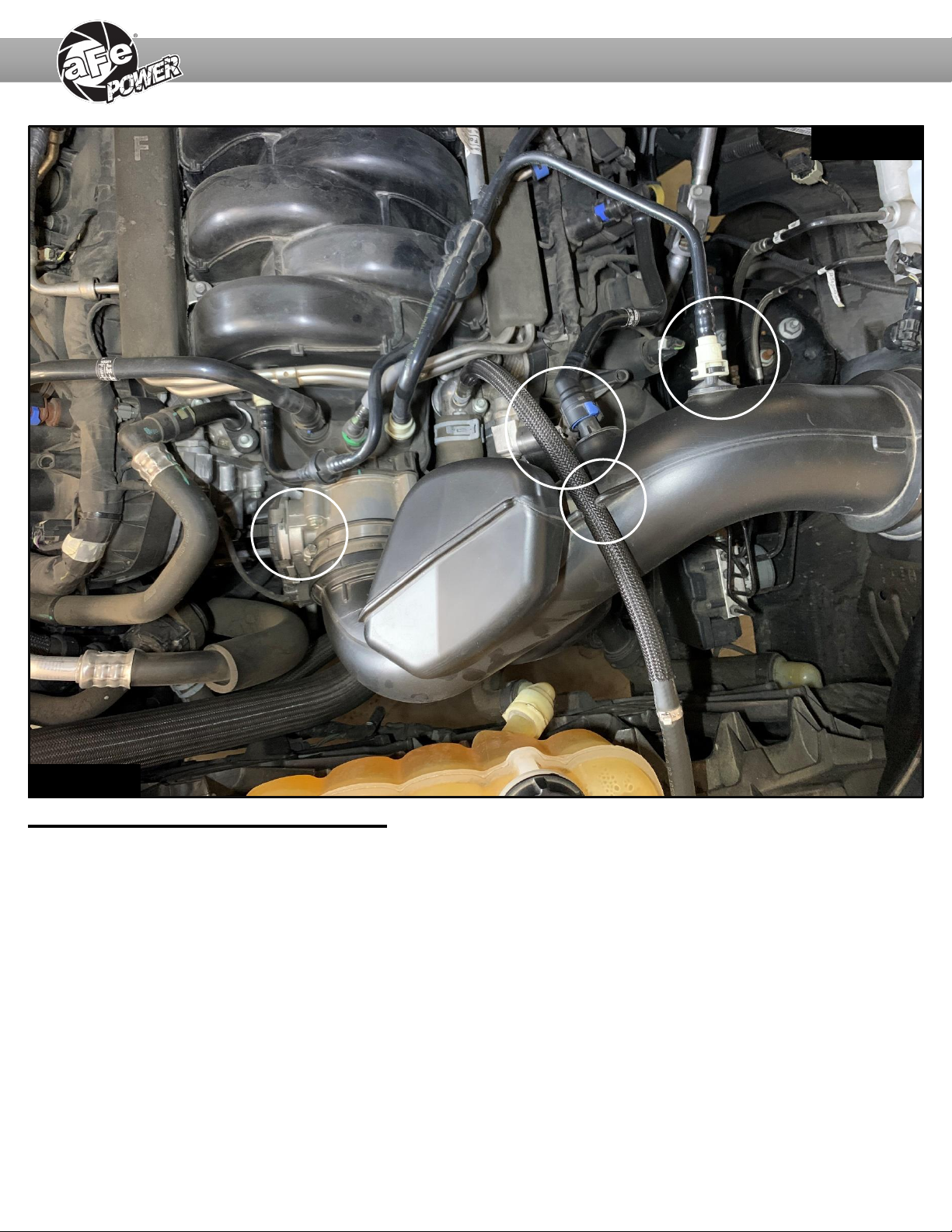

Step 1: Loosen the clamp securing the intake tube to the throttle body.

Step 2: Detach the coolant hose from the intake tube.

Step 3: Disconnect the two vent hoses connected to the intake tube.

REMOVAL

Figure A

Page 5

Refer to Figure B for Steps 4-6

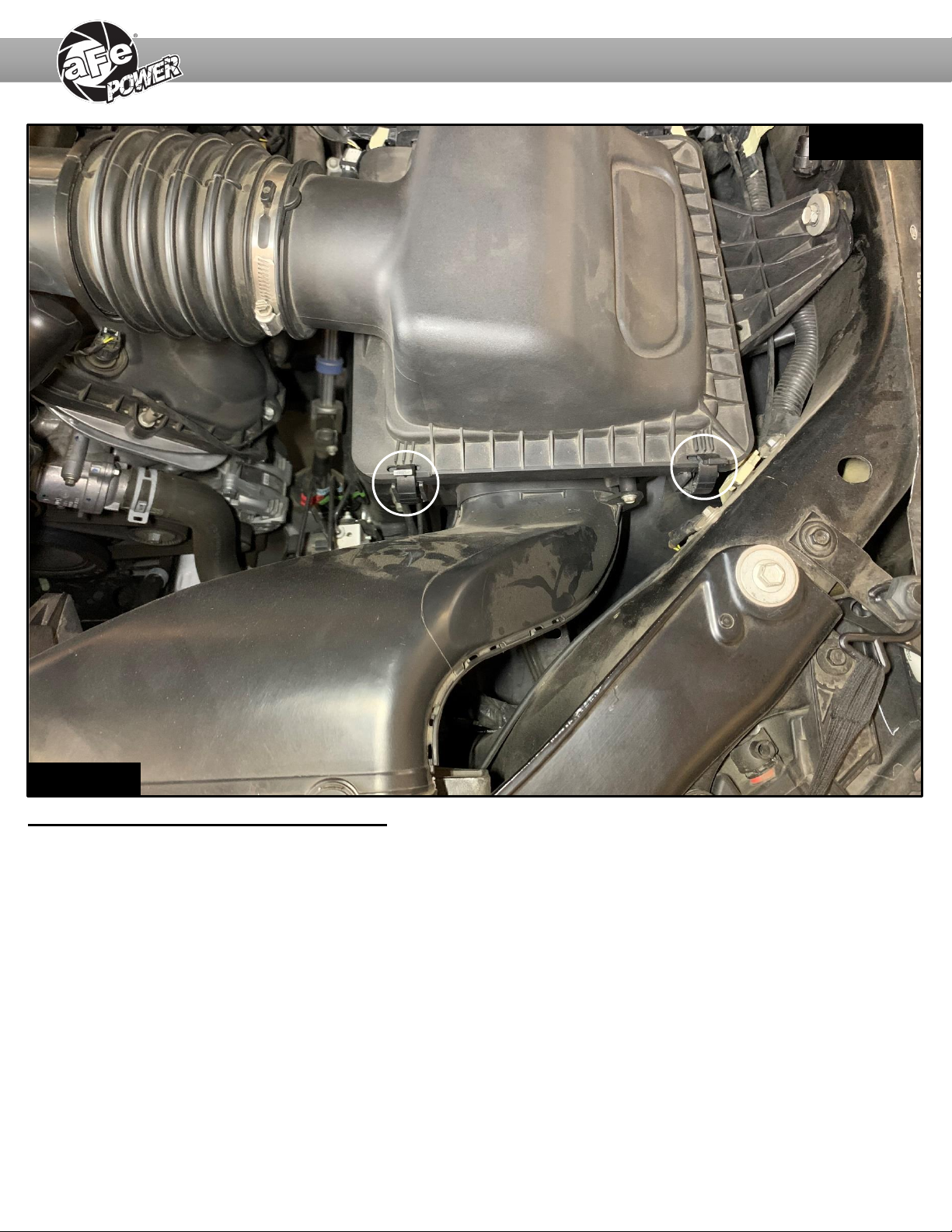

Step 4: Unlatch the two clips securing the air box lid.

Step 5: Remove the air box lid and intake tube from the vehicle.

Step 6: Remove the factory air filter from the air box.

REMOVAL

Figure B

Page 6

Refer to Figure C for Steps 7-8

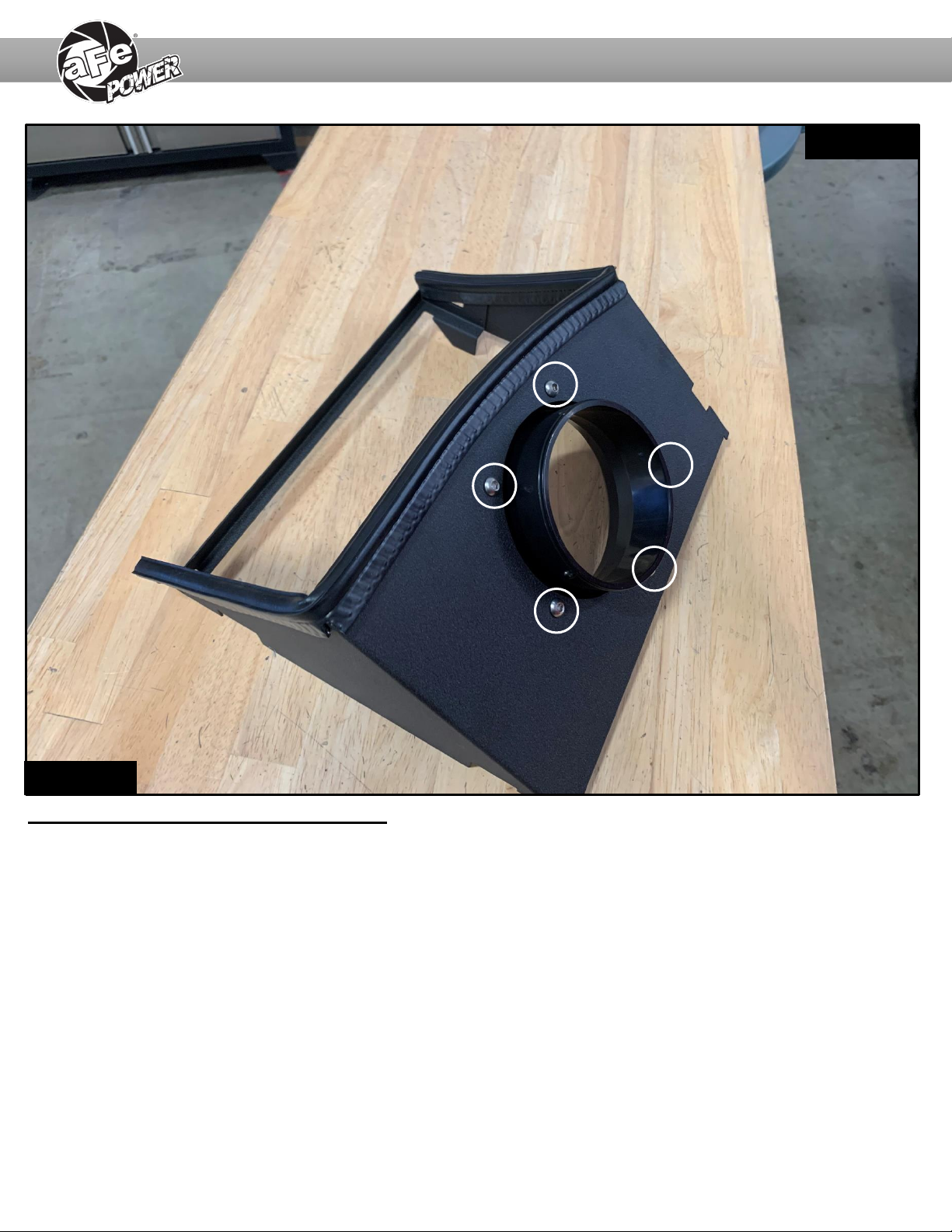

Step 7: Install the filter adapter using the supplied screws.

Step 8: Install the provided seal trim along the top edge of the housing.

If you have also purchased Rapid Induction Dynamic Air Scoop (D.A.S), Part number 52-10010S, 52-

10010SR or 52-10010SL, you can proceed with the installation of that part at this step. Once the

D.A.S. is installed, continue to Step 9.

Figure C

INSTALL

Page 7

Refer to Figure D for Step 9

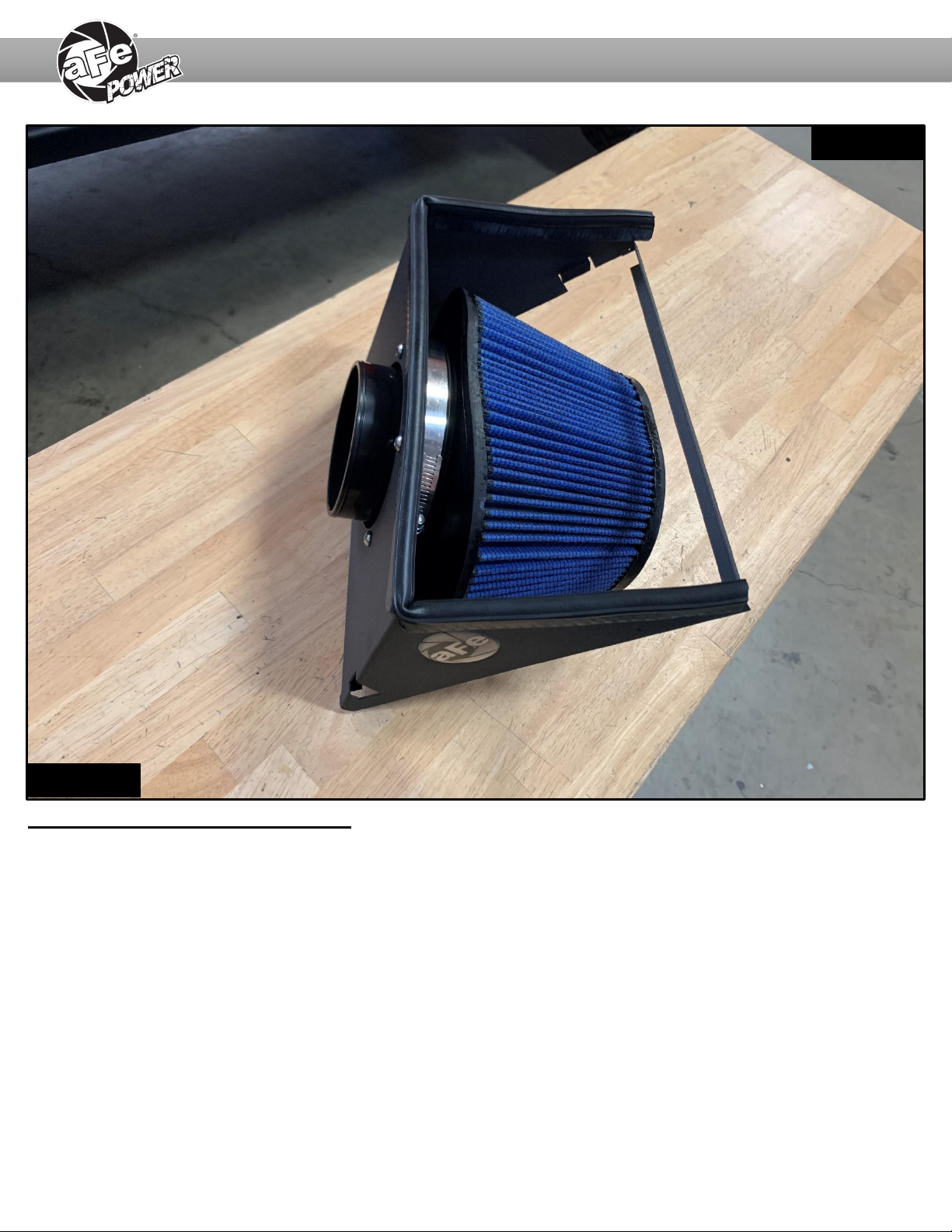

Step 9: Install the air filter on the filter adapter. Tighten the clamp

INSTALL

Figure D

Page 8

Refer to Figure E for Step 10

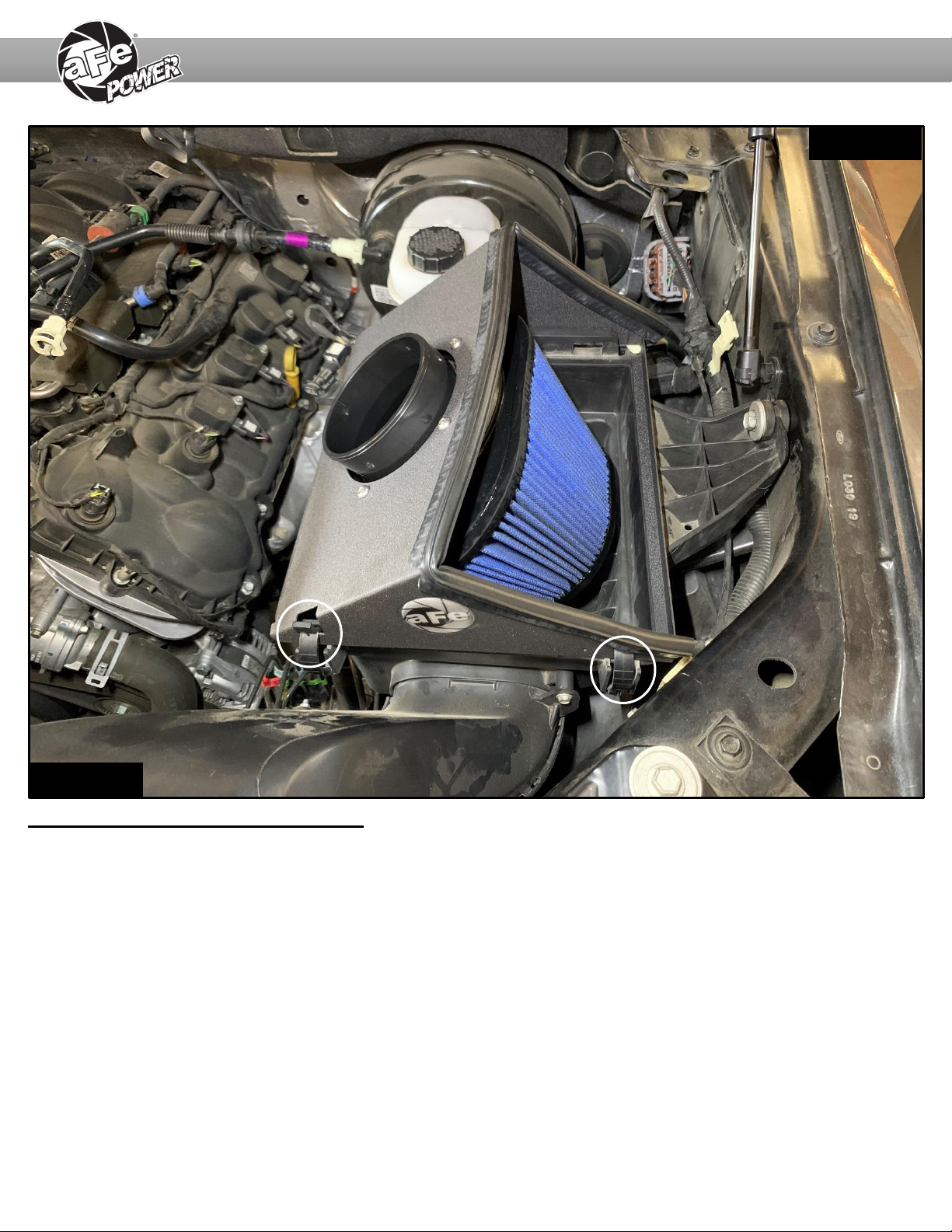

Step 10: Install the housing assembly onto the lower portion on the factory air box, secure it by latching

the two clips.

INSTALL

Figure E

Page 9

Refer to Figure F for Step 11

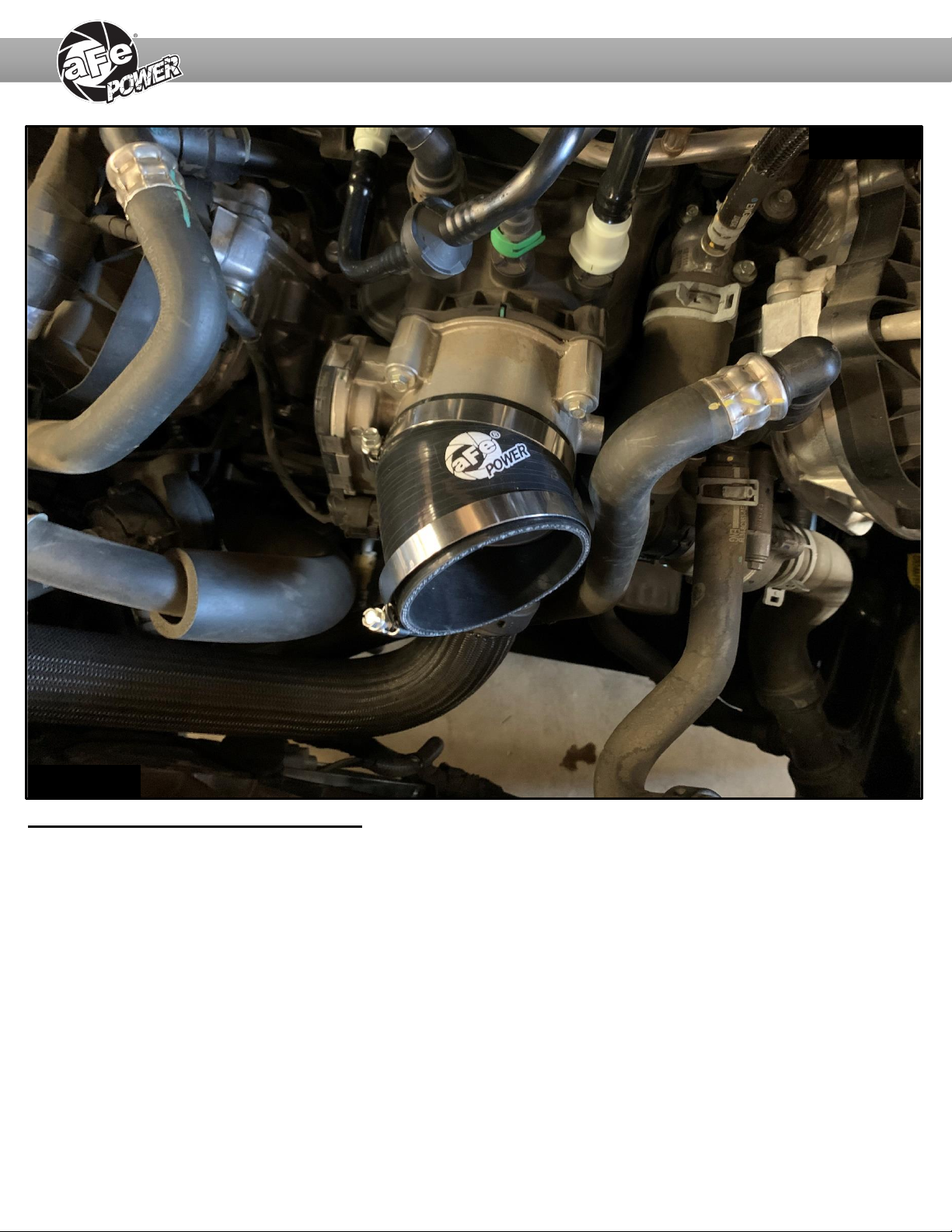

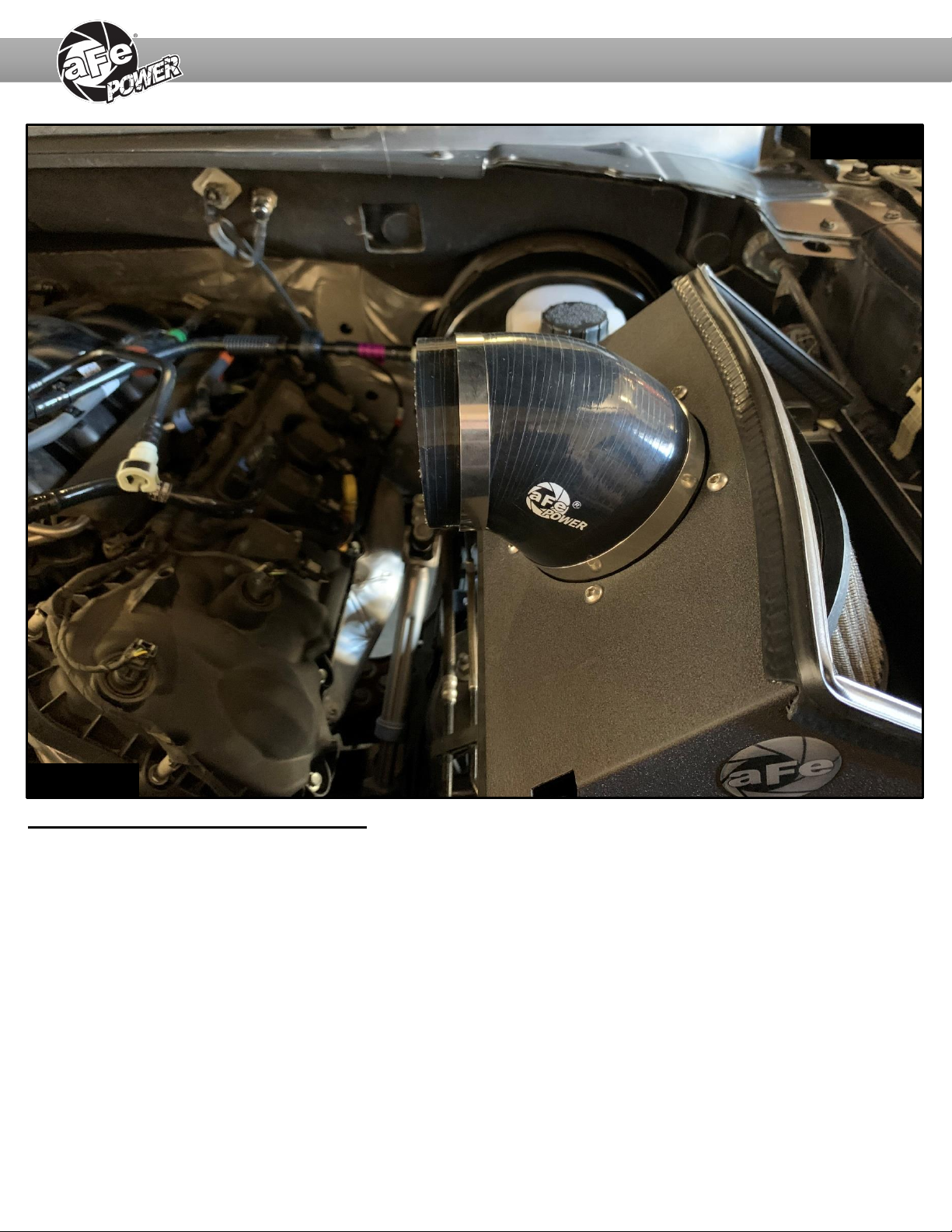

Step 11: Install the coupling and clamps on the throttle body, oriented as shown. Do not tighten clamps

yet.

INSTALL

Figure F

Page 10

Refer to Figure G for Step 12

Step 12: Install the coupling and clamps on to the filter adapter oriented as shown, do not tighten

clamps yet.

INSTALL

Figure G
