advanced FLOW engineering

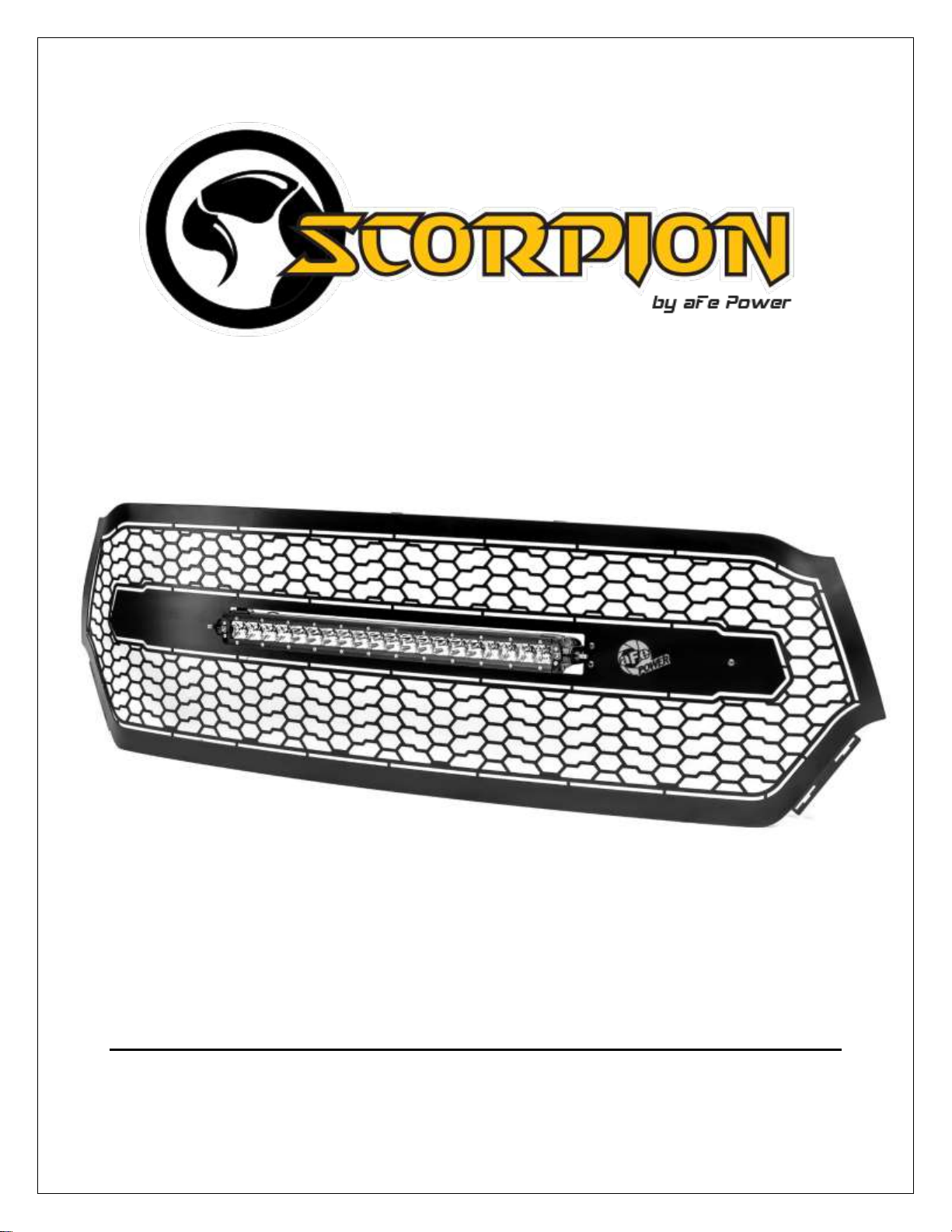

Instruction Manual P/N: 79-21007L

Scorpion Grille

Make: Ram Model: 1500 Year: 2019-2020

1

•Please read the entire instruction before proceeding.

•Ensure all components listed are present.

•Ensure you have all necessary tools before proceeding.

•Disconnect the negative battery terminal before proceeding.

•If you are missing any of the components, call customer support 951 493 7100

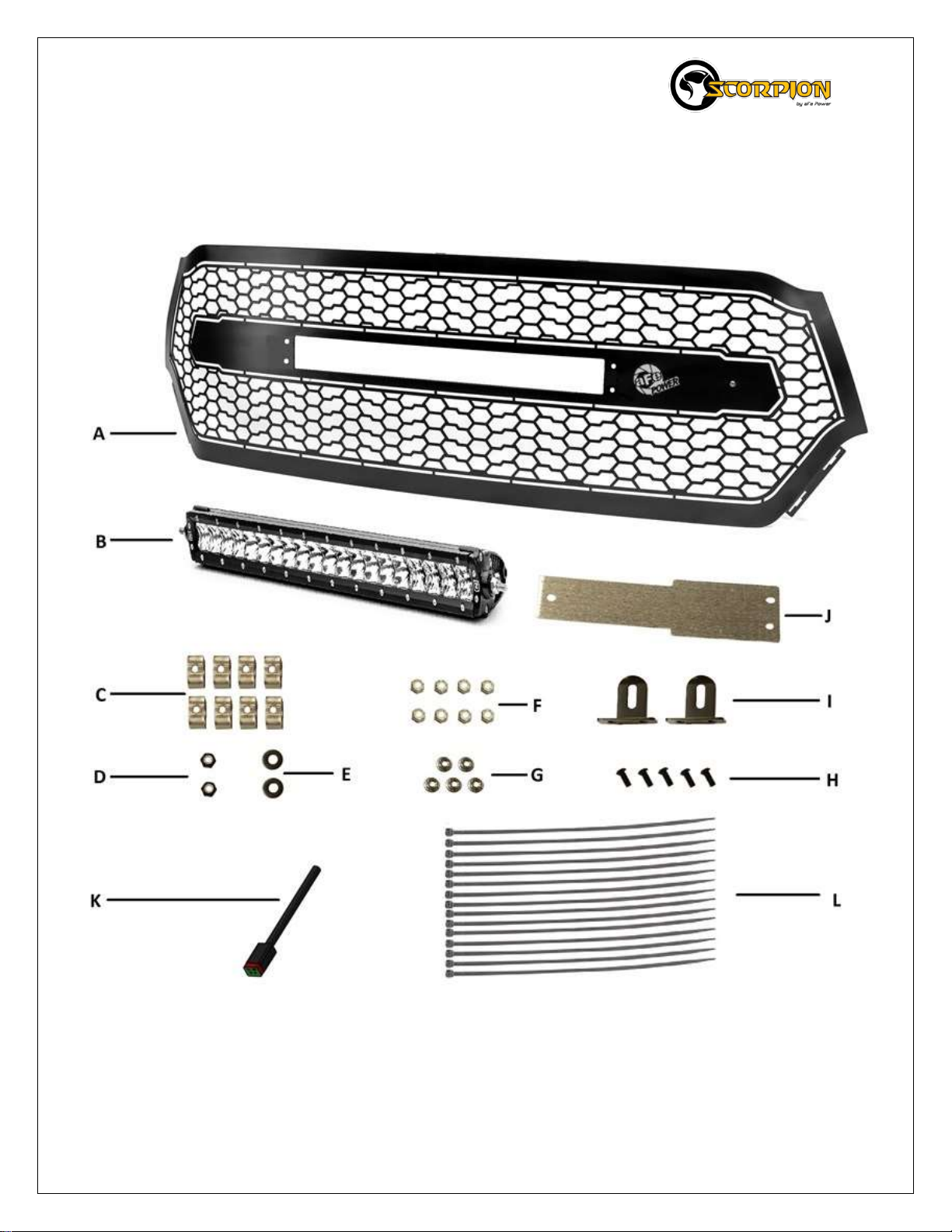

Label

Qty.

Description

A

1

aFe Scorpion Grille

B

1

20” Single Row LED

C

8

Brackets, “C”

D

2

Lock nut, 1/4”-20 Nylon

E

2

Washer, 1/4" Flat

F

8

Lock Nut, #10-32 Nylon

G

5

Nut, #10-32 Flange SS

H

5

Screw, #10-32 x 1/2” Button Head (black)

I

2

Bracket, LED #1

J

1

aFe Logo Back Plate

K

1

Power Harness

L

15

Ties, Cable

•Applications models vary. We recommend verifying fitment before beginning installation process.

•Images featured in the instruction documents may not always exactly match your grille.

•This part fits on: (Ram 1500) Laramie, Big Horn, & Trademan models.

•This part does not fit: (Ram 1500) Sport, Rebel, Laramie Longhorn, Limited

2

3

Note: Before you begin, use “Painter’s Tape” to apply a protective guard around the work

areas (fender and bumper valance). This will help protect the paint and finish of your vehicle.

1. Disconnect the negative battery terminal.

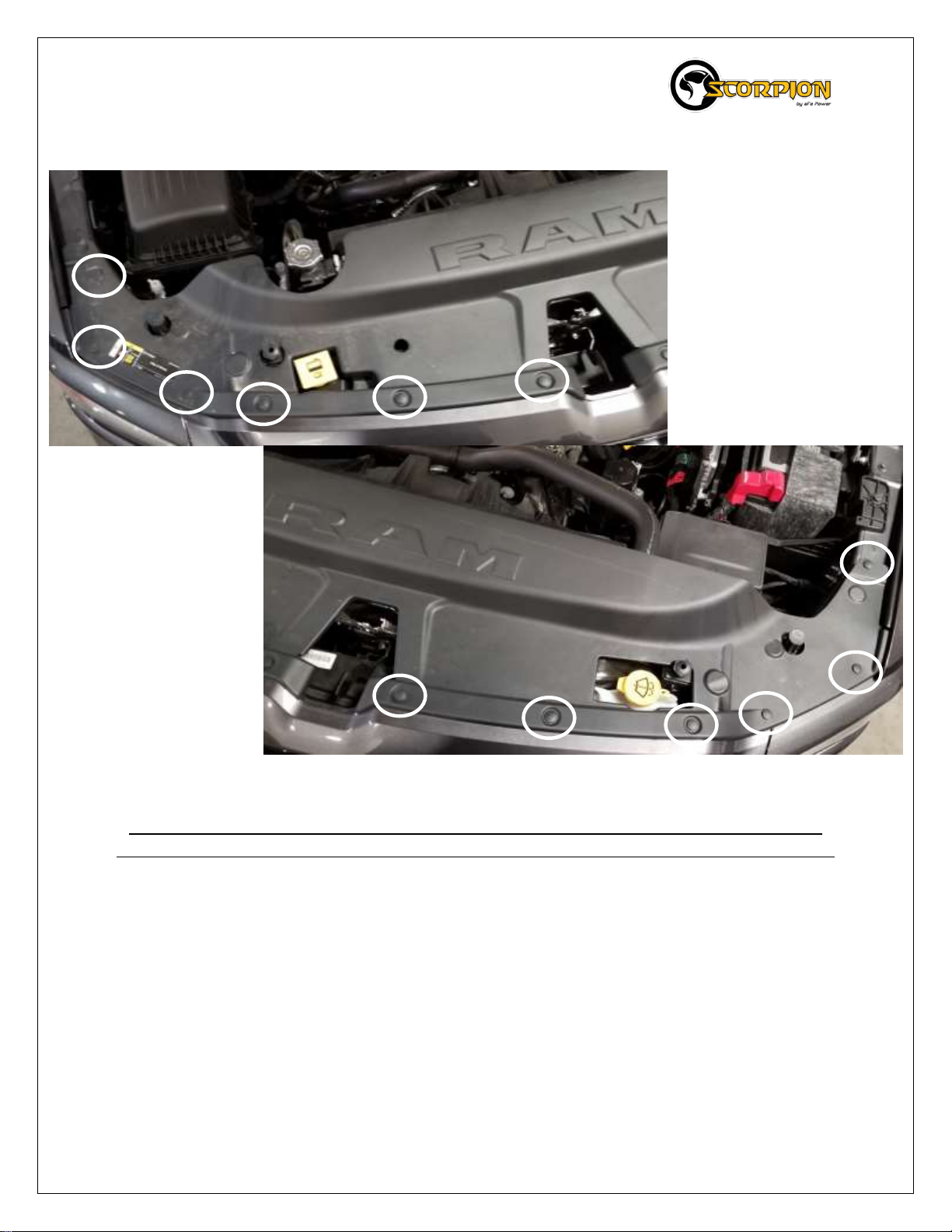

2. Locate twelve (12) plastic clips on top of plastic radiator cover. Carefully pry the pins out to

remove and then set aside. Save all parts for reinstallation.

3. Remove the plastic radiator cover. Set it aside for reinstallation.

4

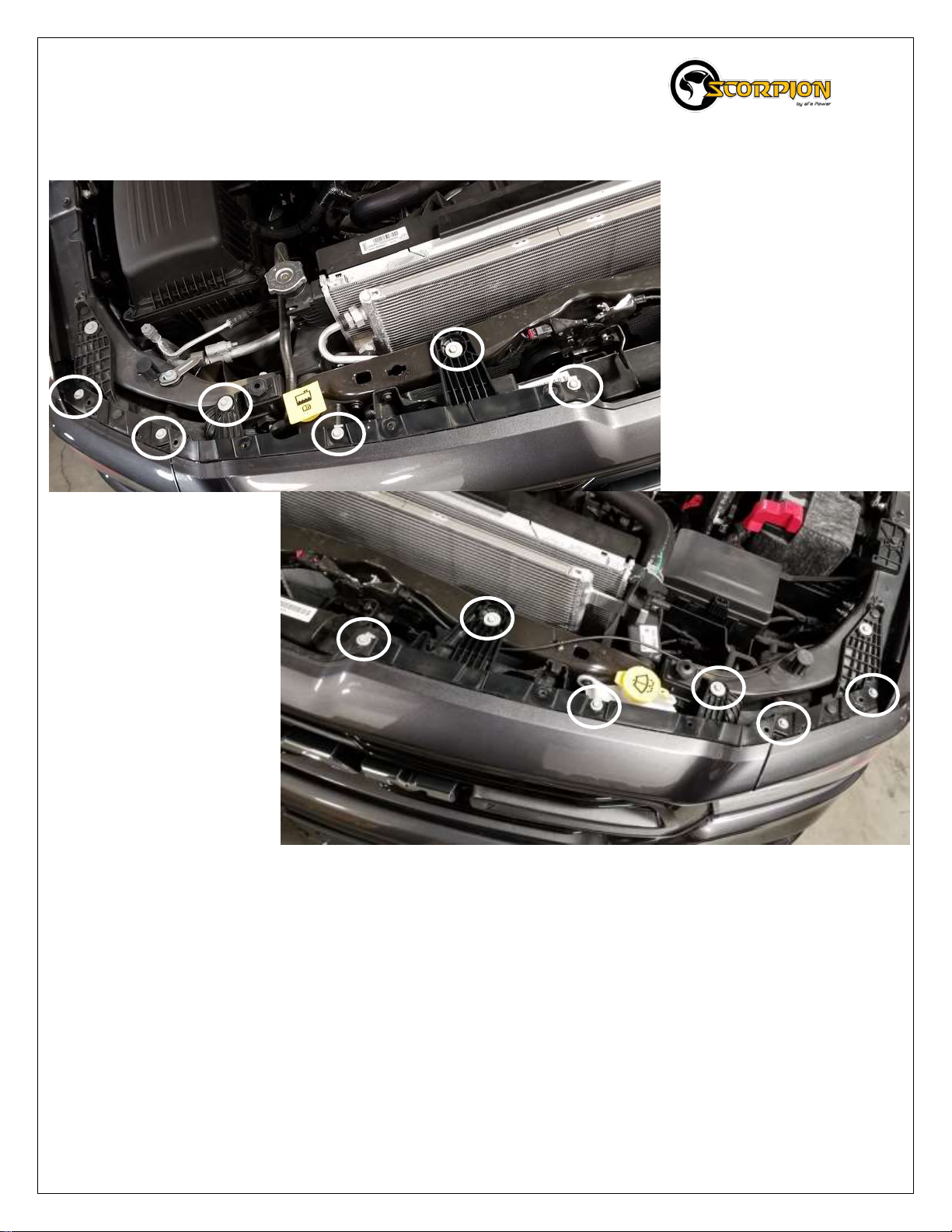

4. Remove the twelve (12) bolts that attach the factory grille assembly to the core support.

Save for reinstallation.

5

Note: Use “Painter’s Tape” to apply a protective guard around the work areas (fender and

Front bumper fascia). This will help protect the paint and finish of your vehicle.

Note: It may be easier to remove the tire and the wheel well from the truck.

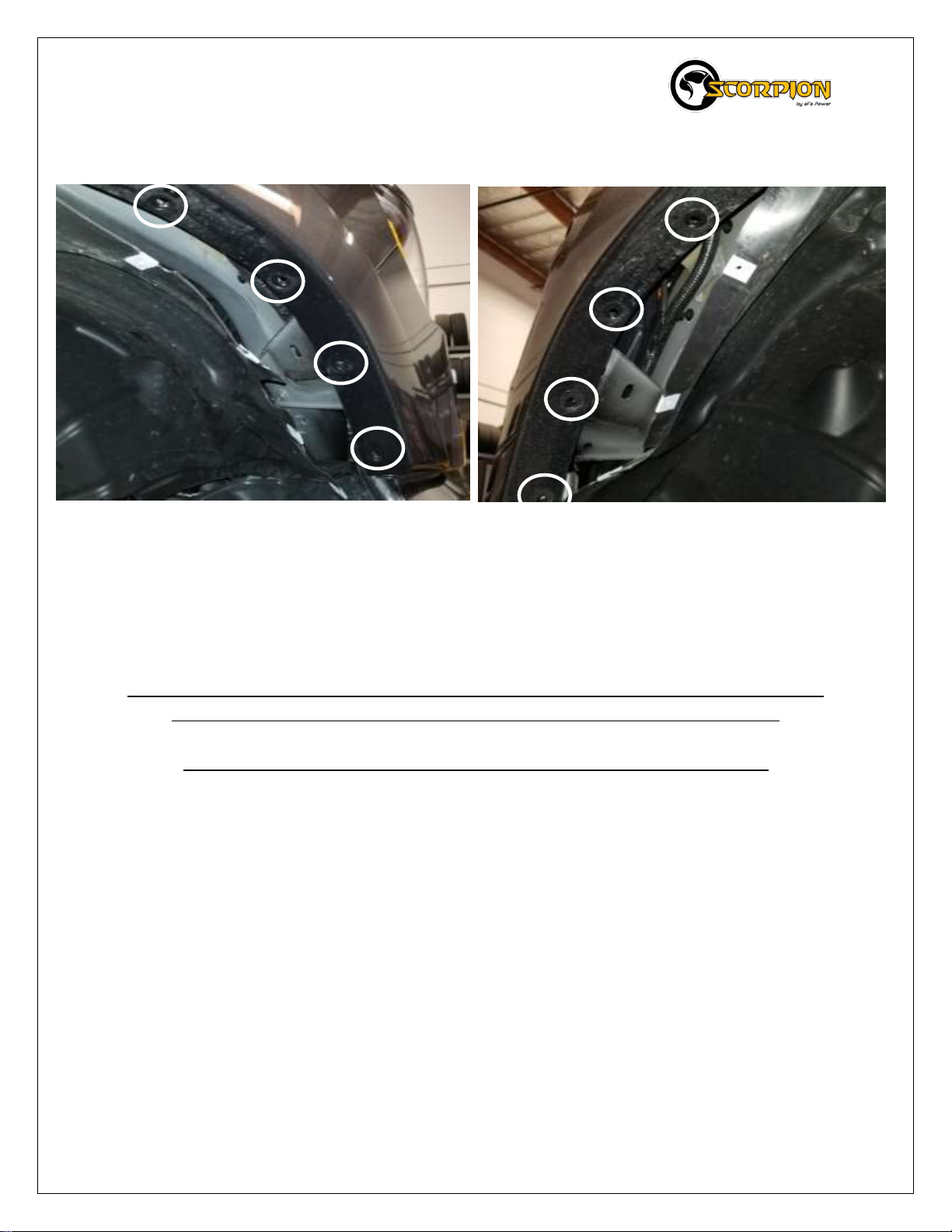

5. Remove the four (4) screws from the front of the wheel well on both sides of the vehicle.

6. Carefully pull the wheel well down far enough to expose the back side of the bumper and

the inside of the fenders.

6

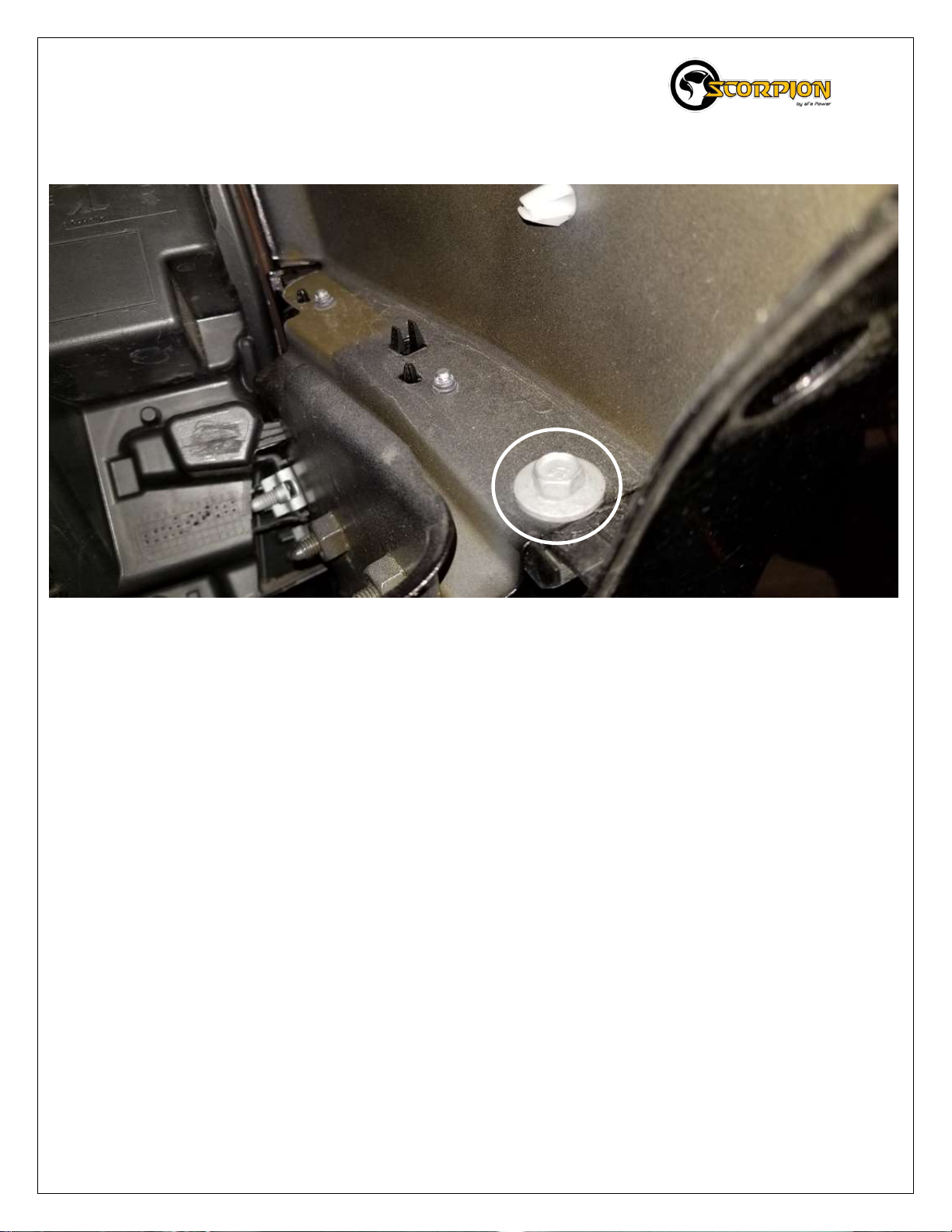

7. Remove the one (1) bolt located on the inside of the fender on both sides of the vehicle.

The bolt connects the fender to the bumper fascia. Save for reinstallation.

7

Note: Use “Painter’s Tape” to apply a protective guard around the work areas (fender and

Front bumper fascia). This will help protect the paint and finish of your vehicle.

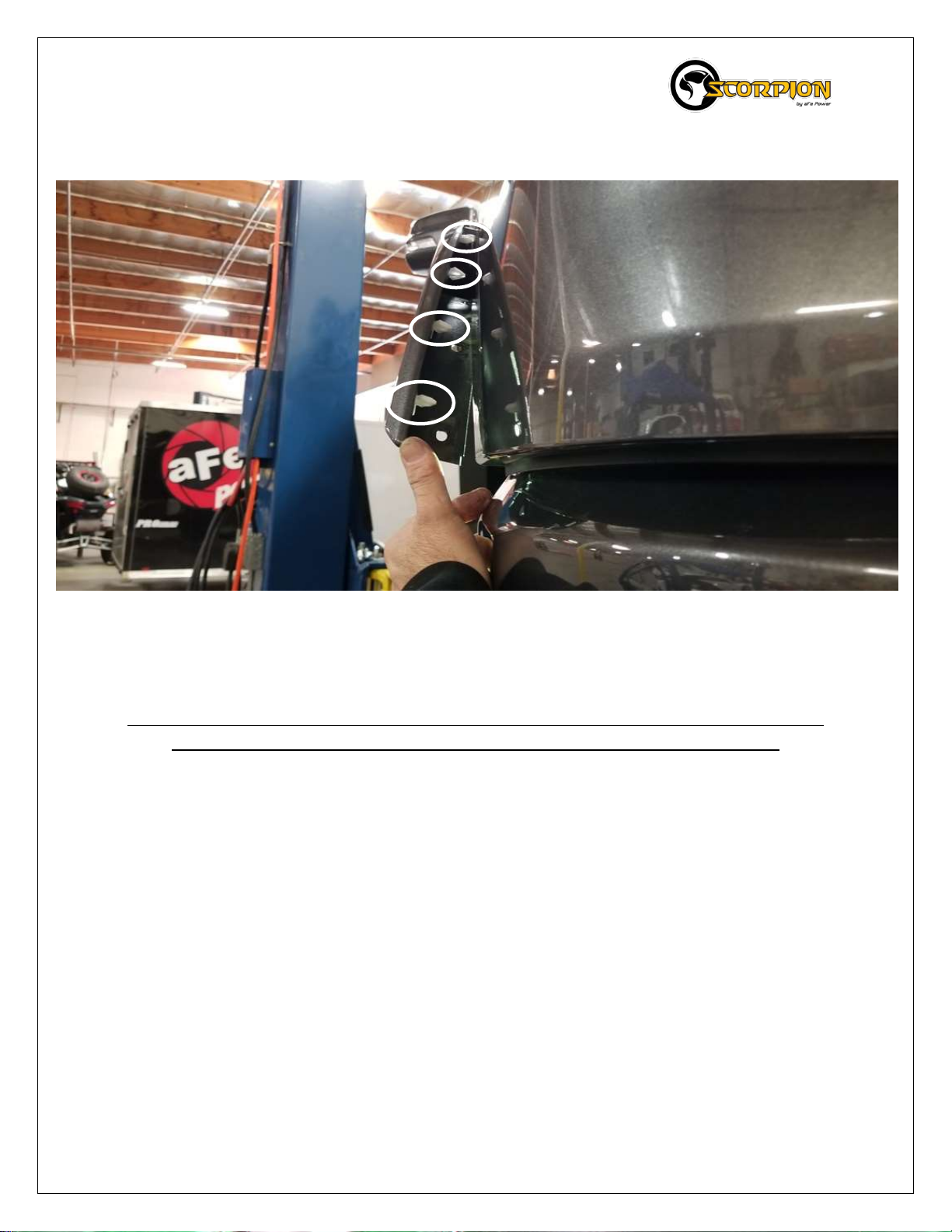

8. Disconnect the four (4) clips for the wheel arch moldings. Squeeze the clip from inside the

fender to get them to release easier.

8

Note: Please go slow and use extreme caution while performing the following steps.

Note: Use “Painter’s Tape” to apply a protective guard around the work areas (fender and

Front bumper fascia). This will help protect the paint and finish of your vehicle.

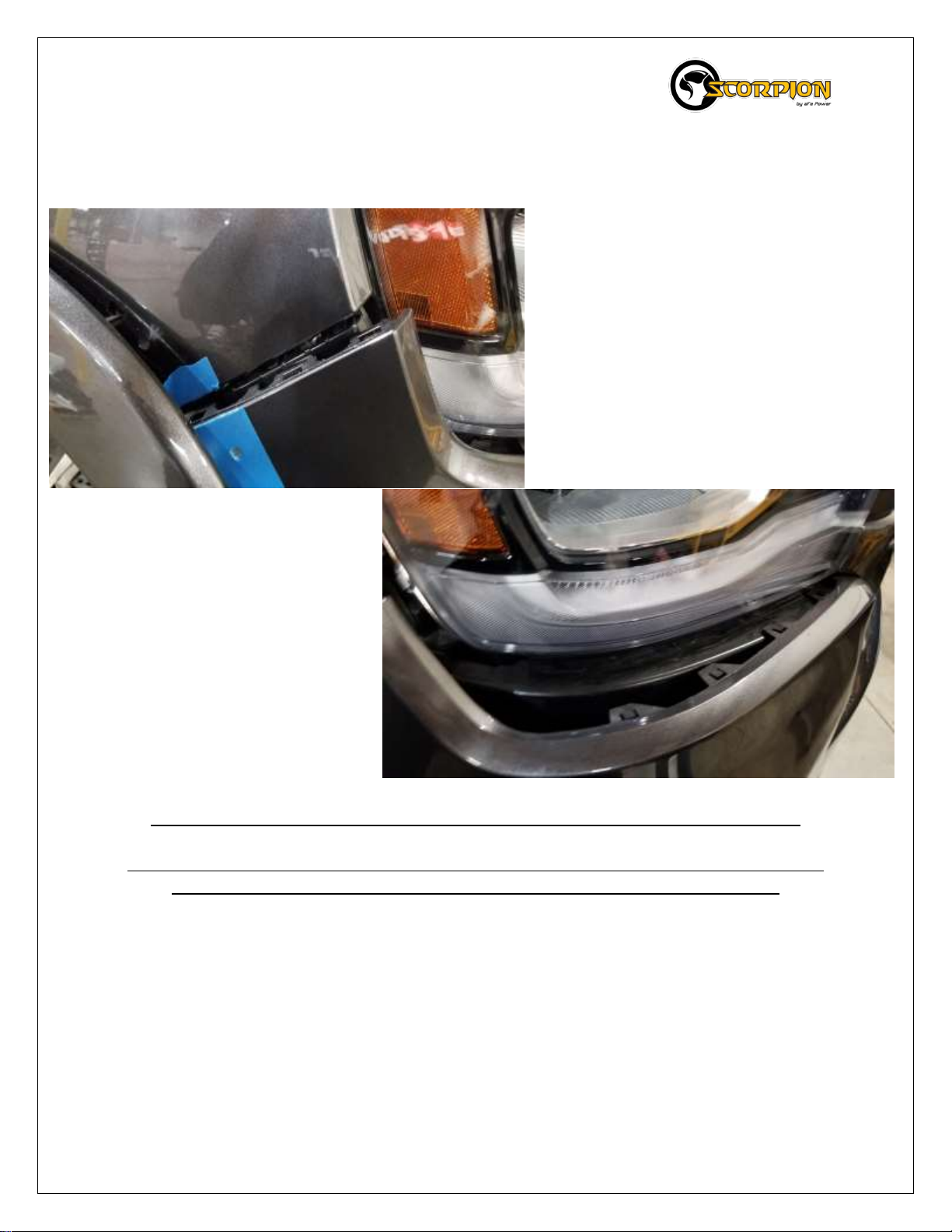

9. Using a plastic prying tool, carefully separate the front bumper fascia from the fender. After

separating the fender from the bumper fascia, gently pull the bumper fascia and remove it

from the headlight and the grille. Save for reinstallation.

10. Repeat Step 9 on the opposite side of the vehicle.

9

11. Remove three (3) bolts (on both sides of the vehicle) that retain the grille under the

headlight. Save for reinstallation.
