AFe Power 77-46306 Manuel utilisateur

advanced FLOW engineering

Instruction Manual P/N: 77-46306

Make: BMW Model: M3/M4 (F80/82/83) Year: 2015-2016 Engine: L6-3.0L (tt) S55

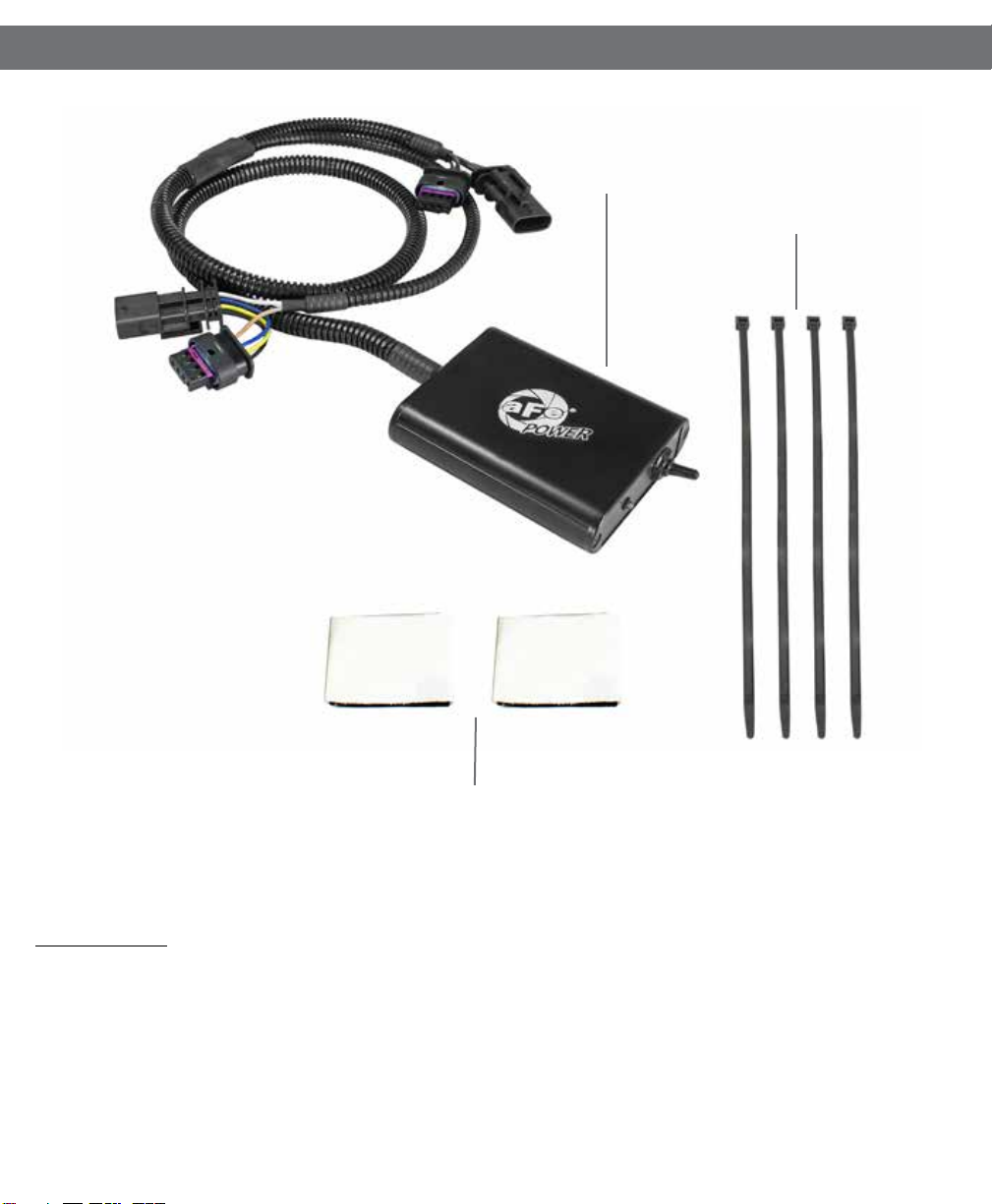

Label Qty. Description Part Number

A 1 Module R77-46306

B 2 Velcro (2 Inches) 05-01244

C 4 Cable Ties 05-60167

Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public

streets or highways is strictly prohibited in California and others states that have adopted California

emission regulations.

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

• Retain factory parts for future use.

Page 2

aFepower.com

Page 3

Step 1: Before installing the aFe module, you will have to place the vehicle ECU in sleep

mode. In order to place the vehicles ECU insleep mode you will need to do the

following:

1) If the engine is cold, open the hood, close the doors, lock the car and wait 30 seconds.

2) If the engine is warm, open the hood, close the doors, lock the car and wait 20 minutes.

3) If the engine is warm and you can’t wait 20 minutes, disconnect the battery.

Installation

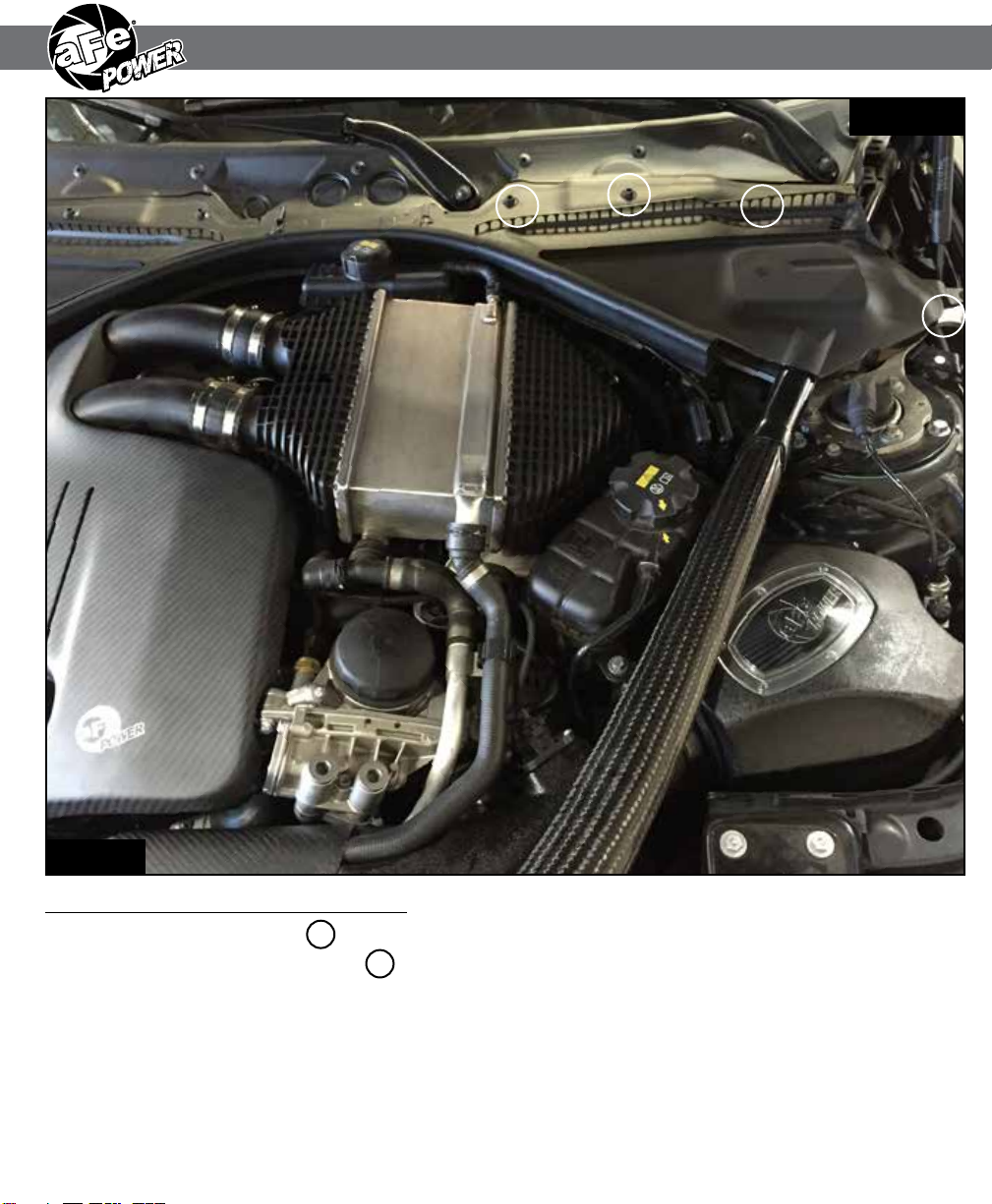

Refer to Figure A for steps 2-4

Step 2: Remove the push clip 1 on the driver side windshield cover.

Step 3: Unlock the three 10mm nuts 2 retaining the windshield cover and remove.

Step 4: Remove the two T27 Screws off the top expansion tank and pop off grommet.

REMOVAL

Page 4

222

Figure A

Refer to Figure B for step 5-7

Step 5: Pass the aFe module harness through frame brace.

Step 6: Pop off the trim seal of the frame brace to allow more space.

Step 7: Locate the MAP Sensor and TMAP sensor. The MAP sensor is on top of the manifold

(under the intercooler). The TMAP sensor is on the bank of the intercooler.

REMOVAL

aFepower.com

Page 5

MAP

TMAP

Figure B

Refer to Figures C for steps 7-9

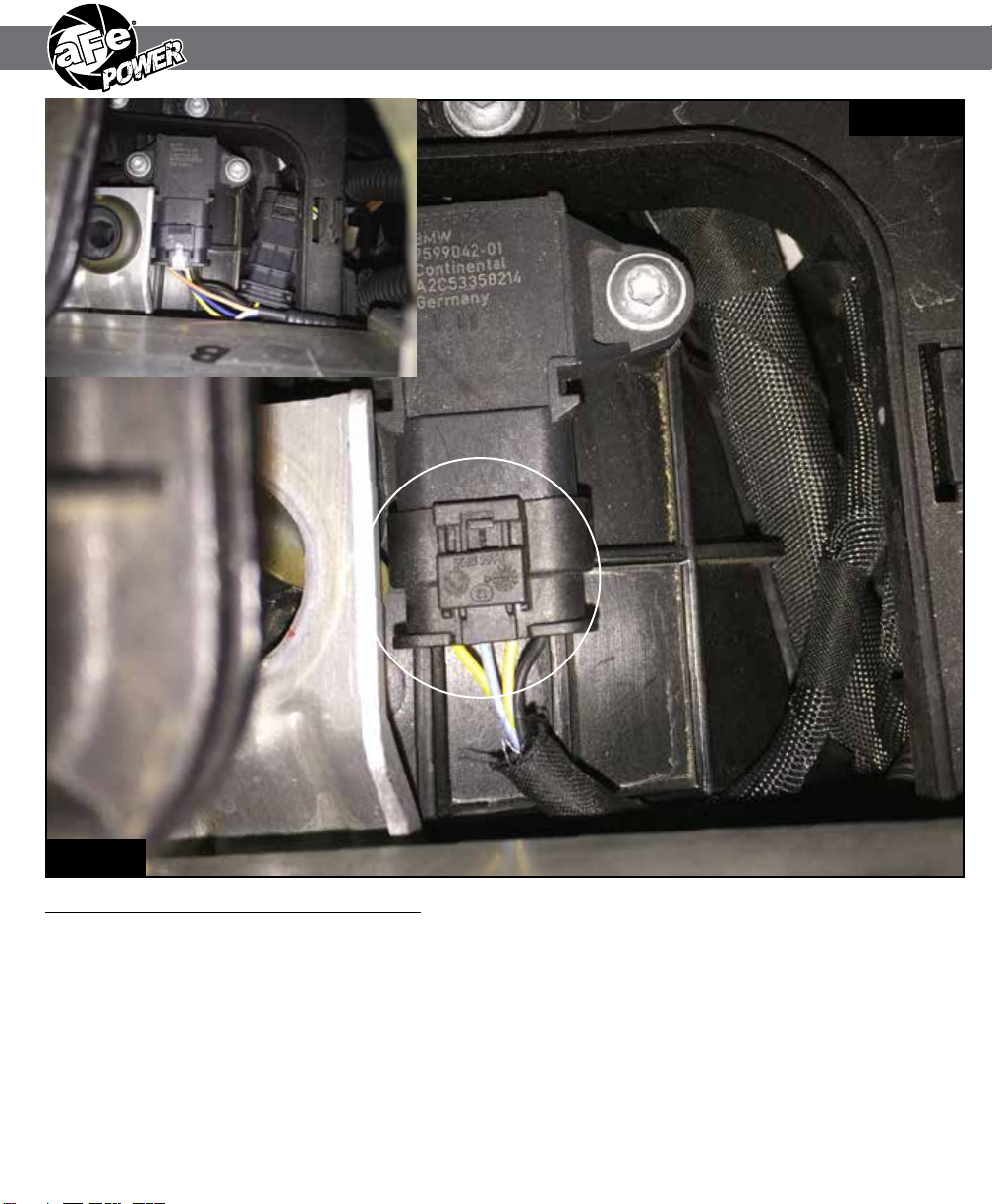

Step 7: Disconnect the MAP sensor harness. (Circled in white.)

Step 8: Locate the MAP sensor jumper harness on the aFe module. It is a 4 wire harness with

tan, black, yellow and blue colored wires.

Step 9: Plug the female connector on to the stock engine harness and the male connector to the

MAP sensor as shown in detail picture.

Figure C

Page 6

INSTALL

Refer to Figure D for steps 10-12

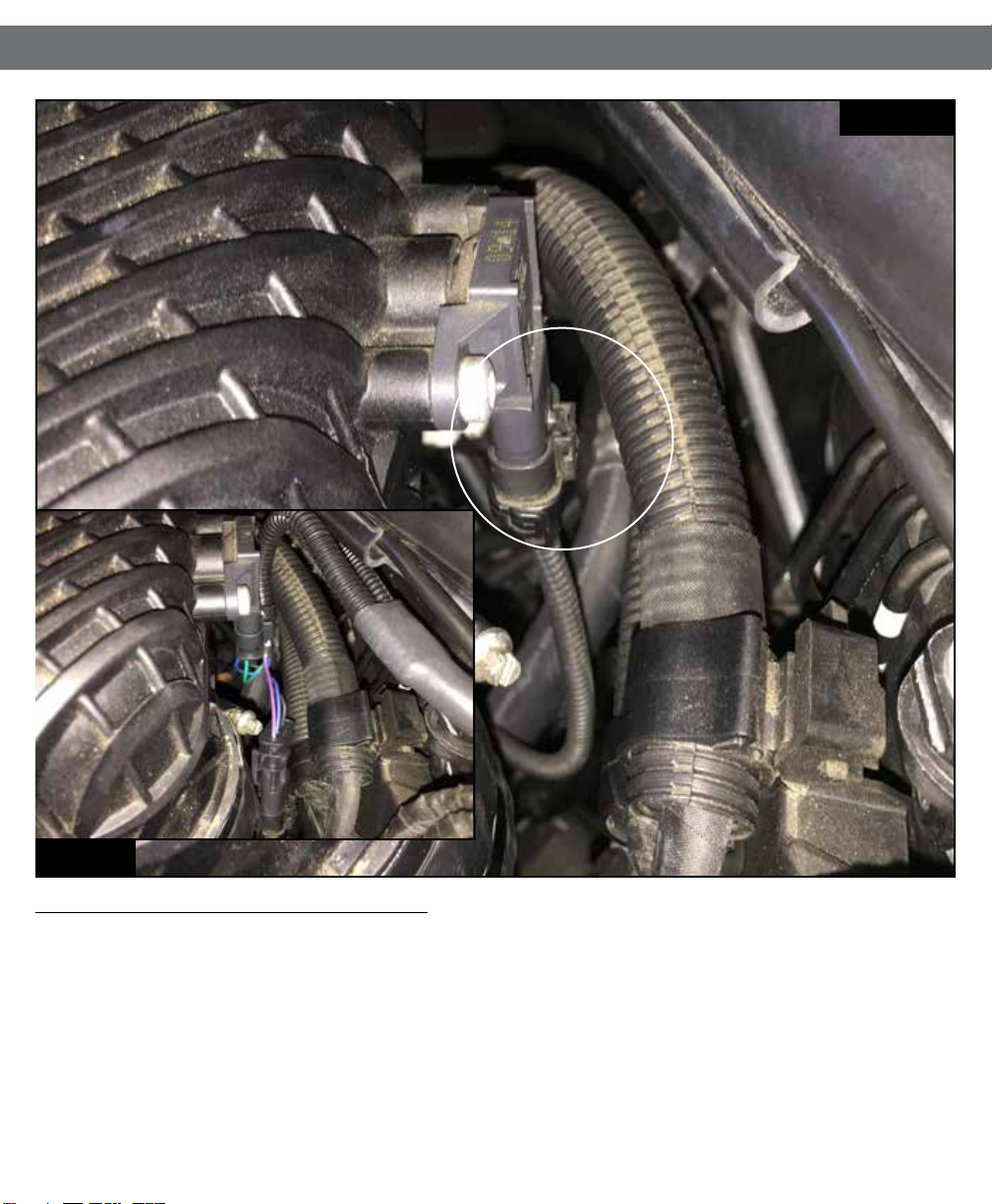

Step 10: Disconnect the TMAP sensor. (Circled in white.)

Step 11: Located the TMAP sensor jumper harness on your aFe module. Itis a 3 wire harness

with purple, black and blue colored wires.

Step 12: Plug the female connector on to the stock engine harness and the male connector to

the TMAP senor as shown in detail picture.

Figure D

aFepower.com

Page 7

INSTALL

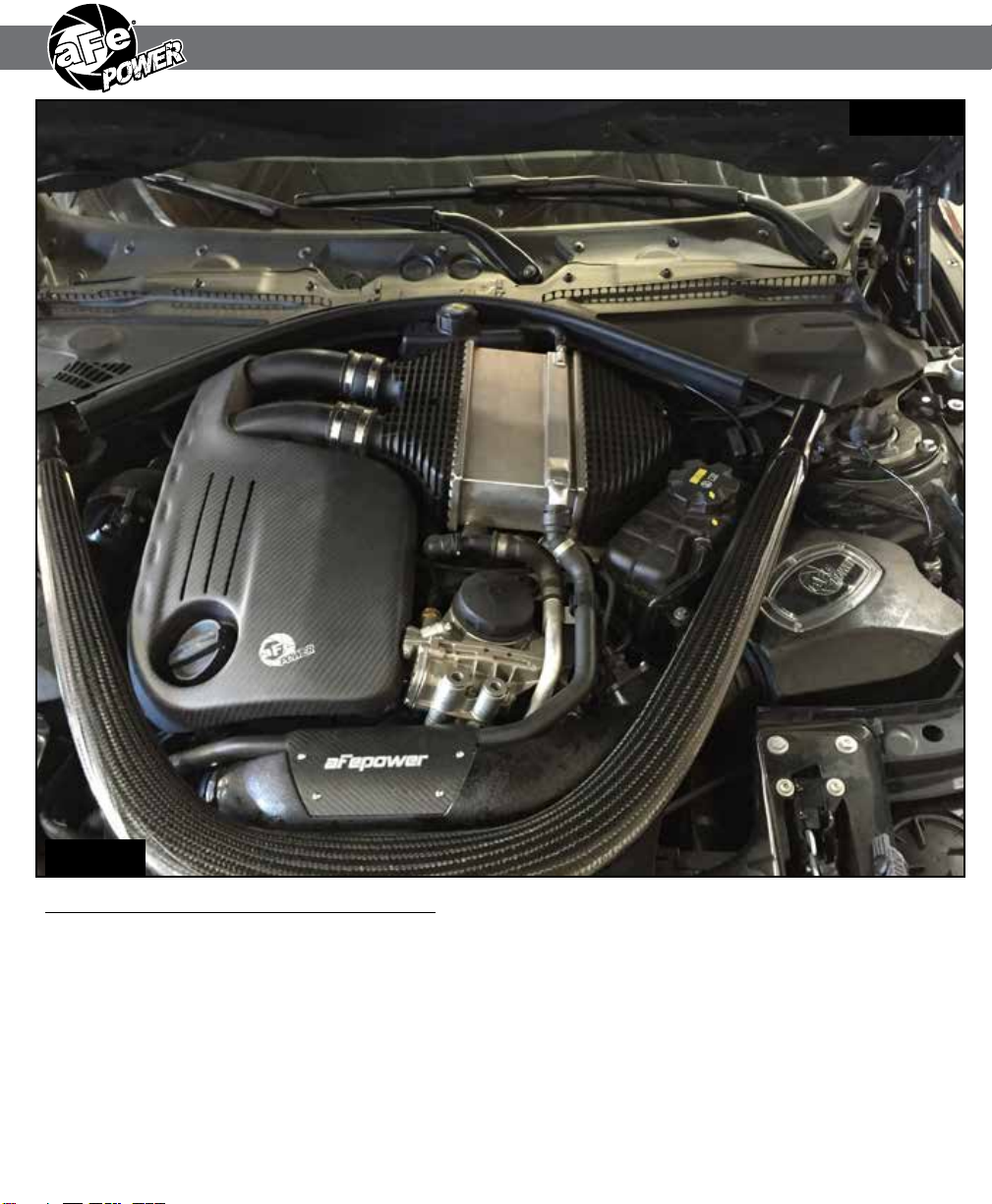

Refer to Figure E for steps 13-15

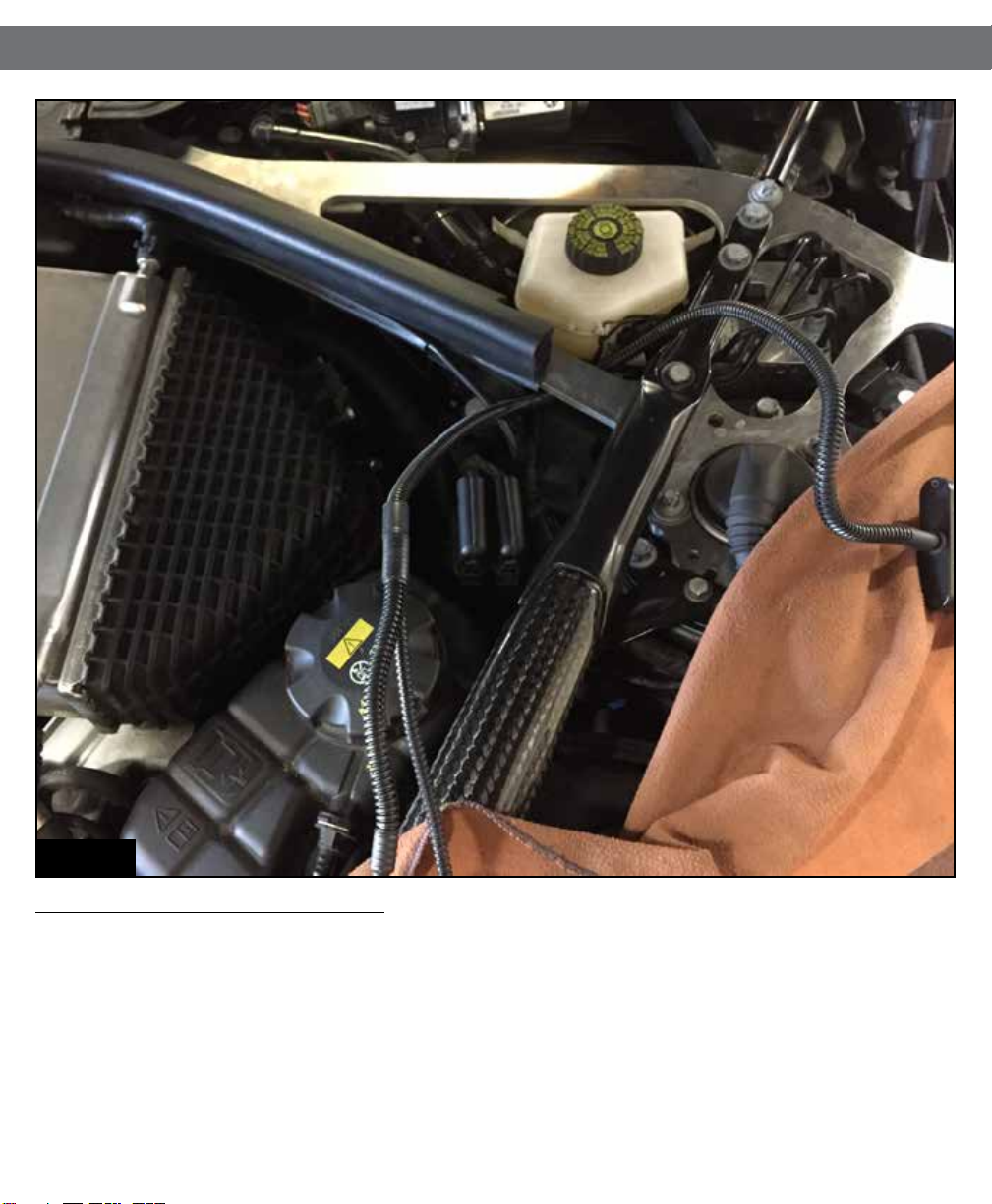

Step 13: Route the aFe module harness then use the supplied cable ties to secure it.

Step 14: Using the supplied high temp velcro, ﬁnd a clean, ﬂat surface and ﬁrmly mount the module.

Step 15: Re-install the windshield cover back on the expansion tank. Refer to steps 1-3.

Note: If the sticky side of the velcro ever gets pulled off, replace it with a brand new high temp piece.

Figure E

INSTALL

Page 8

Refer to Figure F for steps 16-17

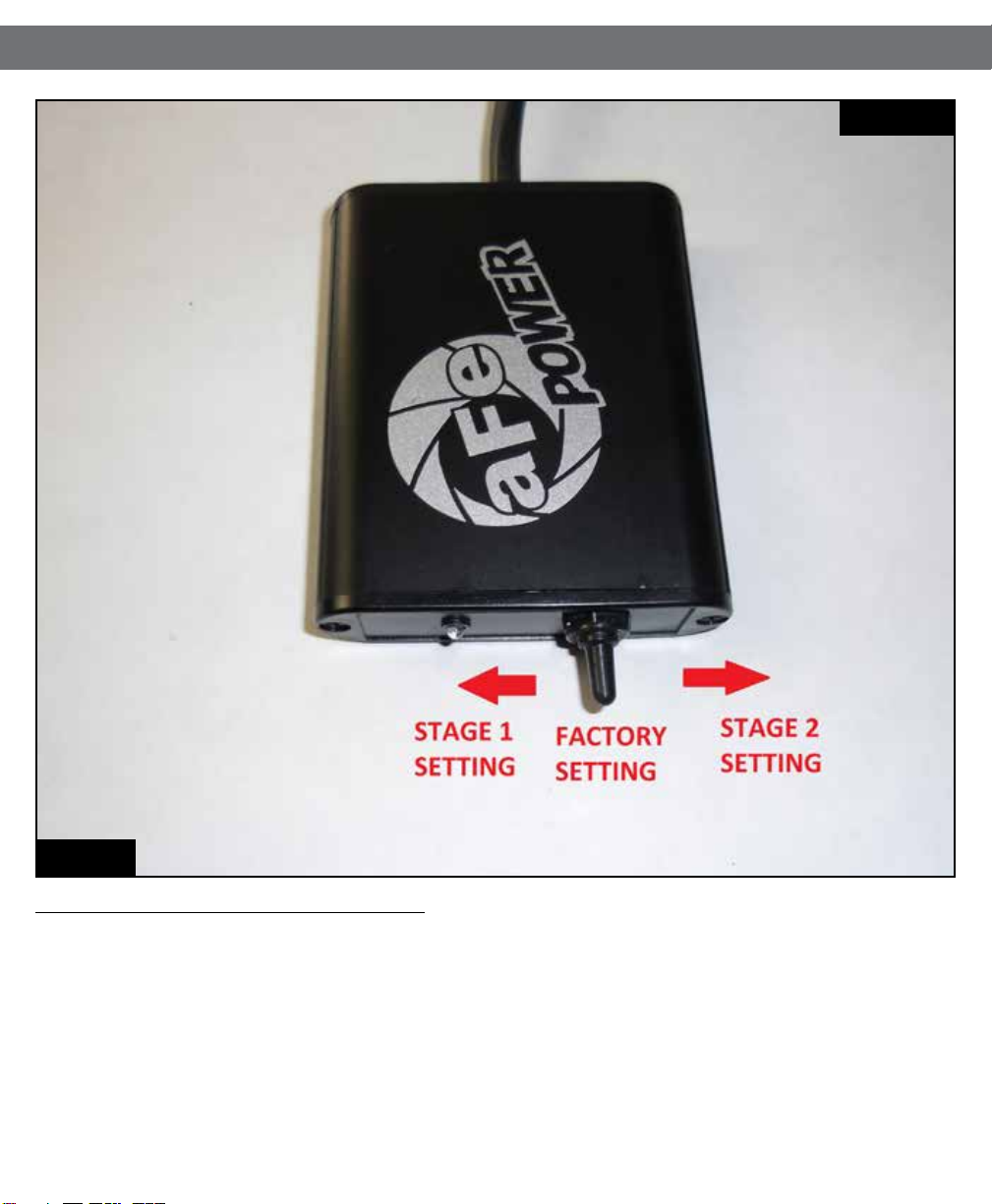

Step 16: The aFe Scorcher Module has three adjustable settings via a switch next to the blue LED.

1. Switch in the center position: Factory setting.

2. Switch toward blue LED: Stage 1 seeting (mid gains.)

3. Switch away from blue LED: Stage 2 setting (high gains.)

Adjust the module to the desired setting after installation and when needed but make sure to do

it only while the vehicle is in sleep mode.

Step 17: Your installation is now complete! Thank you for choosing aFe Power!

Figure F

INSTALL

aFepower.com

Page 9

P/N: 52-76305

Air Intake System

To purchase any of the items above, view airﬂow charts, dyno graphs, photos, and video please go to aFepower.com.

Exhaust System

P/N: 49-36323-C

Page 14

P/N: 49-36324-C

Axle Back Exhaust System

Sprint Booster

P/N: 77-16302

OE Replacement Filter

P/N: 30-10238

P/N: 48-36313

Twisted Steel Header

Carbon Fiber Engine Cover

P/N: 79-13003
