AFe Power 56-70058D Manuel utilisateur

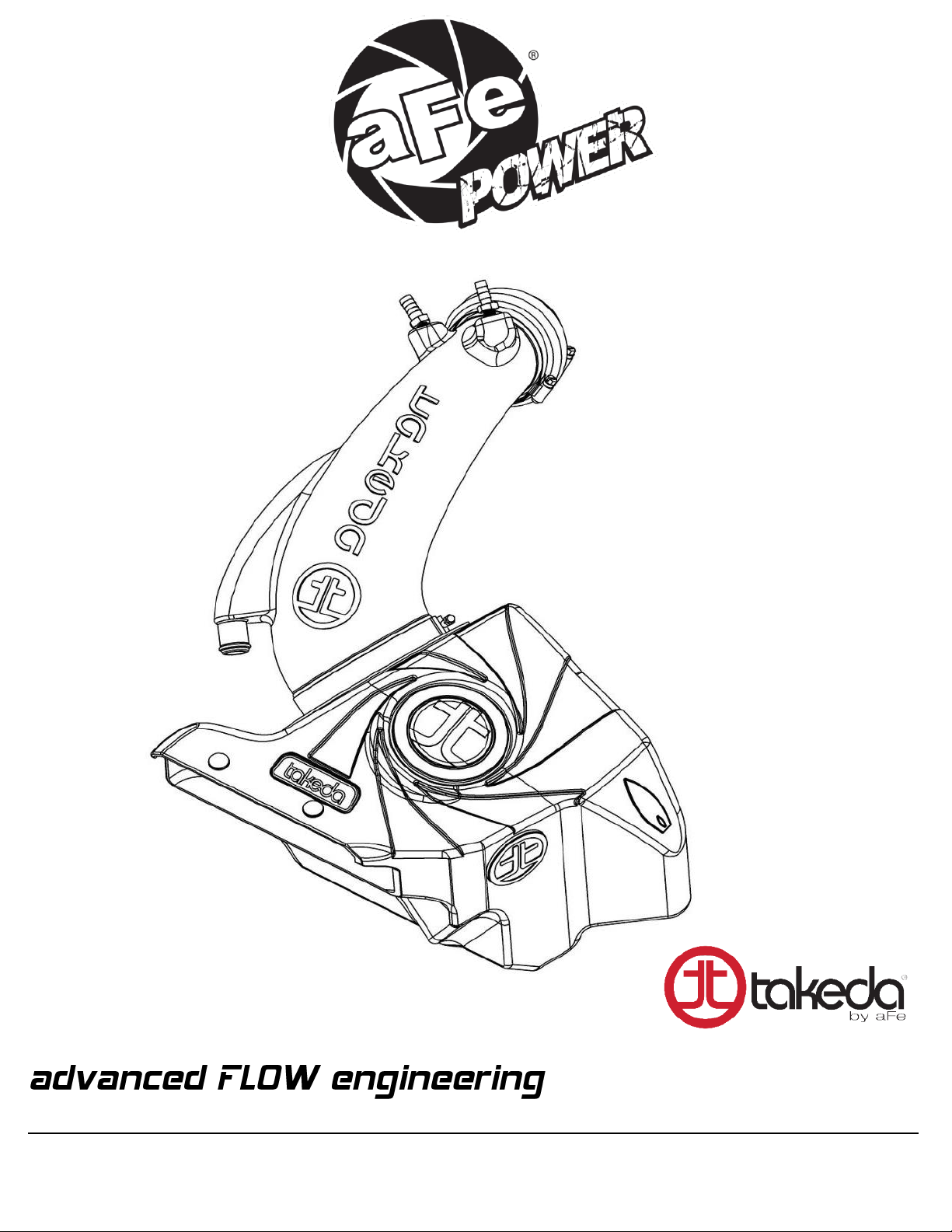

Cold Air Intake System

Instruction Manual P/N: 56-70058D / 56-70058R______________________________

Make: Hyundai Model: Kona N Year: 2022-2023 Engine: L4-2.0L(t)

Page 2

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Retain factory parts for future use.

Label

Qty.

Description

Part Number

Air Filter (Pro 5R) For 56-70058R

24-91144

Air Filter (Pro DRY S) For 56-70058D

21-91144

Tube

05-5670058B1

Housing

05-5670058B2

Coupling, Silicone Reducer: (2-1/2” x 3”) ID x 3’L

05-01736

Plug, Air Box

05-01527

Clamp, #048 (2-9/16" - 3-1/2 ")

03-50007

Clamp, #044 (2-5/16" - 3-1/4")

03-50019

Fitting, Aluminum 11mm

03-50615

Fitting, Aluminum 10mm

03-50641

Push Clip

03-50616

Installation will require the following tools:

Socket set, extension, rachet, adjustable wrench, pliers, and a flat-head screwdriver

Warranty Information available at: https://afepower.com/contact#warranty

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

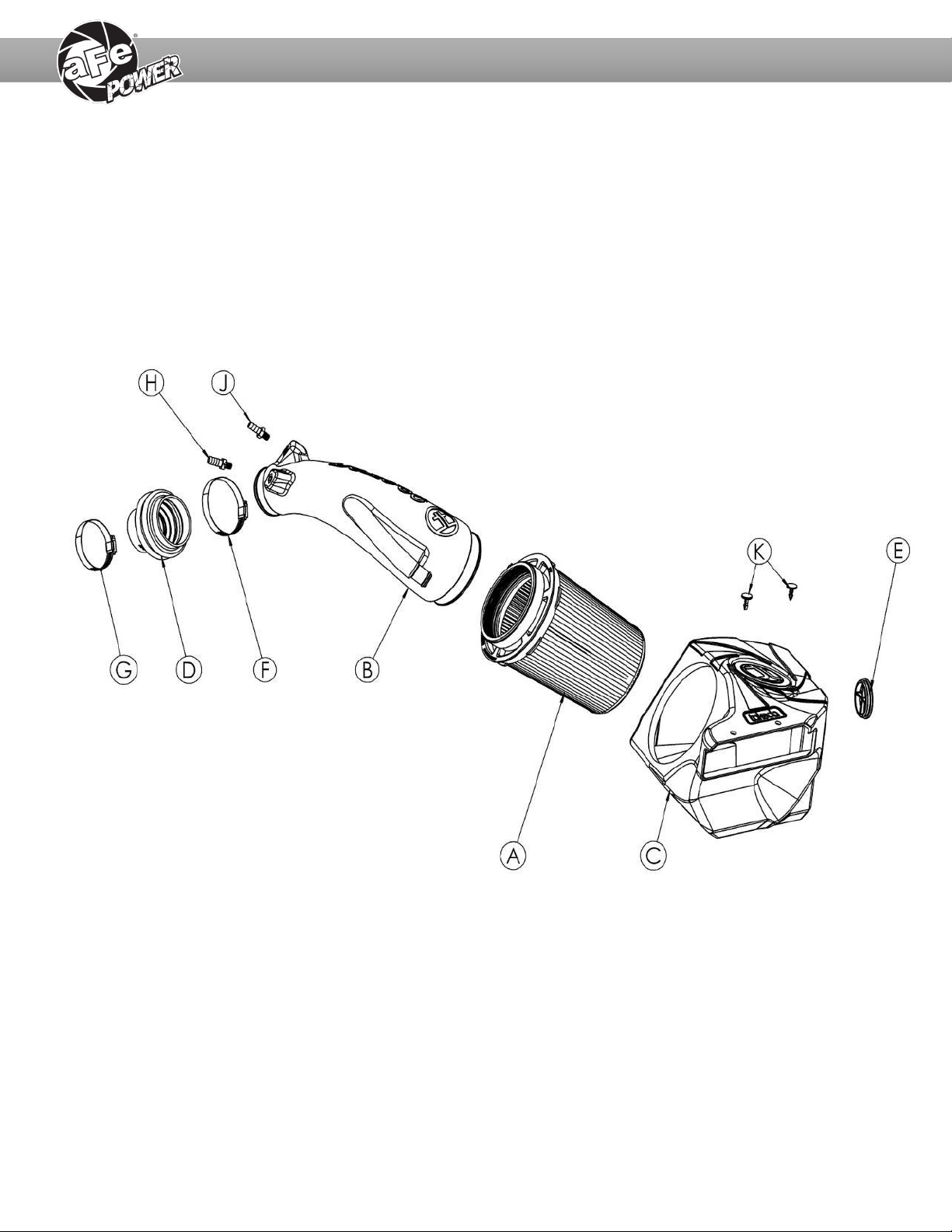

Page 3

Page 4

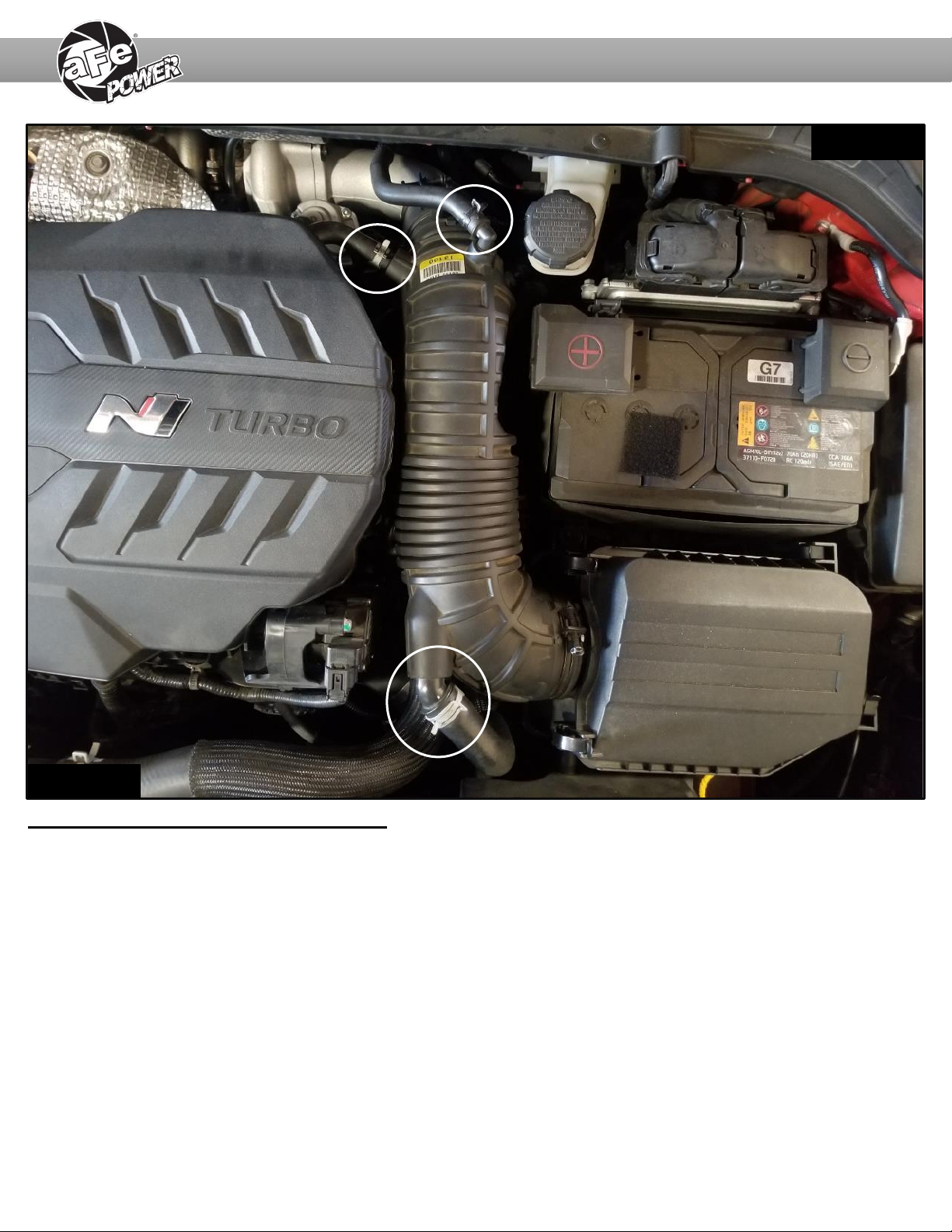

Refer to Figure A for Steps 1-2

Step 1: Using pliers, open the clamp securing the larger hose to the air intake tube, then slide the clamp

away from the intake tube. This clamp will be re-used. Disconnect the rubber hose from the air intake

tube.

Step 2: Using pliers, open the clamps securing the smaller hoses to the air intake tube, then slide the clamp

away from the intake tube. These clamps will be re-used. Disconnect the rubber hoses from the air

intake tube.

REMOVAL

Figure A

Page 5

Refer to Figure B for Step 3

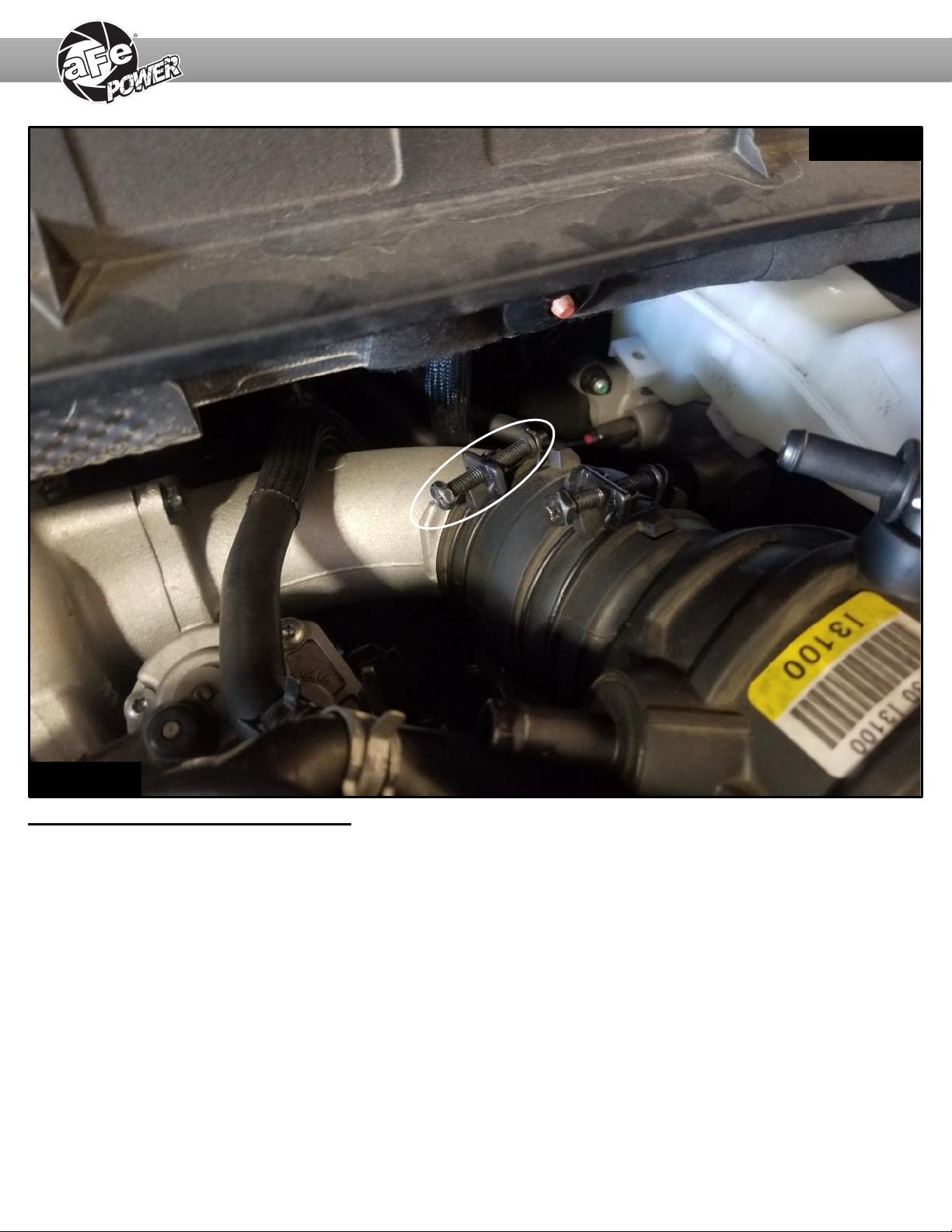

Step 3: Loosen the clamp at the turbo inlet.

REMOVAL

Figure B

Page 6

Refer to Figure C for Step 4

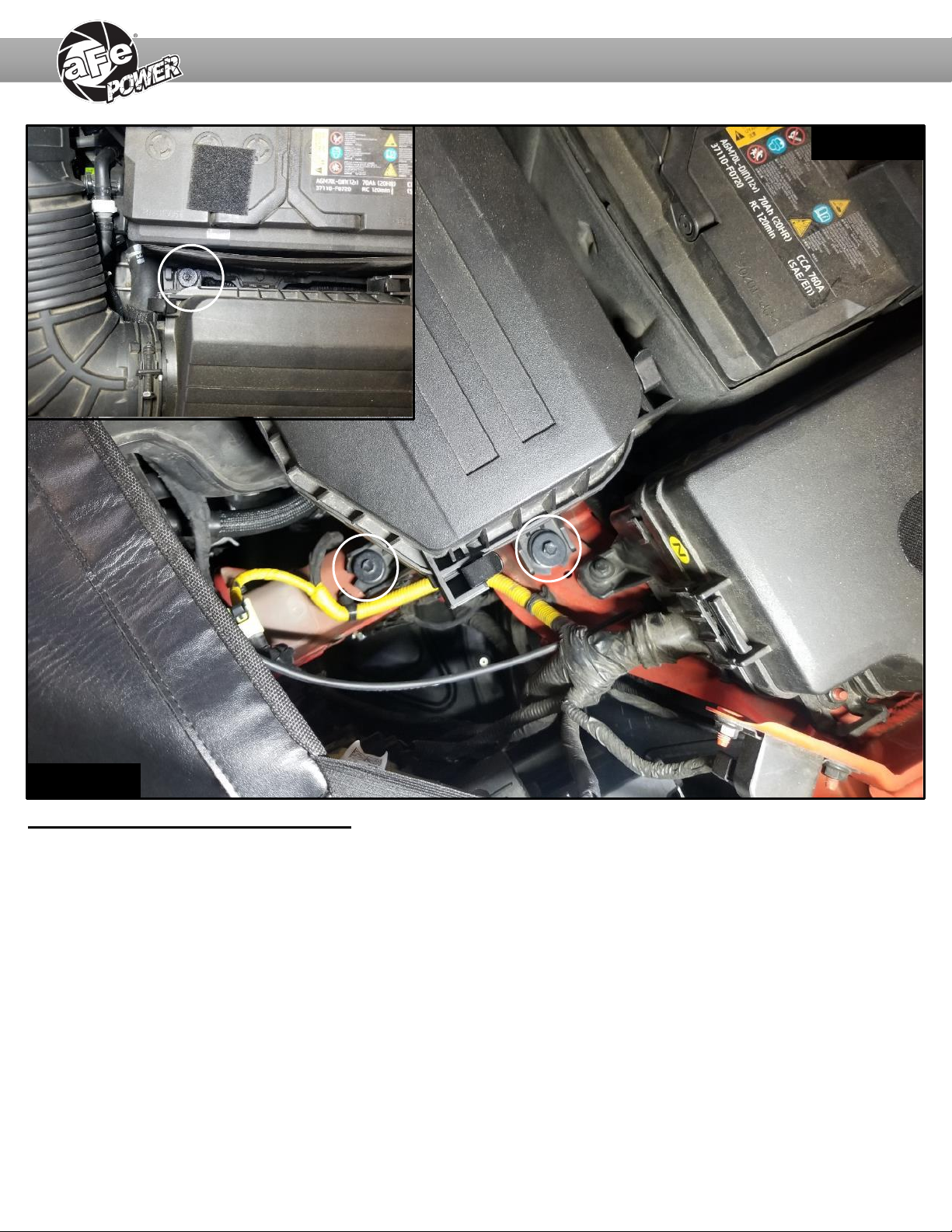

Step 4: Loosen the three bolts securing the factory housing to the vehicle. Two (2) of these three bolts will

be re-used during the installation of the Takeda air intake system.

Figure C

REMOVAL

Page 7

Refer to Figure D for Steps 5-6

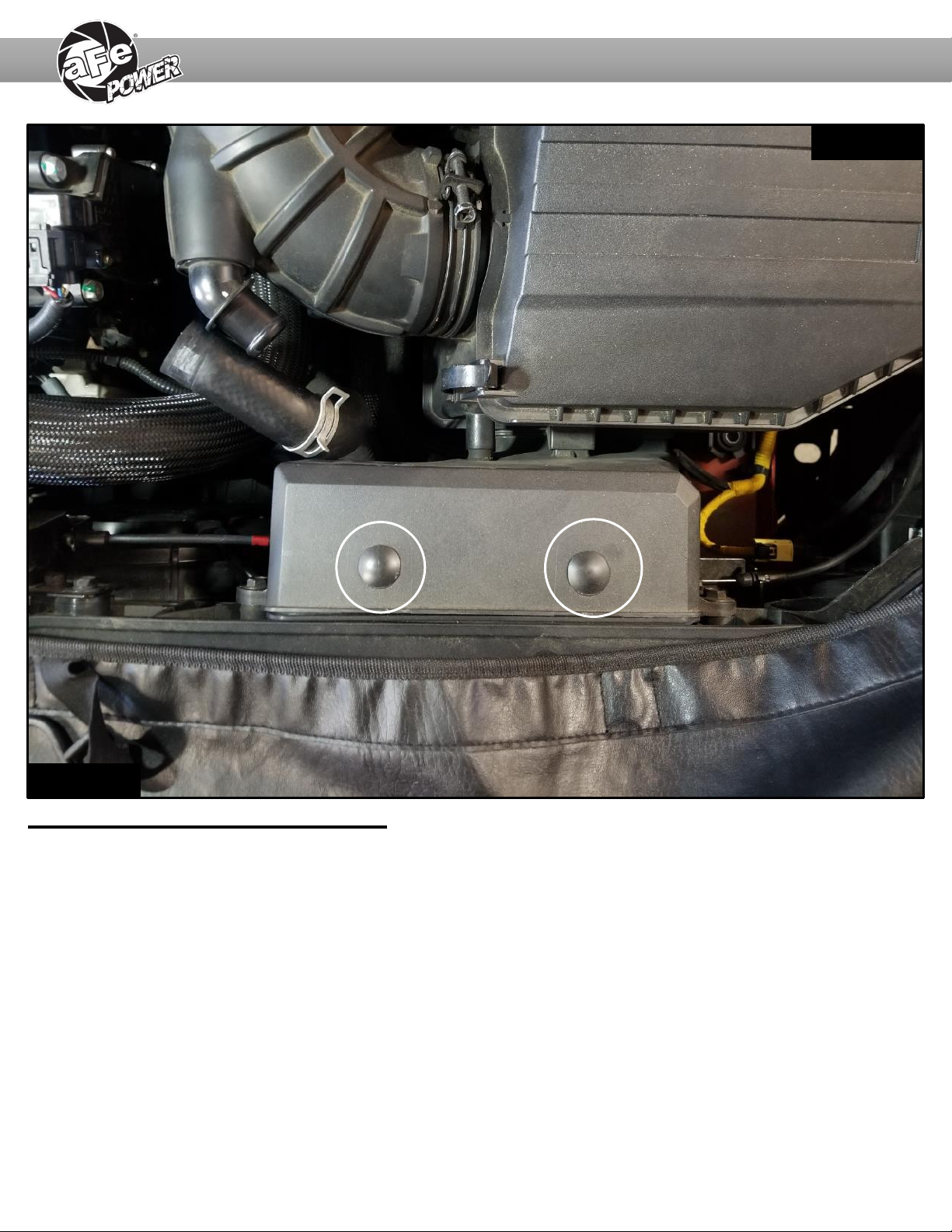

Step 5: Remove the two (2) push clips connecting the factory air scoop to the front of the car.

Step 6: Remove the housing and air inlet as one piece out of the vehicle.

REMOVAL

Figure D

Page 8

Refer to Figure E for Step 7

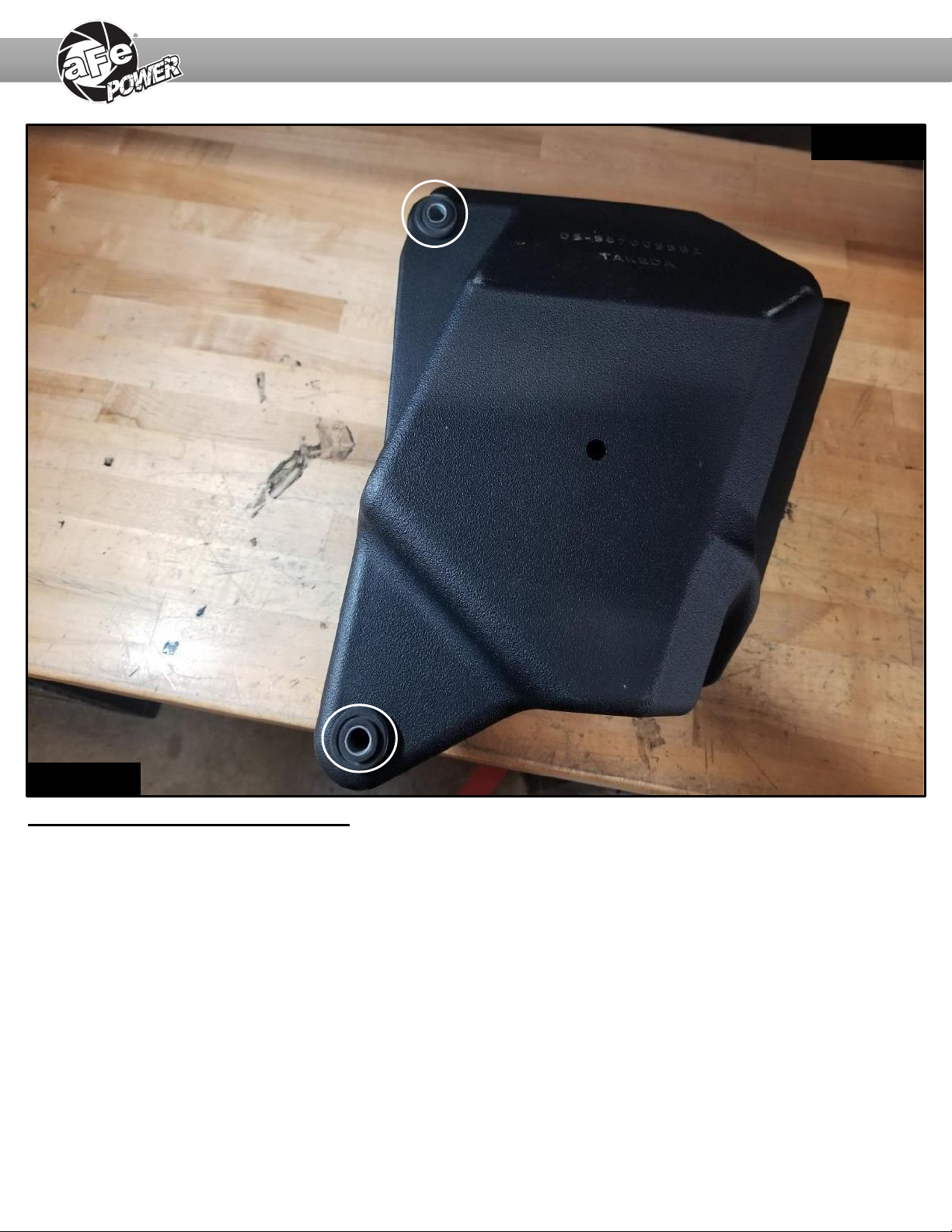

Step 7: Transfer the factory grommets and sleeves from the factory housing onto the Takeda housing.

INSTALL

Figure E

Page 9

Refer to Figure F for Steps 8-9

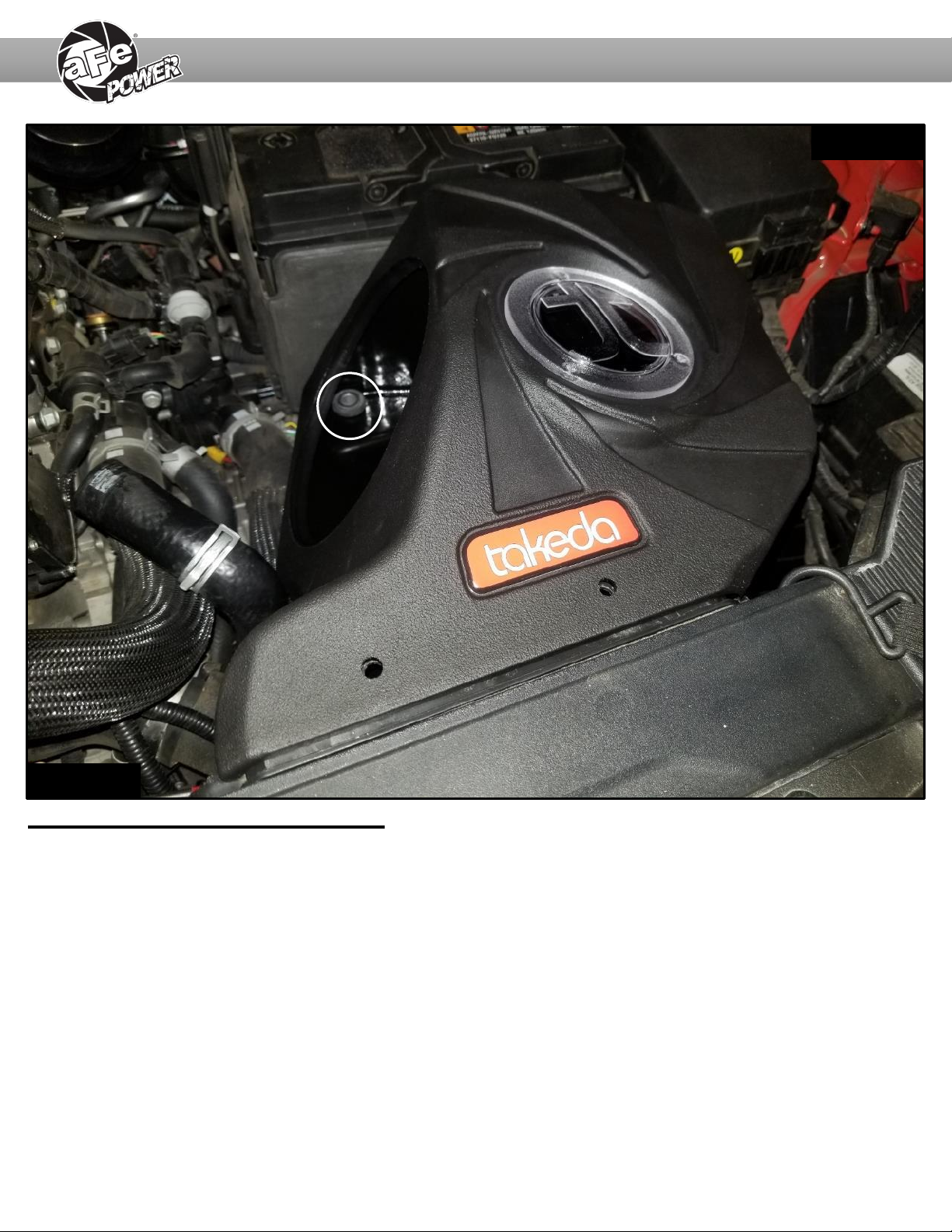

Step 8: Install the Takeda housing into the engine bay.

Step 9: Secure the housing with the two (2) factory bolts removed in Step 4. The bolts will be installed

inside of the Takeda housing.

INSTALL

Figure F

Page 10

Refer to Figure G for Step 10

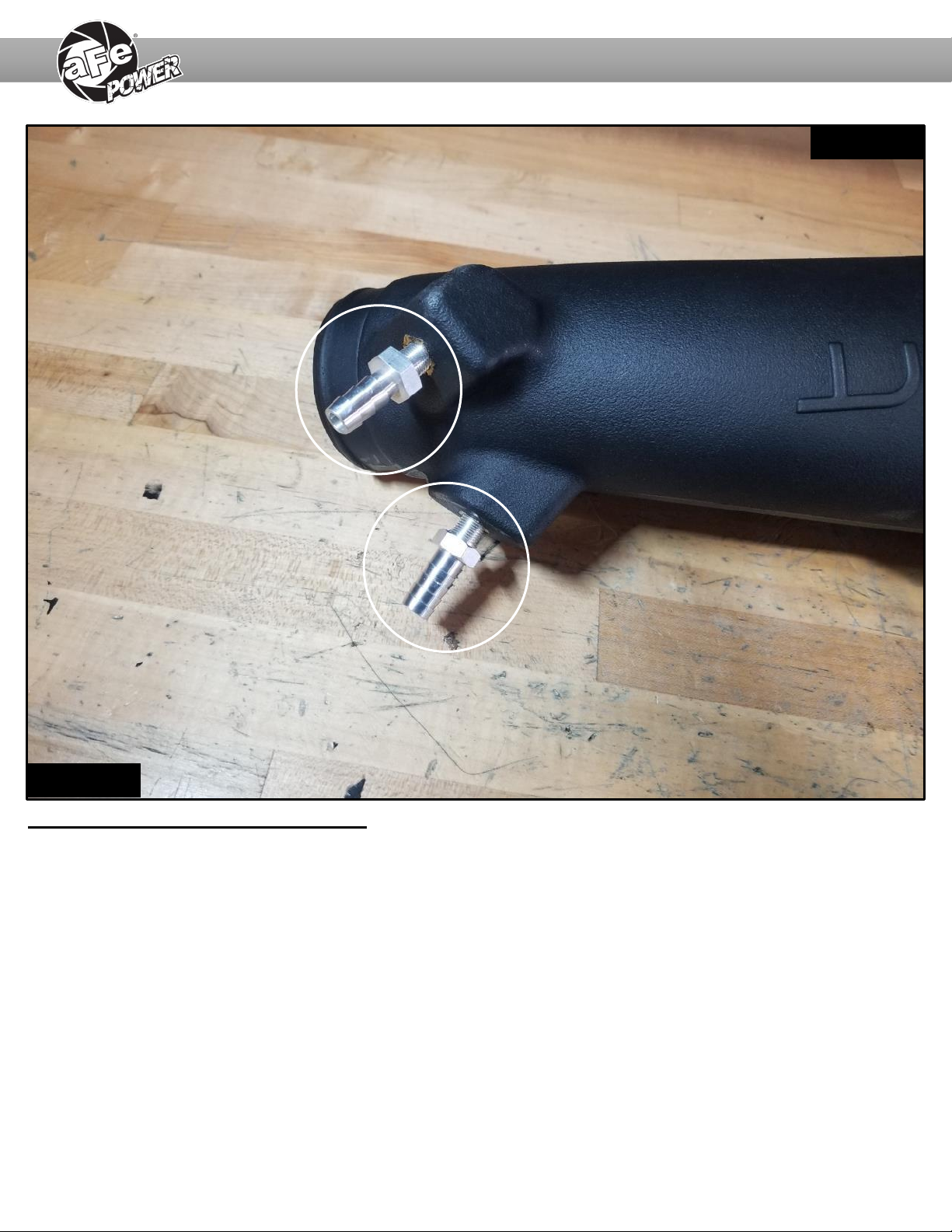

Step 10: Using a 16mm wrench, install the aluminum fittings into the Takeda air intake tube. The two fittings

are different. The bigger one (with four ribs) goes on the side of the tube. The smaller one (with three

ribs) goes on the top of the tube.

Note: This is an NPT fitting, the small gap between the 16mm hex and the tube is normal.

INSTALL

Figure G

Smaller fitting

(With three ribs)

Bigger fitting

(With four ribs)
