advanced FLOW engineering

Instruction Manual P/N: 77-43023

Make: Ford Model: F-150 Raptor Year: 2017-2020 Engine: V6-3.5L (tt) EcoBoost

Make: Ford Model: F-150 Limited Year: 2019-2020 Engine: V6-3.5L (tt) EcoBoost

Make: Ford Model: Expedition Platinum Year: 2018-2020 Engine: V6-3.5L (tt) EcoBoost

Make: Lincoln Model: Navigator Year: 2018-2020 Engine: V6-3.5L (tt) EcoBoost

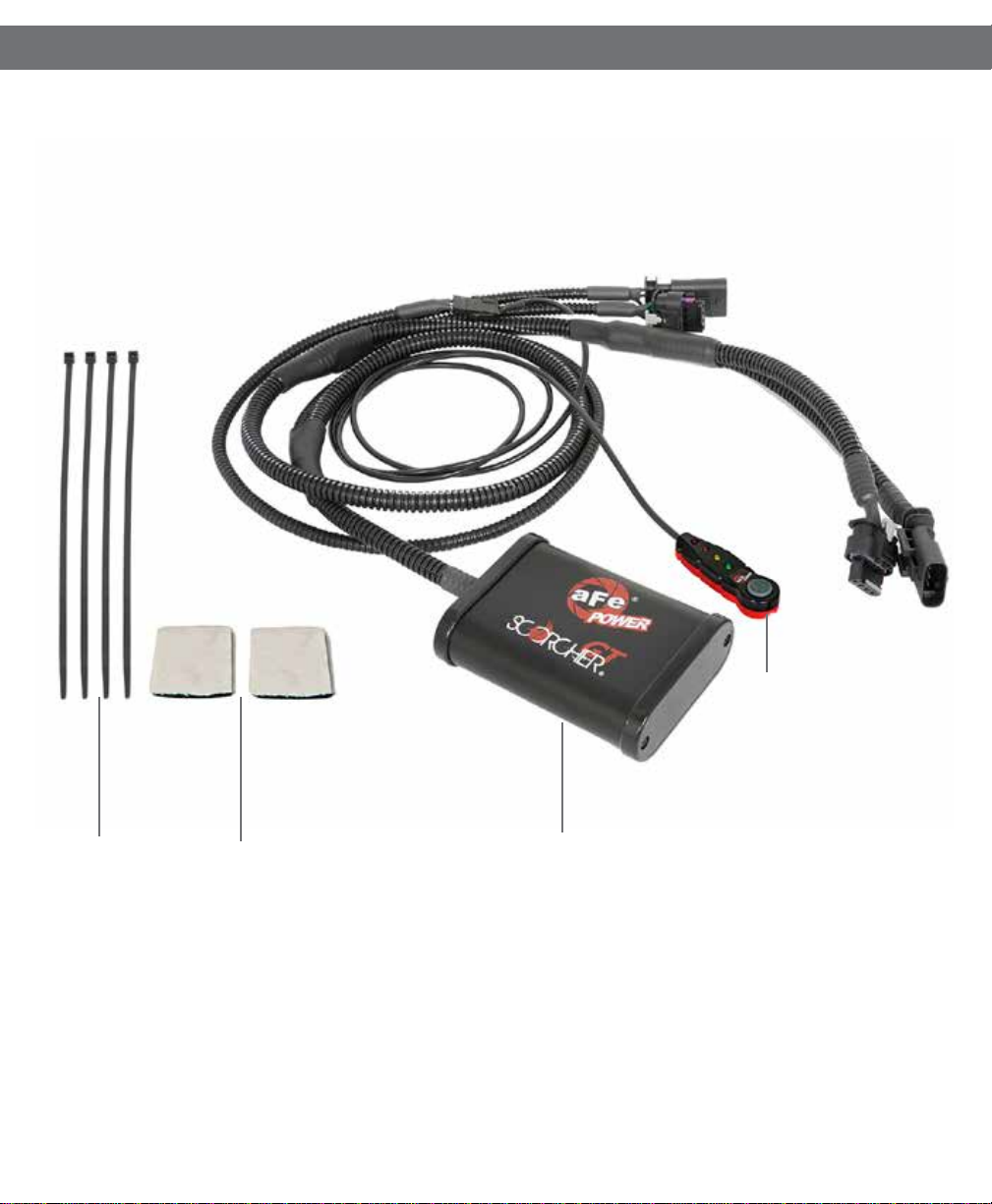

Label Qty. Description Part Number

A 1 Module R77-43023

B 1 LED Switch 05-70029

C 2 Velcro (2 Inches) 05-01244

D 4 Cable Ties 05-60167

Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public

streets or highways is strictly prohibited in California and others states that have adopted California

emission regulations.

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

• Retain factory parts for future use.

Page 2

aFepower.com

Page 3

Page 4

Refer to Figure A for Step 1.

Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In

order to do this you will need to do the following:

- If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.

- If the engine is warm, open the hood, close the doors lock the car and wait 20 minutes.

- If the engine is warm and you can’t wait 20 minutes, disconnect the battery.

REMOVAL

Figure A

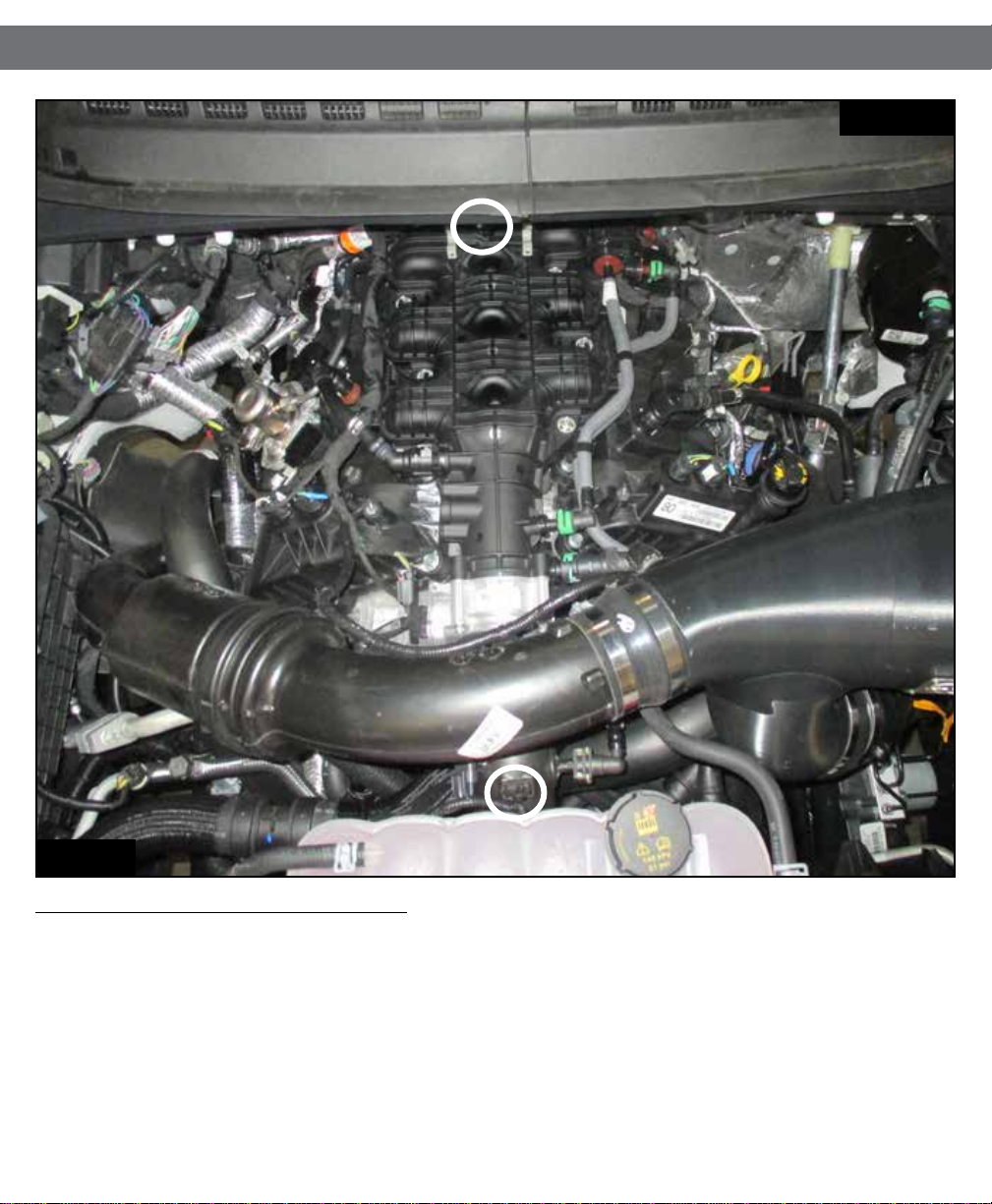

Refer to Figure B for Steps 2-3.

Step 2: Remove engine cover to gain access to the MAP sensor.

Step 3: Locate the MAP and TMAP sensor. The MAP sensor is located on the back of the intake

manifold towards the ﬁrewall. The TMAP sensor is located on the charge intake tube just before

the throttle body.

Figure B

Page 5

REMOVAL

aFepower.com

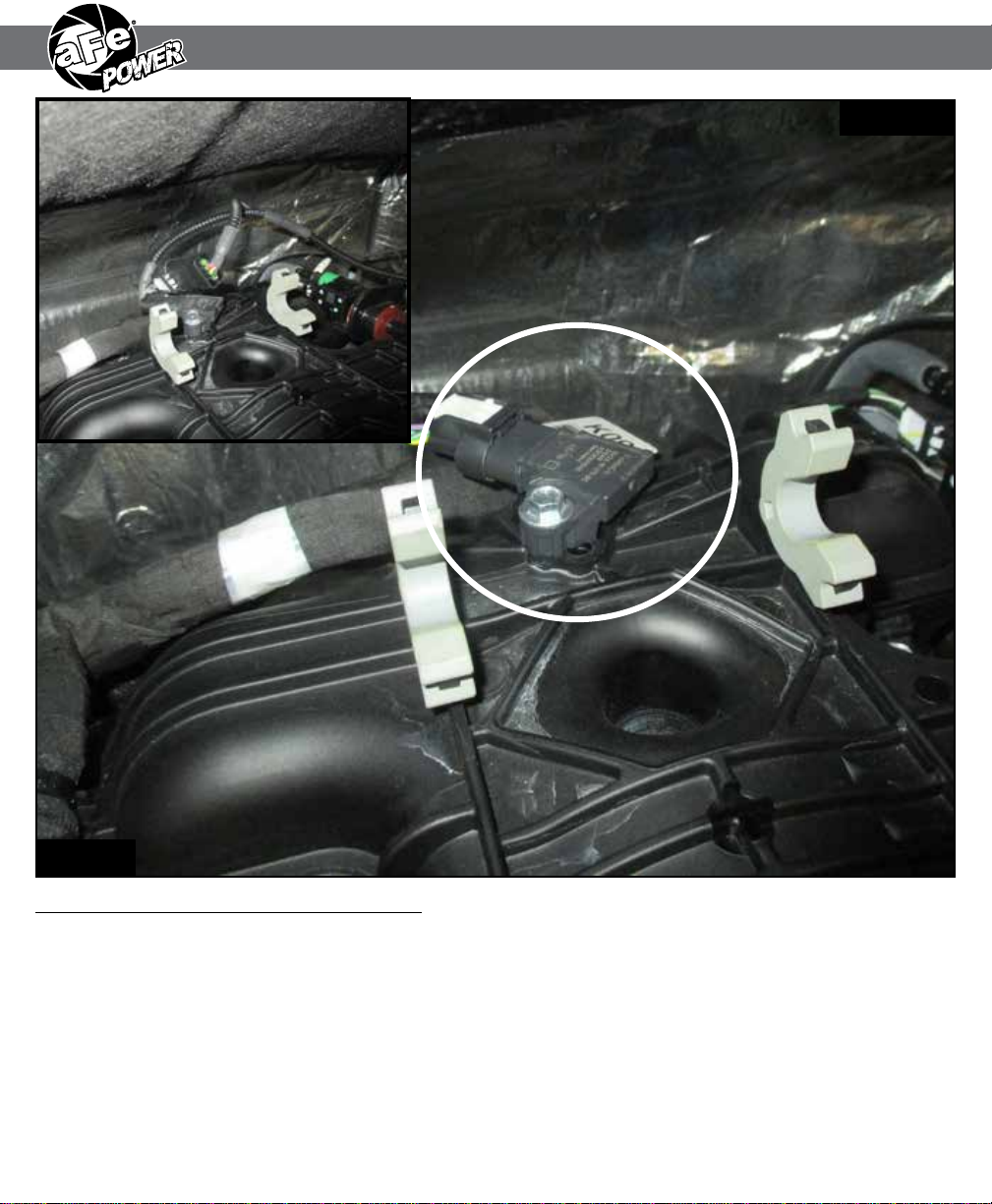

Refer to Figures C for Steps 4-5.

Step 4: Locate and disconnect the MAP sensor.

Step 5: Locate the MAP sensor jumper harness on the aFe module. This is the shorter harness. Plug the

male connector of the module to the stock MAP sensor, then take the female connector of the

module and connect to the male connector of the engine harness.

Note: Make sure connections are fully engaged. Usually, connectors make a snapping sound

when fully engaged.

Figure C

Page 6

INSTALL

aFepower.com

Page 7

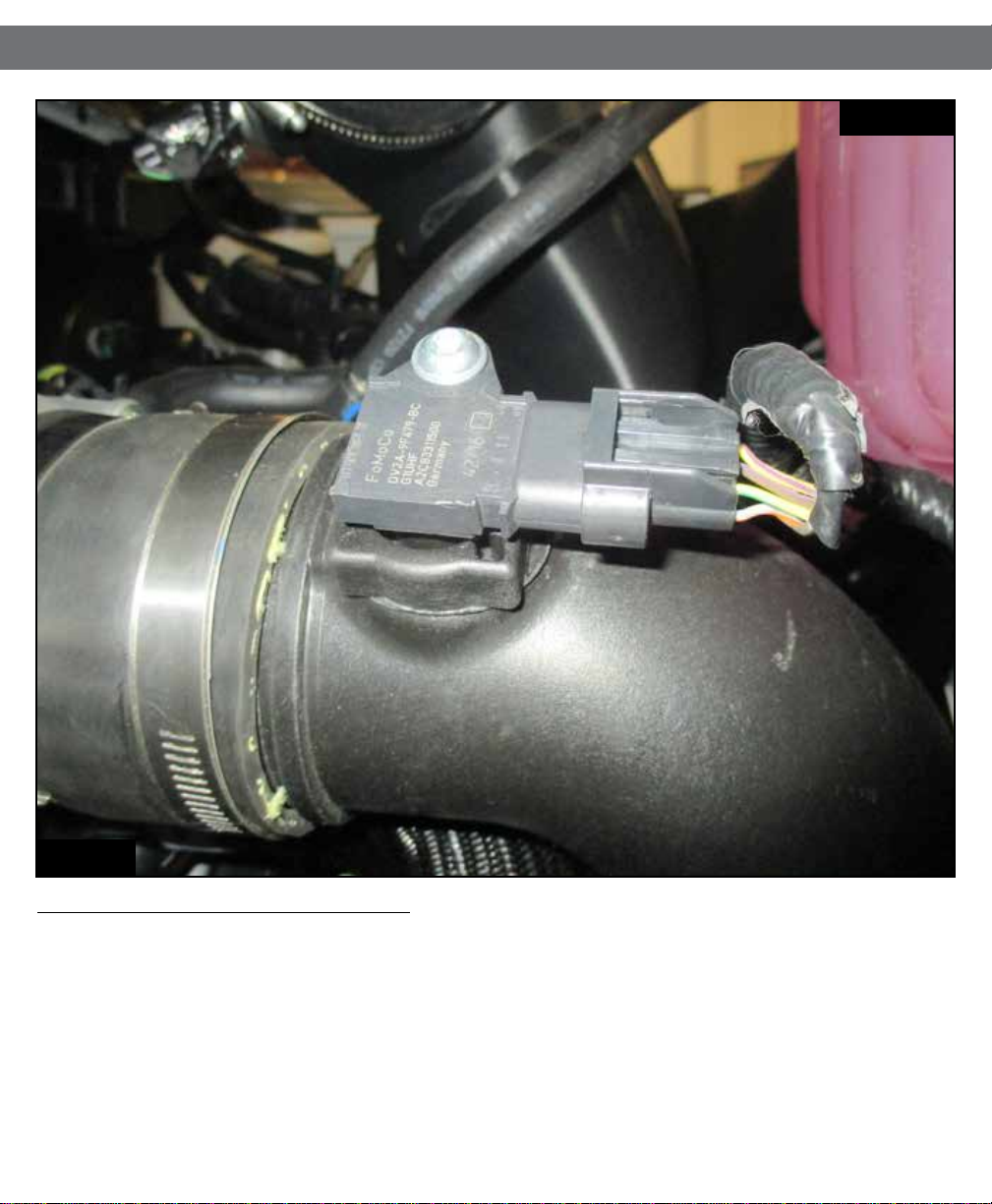

Refer to Figure D for Steps 6-7.

Step 6: Disconnect the MAP sensor.

Step 7: Locate the TMAP sensor jumper harness on the aFe module. This is the longer harness. Plug the

male connector of the module to the stock TMAP sensor, then the female connector of the

module male connector of the engine harness.

Figure D

INSTALL

Page 8

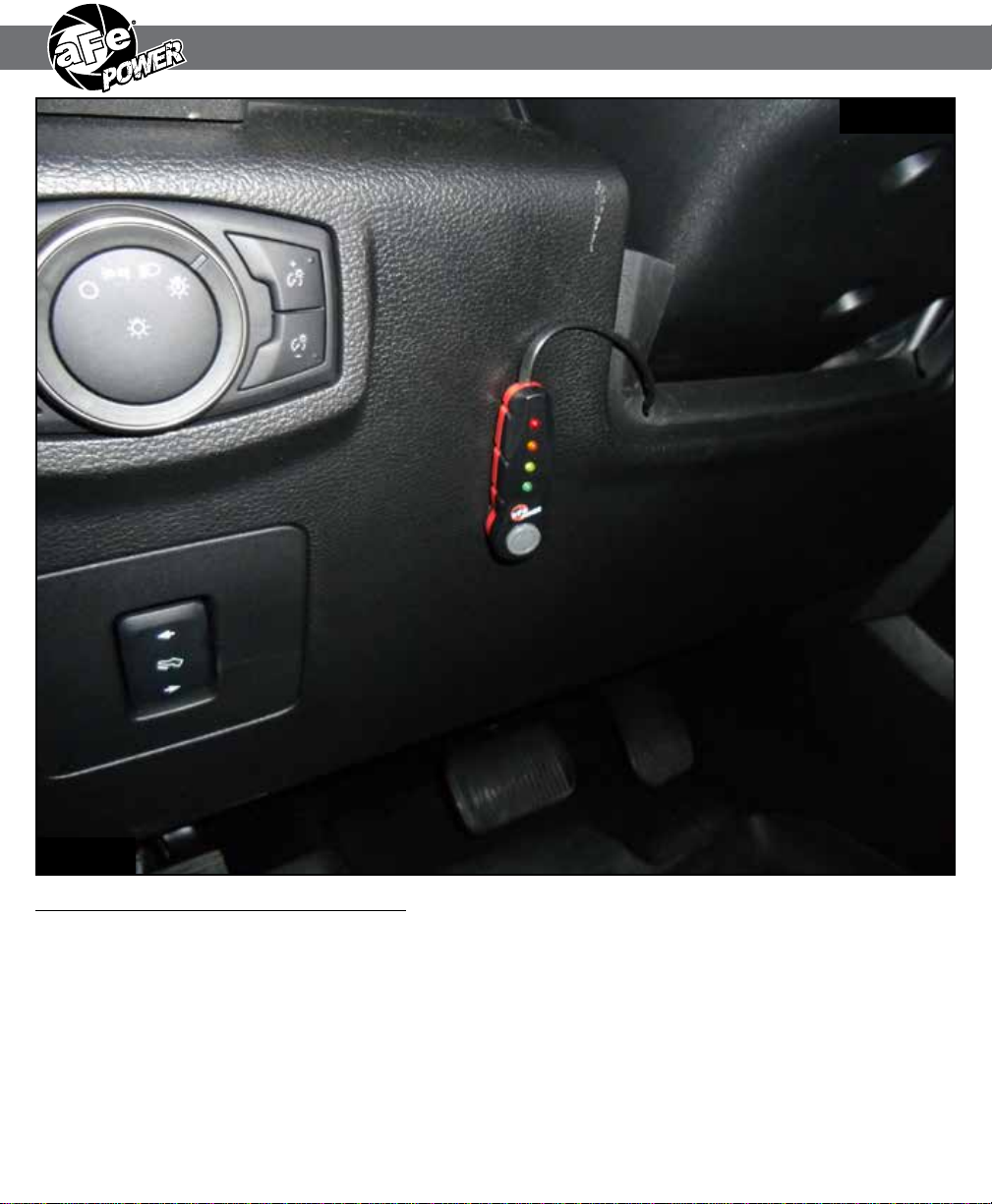

Refer to Figure E for Steps 8-9.

Step 8: Carefully route the switch cable behind steering wheel cover.

Step 9: Mount the Switch on an open, ﬂat surface.

Figure E

INSTALL

Page 9

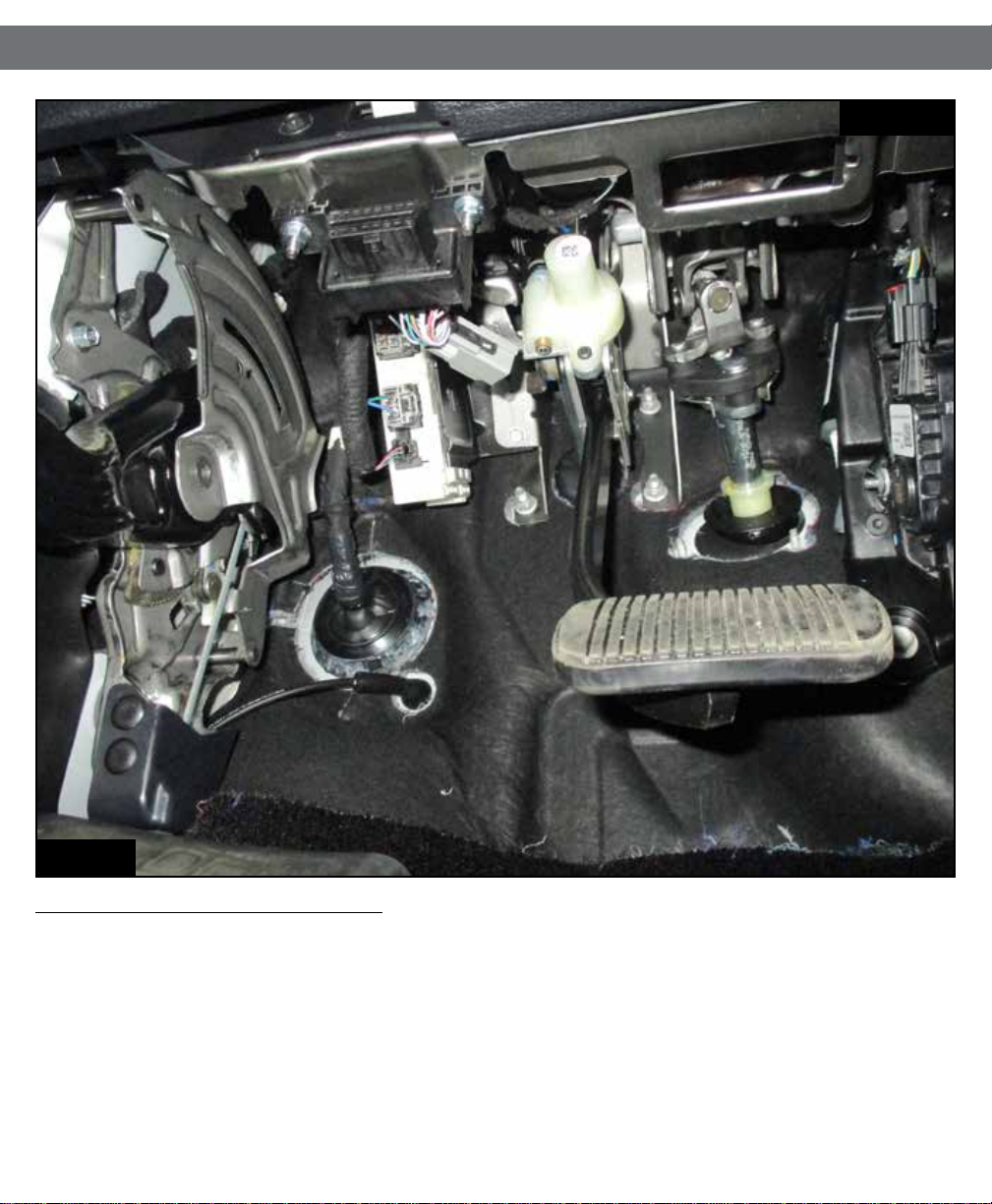

Refer to Figure F for Step 10.

Step 10: Route the switch cable through ﬁrewall and into the engine bay. Follow the main harness

through the grommet into the ﬁrewall. Plug the end of the cable to the module.

Figure F

INSTALL

aFepower.com

Page 10

Refer to Figure G for Steps 11-12.

Step 11: Mount the module in a safe location, using the supplied Velcro strip. Then, secure the wires and

module away from any extreme heat and moving parts, with the provided ties. Make sure all

connections are secured and fully engaged.

Step 12: Reinstall the engine cover.

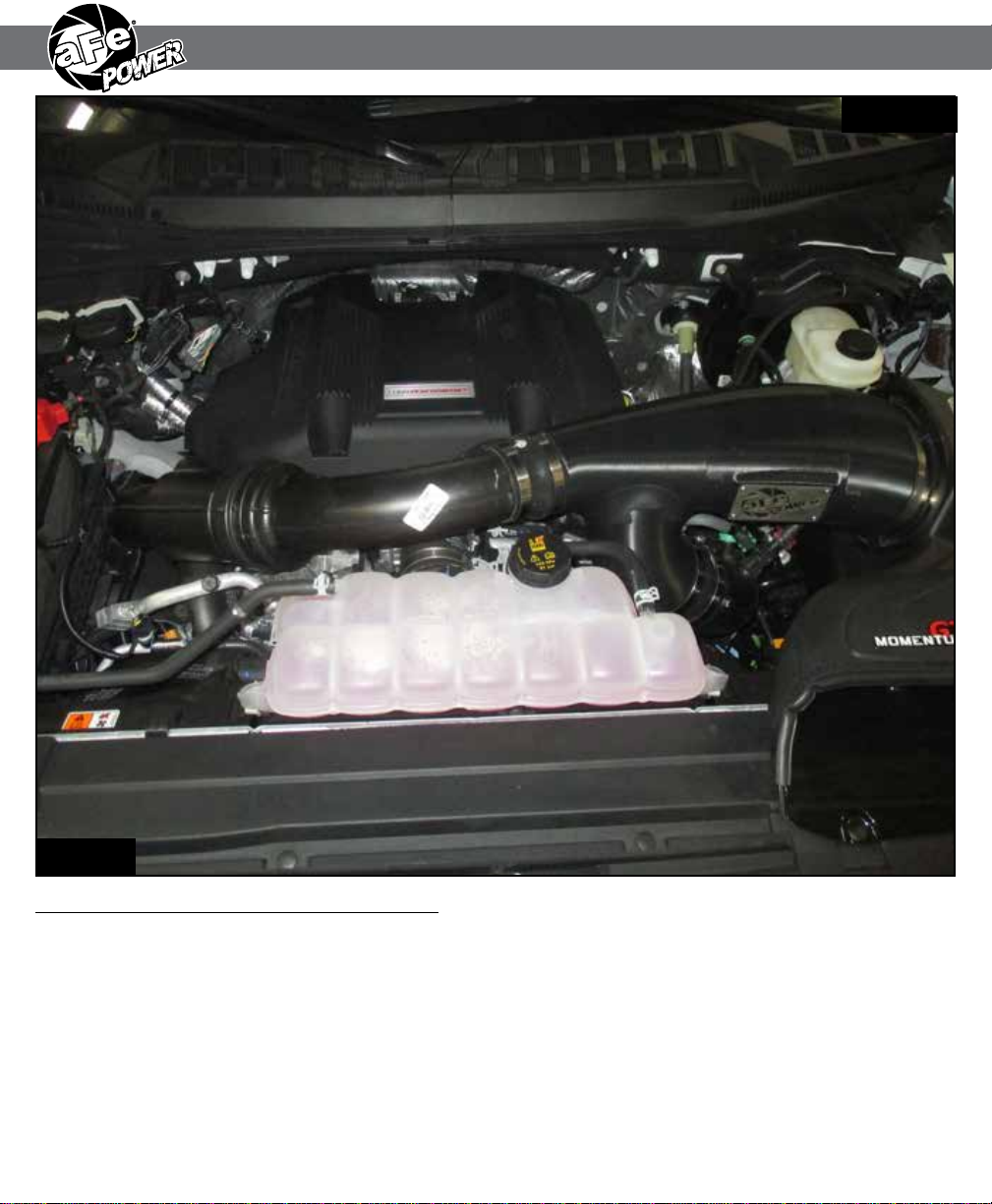

Figure G

INSTALL
