Advantech PCE-7B17-00A1E Manuel d'installation et d'exploitation
PCE-7B17-00 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• PCE-7B17-00 start-up manual 2nd ED P/N: 20067B1701
• M4*6*0.7 Round Screws P/N: 1939000410
• 2-year Quality Warranty Card P/N: 2190000902
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard Functions
• PICMG 1.3 slots: PCE-7B17-00 supports PCE-
5126WG2, PCE-7127
• PCIe slots: PCIe x4: 11; PCIe x8: 5 (Optional: PCIe x4:13;
PCIe x8:4, please create a T-part)
*If you have any questions about memory, I/O or IRQ
resource limitations, please contact Advantech locally or
FAE for further support.
• PCIe switch chip: PLX PEX8748
• USB (2.0) ports: 4 Universal Serial Bus ports as pin
headers
Mechanical and Environment
• Dimensions: 327.66 x 417 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +3.3 V,
+5VSB
• Power requirements: Refer to CPU board, add-on card
& peripheral documentation
• Operating temperature: 0 ~ 60° C (Depending on sys-
tem thermal solution)
• Weight: 1.7 kg (weight of board)
PCE-7B17-00A1E Backplane: 17-slot BP
for 20-slot chassis, 11 PCIe x4, and 5 PCIe x8
Startup Manual
The backplane has a number of connectors and jumpers
that allow you to configure your system to suit your ap-
plication. The table below lists the function of each of the
connectors and jumpers.
Connectors
Part Reference Function
SHBA1 ~ SHBD1 PICMG 1.3 CPU board slot
PPCIEX4_1 PCIe x4 with PCIe x16 slot
P1PCIEX4_3,
P1PCIEX4_4
PCIe x4 with PCIe x4 slot
(Primary switch)
P1PCIEX4_5,
P1PCIEX4_6
PCIe x4 with PCIe x16 slot
(Primary switch)
P1PCIEX8_1
P1PCIEX8_2,
P1PCIEX8_3
PCIe x8 with PCIe x16 slot
(Primary switch)
P2PCIEX4_1,
P2PCIEX4_4 ~
P2PCIEX4_6
PCIe x4 with PCIex16 slot
(Secondary switch)
P2PCIEX4_2,
P2PCIEX4_3
PCIe x4 with PCIe x4 slot
(Secondary switch)
P2PCIEX8_1,
P2PCIEX8_2
PCIe x8 with PCIe x16 slot
(Secondary switch)
EATXPWR1 ATX 2.0 24-pin power connector
EATPWR1 AT 12-pin Power connector
ATX12V1 ATX 12 V Auxiliary 4-pin power
connector1
ATX12V2 ATX 12 V Auxiliary 4-pin power
connector
EATX12V1 ATX 12 V 8-pin power connector
PWR3V1 3.3 V Auxiliary power connector
PWR3V2 3.3 V Auxiliary power connector
PWR3V3 3.3 V Auxiliary power connector
PWR5V1 5 V Auxiliary power connector
VOLT1 Alarm board / power
connector
FAN1 ~ FAN7 Fan connectors
FANDEC1 Fan detector connector
SMBUS1 ~
SMBUS2 Chassis sensor board connectors
JFP1 Power and reset button connector
Connectors and JumpersPacking List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support/
This manual is for PCE-7B17-00A1E.
Part No. 20067B1701
Printed in China
Edition 2
August 2013
Specications
2 PCE-7B17-00 Startup Manual
IPMB1 IPMB connector
USB12 USB connector
USB34 USB connector
PSON2
Power Connector for Advan-
tech Redundant Power Sup-
ply: 1757001757, 1757001760,
1757001758, 1757001761,
1757001759, 1757001677
ISP1 PCIe re-driver F/W update port
Jumpers
Part Reference Function
PSON1
ATX/AT mode select connector
1-2: AT mode
2-3: ATX mode (default)
JGEN1
PCIe generation selection connector
for primary switch
No jumper: Gen2
1-2: Gen3 (Default)
2-3: Gen1
* The PCIe generation setting is
backwards compatible. Suggest
choosing “Gen3” setting.
JGEN2
PCIe generation selection connector
for Secondary switch
No jumper: Gen2
1-2: Gen3 (Default)
2-3: Gen1
* The PCIe generation setting is
backwards compatible. Suggest
choosing “Gen3” setting.
JCOMP1
Enable compatibility for Non-Com-
pliant Gen1 Endpoints
(Primary switch)
1-2: Enable Gen1 Endpoints Com-
patibility (Default)
2-3: Normal
JCOMP2
Enable compatibility for Non-Com-
pliant Gen1 Endpoints
(Secondary switch)
1-2: Enable Gen1 Endpoints Com-
patibility (Default)
2-3: Normal
EATXPWR1
Pin
Name
1 3.3 V
2 3.3 V
3 GND
4 5 V
5 GND
6 5 V
Connectors and Jumpers
7 GND
8 PWROK
9 5VSBY
10 12 V
11 12 V
12 3.3 V
13 3.3 V
14 -12 V
15 GND
16 PSON#
17 GND
18 GND
19 GND
20 -5 V
21 5 V
22 5 V
23 5 V
24 GND
EATPWR1
Pin
Name
1 PWROK
2 5 V
3 12 V
4 -12 V
5 GND
6 GND
7 GND
8 GND
9 -5 V
10 5 V
11 5 V
12 5 V
ATX12V1 ~ ATX12V2
Pin
Name
1 GND
2 GND
3 12 V
4 12 V
PCE-7B17-00 Startup Manual 3
Connectors and Jumpers
EATX12V1
Pin
Name
1 GND
2 GND
3 GND
4 GND
5 12 V
6 12 V
7 12 V
8 12 V
PWR3V1~ PWR3V3
Pin
Name
1 3.3 V
2 3.3 V
3 3.3 V
4 GND
5 GND
6 GND
PWR5V1
Pin
Name
1 5 V
2 5 V
3 5 V
4 GND
5 GND
6 GND
VOLT1
Pin
Name
1 5VSB
2 GND
3 GND
4 -5 V
5 5 V
6 3.3 V
7 -12 V
8 12 V
FAN1~ FAN7
Pin
Name
1 GND
2 12 V
3 FANIO1 ~ FANIO7
FANDEC1
Pin
Name
1 FANIO1
2 FANIO2
3 FANIO3
4 FANIO4
5 FANIO5
6 FANIO6
7 FANIO7
SMBUS1~ SMBUS3
Pin
Name
1 5 V
2 C-SMBCLK
3 C-SMBDAT
4 GND
JFP1
Pin
Name
1 PWRBTN#
2 GND
3 RESET#
4 GND
IPMB1
Pin
Name
1 IPMB_CLK
2 IPMB_DAT
3 GND
4 PCE-7B17-00 Startup Manual
Connectors and Jumpers
USB12
Pin
Name
1 USBV0
2 USBV0
3 USBD0-
4 USBD1-
5 USBD0+
6 USBD1+
7 GND
8 GND
9 Null
10 GND
USB34
Pin
Name
1 USBV2
2 USBV2
3 USBD2-
4 USBD3-
5 USBD2+
6 USBD3+
7 GND
8 GND
9 Null
10 GND
PSON2
Pin
Name
1 GND
2 PS_ON#
3 GF_PS_ON#

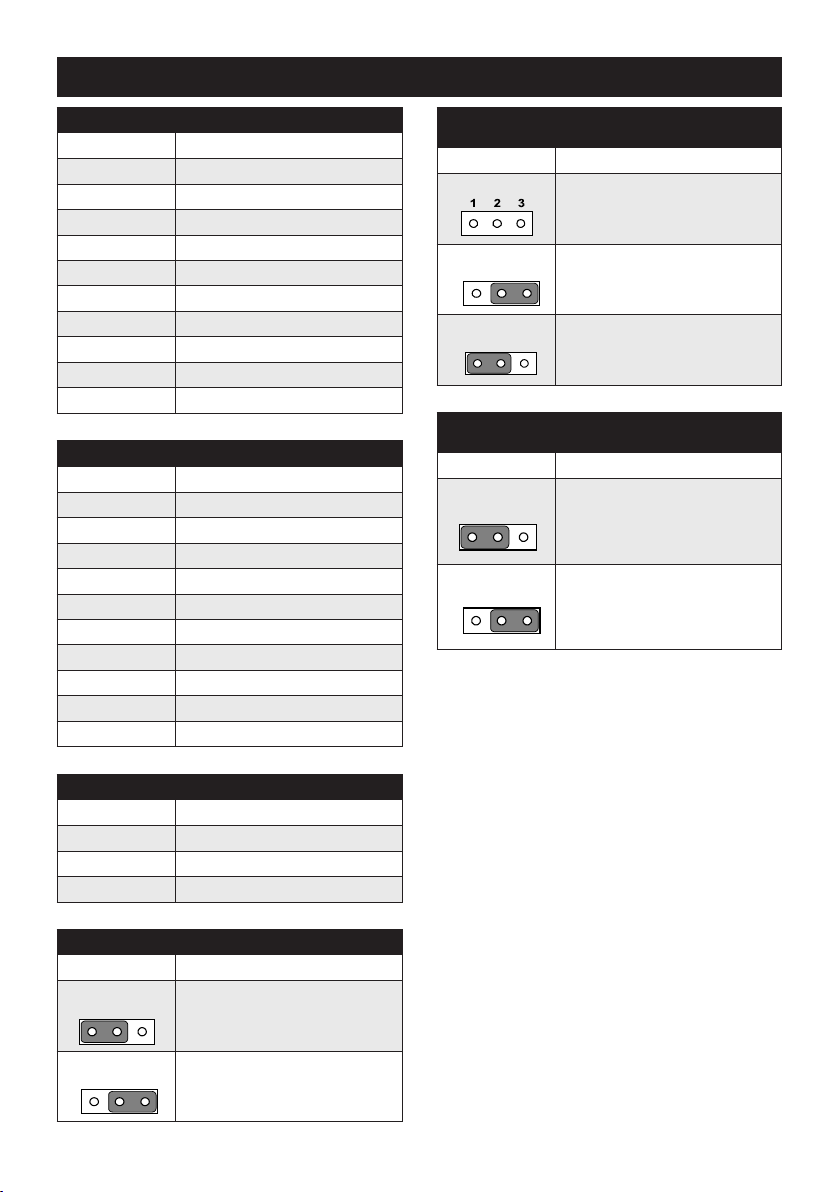

PSON1: ATX/AT Mode Selection
Jumper Setting
Function
1 - 2 closed pins
123
AT mode
2 - 3 closed pins
12 3
ATX mode (default)
JGEN1 & JGEN2: PCIe Generation Selection Con-
nector
Jumper Setting
Function
No jumper
Gen2
2 - 3 closed pins
Gen1
1 - 2 closed pins
Gen3 (Default)
JCOMP1 & JCOMP2: Enable compatibility for
Non-Compliant Gen1 Endpoints
Jumper Setting
Function
1 - 2 closed pins
123
Enable Gen1 Endpoints Compatibil-
ity (Default)
2 - 3 closed pins
12 3
Normal
12 3
123
PCE-7B17-00 Startup Manual 5
Block Diagram
Figure 1: Block Diagram
JGEN1 & JGEN2: PCIe Generation Selection Con-
nector
Jumper Setting
Function
No jumper
Gen2
2 - 3 closed pins
Gen1
1 - 2 closed pins
Gen3 (Default)
JCOMP1 & JCOMP2: Enable compatibility for
Non-Compliant Gen1 Endpoints
Jumper Setting
Function
1 - 2 closed pins
123
Enable Gen1 Endpoints Compatibil-
ity (Default)
2 - 3 closed pins
12 3
Normal
6 PCE-7B17-00 Startup Manual
Board Dimensions
Figure 3: Block Dimensions
Locating Jumpers & Connectors
SMBUS2
FAN7
SHBA1
USB12
USB34
SHBC1
SHBB1
JFP1
ATX12V2
ATX12V1
SHBD1
FAN2
FAN1
SMBUS1
PSON1
PSON2
PWR5V1
EATPWR1
FAN4
FAN3
PWR3V3
EATXPWR1 EATX12V1
FAN5
VOLT1
FANDEC1
PWR3V2
PWR3V1
P2PCIEX4_6
P2PCIEX8_2
P2PCIEX4_5
P2PCIEX4_4
P2PCIEX8_1
P2PCIEX4_3
P2PCIEX4_2
P2PCIEX4_1
P1PCIEX8_3
P1PCIEX4_5 P1PCIEX4_6
P1PCIEX8_2
P1PCIEX4_4
P1PCIEX8_1
(P1PCIEX4_2)
PPCIEX4_1
P1PCIEX4_3
FAN6
Figure 2: Locating Jumpers & Connectors
