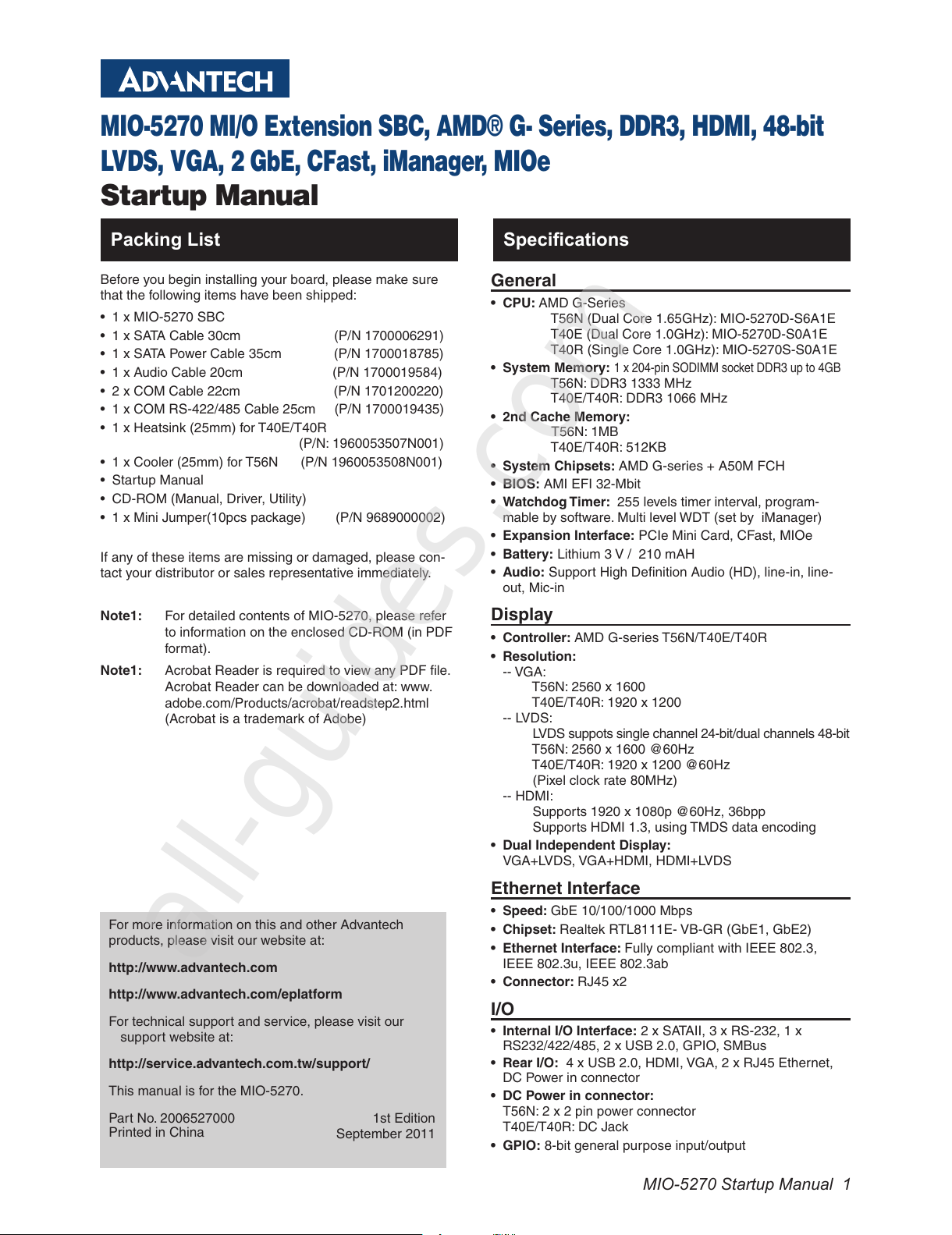

MIO-5270 Startup Manual 1

Before you begin installing your board, please make sure

that the following items have been shipped:

• 1 x MIO-5270 SBC

• 1 x SATA Cable 30cm (P/N 1700006291)

• 1 x SATA Power Cable 35cm (P/N 1700018785)

• 1 x Audio Cable 20cm (P/N 1700019584)

• 2 x COM Cable 22cm (P/N 1701200220)

• 1 x COM RS-422/485 Cable 25cm (P/N 1700019435)

• 1 x Heatsink (25mm) for T40E/T40R

(P/N: 1960053507N001)

• 1 x Cooler (25mm) for T56N (P/N 1960053508N001)

• Startup Manual

• CD-ROM (Manual, Driver, Utility)

• 1 x Mini Jumper(10pcs package) (P/N 9689000002)

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1: For detailed contents of MIO-5270, please refer

to information on the enclosed CD-ROM (in PDF

format).

Note1: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe)

MIO-5270 MI/O Extension SBC, AMD® G- Series, DDR3, HDMI, 48-bit

LVDS, VGA, 2 GbE, CFast, iManager, MIOe

Startup Manual

General

• CPU: AMD G-Series

T56N (Dual Core 1.65GHz): MIO-5270D-S6A1E

T40E (Dual Core 1.0GHz): MIO-5270D-S0A1E

T40R (Single Core 1.0GHz): MIO-5270S-S0A1E

• System Memory:

1 x 204-pin SODIMM socket DDR3 up to 4GB

T56N: DDR3 1333 MHz

T40E/T40R: DDR3 1066 MHz

• 2nd Cache Memory:

T56N: 1MB

T40E/T40R: 512KB

• System Chipsets: AMD G-series + A50M FCH

• BIOS: AMI EFI 32-Mbit

• Watchdog Timer: 255 levels timer interval, program-

mable by software. Multi level WDT (set by iManager)

• Expansion Interface: PCIe Mini Card, CFast, MIOe

• Battery: Lithium 3 V / 210 mAH

• Audio: Support High Deﬁnition Audio (HD), line-in, line-

out, Mic-in

Display

• Controller: AMD G-series T56N/T40E/T40R

• Resolution:

-- VGA:

T56N: 2560 x 1600

T40E/T40R: 1920 x 1200

-- LVDS:

LVDS suppots single channel 24-bit/dual channels 48-bit

T56N: 2560 x 1600 @60Hz

T40E/T40R: 1920 x 1200 @60Hz

(Pixel clock rate 80MHz)

-- HDMI:

Supports 1920 x 1080p @60Hz, 36bpp

Supports HDMI 1.3, using TMDS data encoding

• Dual Independent Display:

VGA+LVDS, VGA+HDMI, HDMI+LVDS

Ethernet Interface

• Speed: GbE 10/100/1000 Mbps

• Chipset: Realtek RTL8111E- VB-GR (GbE1, GbE2)

• Ethernet Interface: Fully compliant with IEEE 802.3,

IEEE 802.3u, IEEE 802.3ab

• Connector: RJ45 x2

I/O

• Internal I/O Interface: 2 x SATAII, 3 x RS-232, 1 x

RS232/422/485, 2 x USB 2.0, GPIO, SMBus

• Rear I/O: 4 x USB 2.0, HDMI, VGA, 2 x RJ45 Ethernet,

DC Power in connector

• DC Power in connector:

T56N: 2 x 2 pin power connector

T40E/T40R: DC Jack

• GPIO: 8-bit general purpose input/output

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/support/

This manual is for the MIO-5270.

Part No. 2006527000

Printed in China

1st Edition

September 2011

All manuals and user guides at all-guides.com

all-guides.com

2 MIO-5270 Startup Manual

Mechanical and Environmental

• Dimensions (L x W): 146 x 102 mm (5.7 x 4 inches)

• Power Supply Type: APM 1.2, ACPI support

• Power Requirement: +12 V ± 10%

• Power Consumption: with 4GB DDR3 1066 SO-DIMM

Max in HCT12:

T56N: +12V @ 1.35A

T40E: +12V @ 0.82A

T40R: +12V @ 0.8A

Typical: Idle mode in WindowsXP

T56N: +12V @ 0.65A

T40E: +12V @ 0.53A

T40R: +12V @ 0.59A

• Operating Temperature: 0~60°C (32~140°F)

• Weight: 0.85 kg (reference weight of total package)

Jumpers and Connectors

The board has a number of connectors and jumpers that

allow you to conﬁgure your system to suit your application.

The table below lists the function of each of the jumpers and

connectors.

Jumpers

Label Function

J1 Clear CMOS

J2 Auto Power on setting

J3 LCD power

J5 COM2 setting

Connector

Lable Function

CN1 Power Switch

CN2 Inverter Power Output

CN3 Reset

CN4 SATA Power

CN5 S ATA 1

CN6 S ATA 2

CN7 RS422/485

CN8 GPIO

CN10 DDR3 SODIMM Socket

CN12 Internal USB

CN13 SMBus

CN14 RJ-45 Ethernet x 2

CN17 48 bits LVDS Panel

CN18 External USB (1/2)

CN19 External USB (3/4)

CN20 HDMI

CN22 12V Power Input

CN23 VGA

CN24 Audio

CN25 COM1/COM2

CN26 COM3/COM4

CN28 MIOe

CN29 PCIe Mini Card Holder

CN30 PCIe Mini Card

CN31 CFast

FAN1 CPU FAN

J1: Clear CMOS

Part Number 1653003101

Description

PIN HEADER 3x1P 2.0mm 180D(M) DIP

2000-13 WS

Setting Function

(1-2)* Normal

(2-3) Clear CMOS

J2: Auto Power On Setting

Part Number 1653002101

Description

PIN HEADER 2*1P 180D(M)SQUARE

2.0mm DIP W/O Pb

Setting Function

NC Power Button for Power On

(1-2)* Auto Power On

Specications

Jumpers and Connectors

All manuals and user guides at all-guides.com

MIO-5270 Startup Manual 3

Connector Location

Figure 1: MIO-5270 Jumpers and Connectors (Top side)

J3: LCD Power

Part Number 1653003201

Description

PIN HEADER 3*2P 180D(M) 2.0mm DIP

SQUARE WO/Pb

Setting Function

(1-3)*

+3.3 V

(3-5)

+5 V

(3-4) +12 V

J5: COM2 Setting

Part Number 1653003260

Description

PIN HEADER 3x2P 2.0mm 180D(M)

SMD 21N22050

Setting Function

(1-2)* RS232

(3-4) RS485

(5-6) RS422

ESBC Jensen. Li

CN5 CN6

CN7

CN4

CN2

CN3

CN1

FAN1

CN22

CN14

CN23

CN13

CN17CN20CN19CN18 Power LED

CN12

CN10

Jumpers and Connectors

All manuals and user guides at all-guides.com

4 MIO-5270 Startup Manual

Connector Location

Figure 2: MIO-5270 Location Connectors (Bottom Side)

Figure 3: MIO-5270 Mechanical Drawing (Side View)

CN31

CN28

CN24 CN8 CN25 CN26

CN29

7,75

5,87

9,28

4,20

6,70

9,99

5,14

6,00

7,90

8,30

26,30

45,58

76,09

111,92

130,81

139,50

18,54

39,62

75,69

112,82

I/O Connectors

All manuals and user guides at all-guides.com

MIO-5270 Startup Manual 5

Board Diagram

Figure 4: MIO-5270 Mechanical Drawing (Top Side)

Figure 5: MIO-5270 Location Connectors (Bottom Side)

101.86

98.70

96.54

96.32

86.76

62.65

57.15

20.50

0.00

12.02

20.44

20.89

81.75

27.20

98.43

97.92

99.06

92.70

0.00

77.98

13.61

15.34

21.35

3.65

6.35

6.60

94.87

22.80

4.80

3.30

10.97

44.26

50.00

58.77

42.42

124.65

136.67

80.78

92.02

142.75

146.00

46.70

110.68

129.54

124.71

120.59

106.49

55.25

71.88

142.70

80.50

142.59

138.06

135.62

0.00

3.30

65.50

48.60

27.20

44.65

73.84

50.30

86.17

92.70

102.00

98.79

2.62

3.30

57.54

74.31

98.70

20.50

98.16

136.46

115.38

142.70

144.57

0.00

All manuals and user guides at all-guides.com

6 MIO-5270 Startup Manual

Quick Installation Guide

1. There is a Heatsink / Cooler in the white box, please take it and remove the release paper from the thermal pad.

2. There are four screws inside the white box, please install DRAM in the SO-DIMM socket, then screw the heatsink as below

chart.

Removing the

release paper

All manuals and user guides at all-guides.com

all-guides.com
