Advantech PCM-3641P Manuel d'installation et d'exploitation

1 Startup Manual All product specifications are subject to change without notice.

STARTUP MANUAL

PCM-3641P

4-port RS-232 High-Speed Module

The PCM-3641P is a PC/104+-compatible 4-port

RS-232 serial interface module. It works with PC/

104+ CPU modules or CPU cards which accept PC/

104+ expansion modules. It provides four

independent serial interfaces, accessed through an

IDC 40-pin connector. The module’s industry-

standard 16C550 asynchronous communication chip

is fully programmable. The module requires no

special commands or control codes if you use the

standard COM1 ~ COM4 port addresses.

We carefully inspected the PCM-3641P both

mechanically and electrically before we shipped it.

It should be free of marks and scratches and in per-

fect electrical order on receipt.

Handle the board only by its edges. The static

charge on your body may damage its integrated cir-

cuits. Keep the card in its anti-static package when-

ever it is not installed. You can use this package to

return the card if it should need repair.

• Four independent RS-232 serial ports

• Transmission speeds up to 460 Kbps

• Supports Windows 2000/XP

• LED indicators: TX, RX

• Compatible with standard PC ports: COM1,

COM2, COM3, COM4

• Onboard interrupt status register for greater

throughput

• Complete RS-232 Modem-control signals

• Bus interface: PC/104+

• Number of ports: 4

• Data bits: 5, 6, 7, 8

• Stop bits: 1, 1.5, 2

• Parity: none, even, odd

• Speed (bps): 50 ~ 460.3K

• Connectors: One IDC 40-pin male

• Data signals: TxD, RxD, RTS, CTS, DTR, DSR,

DCD, RI, GND

• Power requirement:+5V@200 mA (Typical)

+5V@ 250 mA (Max.)

• Clock input: 14.7456 MHz

• Operating Temperature: 0 ~ 65° C

(refer to IEC-68-1-1, 2)

• Storage Temperature: -25 ~ 80° C

Introduction Features

Initial Inspection

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCM-3641P.

1st Edition

June 2007

Specifications

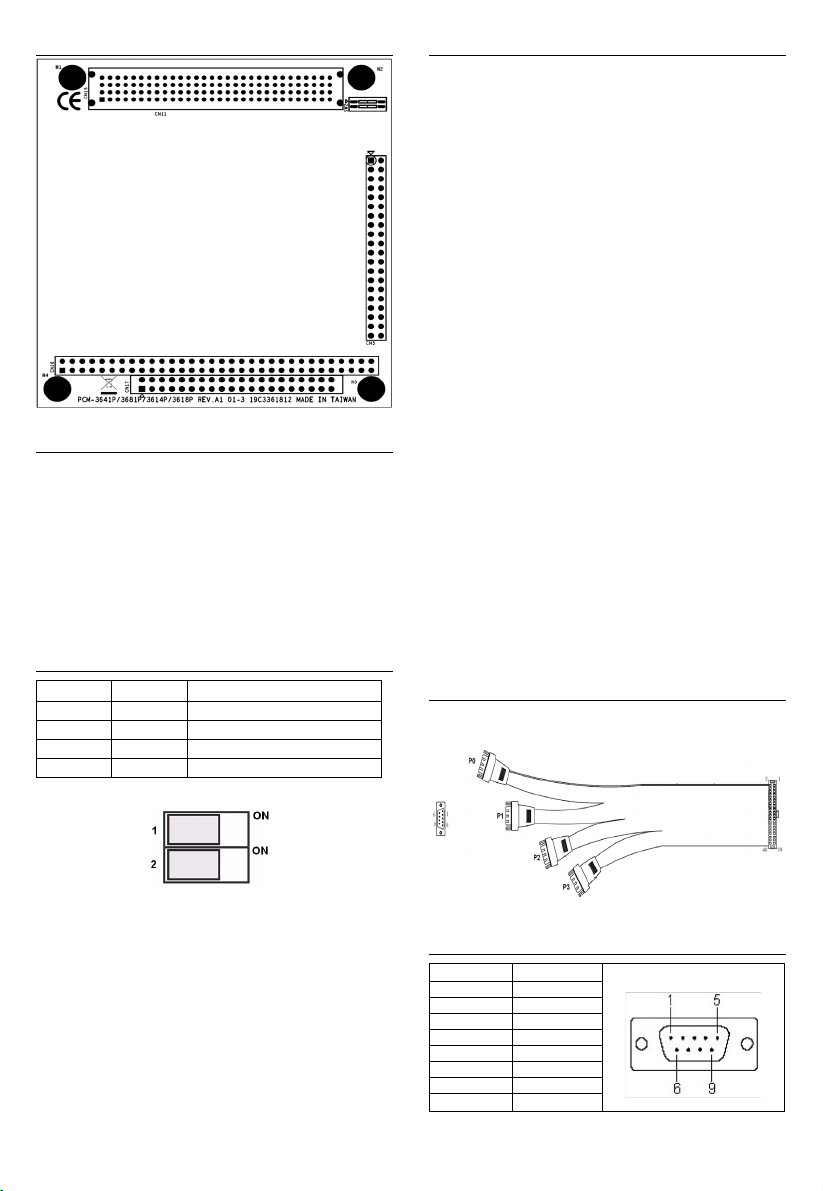

2 Startup Manual

Board Layout

Card Configuration

The maximum configuration for the PCI bus of PC/

104+ modules is FOUR plus the host board. If standard

PC/104 modules are used in the stack, they must be the

top module(s) because they will normally not include

the PCI bus.

If you stack more than one PCI-104+ or PC/104+ mod-

ule to a host board. You have to set the modules to dif-

ferent PCI numbers through SW2

SW2 Setting

Hardware Installation

Installing the module on a CPU card

1. Turn the PC’s power off. Turn the power off to any

peripheral devices such as printers and monitors.

2. Disconnect the power cord and any other cables from

the back of the computer.

3. Remove the system unit cover

4. Remove the CPU card from the chassis (if necessary)

to gain access to the card’s PC/104+ connector.

5. Screw the brass spacer (included with the module)

into the threaded hole on the CPU card. Do not

tighten too much, or the threads may be damaged.

6. Carefully align the pins of the PCM-3641P with the

PC/104+ connector. Slide the module into the con-

nector, do not push too hard.

7. Secure the module to the CPU card to the threaded

hole in the CPU card using the included screw.

8. Attach any accessories to the PCM-3641P.

9. Reinstall the CPU card and replace the system unit

cover. Reconnect the cables you removed in step 2.

Turn the power on.

Connecting to another PC/104+ module.

1. Insert the pins of connector CN15 into the piggy-

back connector on the other PC/104+ module.

2. Screw the PCM-3641P to the brass spacer. This com-

pletes the hardware installation.

Pin Assignments

The following table and figure show the pin assignment

for the DB9 connector.

RS-232 DB9 Connector Pin Assignments

12PCINumber

OF OFF 0

ON OFF 1

OFF ON 2

ON ON 3

Warning! Turn off your PC whenever you install, remove

connect or disconnect cables to the PCM-3641P

Pin RS-232

1 DCD

2RxD

3TxD

4DTR

5GND

6DSR

7RTS

8CTS
