ZALMAN CNPS5700D-Cu Manuel utilisateur

http://www.zalman.co.kr E-mail : [email protected]

User

’’

s Manual

(English Edition)

CNPS5700D-Cu

1. Features

1) ZALMAN CPU coolers do not generate noise or vibration in Silent Mode.

2) Pure copper as the base material ensures excellent heat dissipation.

3) New user-friendly design creates ease in installing and removing the product.

4) Use of an 80mm fan maximizes airflow for optimized cooling conditions.

5) The adjustable fan speed connector(FAN MATE 1) enables one to control the noise

and performance of the fan to your preference.

6) Use of the Air Duct results in lowered internal system and power supply temperatures, which

increase the stability of the computer system.

7) Those of you who do not mind the noise produced from a fan can replace the default fan with

a faster one for maximum possible performance.

* If you wish to OVERCLOCK, set the fan to Normal Mode first.

Zalman Tech. Co., Ltd. is not responsible for any damages that arise from CPU OVERCLOCKING.

2. Specifications

1) Weight (with Air Duct) : 500g

Weight (without Air Duct) : 430g

2) Dimensions (with Air Duct) : 125(L) X 125(W) X 150(H) mm

Dimensions (without Air Duct) : 125(L) X 125(W) X 67(H) mm

3) Dissipation Area : 1270

Cm2

4) Thermal Resistance : Approx. 0.37 °C/W (Silent Mode)

Approx. 0.27 °C/W (Normal Mode)

5) Fan 6) FAN MATE 1

* Bearing Type : 2-Ball * Voltage : 5V ~ 11V 2%

* Speed : 1700RPM 10 % (Silent Mode) * Capacity : 6W Maximum

3100RPM 10 % (Normal Mode)

* Noise : 20 dB 10% (Silent Mode)

34 dB 10% (Normal Mode)

* The specifications of any product may change without prior notice to improve the performance thereof.

Note 1)The maximum weight for a heatsink is specified as 450g by Intel for a Pentium 4. Should a

heatsink, which exceeds the relevant weight limit, be installed in a computer, special care should

be taken when moving the computer. Zalman Tech. Co., Ltd. is not responsible for any damage

to a system or a CPU that occurs when moving a computer with an overweight heatsink.

(1)

3. Exploded View

4. Patent Applications

Patents Applications Pending in over 20 nations around the world,

including the U.S.A., E.U., and Japan

Korean Patent Application Nos. 01-69984, 01-69985 and 02-23963

* The specifications of any product may change without prior notice to improve the performance thereof.

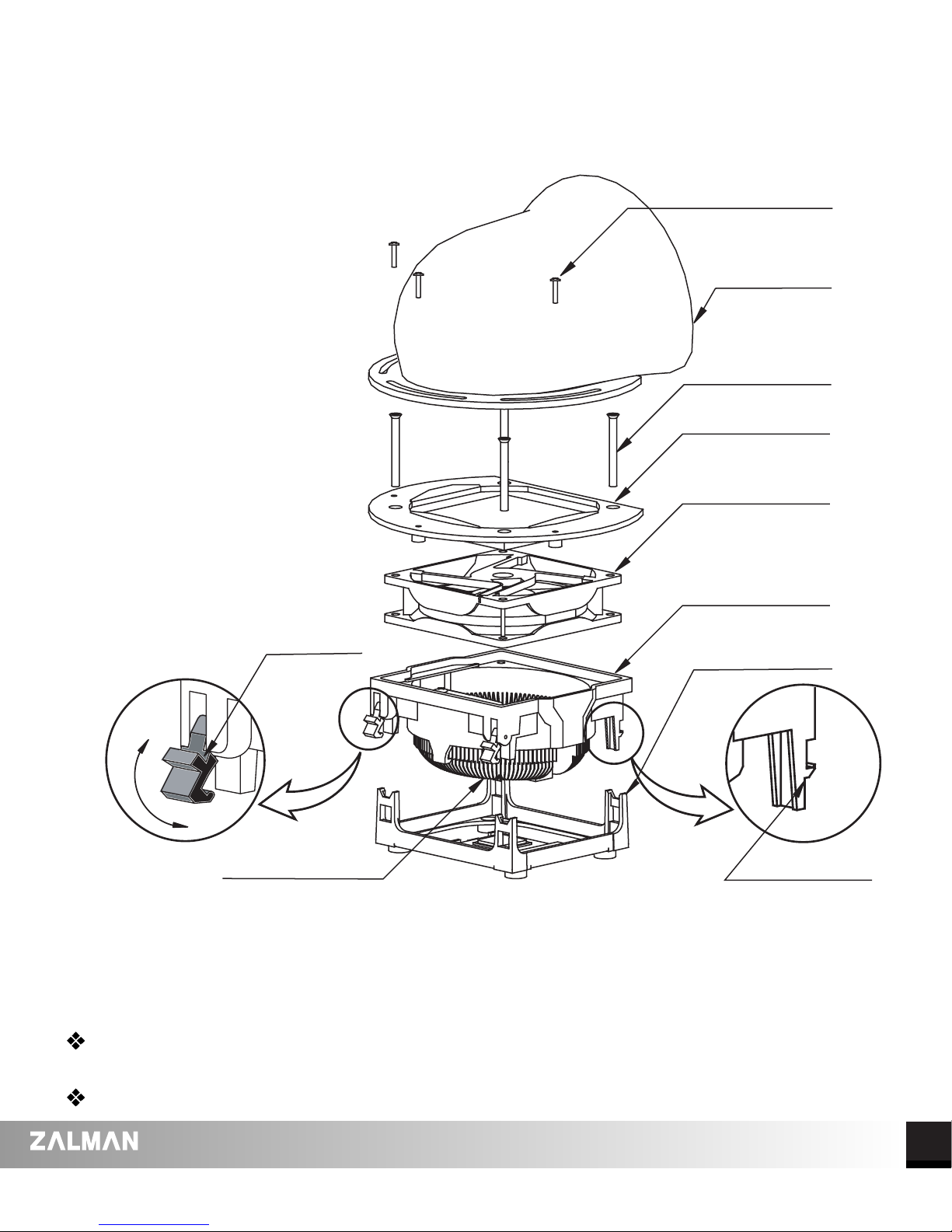

<Fig. 1. Exploded View>

Bolt-B

Air Duct

Bolt-A

Air Duct Base

Fan

Heatsink Duct

Retention Guide

Heatsink

Rotating Clip

Static Clip

5. Components

1) FHS(Flower HeatSink) Assembly (CNPS5700D)

2) Thermal Grease

3) Adjustable Fan speed Connector (FAN MATE 1)

4) Manual

6. For Use With : INTEL Pentium 4 - Socket 478

1) Silent Mode : Up to 1.8 GHz (Willamette - 0.18 micron)

Up to 2.8 GHz (Northwood - 0.13 micron)

2) Normal Mode : 2.8 GHz and Higher

Note 1) The ‘Willamette’ CPU was discontinued after the release of the 2.0GHz version.

Note 2) Should you use a CPU faster than 2.8GHz check the Zalman Tech website

(www.zalman.co.kr) for further info.

1. This product blows air out of the computer system through the Air Duct as shown in Fig. 2.

2. If the Air Duct interferes with other parts of your system, remove it as shown in Fig. 3 before

installation and use.

* The specifications of any product may change without prior notice to improve the performance thereof.

Before You Install

<Fig. 2. Airflow Direction> <Fig. 3. Using without Air Duct>

Exhaust Fan Air Duct

Heatsink Duct

(1)

(2)

* The specifications of any product may change without prior notice to improve the performance thereof.

1. Thinly spread the thermal grease on the CPU core’s surface contacting the FHS.

2. Hook the static clips on the mainboard’s Retention Guide as shown in Fig. 5. To identify the static

clips, refer to Fig. 1.

3. Press the Air Duct in the direction of the arrow and make sure the Heatsink Duct is settled onto

the Retention Guide as shown in Fig. 6.

4. While pressing the Air Duct, rotate the rotating clips on the Heatsink Duct and hook them onto

the Retention Guide as shown in Fig. 7. To identify the rotating clips, refer to Fig. 1.

How to Install

<Fig. 6. Settling Heatsink Duct> <Fig. 7. Hooking Rotating Clips>

<Fig. 4. Spreading Thermal Grease> <Fig. 5. Hooking Static Clips>

Thermal Grease

Air Duct

Heatsink Duct

Retention Guide

Rotating Clip

Retention Guide

Static Clip

* The specifications of any product may change without prior notice to improve the performance thereof.

5. Slightly unscrew the Bolt-B on the Air Duct and turn the top part of the duct to the left or right so

that the duct faces the exhaust fan as shown in Fig. 8. Then, screw in three Bolt-B’s tightly to hold

its position.

Caution) If the Air Duct cannot face the exhaust fan as shown in Fig. 8 even after turning

the duct

fully, separate the duct from the Air Duct Base, make appropriate adjustments

to the direction

of the duct, and reassemble the duct. See Figs. 2 and 9 for a better

understanding.

6. Connect FAN MATE 1 to the mainboard & the fan as shown in Fig. 10.

<Fig. 10. Connecting FAN MATE 1>

<Fig. 8. Adjusting the Air Duct> <Fig. 9. Assembling the Duct>

3-Pin Connector

Mainboard

FAN MATE 1

Speed Control Knob

3-Pin Connector

(from CNPS 5700D)

Adjust

Driver

Exhaust Fan

Bolt-B

* The specifications of any product may change without prior notice to improve the performance thereof.

1. When Adjusting the Fan Speed

The exhaust fan must be at the same speed or faster than the CPU cooler’s fan in order for this

product to perform optimally. Having a slower exhaust fan can cause a drop in the cooling

performance of the product.

2. Checking CPU Compatibility & Using FAN MATE 1

Read ‘For Use With’ section and make sure your CPU is compatible before using the CPUcooler.

When the speed control knob on FAN MATE 1 is turned fully counter-clockwise, the fan operates

in Silent Mode at a minimum speed. When it is turned fully clockwise, it operates in Normal Mode.

You can select the desired fan speed by turning the knob.

Caution)

FAN MATE 1 has been specifically designed to be used with the fan of this product.

Zalman Tech. Co., Ltd. is not responsible for any damage caused to systems or CPUs

when using FAN MATE 1 with other types of fans.

3. Cautions During Booting

When booting the computer, it may automatically power down after an alarm sound is generated

by a system monitoring program to indicate that the the CPU fan is rotating slowly. If this happens,

you may turn the speed control knob fully clockwise to increase the fan speed and set “CPU Fan

Detected” to “Disabled” in the BIOS settings, or set the slowest rotation of the CPU fan in the

system monitoring program to less than or equal to 1500RPM.

Caution)

Some mainboards do not boot if the rotation of the CPU fan is below a certain RPM.

If the BIOS is updated, Silent Mode can be used. For more information on updating

BIOS, please refer to your mainboard manufacturer’s web site. Even in a case where

the RPM of fans does not get measured in Silent Mode, performance will not be affected.

4. If you remove the Air Duct, cooling performance may deteriorate.

5. Creating a Complete Noiseless System

Use the following Zalman products to achieve stable and silent operation of your computer :

Noiseless Power Supply, CNPS series CPU Cooler, Fanless Cooler for Northbridge Chipset &

Video Card and Noiseless Fan.

For more inquiries regarding our products, visit our website(www.zalman.co.kr).

Usage & Caution
