XtendLan DPA-D2-GSM Manuel utilisateur

DPA-D2-GSM

GSM unit for D2 videodoor system

User´s manual

90 mm

About GSM Unit

Discription:

The GSM unit is a telephone converter designed for 2-wire system to divert calls from

outdoor station to telephone or mobile phone.With GSM unit,you can communicate with

outdoor visitor by your telephone or mobile phone which just like a remote control,you

can do the operation of talking,unlock and so on.

Features:

•Maximum 3 telephone numbers can be set

on monitor.

•Must be with Call Transfer function for

monitor

•Divert Calls from monitor to telephone via

GSM ,the GSM is like a telephone,when

setting the diversion function,door

station calls GSM first,then divert to the

telephone number you set.

•Application:villa and apartment 60 mm

1. TerminalIntroduction

1 2 3 4 5 6

SETUP SIM OUTPUT INPUT

SETUP: DIP switches.

SIM: SIM card slot ,the place to Install SIM card.

Output: Output port,connect to Monitor.

Input: Input port,connect to power supply.

Configuration:

LED BUTTON

Power

Network Reset Signal

Quality

Status Transfer Recover Test

*The instructions of indicator:

LED indicator

Descriptions

Power

-LED off When the GSM not working

-LED flashes rapidly when the system error

-Always on when the GSM work normally

Network

-LED off when the SIM card is not detected

-LED flashes slowly when the SIM card is detected but unregistered

-LED flashes rapidly when the SIM card is detected and registered

successfully,butinitializationunsuccessful

-Always on when the GSM kits work normally

Status

-LED flashes one time when the system receives the effective

instruction

Transfer

-LED off When there is no call transfer

-LED flashes slowly when the GSM in the transfer waiting state

-LED flashes 3 times rapidly when the GSM transfer failed

-Always on when the system in the talking state

* LED flashes one time when the system recover the password

defaults

*The instructions of button:

Button

Descriptions

Reset

-Press Reset button,it will reset GSM kits

Signal Quality

-Press Signal Quality button,it will show the signal strength

Recover

-Press Recover button,it will recover the password defaults

Test

-Press Test button,it will call the monitor 00

*NOTE:

Signal strength show:After press Signal Quality key, 4 LEDs off for a second,

then the GSM kits will use 4 LEDs to display signal strength(no signal: 4 LEDs

off; bad signal: only the LED of Power on; weak signal:only the LED of Power

& Network on; good signal: the LED of Power & Network & Status on; strong

signal:4 LEDs on)for a second, and 4 LEDs off again for a second later, it will

back to the start state.

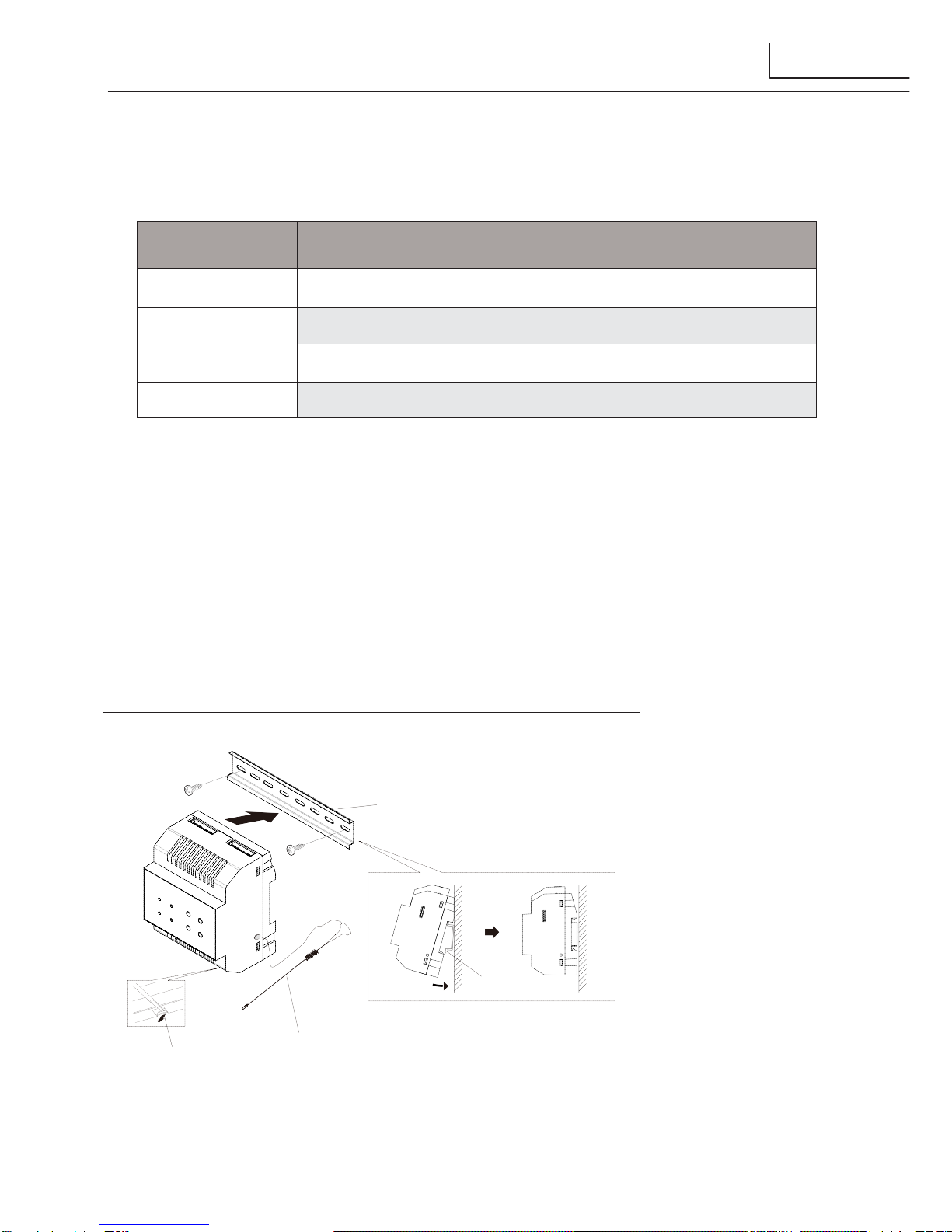

2. Mounting

Din rail

Step1: Mount the din rail to the

wall with screws ;

Step2: Pull down the mounting

buckle,then hang the unit on

din rail.

Din rail

Mounting Buckle Antenna

NOTE:A magnet installed on the antenna base, fixed on the

wall directly adsorbed iron (iron Fortunately, pre-installed on

the wall) place. In addition, the antenna should be installed

in the open place, there should be no obstructions around.

-Telephone Number-

1> _

2> _

3> _

Don’t divertcalls

Divertif not answered

Divert simultaneously

3. DIP Switches Setting for GSM

Bit

Bit State

Description

DIP1-DIP5

Reserve

1 2 3 4 5 6

DIP6

2 3 4 5

Set to on,it shows the system is partment.

2 3 4 5

Set to off, it shows the system is villa.

Note:

Total 6 bits for DIP switches, to villa application, just Bit-6 is useful,Bit1 to

Bit5 are invalid. Bit-6 must be set to OFF in villa system.

Total 6 bits for DIP switches, to partment application, just Bit-6 is useful,Bit1

to Bit5 are invalid. Bit-6 must be set to ON in partment system.

In principle, whether it is a partment or villa, a 2-Wire system only install a

GSM. If you need to install multiple GSM, please contact the engineering staff.

4.Telephone Number Setting on Monitor

Touch screen monitors:

1 2

4 5

7 8

•Maximum 3 telephone numbers can

be set,touch the telephone number

frame,then input the the number by

touching the digital keypad.

Exit&save

Exit&Unsave

1) 0

Button operation monitors:

GSM configure

4)Divert mode select: 2

0:Not 1:NotAnswer 2:Simulateously

Cancel Edit Save&Exit

•Maximum 3 telephone numbers can

be set,Use ▲/▼ Button to move

upward / downward to select the

item,then press the MENU button to

edit.Use ▲/ ▼Button to increase /

decrease the value,and use

button

to input next digital,use button to

button to cancel the input. press

the MENU button again to finish the

edit operation.

Note:

•There are 3 types of divert modes:

•1:Don't divert calls----calls from outdoor station will not be diverted.

•2:Divert if not answered----outdoor station calls indoor monitor firstly,if nobody

answer the call within 25 seconds,the call will be diverted to the telephone number

you set. At this mode,the monitor will shut off immediatelly when GSM deverts

sucessfully,while it won't affect the communication between GSM and outdoor

station.Otherwise, the monitor can do the operation of monitoring,talking,and

unlocking.

•3:Divert simutaneously----calls from outdoor station will be diverted to your

telephone immediately.At this mode,the monitor won't shut off when GSM deverts

sucessfully,but if the monitor answers the call at this time,GSM will quit absolutely.

5.OperationInstructions

Note: Divert function is activated in the following instructions

Item

Discription

Unlocking

•Input 1# on your telephone or mobile phone to

release the first lock

•Input 2# on you telephone or mobile phone to release

the second lock

Hanging up

•Input 9# on your telephone or mobile phone to hang

off absolutely

•Total divert calling time is more than 5 minutes

Calling next telephone

number

•1:At least 2 telephone numbers must be set on

monitor

•2:During communication between telephone and

outdoor station,"#" button has not been input on

telephone and the calling time of each group number

is less than 80 seconds.

Calling slave telephone

•Add a letter "P" between master telephone and slave

telephone.The GSM will call the slave telephone

directly.

6.Wiring

AC~

Antenna

PC6 GSM

ID=00

1 2

7.Specification

Power input: DC 20~28Vdc (supplied by PC6)

Power Consumption: Standby:60mA;working:500mA

Working temperature: -10ºC +40ºC

Wiring: 2 wire,non-polarity

Dimension: 90(H)X72(W)X60(D)mm
