XtendLan DPC-D248-K Manuel utilisateur

DPC-D248-K

2-wireddoorstation

123

456

789

User manual

Contents

1.Parts and Functions............................................................................................. 1

2.Mounting.............................................................................................................. 1

3.Terminal Descriptions .......................................................................................... 2

4.System Wiring and Connections ......................................................................... 3

5. Functions Setting Up .......................................................................................... 9

6.Power Supply Instructions................................................................................... 17

7. Precaustions....................................................................................................... 17

8.Specications ...................................................................................................... 17

9.Cables Requirements.......................................................................................... 18

-1-

1.Parts and Functions

Rainy Cover

4 5 6

0 #

2 3

Camera Lens

Touch Sensitive

Digital Keypad

Speaker

Nameplate

Call Button

Microphone

93 mm

28 mm

182 mm

4 5 6

0 #

2 3

Night Light

2.Mounting

1 2

Drill holes in the wall to match the size of

screws and attach the rainy cover to the wall.

Attach the panel to the rainy cover Use the screwdriver and the screw

to fix the panel

Connect the cable correctly

Mounting

-2-

1 2 3

Lock Control Jumper

BUS

S+ S-

Main Connect Port

3.Terminal Descriptions

Placing Name Label

Use a screwdriver to unscrew the screw, and cock the host , then Placing Name Label.

•Lock Control Jumper: To select the lock type.

•Main Connect Port: To connect the bus line and

the electronic locks.

•BUS: Connect to the bus line, no polarity.

•PL: External lock power input, connect to the power

positive(power +).

•S+: Lock power(+) output.

•S-: Lock power(-) output, connect to the power(-)

input of locks(only when using the camera to power

the locks, if using the external power supply for the

locks, the S- will not be connected).

-3-

Basic Connection

4.System Wiring and Connections

AC~

monitor

D2A PS4

L1 L2 PL S+ S-

Electric Lock Connection

Door Lock Controlled with Internal Power

Note:

1. Electronic lock of Power-on-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than 250mA.

3. The door lock control is not timed from Exit Button(EB).

4. The Unlock Mode Parameter of Monitor must be set to 0 (by default).

LOCK

BUSPL S+S-

Jumperposition in

Connect one lock

2-3

1 2 3

-4-

Unlock parameter setting(set in monitor)

LOCK

Takeoff the Jumper

POWER

SUPPLY

BUSPL S+S-

Connect one lock

Note:

1.must connect correctly before setting.

2.the parameter will be saved automatically,so you need only set on one monitor.

3.the above diagram is t for icon menu series monitors only, to text menu series monitors,please refer to

the corresponding user manual.

1.Touch item on main

menu page.

2.Touch the screen anywhere

and hold for 2s.

3.Touch Installer setup item

4.A digital keypad and setting

instructions will be showed.

Manual

Monitor

Memory

Playback

Album User Setup

09/30/2010 Thu.16:41

Intercom Multimedia

About

H/W : --- a1.3

S/W: V17.11.418.00

Local addr: ---

Unlock timing: ---

Video standard: -

UI-CODE: ---

MCM-VER.: ---

Updated: ---

Home

Installer

setup

Caliber

TouchScreen

Code Number:[----]

[0010]#:Remove all remote control

[0011]#:Add remote control

[8000]#:Set as master unit 0

[8001]#:Set as slaver unit 1

[8002]#:Set as slaver unit 2

[8003]#:Set as slaver unit 3

[8004]#:Set as guard unit

[8005]#:Set as not guard unit

[8006]#:Panel on as slaver unit called

[8007]#:Panel off as slaver unit called

[8008]#:Date format:MM/DD/YYYY

[8009]#:Date format:DD/MM/YYYY

[8010]#:Set lock mode to 0

[8011]#:Set lock mode to 1

[8021]~[8029]

#Set the lock time of 1~9s

Multi language settings:

---

Cancel

Installation settings:

Door Lock Controlled with Dry Contact

Note:

1. The external power supply must be used according

to the lock.

2. The inside relay contact is restricted to AC or DC

24V/1A.

3. The jumper must be taken off before connecting.

4. Setup the Unlock Mode of Monitor for different

lock types.

•Power-on-to-unlock type:Unlock Mode=0 (by

default)

•Power-off-to-unlock type:Unlock Mode=1

-5-

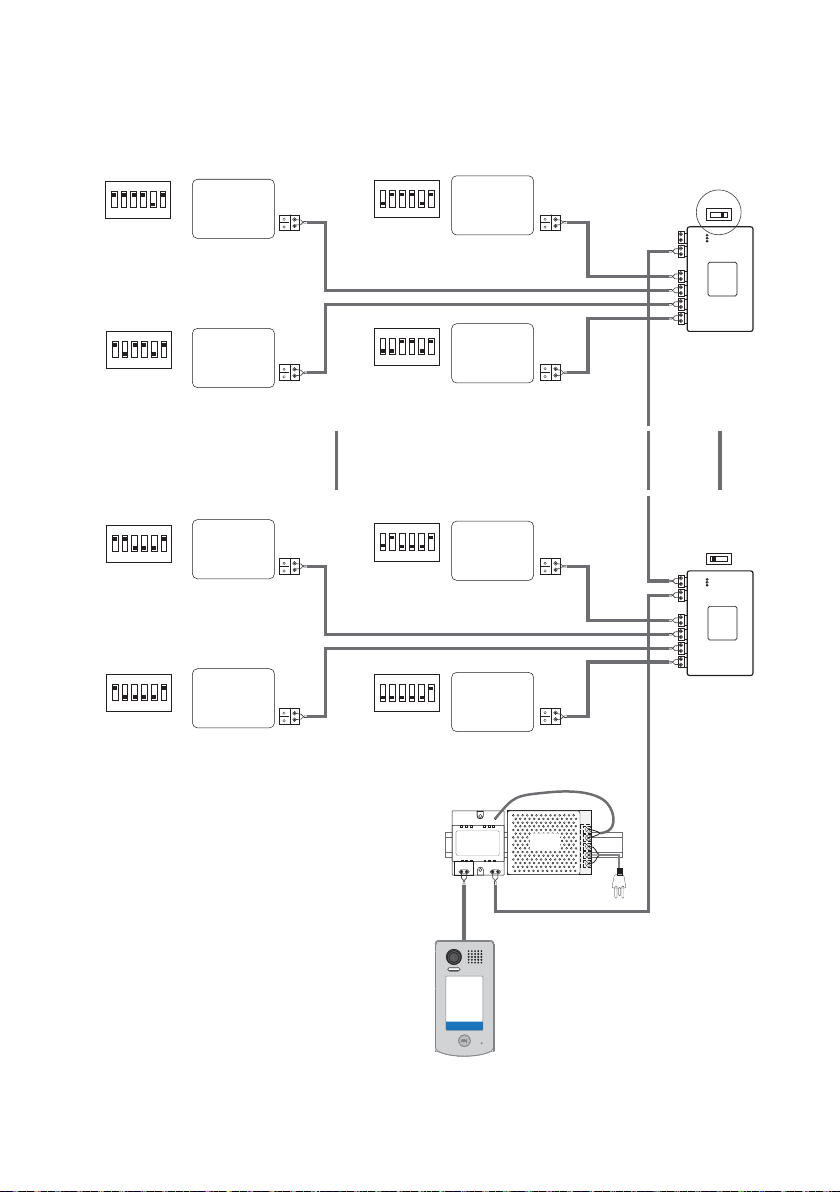

Multi Door Stations Connection

85~260VAC

D2A PS5

monitors

1# Camera2# Camera3# Camera4# Camera

DBC4

A B C D

BUS

L1 L2 PL S+ S-L1 L2 PL S+ S-

L1 L2 PL S+ S-

(Device Address:3) (Device Address:2) (Device Address:1) (Device Address:0)

-6-

Basic IN-OUTWiring Mode

Multi Monitors Connection

monitor

85~260AC

D2A PS5

Code=0, DIP-6=off

Code=14, DIP-6=off

Code=15, DIP-6=on

1234 5 6

4 5 6

0 #

2 3

(Device Address:0)

-7-

With DBC4 Wiring Mode

monitor

DBC4

A B C D

OUT

DBC4

A B C D

OUT

85~260AC

D2A PS5

1234 5 6

Code=15, DIP-6=on

Code=13, DIP-6=on

Code=3, DIP-6=on

Code=1, DIP-6=on

1234 5 6

Code=14, DIP-6=on

Code=12, DIP-6=on

Code=2, DIP-6=on

Code=0, DIP-6=on

4 5 6

0 #

2 3

(Device Address:0)

-8-

Note:About DCU instructions , please refer to the user manual for more detail informations.

DCU Code =3(11)

Camera 1

Doorstation 1 Doorstation 2 Doorstation 3

Camera 2

85~260VAC

D2A PS5

1234 5 6

DBC4

A B C D

OUT

Code=0, DIP-6=on

CALL

UNLOCK

TALK/MON

IN-USE

Code=3, DIP-6=on Code=2, DIP-6=on

Code=1, DIP-6=on

CALL

UNLOCK

TALK/MON

IN-USE

CALL

UNLOCK

TALK/MON

IN-USE

CALL

UNLOCK

TALK/MON

IN-USE

12 3 4 5 6

DCU

12 3 4

DBC4

A B C D

BUS

4 5 6

0 #

2 3

4 5 6

0 #

2 3

4 5 6

0 #

2 3

(Device Address:0) (Device Address:1) (Device Address:2)

Extending Connections with DCU unit
