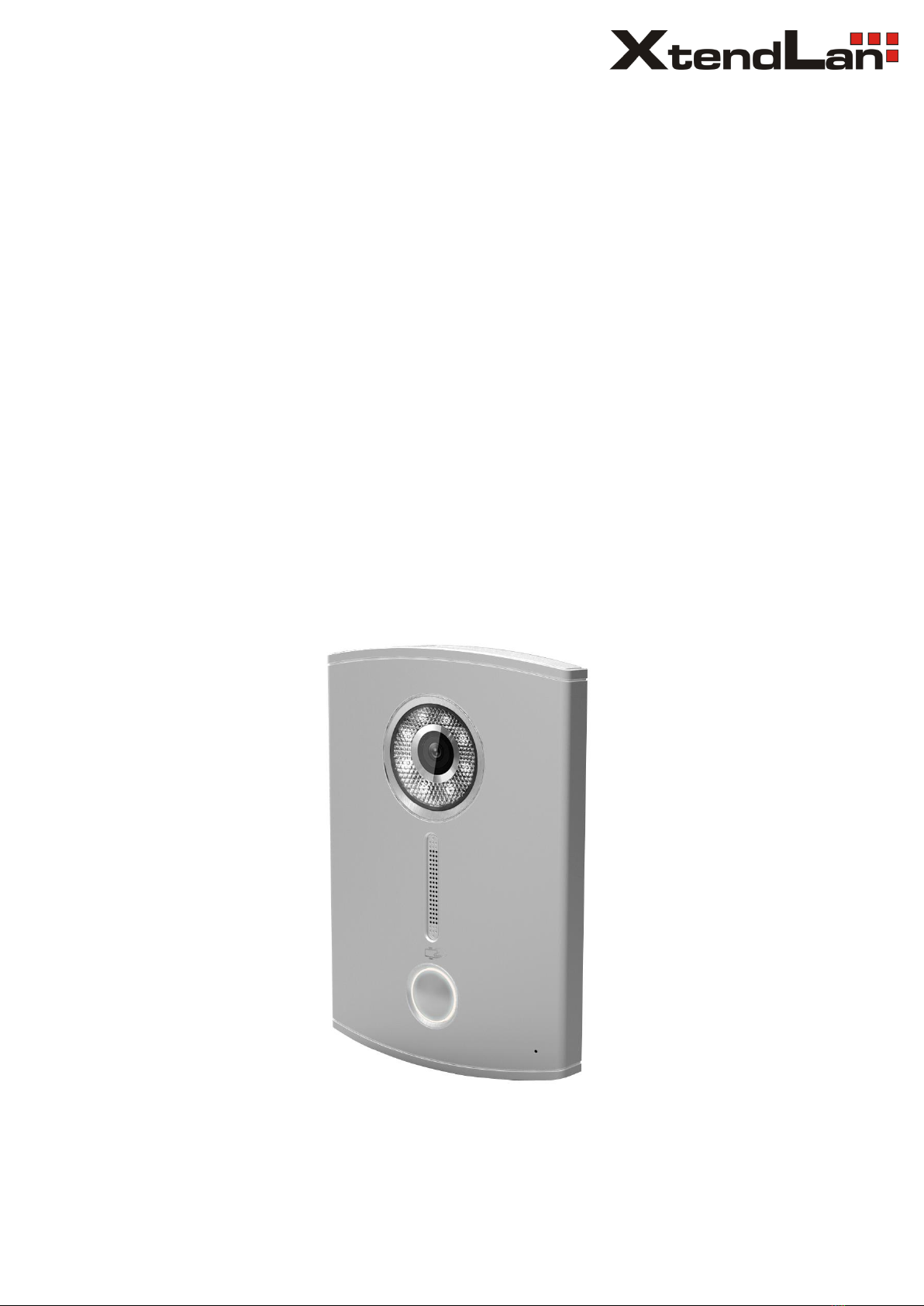

XtendLan DPC-IP101ID Manuel utilisateur

DPC-IP101ID

IP door station

User manual

Table of Contents

1Product Appearance

2Basic Function Introduction

2.1 Call Manager Center

2.2 Call User

2.2.1 Connecting Status

2.2.2 Calling Status

2.3 Monitor

2.4 Web management

2.5 Single Call

2.6 Group Call

2.7 Unlock

2.7.1 Unlock under Connecting Status (access control module required)

2.7.2 Unlock under Calling Status (access control module required)

2.7.3 Unlock under Monitoring Status (access control module required)

2.7.4 Unlock via IC Card (access control module required)

2.8 Compensation of Light

2.9 Vandal Proof

3Deeper Introduction to Web

3.1 Login Interface

3.2 System Config

3.2.1 Local Config

3.2.2 Indoor Station (VTH) Manager

3.2.3 LAN Config

3.2.4 Network Config

3.2.5 Change Password

3.3 Info Search

3.3.1 Call History

3.4 Status Statistics

3.4.1 VTH status

3.5 Logout

3.5.1 Reboot Device

3.5.2 Logout

4Technical Specifications

5Device Port Illustration

6. Installation Guide

7 FAQ

Product Appearance

Please wait about 10s for the indicators in touch button to turn on after you plug the

device to power supply. It takes about 60s for all the indicators to turn on and then off.

After the system boots up properly, you will see its front as shown in Figure 1- 1(black)

and Figure 1- 2 (white).

Figure 1- 1

Figure 1- 2

VTO is a signature for indoor monitors.

VTH is a signature for outdoor stations.

VTS is a signature for a management center.

For more than one monitor in the system please read the Group Call article

about monitors compatible combinations.

No.

Name

Function

Compensation

Light compensation will automatically

turn on during connecting status if there

is no enough light in environment.

Camera

It monitors corresponding door region.

Card Swiping Area

You can swipe card in this area.

Touch Button

You can touch this button (the blue

indicator will be on) to call VTH or

manager center.

Basic Function Introduction

2.1 Call Manager Center

Within the time that allows you to call manager center, you can touch the button to

call manager center. Manager center’s time can be set on management platform or

VTO’s web-end. Once manager center picks up the call, you can perform a visual

bidirectional talk with the manager center. You can touch the button on VTO to end call at

any time.

2.2 Call User

2.2.1 Connecting Status

Within the time that allows you to call VTH, you can touch the button to call VTH.

Excluding time to call manager center, all remaining time supports call to VTH. During

connecting, you can touch the button on VTO to end call at any time.

2.2.2 Calling Status

Under connecting status, if the call is picked up, you will enter calling status. You can

perform a visual bidirectional talk with the VTH. During calling status, you can touch the

button on VTO to end call at any time.

2.3 Monitor

Both VTS and VTH are able to monitor this VTO by enabling the camera to capture

local circumstance.

2.4 Web management

The door station has a web management for user-friendly settings. To go to the web

management open Internet Explorer web browser and go to 192.168.1.110 (default) IP

address. Default login is admin/admin.

2.5 Single Call

Go to the web management. Be sure Group Call is off.

In the Indoor station manager input monitor data without IP address and reboot.

Be sure DPC-IP102ID is added in the monitor settings well and is enabled there.

2.6 Group Call

If you want to call via one button door station more than one monitor at the same time,

you can use “group call” function. For group call you can´t connect every monitor models. This

function you can use only for combination of DPM-IP70xTMD

2.6.1. Settings for DPM-IP70xTMD conection

The first (MASTER) monitor must be set to 101 adress and next monitors (SLAVES) must

be set to Extension mode with 101-1/101-2/101-3/101-4/101-5 adress. Eventually as on the

table below:

2.6.2. DPC-IP102ID web management settings

Input master monitor data WITHOUT IP address and reboot.

After rebooting open Indoor Station Manager again to upload slave monitors settings.

2.7 Unlock

2.7.1 Unlock under Connecting Status (access control module required)

Under connecting status, VTS or VTH can remotely unlock door. VTO will return to

standby interface after call ends or countdown stops.

2.7.2 Unlock under Calling Status (access control module required)

Under calling status, VTS or VTH can remotely unlock door. VTO will return to

standby interface after call ends or countdown stops.
