XtendLan DPC-D246A Manuel utilisateur

2-Wire Video Intercom System

DPC-D246A

User’s manual

terminal

1 2 3

Parts and Function

The door station is an audio door station without camera, which is designed for 2-wire system.

The front panel is made of zinc alloy for better protection against vandalism & cauterization, and

the call button is also made of zinc alloy with blue backlight for auxiliary illumination, the unlock

and talking LED indicator guarantee the door station working efficiently.

With the rainy cover, the door station can be strongly protection against water.

Speaker

12 Unlock Indicator

3 7 4

6 7

Talk Indicator

Front Panel

Call Button

Microphone

Rainy Cover

Terminal Description

Lock Control

Jumper

SPK adjust

Connection line

DIP PROG

1 2 3

CALL button

1 2 3

BUS(Blue&Green

) S2+(Red)

PL(White)

S1+(Yellow

) S1-(Black)

Lock Control Jumper: to select the lock type. Please refer to Electric Lock Connection

DIP switch: to set ID code for door station, total 4 door stations can be supported. Please

refer toDIP Switch Setting.

SPK adjust: to adjust the talk volume.

PROG button: reserve.

CALL button: press to call the user.

4P terminal: to update software via specified programmer.

Connection line: toconnect the bus line and the electronic locks.

BUS(Blue&Green): connect to the bus line, no polarity.

S2+(Red): the S2+ connect with S1- to activate the relay to extend a camera of DPV-D246,

please refer to DPV-D246 user instructions in details.

PL(White): external lock power input, connect to the power positive(power +).

S1+(Yellow): lock power(+) output.

S1-(Black): lock power(-) output.

Unit Mounting

The location of outdoor station should keep away from snow,rain,and intensity light.

Accessory contents:

Accessories include a screwdriver T20, one M4X10 screw, two PA4X25 screws,three PA3x25

screws,three PM3x12 screws,and five screw stoppers Φ6X30.

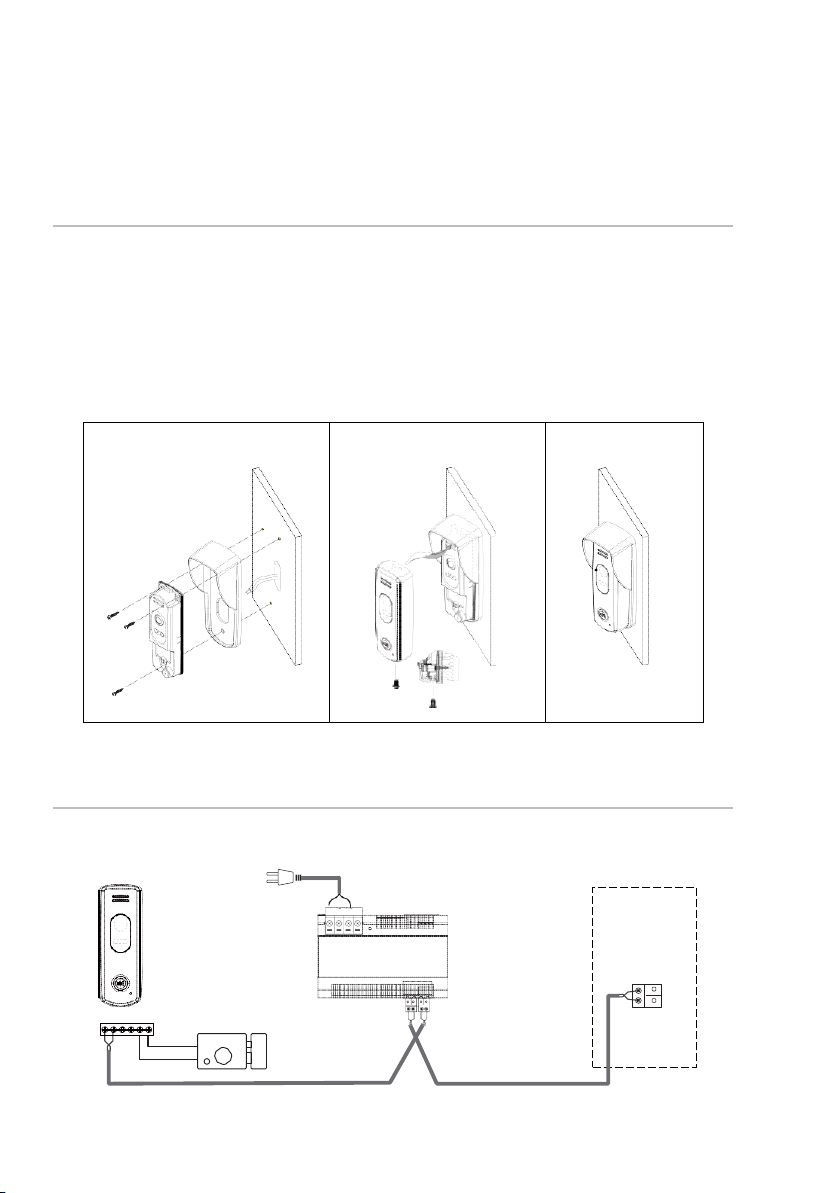

Installation steps:

Installation height for door station usually is 145~160cm.

Use screws to fix the back panel and rainy cover to the wall after connect the cable correctly.

Attach the front panel to the back panel, then use the screw tofix it.

PM3*12

M4*10

Wiring and Connection

Basic one-to-one connection

AC~

PC6

Monitor

Bus PLS2+ S1+ S1-

BUS(Blue&Green); S2+(Red); PL(White); S1+(Yellow); S1-(Black);

Multi Door Station Connection

4# Camera

ID=11 3# Camera

ID=01 2# Camera

ID=10 1# Camera

ID=00

ON ON ON ON

1 2 3

Monitors

Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1-

DIP=on,off,off

A B C D

AC~

DBC-4S

PC6

OFF

Impedance

Switch

BUS(Blue&Green); S2+(Red); PL(White); S1+(Yellow); S1-(Black);

Multi Monitors Connection

Basic IN-OUT wiring mode

ON ON

1 2 3 4 5 6

Code=0, DIP-6=off

1 2 3 4 5 6

Code=1, DIP-6=off

1 2 3 4 5 6

Code=14, DIP-6=off

1 2 3 4 5 6

Code=15, DIP-6=on

monitor monitor monitor monitor

AC~

PC6

ID=00

1 2 3

A B C D

DBC-4S

With DBC-4S Wiring Mode

1 2 3 4 5 6

Code=15, DIP-6=on

monitor

1 2 3 4 5 6

Code=14, DIP-6=on

monitor

Impedance

switch

OFF ON

1 2 3 4 5 6

Code=13, DIP-6=on

monitor

1 2 3 4 5 6

Code=12, DIP-6=on

monitor

DIP=on,off,off

1 2 3 4 5 6

Code=3, DIP-6=on

monitor

1 2 3 4 5 6

Code=2, DIP-6=on

monitor

Impedance

switch

OFF ON

1 2 3 4 5 6

Code=1, DIP-6=on

monitor

1 2 3 4 5 6

Code=0, DIP-6=on

monitor

DIP=on,off,off

AC~

PC6

ID=00

1 2 3

With DPV-D246 wiring mode

The audio door station DPC-D246A can be extended an additional CCTV camera to be a video

door station. For more details about the camera, please refer to DPV-D246 user instructions.

DPV-D246

OUT IN

AC~

PC6

Monitor

DS IM

DPC-D246A

Bus PL S2+ S1+ S1-

Electric Lock Connection

Door Lock Controlled with Internal Power

1 2 3

Connect one lock

*EB

Jumper position in 2-3

Bus PL S2+ S1+ S1-

LOCK

Note:

Electronic lock of Power-on-to-unlock type

should be used.

The door lock is limited to 12V, and holding

current must be less than 250mA.

The door lock control is not timed from Exit

Button(EB).

The Unlock Mode Parameter of Monitor must

be set to 0 (by default).

Door Lock Controlled with Dry Contact

Take off the Jumper

Bus PL S2+ S1+ S1-

Note:

The external power supply must be used

according to the lock.

The jumper must be taken off before connecting.

Setup the Unlock Mode of Monitor for different

lock types.

* Power-on-to-unlock type:Unlock Mode=0 (by default)

* Power-off-to-unlock type:Unlock Mode=1

POWER

SUPPLY

LOCK

ERL

DIP Switch Setting

The DIP switch is designed toset the code for door station and monitor, there are two states for

each DIP switch, please refer to the following sketch map.

ON(1)

OFF(0)

Door station DIP setting

Total 3 bits can be configured, bit-1 and bit-2 are used to assign ID code for door station, bit-3 is

used to match the video impedance.The switches can be modified either before or after installation.

Bit state

Description

1 2 3

ID = 0(00), set to the first door station

1 2 3

ID = 1(10), set to the second door station

1 2 3

ID = 2(01), set to the third door station

1 2 3

ID = 3(11), set to the fourth door station

Note: if the video impedance need to match, please set the bit-3 on.

Indoor monitor DIP setting

There are 6 bits in total. The DIP switches are used to configure the user code for Monitors.

Bit-6 is an video impedance match switch, which have to be set to ON if match the impedance,

otherwise set to OFF.

Bit-1~Bit-5 are used to set user code, to DPC-D246A door station, the user code should set to

0~15. Please refer to the following settings:

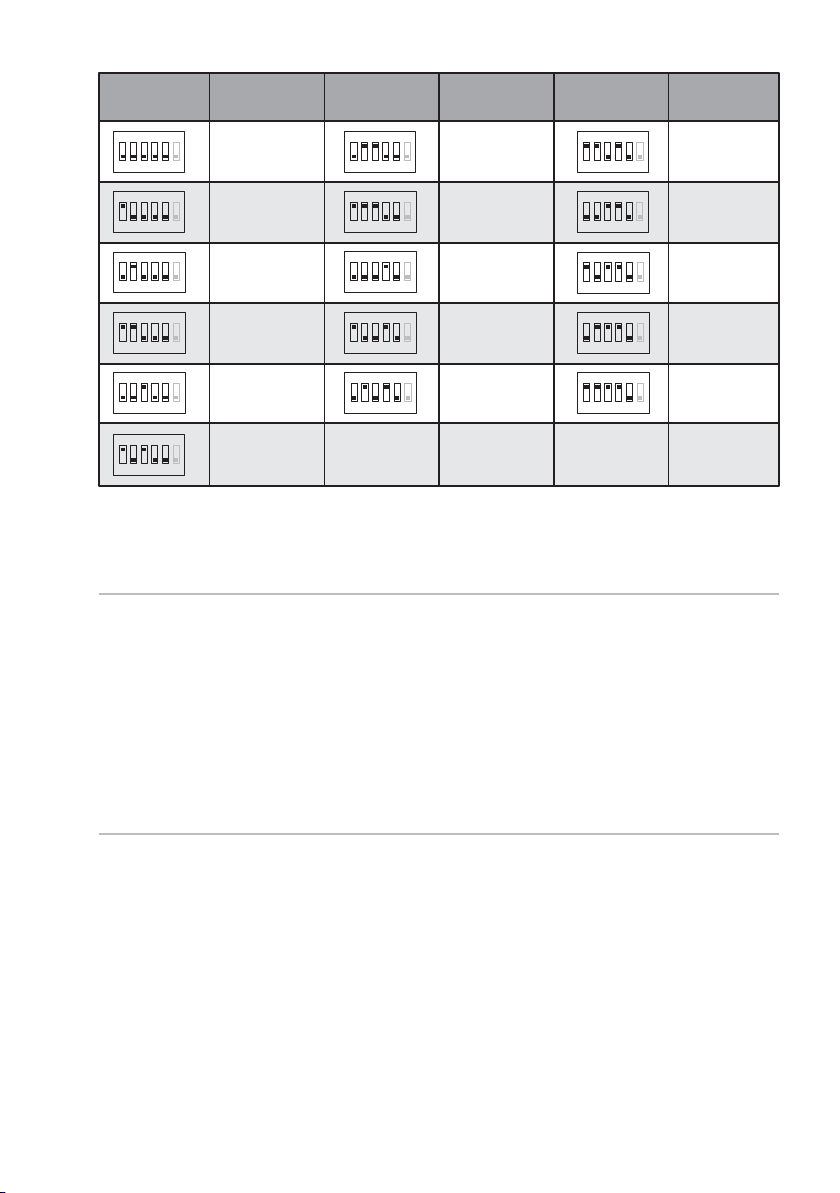

Bit state User code Bit state User code Bit state User code

1 2 3 4 5 6

code=0

code=1

code=2

code=3

code=4

1 2 3 4 5 6

code=6

code=7

code=8

code=9

code=10

1 2 3 4 5 6

code=11

code=12

code=13

code=14

code=15

1 2 3 4 5 6

code=5

Specification

•Power Supply: DC 24V

•Power Consumption: Standby 60mA; Working status 200mA

•Lock Power Supply:12Vdc, 300mA(Internal Power)

•Working Temperature: -10ºC ~ +45ºC

•Wiring: 2 wires, non-polarity

•Dimension:137(H)x49(W)x28(D)mm

Precaustions

•Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent.

If necessary, please use a little pure water or dilute soap water to clean the dust.

•The unit is weather resistant. However do not spray high pressure water on access control keypad

directly. Excessive moisture may cause problems with the unit.

•You must use the right adaptor which is supplied by the manufacture or approved by the manufacture.

•Pay attention to the high voltage inside the products, please refer service only to a trained and qualified

professional.

Cable Usage

Twisted cable 2x0.75 mm2

Twisted cable 2x1 mm2

Cable Requirements

The maximum distance of the wiring is limited in the D2 system. Using different cables may also

affect the maximum distance which the system can reach.

The farestmonitor

monitor

with two or four monitors

monitor monitor DBC-4S

AC~

PC6

When Monitor quantity < 20

When Monitor quantity >20

Cable Usage

Twisted cable 2x1 mm2

Twisted cable 2x1.5 mm2

Note: If the monitor has been specified

the distance, refer to the parameters
