Wilson Electronics 271265 Instructions d'utilisation et d'entretien

Amplifier

Installation

Guide

DB Pro

Adjustable Gain

Smart Technology

In-Building

Dual Band

Cellular

SignalBooster

Contents:

Before Getting Started / How It Works · · · · · · · · · · · · · 1

Antenna Options and Accessories · · · · · · · · · · · · · · · · 1

Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Installation Diagram · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Installing a Wilson Signal Booster · · · · · · · · · · · · · · · · 3

Powering Up a Wilson Signal Booster · · · · · · · · 4

Understanding the Signal Booster Lights · · · · · · 4

Warnings and Recommendations · · · · · · · · · · · · · · · · 5

Finding Signal Strength and Coverage Distance · · · · · · 5

Signal Booster Specications · · · · · · · · · · · · · · · · 6

Guarantee and warranty · · · · · · · · · · · · · · · · Back Cover

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

amplier.

Installation Instructions for the Following Wilson Signal Boosters:

DB Pro In-Building Wireless Cellular Smart Technology™ Amplier

Model # 271265

FCC ID: PWO271265

A800/1900 MHz Omni-Directional Antenna (301201/301202)

B1900 MHz Yagi PCS Antenna (301124)*

C800 MHz Yagi Cellular Antenna (301129)*

DDual-Band Panel Antenna (301155)

* Requires N-male to F-female adapter/converter (2F1128)

* Yagi antennas are to be used only as outside xed antennas, see RF Safety Warning (pg.5)

Inside this Package

Adjustable Gain

DB Pro Wireless

Signal Booster

AC/DC Plug-in

Power Supply

Antenna Options & Accessories

BCD

Before Getting Started

This guide will help you properly install Wilson’s Adjustable Gain DB Pro - In-Building

Wireless Signal Booster, with Smart Technology™. It is important to read through all of

the installation steps for your particular application prior to installing any equipment.

Read through the instructions, visualize where all the equipment will need to be installed

and do a soft installation before mounting any equipment. If you do not understand the

instructions in full, contact Wilson Technical Support at 866-294-1660.

Bracket, Amplier

Wall Mount

Reasons for Weak Cellular Signals

Anyone who uses a cell phone or cellular data card knows the frustration of not being

able to connect to or maintain a strong cellular signal. When this occurs, it’s generally

due to one of two reasons:

1. Location of the Nearest Cell Tower – Cell towers are situated to provide broad

coverage; however, there are many areas in which signal strength may be reduced by

local government restrictions on the height or placement of the towers themselves.

Rural areas generally have fewer cell towers than urban regions.

2. Natural and Man-Made Obstructions – Signal strength can also be negatively affected

by trees, hills, buildings and other obstructions. You may be relatively close to a cell

tower but still unable to make a call. This often occurs in homes, ofces and other

buildings in which stucco, concrete or metal walls block the signal.

The Adjustable Gain DB Pro works with two antennas. The inside antenna communicates

with your cell phone, and the outside antenna communicates with the cell tower.

The outside antenna receives the outside signal and sends it through the coax cable to

the Adjustable Gain DB Pro, where it is amplied and retransmitted through the inside

antenna into the room. When the inside antenna picks up a signal from your cell phone,

the Adjustable Gain DB Pro boosts that signal and transmits it through the cable to the

outside antenna and back to the cell site.

(Note: the Adjustable Gain DB Pro Signal Booster will only operate if there is adequate

signal to amplify.)

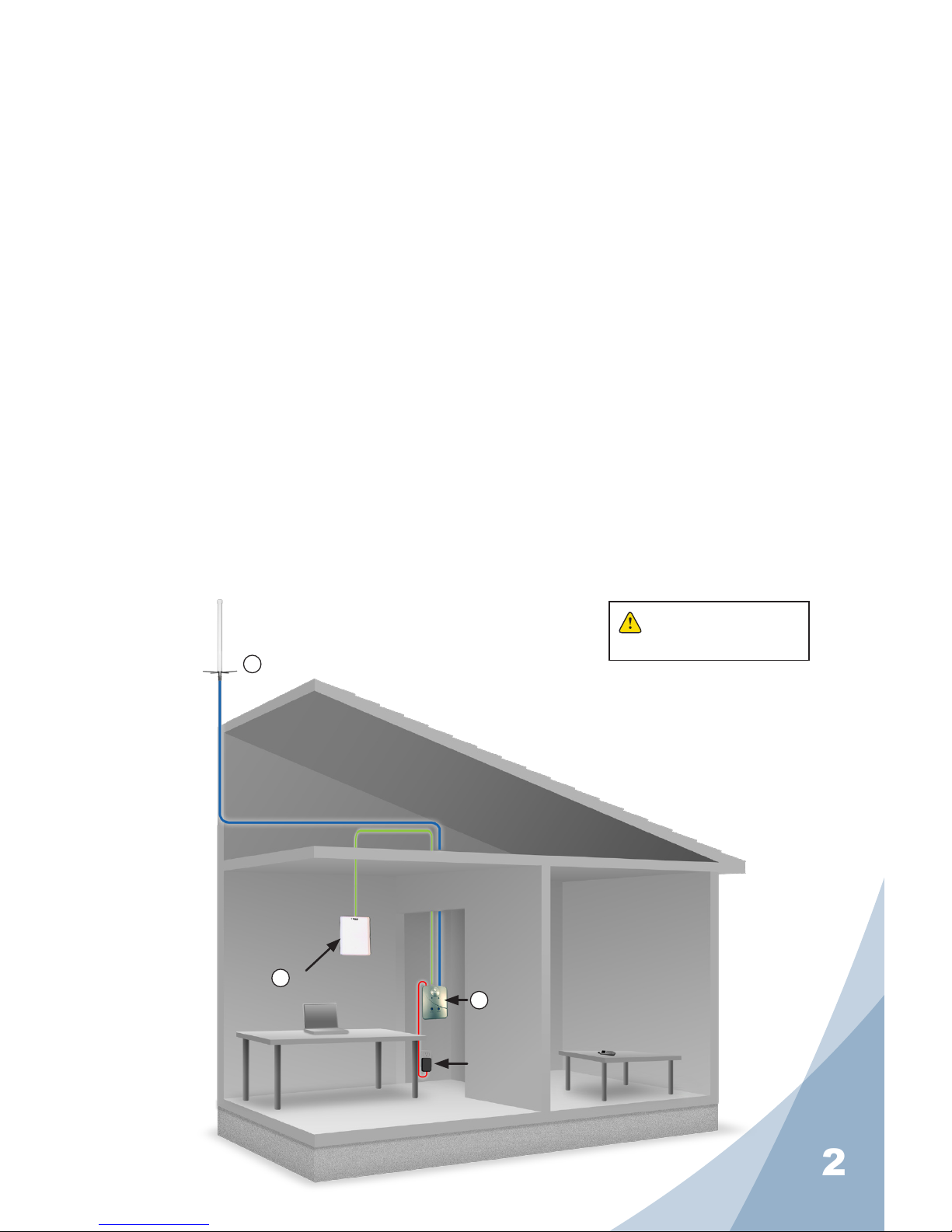

Typical Installation

Power

Supply

Signal

Booster

Inside Antenna

Outside Antenna

1 Select a location to install the signal booster that is away from excessive heat,

direct sunlight and moisture.

2Select a location on the roof of the building to install the outside antenna. Use a

cell phone in test mode to nd the strongest signal from the cell tower (see pg. 5).

Visit wilsonelectronics.com to nd the test mode function for your particular cell

phone.

3 Select a location for the inside antenna, preferably in the center of where the signal

needs to be amplied. Separation between the booster and the inside antenna

must be a minimum of 10 feet, to prevent oscillation.

4Verify that both the outside antenna and the inside antenna are connected before

powering up the signal booster.

Lightning protection is recommended for all in-building installations.

5Separation distance between the inside and outside antennas must be a minimum

of 50 feet, 75 feet is even better.

EASY TO INSTALL

The following steps provide a summary of the signal booster/antenna installation

process. However, they are not a substitute for the complete installation

instructions on the following pages, which you should read thoroughly. Contact

Wilson’s Technical Support Department with any questions at 866-294-1660.

Warning: See RF safety

warning on page 5.

Installation Overview

Installing a Wilson Signal Booster

Select a location to install the signal booster that is away from excessive heat,

direct sunlight, moisture and that has proper ventilation. Do not place the signal

booster in an air-tight enclosure.

Recommended installation locations for in-building ampliers are:

• On a wall

• In a closet

• Near a power outlet

Run the outside antenna cable to the signal booster and attach it to the connector

labeled “outside antenna” on the signal booster. Run the inside antenna cable to

the signal booster and attach it to the connector labeled “inside antenna” on the

signal booster.

Note: Be careful when plugging the connector in so as not to bend the center

pins on the connectors. Ensure cables have a tight connection.

AC/DC

Power Supply

Signal Booster

Cell

Site

Supports

Multiple

Users

Outside Antenna

Omni-Directional

Antenna Shown

Inside Antenna

Antenna Separation

Minimum separation distance

50 feet

Warning: See RF

safety warning on page 5.

Warning: Connecting the

signal booster directly to the cell

phone with use of an adapter will

damage the cell phone.

Note: Separation distance between inside and outside antennas must be a

minimum of 50 feet, 75 feet is even better.

GREEN:

RED:

Powering up a Wilson Signal Booster

1. IMPORTANT! Ensure that all cell phones and cellular data cards within 50 feet

of the inside antenna are turned off.

2. To verify proper installation of the signal booster and antennas, make sure that

the distance between the inside and outside antennas is a minimum of 50 feet,

75 feet is better.

3. If you are using an outside Yagi antenna, never point the front of the Yagi

toward the inside antenna.

4. Ensure that both the outside antenna coax cable and the inside antenna

coax cable are connected to the signal booster before powering up the signal

booster.

5. Plug the 6-volt power supply into the signal booster input marked “power”

(carefully, to avoid damaging the center pin) and then into a wall outlet.

6. If using a panel inside antenna always point the panel antenna away from the

outside antenna. Signal Booster and inside antenna must have a minimum

separation of 10 feet, to prevent oscillation.

7. If you have a RED light on the front panel of your signal booster, adjust the gain

control corresponding to the frequency band for that particular light, slowly to

the left, until that light turns green. If the coverage area is insufcient after the

light turns green, try to re-orient the inside and outside antenna or both, until

the gain control can be increased without turning the light red.

8. If you know that only one frequency band (800 or 1900) is available in

your coverage area (or going to be used), reduce the gain control on that

frequency band that is NOT in use to the minimum. This will reduce the power

consumption of the signal booster.

The indicator lights on the signal booster will be GREEN when the unit is powered

up and working properly.

BLINKING RED LIGHT:

This signal booster has protection shut off circuits to prevent disrupting cell sites.

If your signal booster is in the process of shutting down (indicated by a blinking red

light on both, or either band) please refer to note 7 above. Then reset the signal

booster by removing power from the signal booster, make sure that no cell phones

are located within 50 feet of the inside antenna, then reconnect power to the signal

booster. If the red light is still blinking contact Wilson Tech Support for assistance

1-866-294-1660

A solid RED light indicates the signal booster has shut down to prevent oscillation.

Move antennas farther apart then reset the power. If red light is still on refer to note

7 above, in the Powering up a Wislon Signal Booster section.

To reset the signal booster, disconnect then reconnect the power supply.

GREEN:

RED:

Understanding the Signal Booster lights and troubleshooting

The Signal Booster is equipped with 2 indicator lights, to let you know if the

booster is working correctly. The indicator light on the left is for the 800 MHz

while the indicator light on the right is for the 1900 MHz band.

Warnings and Recommendations

Warning: The Yagi antenna must always be located so the back or side points to

the inside antenna. Never point the front of the Yagi antenna toward the

inside antenna – this is to prevent oscillation.

Warning: Connecting the signal booster directly to the cell phone with use of an

adapter will damage the cell phone.

Warning: Connect both the outside and inside antenna cables to the signal

booster before powering up the amplier.

Warning: Use only the power supply provided in this package. Use of a non-

Wilson product may damage your equipment.

Warning: RF Safety: FCC regulations require that any xed outside antenna used

with this signal booster may not have gain less cable loss that exceeds

15 dBi and must be located at least 30 inches from all people. Inside

antennas must not exceed 7 dBi gain less cable loss in the 800 MHz

band or 10 dBi gain less cable loss in the 1900 MHz band and must be

located at least 8 inches from all people.

Lightning protection is recommended for all in-building installations.

Finding Signal Strength and Calculating Coverage Distance

Signal strength and the corresponding coverage distance you can expect to achieve

with your signal booster/antenna system are based on a combination of several

factors: the received signal strength of your cell phone alone, the signal gain

achieved by your signal booster and antennas and the signal loss from cables, taps

and splitters you may be using.

To calculate your approximate signal coverage distance, you can enter this

information into our Coverage Area Calculator on the Technical Support page on our

website (www.wilsonelectronics.com). If you prefer, you can manually calculate your

approximate signal coverage distance.

Measure the Outside Signal Level (OSL) at the intended outside antenna location

using a cell phone in test mode. (For assistance, visit the Phone Test Modes section

on the Technical Support page on our website or call 866-294-1660.) The OSL will

always be a negative number. (Even if the cell phone shows a positive number, you

will need to change it to a negative for this calculation.) Maximum signal strength is

usually about -50. When the signal weakens to about -100 or worse, the call may be

dropped.

Your inside and outside antennas will also add signal gain, again depending on the

antenna models you are using. You will also experience some signal loss from

cables, splitters and taps used to connect your system.

Warning: Verify that both the

outside antenna and the inside antenna are connected

to the signal booster before powering up the amplier.

!Warning: Use only the power supply provided

in this package. Use of a non-Wilson product may

damage your equipment.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer if located within the continental

U.S.

This warranty does not apply to any ampliers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Operation is subject to the following two conditions: (1) This device may not cause

interference and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Adjustable Gain DB Pro - FCC - rev.001 - 07/01/10

3301 East Deseret Drive, St. George UT 84790

For additional Technical Support visit

www.wilsonelectronics.com

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

Adjustable Gain DB Pro Specications

FCC ID: PWO271265 Dual-Band Wireless

800/1900 MHz Specications

Model Number 271265

Antenna connectors SMA Female

Antenna impedance 50 ohms

Dimensions 5.7 x 4.2 x 1.5 inch (14.0 x 10.8 x 3.9 cm)

Weight 0.48 lbs (0.22 kg)

Frequency 824-894 MHz / 1850-1990 MHz

Passband Gain 75 dB

Power Output 800 MHz 1900 MHz

Max Power output for single cell phone (reverse link) 30.8 dBm 30.5 dBm

Max Power output for single received channel (foward link) 26.0 dBm 25.2 dBm

Noise Figure (forward link) 3.5 dB nominal

Noise Figure (reverse link) 5.5 dB nominal

Isolation (reverse link/forward link) > 90 dB

Power Requirements 110-240 V AC, 50-60 Hz, 8 W

Autres manuels pour 271265

Table des matières

Autres manuels Wilson Electronics Amplificateur

Wilson Electronics

Wilson Electronics 801306 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST C-Booster Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuel utilisateur

Wilson Electronics

Wilson Electronics 801230 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Wilson Electronics

Wilson Electronics U-Booster 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics iDEN Manuel utilisateur

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuel utilisateur

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO 710i Manuel utilisateur

Wilson Electronics

Wilson Electronics 801247 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
