Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Amplifier Kit

Amplifier

Kit

Installation

ide

stallatio

stallat

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

ampliﬁer.

SIGNALBOOST™

Mobile Ampliﬁer Kit

with Phone Cradle

Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1

How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3

Installing the Magnet-Mount · · · · · · · · · · · · · · · · · · · · · · 4

Installing the SIGNALBOOST™ Ampliﬁer · · · · · · · · · · · 5

Installing the Cradle Plus · · · · · · · · · · · · · · · · · · · · · · · · 5

Attaching the Ultra-Slim Antenna · · · · · · · · · · · · · · · · · · 7

Powering Up the Ampliﬁer · · · · · · · · · · · · · · · · · · · · · · · 8

Connecting the Earbud · · · · · · · · · · · · · · · · · · · · · · · · · 8

Warnings and Recommendations · · · · · · · · · · · · · · · · · 9

About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · 10

Ampliﬁer Speciﬁcations · · · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliﬁers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliﬁers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliﬁers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Operation is subject to the following two conditions: (1) This device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Installation Instructions for the Following Wilson Ampliﬁer Kit:

SIGNALBOOST™ Mobile Ampliﬁer Kit with Phone Cradle

Model #811210 Part #811214

FCC ID: PWO819DA IC: 4726A-819DA

Patent Pending

The term “IC” before the radio certiﬁcation number only signiﬁes that

Industry Canada technical speciﬁcations were met.

Inside this Package

How it Works

Your new Wilson SignalBoost™ Mobile Ampliﬁer Kit with Phone Cradle includes everything

you need to begin enjoying improved cellular performance in mobile applications. This kit

will amplify the signals to and from the cell phone that you place in its cradle.

The kit includes the magnet-mount outside antenna, one of Wilson’s most popular products,

which will collect the signal from the cell tower and send it through the cable to the

SignalBoost™ mobile ampliﬁer. The ampliﬁer’s state-of-the-art technology is designed to

increase your signal up to 10 times, and reduce disconnects and dropouts. The ampliﬁed

signal is sent to the Cell Phone Cradle Plus, Wilson’s versatile phone cradle, which has a

signal coupler built right in. Your cell phone then communicates with the improved signal.

When the cell phone transmits, the signal goes through the cradle coupler, is then boosted

by the ampliﬁer and broadcast back to the cell tower through the outside antenna.

Most importantly, the Cradle Plus provides a convenient place to stow a cell phone and

allows the driver to keep both hands on the wheel while using the phone, greatly increasing

safety. This kit includes three mounting options for installing the cradle on the dash or

console of your vehicle.

SIGNALBOOST™

ampliﬁer 12 V DC

power supply

Ultra-Slim

Antenna Magnet-Mount

Antenna

Cell Phone

Cradle Plus

Adhesive

Bracket Adhesive/Screw

Swivel Bracket

Earbud Air-vent

Bracket

Before Getting Started

This guide will help you properly install Wilson’s SignalBoost™ MobileAmpliﬁer Kit with

Phone Cradle. It is important to read through all of the installation instructions for

this kit prior to installing any of the equipment. Read through this installation guide,

visualize where all of the parts will be installed, and do a soft installation before mounting

any equipment. If you do not understand the instructions in full, seek professional help, or

contact Wilson Technical Support at 866-294-1660.

Magnet-Mount

Antenna

Ampliﬁer

Power Supply

Cell Phone

Cradle Plus

Installing the Wilson Magnet-Mount Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof that is 12

inches away from any other antennas and free of obstructions.

The antenna must be installed vertically.

Signal performance will be degraded if the

antenna is not vertical.

The antenna cable may be run through the

door to the ampliﬁer.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning: The antenna used with this

ampliﬁer must have a separation distance of at

least 11 inches from all persons.

Installing the Wilson SIGNALBOOST™ Mobile Ampliﬁer

Warning: Do not plug in the DC power

supply until the antenna and Cradle Plus

cables are attached to the ampliﬁer.

Select a location to install the ampliﬁer that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations for the

ampliﬁer are:

• Under the seat

• Under the dash

Run the cable from the antenna and attach

it to the FME-Male connector labeled

“outside antenna” on the ampliﬁer.

Attach the cable from the Cradle Plus to the

FME-Male connector on the ampliﬁer.

Installing the Cradle Plus

Option 1 - Air Vent Bracket

Insert the two vent clips into the circular

hole in the bracket and slide them to each

end of the slot. The ﬂat surface of the clips

should face upwards.

Slide the bracket clips into the chosen vent

until they snap into place. If necessary,

use a thin-bladed screwdriver to gently pry

the clips apart as they slide into the vent.

Position the moveable arm at the base of

the bracket to achieve the desired angle

and to provide additional stability for the

bracket.

Warning: Do not plug the ampliﬁer

directly into the cell phone or cellular data card

using an antenna adapter. It will damage the

cell phone or cellular data card.

Option 2 - Adhesive Bracket

Clean the area where the bracket is to be

mounted with rubbing alcohol and a soft

cloth. Allow to dry.

Peel the backing to expose the adhesive

and press the bracket onto the desired

location in the vehicle. Note: be sure

the bracket is positioned vertically, not

horizontally.

Allow the adhesive to cure for 24 hours

before you attach the cradle.

Note: Once the cradle is attached, you can

adjust the angle of the adhesive bracket

by applying gentle pressure to the top or

bottom of the cradle.

Option 3 - Adhesive/Screw Swivel

Bracket

Clean the area where the bracket is to be

mounted with rubbing alcohol and a soft

cloth. Allow to dry.

For an adhesive mount, peel the backing

to expose the adhesive and press the

bracket onto the desired location in the

vehicle. Allow the adhesive to cure for 24

hours before you attach the cradle.

For a screw mount, use an ice pick or awl

to punch through the adhesive and expose

the four screw holes in the bracket. You

must provide the screws of an appropriate

size for your particular application. Using

the bracket as a template, mark the

locations for the screws as shown, drill pilot

holes and attach the bracket with screws.

Once the cradle is attached, you can

loosen the knurled wheel and swivel the

hook to the desired angle, then re-tighten

the wheel.

Attaching the Cradle

Once you have installed the mount in the desired location, attach the cradle by aligning

the rectangular hole on its back with the hook on the mount. Grasping the sides of the

cradle, slide it downward approximately ¼ inch into place.

For best mounting results and long-

term performance, we suggest that

you choose a ﬂat smooth surface

like the console area of your vehicle

between the two front seats. If this is

not available in your vehicle, you may

mount the cradle on the front of the

dashboard.

If mounting the cradle on a sloped

area of the dashboard in your vehicle,

please note that gravity may affect

the adhesive over time. Use the

screw mount for a more permanent

attachment.

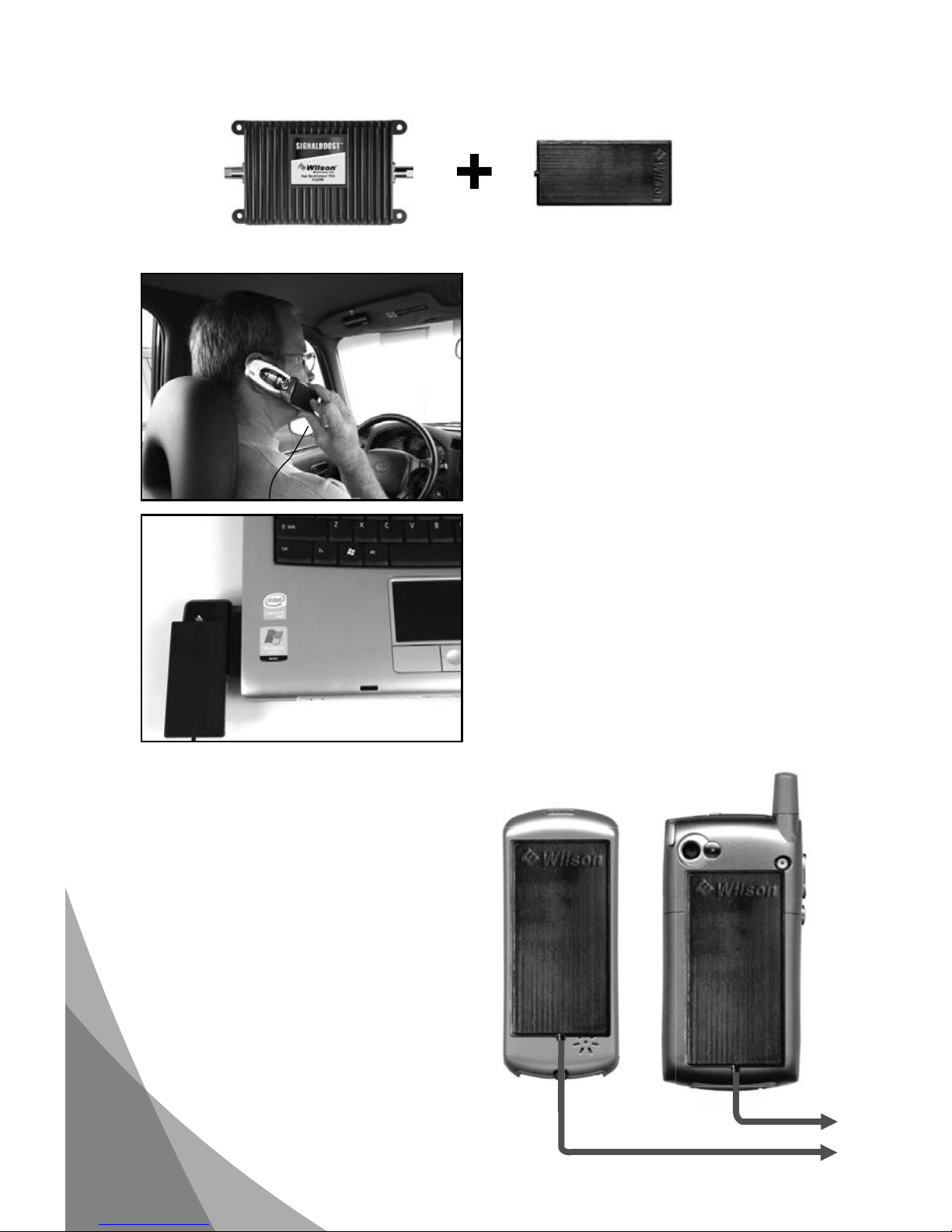

Attaching the Wilson Ultra-Slim Antenna

The Ultra-Slim must be placed directly

on the cell phone or cellular data card to

work properly. Attach the Ultra-Slim to the

cell phone or cellular data card with the

VELCRO®.

The Ultra-Slim cable is long enough to

reach the ampliﬁer location. This allows for

ease and convenience of use.

To adjust the Ultra-Slim for the best signal,

go to a weak signal location where your

cell phone registers only 1-2 bars without

the Ultra-Slim connected. (Be sure the

ampliﬁer is turned off when checking for

low signal.) Then, attach the Ultra-Slim to

the phone, power up the ampliﬁer and you

should see a signal improvement of 2 or

more bars.

NOTE: Many phones take up to 20 seconds

to reset the bar indicator.

To maximize performance, attach the Ultra-

Slim as close as possible to the original

antenna on your cell phone or cellular data

card.

For cell phones with an internal antenna, place

the Ultra-Slim on the back of the phone near

the top. (Figure 1) NOTE: Certain phones,

such as the Motorola RAZR, have internal

antennas at the base, rather than the top, in

which case the Ultra Slim should be attached

at the bottom rear of the phone.

For cell phones with an external antenna,

place the Ultra Slim directly below the phone’s

original antenna. (Figure 2)

If you have any questions as to the location

of the antenna on your phone, call Wilson

Technical Support at 866-294-1660, 435-673-

5021 or visit www.wilsonelectronics.com.

Ampliﬁer Ultra-Slim Antenna

Figure 1 Figure 2

To Ampliﬁer

Cellular data card

Powering up the Ampliﬁer

Make sure both the outside antenna and

Cradle Plus (or universal connector)

cables are connected before powering up

the ampliﬁer.

Connect the power cable from the DC

power supply to the ampliﬁer input marked

“Power” and insert the large end into DC

power socket (the cigarette lighter outlet).

The ampliﬁer may remain on all the time. However, leaving the ampliﬁer on in a vehicle

when it is not running can discharge the battery in a day or two.

A good option is to power the ampliﬁer through the ignition switch so the ampliﬁer is turned

on and off with the vehicle.

Carefully insert the power cable.

IMPORTANT: Do not power up the

ampliﬁer unless the antenna and Cradle

Plus cables are attached to the ampliﬁer.

Warning: Use only Wilson power

supply units. Use of a non-Wilson

product may damage your equipment.

12 V DC power supply (included)

AC/DC power supply (not included)

Connecting the Earbud

Plug the earbud into your cell phone and carefully place the earbud’s speaker into your ear.

Warnings and Recommendations

Warning: Do not plug the ampliﬁer directly into the cell phone or cellular

data card using an antenna adapter. It will damage the cell

phone or cellular data card.

Warning: Do not plug in the power supply until the outside antenna and

Cradle Plus (or Ultra-Slim Antenna) cables are attached to the

ampliﬁer.

Warning: The antenna must be installed with a separation of at least

11 inches from nearby persons and must not be located or

operating in conjunction with any other antenna or ampliﬁer.

Use of this ampliﬁer with an antenna gain higher than 6.12 dBi

is in violation of FCC regulations for which the offender is fully

liable. All Wilson mobile antennas are 6.12 dBi or less.

Recommended ampliﬁer installation locations for a vehicle are:

• Under the seat

• Under the dash

Power the ampliﬁer through the ignition switch so the ampliﬁer is turned on and

off with the vehicle.

For best mounting results and long-term performance of the Cradle Plus, we

suggest that you choose a ﬂat smooth surface like the console area of your

vehicle between the two front seats. If this is not available in your vehicle, you

may mount the cradle on the front of the dashboard.

If mounting the cradle on a sloped area of the dashboard in your vehicle, please

note that gravity may affect the adhesive over time. Use the screw mount for a

more permanent attachment.

Autres manuels pour SIGNALBOOST 811210

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Wilson Electronics Amplificateur

Wilson Electronics

Wilson Electronics U-Booster 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST U-Booster 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics iDEN Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuel utilisateur

Wilson Electronics

Wilson Electronics 811101 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801306 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO 710i Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuel utilisateur

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuel utilisateur

Wilson Electronics

Wilson Electronics 2B1401 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271265 Instructions d'utilisation et d'entretien

Wilson Electronics

Wilson Electronics BD800AM-M Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
