Wilson Electronics SignalBoost Manuel utilisateur

Amplifier

Installation

Guide

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

amplier.

SIGNALBOOST™

900/1900 MHz

iDEN

Amplier

Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1

How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3

Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3

Installing the Antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4

Installing the SIGNALBOOST™ Amplier (Vehicle) · · · 5

Installing the Antenna (Home/Ofce) · · · · · · · · · · · · · · · 7

Installing the SIGNALBOOST™ Amplier (Home/Ofce) 7

Installing the Universal Connector (Cellular Data Card) 7

Powering Up the Amplier · · · · · · · · · · · · · · · · · · · · · · · 8

Warnings and Recommendations · · · · · · · · · · · · · · · · · 9

About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10

Amplier Specications · · · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If, for any reason, the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Operation is subject to the following two conditions: (1) This device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Quad-Band Magnet-

Mount Antenna

(Part #304202)

Yagi iDEN

Antenna

(Part #301142)

Window Bracket and

AC/DC Power Supply

(home/ofce)

(Part #859940)

Optional Items

Mini Magnet-Mount

Antenna

(Part #301113)

1900 MHz Yagi

Antenna

(Part #301124)

Installation Instructions for the Following Wilson Amplier:

SIGNALBOOST™ 900/1900 MHz iDEN Amplier

Model #2B4310, Part #814310

FCC ID: PWO2B4310SM IC: 4726A-2B4310SM

Patent Pending

The term “IC” before the radio certication number only signies that

Industry Canada technical specications were met.

Inside this Package

How it Works

Your new Wilson SIGNALBOOST™ Amplier has been carefully engineered to signicantly

improve the performance of your cell phone or cellular data card. Together with an antenna,

the amplier’s state-of-the-art technology is designed to increase your signal up to 10-15

times, reduce disconnects and dropouts, and increase data communication rates needed

for 3G technologies. The universal connector works with all iDEN data cards.

The antenna will collect the cell tower signal and send it through the cable to the amplier.

The signal is then boosted and sent through the extension cable to either the universal

connector on your data card or the cradle antenna with your cell phone, which then

communicates with the improved signal. When the cell phone or data card transmits, the

signal goes through either the universal connector or the cradle antenna, is boosted by the

amplier and broadcast back to the cell tower through the antenna.

NOTE: Use of this amplier with an antenna gain higher than 6.12 dBi on a vehicle or within

a building is in violation of FCC regulations. All Wilson mobile antennas have 6.12 dBi or

less gain. Use of this amplier with an outside xed building antenna gain exceeding 15 dBi

is in violation of FCC regulations. All Wilson Yagi antennas have gains of 15 dBi or less.

Use of antennas with higher than the above maximum allowable gains is in violation of FCC

regulations for which the offender is fully liable.

SIGNALBOOST™

amplier

12 V DC power

supply (vehicle) Universal

connector

VELCRO®

Adhesive

Bracket

Adhesive/Screw

Swivel Bracket Air-vent

Bracket

Cell Phone

Cradle Plus

Before Getting Started

This guide will help you properly install Wilson’s dual-band, SIGNALBOOST™ amplier.

It is important to read through all of the installation steps for your particular

application prior to installing any equipment. Read through the instructions, visualize

where all the equipment will need to be installed and do a soft installation before mounting

any equipment. If you do not understand the instructions in full, please contact Wilson

Technical Support at 866-294-1660.

Installation Overview

The following steps provide a summary of the amplier/antenna installation process using

a magnet-mount or mini magnet-mount antenna. However, they are not a substitute for the

complete installation instructions on the following pages, which you should read thoroughly.

If you are using a different antenna, follow the specic instructions that come with it.

STEP 1 Install the Antenna

For a vehicle installation, attach the antenna in the center of the vehicle’s roof and run the

cable through the door to the amplier. For a home or ofce installation, attach the magnet-

mount or mini magnet-mount antenna to the optional window bracket, afx the bracket to

a window with the suction cups and run the cable to the amplier. (See pages 4 and 6 for

details and warnings.)

STEP 2 Install the Amplier

Position the amplier in a well-ventilated location away from direct sunlight. Run the cable

from the antenna and attach it to the FME-Male connector labeled “outside antenna” on the

amplier. (See pages 5 and 6 for details.)

STEP 3 Attach the Universal Connector or the Cradle Antenna

Attach the universal connector cable to the FME-Male connector labeled “Universal

Connector” on the amplier. Attach the other end of the cable to your cellular data card with

the supplied VELCRO®. (See page 7 for details.) Or, attach the Cradle Antenna cable to

the amplier.

STEP 4 Power up the Amplier

IMPORTANT! Before connecting the power supply, ensure that both the antenna cable and

the cable to either the Cradle Antenna or the Universal Connector are connected. (See

page 8 for details.)

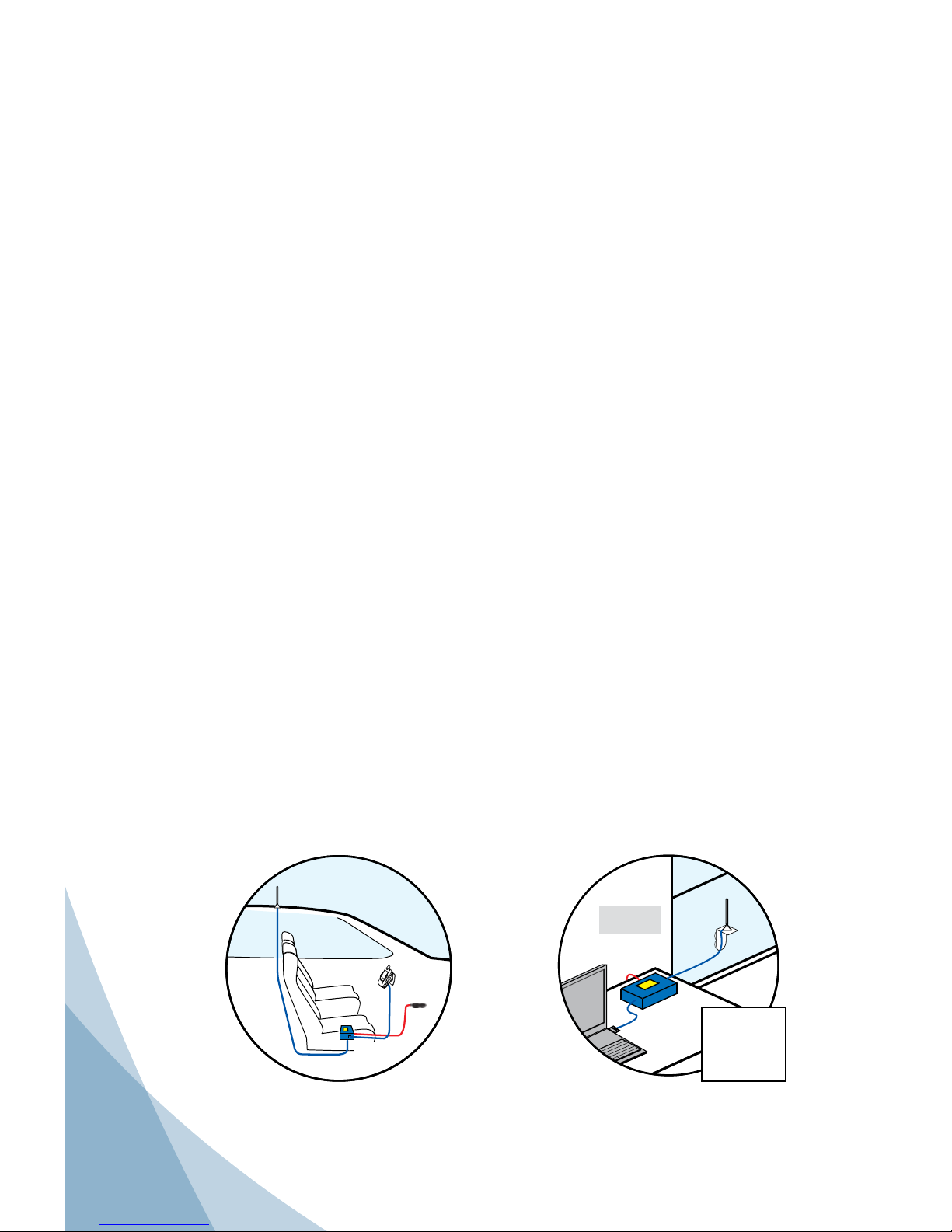

Mobile Installation Diagram Home/Ofce Installation Diagram

AC Power Supply and

Window Bracket

sold separately

(Part #859940)

SIGNALBOOST™

Ampliﬁer

Laptop

Connection

Antenna

(sold separately)

Cigarette

Power Supply

SIGNALBOOST™

Ampliﬁer

Installing the Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12

inches away from any other antennas and free of obstructions.

The antenna must be installed vertically.

Signal performance will be degraded if the

antenna is not vertical.

The antenna cable may be run through the

door to the amplier.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Vehicle Installation

Warning: The mobile antenna used

with this amplier must have a separation

distance of at least 8 inches from all persons.

Installing the Wilson SIGNALBOOST™ Amplier

Warning: Do not plug in the DC power

supply until the antenna and other cables are

attached to the amplier.

Select a location to install the amplier that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations are:

• Under the seat

• Under the dash

Run the cable from the antenna and attach

it to the FME-Male connector labeled

“outside antenna” on the amplier.

Attach the cradle antenna cable to the

FME-Male connector labeled “Universal

Connector” on the amplier.

Vehicle Installation

Installing the Cradle Plus

Option 1 - Air Vent Bracket

Insert the two vent clips into the circular

hole in the bracket and slide them to each

end of the slot. The at surface of the clips

should face upwards.

Slide the bracket clips into the chosen vent

until they snap into place. If necessary,

use a thin-bladed screwdriver to gently pry

the clips apart as they slide into the vent.

Position the moveable arm at the base of

the bracket to achieve the desired angle

and to provide additional stability for the

bracket.

Option 2 - Adhesive Bracket

Clean the area where the bracket is to be

mounted with rubbing alcohol and a soft

cloth. Allow to dry.

Peel the backing to expose the adhesive

and press the bracket onto the desired

location in the vehicle. Note: be sure

the bracket is positioned vertically, not

horizontally.

Allow the adhesive to cure for 24 hours

before you attach the cradle.

Note: Once the cradle is attached, you can

adjust the angle of the adhesive bracket

by applying gentle pressure to the top or

bottom of the cradle.

Option 3 - Adhesive/Screw Swivel

Bracket

Clean the area where the bracket is to be

mounted with rubbing alcohol and a soft

cloth. Allow to dry.

For an adhesive mount, peel the backing

to expose the adhesive and press the

bracket onto the desired location in the

vehicle. Allow the adhesive to cure for 24

hours before you attach the cradle.

For a screw mount, use an ice pick or awl

to punch through the adhesive and expose

the four screw holes in the bracket. You

must provide the screws of an appropriate

size for your particular application. Using

the bracket as a template, mark the

locations for the screws as shown, drill pilot

holes and attach the bracket with screws.

Once the cradle is attached, you can

loosen the knurled wheel and swivel the

hook to the desired angle, then re-tighten

the wheel.

Attaching the Cradle

Once you have installed the mount in the desired location, attach the cradle by aligning

the rectangular hole on its back with the hook on the mount. Grasping the sides of the

cradle, slide it downward approximately ¼ inch into place.

For best mounting results and long-

term performance, we suggest that

you choose a at smooth surface

like the console area of your vehicle

between the two front seats. If this is

not available in your vehicle, you may

mount the cradle on the front of the

dashboard.

If mounting the cradle on a sloped

area of the dashboard in your vehicle,

please note that gravity may affect

the adhesive over time. Use the

screw mount for a more permanent

attachment.

Installing the Wilson Universal Connector

Amplier

Universal

Connector

Installing the Antenna

To receive the best cell signal, select a window location at least 12 inches away from any

radio or television antennas and free of obstructions.

Using the suction cups, position the

optional mounting bracket on the window at

a height convenient to where the amplier

will be located, then attach the antenna to

the bracket.

The antenna must be installed vertically.

Signal performance will be degraded if the

antenna is not vertical.

Select a location to install the amplier that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations are:

• On a desk or table top

• In a bookshelf

• On the oor

Run the cable from the antenna and attach it to the FME-Male connector labeled “outside

antenna” on the amplier.

Attach the universal connector cable to the extension cable and attach the extension cable to

the FME-Male connector labeled “Universal Connector” on the amplier.

Then attach the universal connector to your cellular data card.

Home/Ofce Installation

Installing the Wilson SIGNALBOOST™ Amplier

Warning: Do not plug in the AC power

supply until the outside antenna and universal

connector cables are attached to the amplier.

Warning: The bracket mounted

antennas used with this amplier must have a

separation distance of at least 8 inches from

all persons.

Powering up the Amplier

Make sure both the outside antenna

and other cables are connected before

powering up the amplier.

For vehicle use, connect the power cable

from the DC power supply to the amplier

input marked “Power” and insert the large

end into DC power socket (the cigarette

lighter outlet).

For home or ofce use, connect the

cable from the AC/DC power supply (sold

separately) to the amplier input marked

“Power” and insert the plug end into a

standard wall outlet.

The amplier may remain on all the time.

However, leaving the amplier on in a

vehicle when it is not running can discharge

the battery in a day or two.

A good option is to power the amplier

through the ignition switch so the amplier

is turned on and off with the vehicle.

NOTE: The aluminum casing of the SIGNALBOOST™ amplier will adjust very quickly to

the ambient temperature of its environment. For example, in the summer, when the inside

of a car can reach 140 degrees Fahrenheit, the amplier temperature may be 150 degrees

or higher. The casing will be hot to the touch, similar to a metal door handle or steering

wheel. Such high temperatures will not damage the amplier, nor do they pose a re

risk. As recommended in these instructions, when installing the amplier in a vehicle,

select a location with adequate ventilation, such as under the seat or dashboard.

Keep the area free of items that could block air ow to the amplier.

IMPORTANT: Do not power up the

amplier unless the antenna and other

cables are attached to the amplier.

Warning: Use only Wilson power

supply units. Use of a non-Wilson

product may damage your equipment.

Carefully insert the power cable.

The universal connector must be placed

directly on the cellular data card to work

properly. Attach the universal connector to

the cellular data card with the VELCRO®

included in the package. IMPORTANT:

The adhesive of the gray Velcro patch

needs time to “cure.” For best results,

do not use the Velcro connection for a

minimum of 24 hours after application.

The universal connector and extension

cable included in the package are long

enough to reach the amplier location. This

allows for ease and convenience of use.

Cellular data card

12 V DC power supply (included)

AC/DC power supply (not included)

Warnings and Recommendations

Warning: Do not plug the amplier directly into the cell phone or cellular

data card using an antenna adapter. It will damage the cell

phone or cellular data card.

Warning: Do not plug in the power supply until the antenna other cables

are attached to the amplier.

Warning: RF Safety: Vehicle and indoor building antennas must be

installed with a separation of at least 8 inches from all persons.

Fixed outdoor building antennas must be installed with a

separation distance of at least 24 inches from all persons. These

antennas must not be located or operating in conjunction with

any other antenna or amplier.

NOTE: Use of this amplier with an antenna gain higher than

6.12 dBi on a vehicle or within a building is in violation of FCC

regulations. All Wilson mobile antennas have 6.12 dBi or less

gain. Use of this amplier with an outside building antenna gain

exceeding 15 dBi is in violation of FCC regulations. All Wilson

Yagi antennas have gains of 15 dBi or less. Use of antennas

with higher than the above maximum allowable gains is in

violation of FCC regulations for which the offender is fully liable.

Recommended amplier installation locations for a vehicle are:

• Under the seat

• Under the dash

Power the amplier through the ignition switch so the amplier is turned on and

off with the vehicle.

Recommended amplier installation locations for a home or ofce are:

• On a desk or table top

• In a bookshelf

• On the oor

Table des matières

Autres manuels Wilson Electronics Amplificateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Wilson Electronics

Wilson Electronics 271220 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-50 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801230 Manuel utilisateur

Wilson Electronics

Wilson Electronics iDEN Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 2B1401 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271265 Instructions d'utilisation et d'entretien

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO 710i Manuel utilisateur

Wilson Electronics

Wilson Electronics IoT 5-Band Manuel utilisateur

Wilson Electronics

Wilson Electronics BD800AM Manuel utilisateur

Wilson Electronics

Wilson Electronics BD800AM-M Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST U-Booster 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801247 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuel utilisateur

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST MobilePro Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
