PRO 710i INDUSTRIAL-CLASS, IN-BUILDING CELL SIGNAL AMPLIFIER
1
Package Contents
Pro 710i
Kit 460064
BU-GDE000257-001-060820.indd 1BU-GDE000257-001-060820.indd 1 6/8/2020 4:33:03 PM6/8/2020 4:33:03 PM
INDUSTRIAL-CLASS IN-BUILDING, CELL SIGNAL AMPLIFIER PRO 710i
2
Up to +25 dBm uplink power and 90
dB gain for maintaining connections
with faraway cell towers
Up to +25 dBm downlink
power for improved indoor cell
coverage area
Color LCD screen, for easy
installation and displaying detailed
amplifier status
eXtended Dynamic Range (XDR)
for continuous connectivity
Industrial-Class, In-Building Cell Signal Amplifier
Supporting Band 71 (600MHz)
Pro 710i
BU-GDE000257-001-060820.indd 2BU-GDE000257-001-060820.indd 2 6/8/2020 4:33:04 PM6/8/2020 4:33:04 PM
PRO 710i INDUSTRIAL-CLASS, IN-BUILDING CELL SIGNAL AMPLIFIER
3
The Pro 710i industrial-class, in-building, cell
signal amplifier provides significantly enhanced
band 71 (600MHz) signal strength, supporting
4G LTE and 5G technology. The Pro 710i can
be installed as either a “stand-alone” amplifier
providing exclusive band 71 amplification, or
it can be combined with a new or existing
WilsonPro amplifier system, supporting multiple
bands. Because the Pro 710i is an industrial
class amplifier, local band 71 carrier approval
must be obtained for every installation.
The Pro 710i also incorporates Wilson Electronics’ state-of-the-art XDR (eXtended
Dynamic Range) technology that prevents signal overload conditions which can, in
accordance with regulations, force the amplifier to shut down. When the Pro 710i
senses that any incoming cell signal is too strong and threatens to overload the
system, XDR automatically reduces amplifier gain to compensate while maintaining
signal coverage throughout the building. The Pro 710i incorporates an easy-to-use
color LCD screen, and both antenna ports are located on the top of the unit for simple
installation. Like all WilsonPro cell signal amplifiers, the Pro 710i amplifier system is
universal: it works for all cellular devices, and all U.S. and Canada cell phone carriers
using band 71 (600MHz).
BU-GDE000257-001-060820.indd 3BU-GDE000257-001-060820.indd 3 6/8/2020 4:33:07 PM6/8/2020 4:33:07 PM
INDUSTRIAL-CLASS IN-BUILDING, CELL SIGNAL AMPLIFIER PRO 710i
44
Industrial-Class Amplification: Up to 100,000 sq. ft. of Band 71
(600MHz) coverage with a single amplifier (local carrier approval
required for each installation).
Extended Dynamic Range (XDR) for continuous connectivity:
XDR allows the Pro 710i system to make automatic, real-time
adjustments so it never shuts down due to a strong outside signal.
Onboard Software for Better Control: The amplifier is
automatically controlled with built-in onboard software, ensuring
reliable connectivity throughout large spaces and multi-story
buildings. The amplifier will adjust its gain level up or down as
required by the conditions of the immediate signal environment.
Color LCD Screen: The Pro 710i utilizes a color LCD screen for
assessing amplifier performance and making necessary
antenna adjustments.
Key
Features
BU-GDE000257-001-060820.indd 4BU-GDE000257-001-060820.indd 4 6/8/2020 4:33:07 PM6/8/2020 4:33:07 PM
PRO 710i INDUSTRIAL-CLASS, IN-BUILDING CELL SIGNAL AMPLIFIER
5

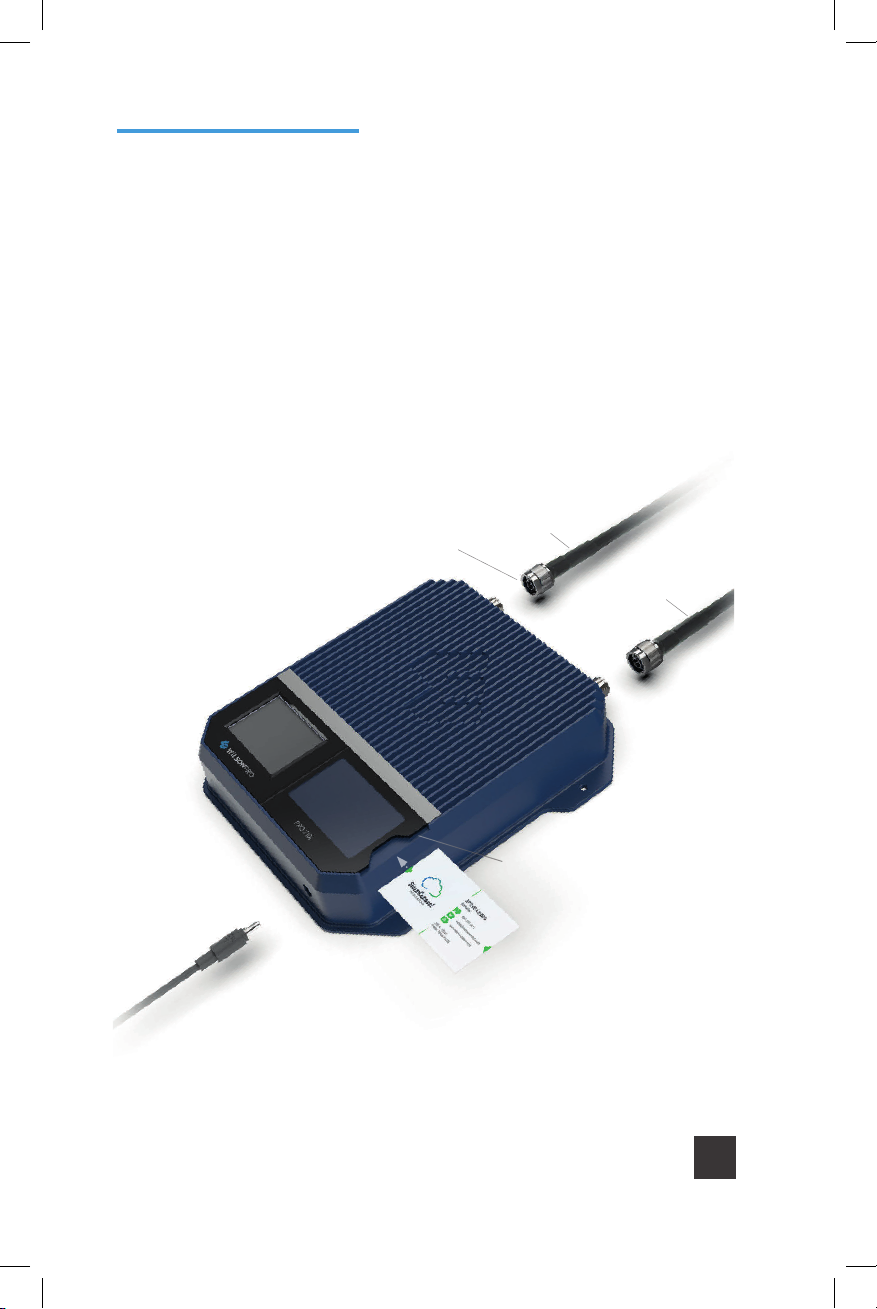

The Pro 710i is designed with advanced internal programming, which allows it to
automatically adjust for a variety of conditions, while still amplifying weak signals.
Once the antenna cables are connected, turn the unit ON by inserting and twisting the
power supply cord until it is securely locked in place.
hand tighten ONLY
Inside Antenna
Outside Antenna
power supply
with locking feature
slot for installer
business card
Post-Install
Setup
BU-GDE000257-001-060820.indd 5BU-GDE000257-001-060820.indd 5 6/8/2020 4:33:12 PM6/8/2020 4:33:12 PM
INDUSTRIAL-CLASS IN-BUILDING, CELL SIGNAL AMPLIFIER PRO 710i
6
PRO 710i
PRO 710i
ENTERPRISE 1300
Stand-alone installation, providing cell coverage for Band 71 only.
Pro710i and Enterprise 1300 (Common Mode) combined.
A Wilson Lightning Surge Protector (859902) is recommended for all building
installations. Make sure the protector is installed outside the building. Connect it to a
suitable ground and in line, between the Outside Antenna and the Signal Amplifier.
Combiner
Inside Dome
Antenna
Inside Dome
Antenna
Band 71, 600 MHz
Cell Tower
Band 71, 600 MHz
Cell Tower
Outside Antennas
Outside Antenna
Bands 4/5/12/13/25
Cell Tower
Installation
Diagram
Combined
Stand Alone
BU-GDE000257-001-060820.indd 6BU-GDE000257-001-060820.indd 6 6/8/2020 4:33:15 PM6/8/2020 4:33:15 PM
PRO 710i INDUSTRIAL-CLASS, IN-BUILDING CELL SIGNAL AMPLIFIER
7
PRO 710i
PRO 710i
ENTERPRISE 1300
The Pro 710i takes about five seconds to boot up. Once boot up is complete, the main
screen will appear, showing the amplification and status of Band 71.
Startup Screen
“FULL GAIN” is displayed in green if there is a weak outside signal requiring the
amplifier to operate with maximum allowable gain. The amplifier is functioning normally;
however, a stronger signal might be obtained with some antenna adjustments.
User
Interface
BU-GDE000257-001-060820.indd 7BU-GDE000257-001-060820.indd 7 6/8/2020 4:33:17 PM6/8/2020 4:33:17 PM
INDUSTRIAL-CLASS IN-BUILDING, CELL SIGNAL AMPLIFIER PRO 710i
8
“XDR GAIN” is displayed in green, indicating that the amplifier has reduced its gain to
accommodate a moderate to strong outside signal. The amplifier is functioning normally
and no adjustments are needed.
(User Interface cont.)
“OSCILLATION” is displayed in green, indicating that the amplifier has reduced its gain
to accommodate a moderate oscillation condition. The amplifier is operating normally;
however, a better performance might be obtained with some antenna adjustments.
BU-GDE000257-001-060820.indd 8BU-GDE000257-001-060820.indd 8 6/8/2020 4:33:17 PM6/8/2020 4:33:17 PM
