SIGNALBOOST™

MobilePro™

Dual-Band Wireless

Cellular / PCS Ampliﬁer

with Built-in Antenna

Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · 1

How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Install Diagrams - Vehicle · · · · · · · · · · · · · · · · · · · · · · 3

Install Diagrams - In-Building · · · · · · · · · · · · · · · · · · · · 4

Vehicle Installation -Antenna · · · · · · · · · · · · · · · · · · · 5

Vehicle Installation · · · · · · · · · · · · · · · · · · · · · · · · · · · 6

In-Building Installation · · · · · · · · · · · · · · · · · · · · · · · · · 7

Powering Up a Wilson Ampliﬁer · · · · · · · · · · · · · · · · · · 8

Understanding the Ampliﬁer Lights · · · · · · · · · · · · · · · 8

Warnings and Recommendations · · · · · · · · · · · · · · · · 9

About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · ·10

Ampliﬁer Speciﬁcations · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

ampliﬁer.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If, for any reason, the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliﬁers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliﬁers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliﬁers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Operation is subject to the following two conditions: (1) This device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Installation Instructions for the Following Wilson Ampliﬁer:

SIGNALBOOST™MobilePro™Dual-Band Wireless Ampliﬁer

Part # 801240 Model # 271220

FCC ID: PWO271220SA IC: 4726A-271220SA

The term “IC” before the radio certiﬁcation number only signiﬁes that Industry Canada

technical speciﬁcations were met.

Inside this Package

How it Works

Your new Wilson ampliﬁer has been carefully engineered to signiﬁcantly improve the

performance of your cell phone or cellular data card in mobile and in-building applications.

Together with an outside antenna, the ampliﬁer’s state-of-the-art technology is designed

to increase your signal up to 6 times, reduce disconnects and dropouts, and increase data

communication rates needed for 3G technologies.

The outside antenna will collect the cell tower signal and send it through the cable to the

ampliﬁer. The signal is then boosted and sent through the built-in inside antenna. Your cell

phone or data card then communicates with the improved signal. When the cell phone or

data card transmits, the signal goes through the inside antenna, is boosted by the ampliﬁer

and broadcast back to the cell tower through the outside antenna.

Wilson Electronics manufactures a wide variety of outside antennas to help you customize

your ampliﬁer for your speciﬁc application. Several are shown below. See your dealer or visit

www.wilsonelectronics.com.

Wireless

ampliﬁer

NMO

Mount

Dual-Band

Trucker

Mount

Dual-Band

Marine

Antenna

Dual-Band

RV / Trucker

Spring-Mount

Antenna

USB power

cable

Cigarette lighter

power supply with

USB connection

Magnet-

mount

antenna

Mini Magnet-

mount

antenna

(some kits)

Exterior antenna

communicates with

cell site.

Ampliﬁer powered through

vehicle cigarette lighter or

USB port of laptop computer.

Ampliﬁer boosts

signal to and from

cell site.

POWER TO

AMPLIFIER

MobilePro™

Amplifier

USB Power Cable

Outside

Antenna

(mounted

on vehicle)

Cigarette lighter

power supply Laptop USB Port

Before Getting Started

This guide will help you properly install Wilson’s SIGNALBOOST™MobilePro™Dual-Band

Wireless Cellular/PCS Ampliﬁer. It is important to read through all of the installation

steps for your particular application prior to installing any equipment. Read through

the instructions, visualize where all the equipment will need to be installed and do a soft

installation before mounting any equipment. If you do not understand the instructions in full,

seek professional help, or contact Wilson Technical Support at 866-294-1660.

Vehicle Installation

Installation Diagram - Vehicle

See detailed instructions on page 5

USB Power Cable

Outside

Antenna

(mounted

on window)

AC power supply Laptop USB Port

MobilePro™

Amplifier

In-Building Installation

Installation Diagram - In-Building

See detailed instructions on page 6

An in-building accessory kit is available from Wilson Electronics. It includes the window

bracket antenna mount, and AC adapter, and a convenient travel case.

Warning: The outside antenna must

have a separation of at least 8 inches from all

persons during normal operation.

Installing a Wilson Outside Antenna on a Vehicle

To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches

away from any other antennas and free of obstructions.

Follow the speciﬁc antenna installation instructions included with the outside antenna (sold

separately except for certain kits).

The outside antenna must be installed

vertically. Signal performance will be

degraded if the antenna is not vertical.

The antenna cable may be run through the

door to the ampliﬁer.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Optional Magnet-

Mount Antenna

Shown

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Warning: The outside antenna and

ampliﬁer must have a separation of at least 8

inches from all persons during normal operation.

The Wilson MobilePro™Ampliﬁer is

designed for installation on the dashboard

of your vehicle, using the supplied adhesive

bracket. Attach the bracket in a suitable

location to the right of the steering wheel.

NOTE: Be sure to select a location for

the ampliﬁer that does not inhibit your

ability to operate the vehicle safely.

Once you have installed the bracket, attach

the MobilePro™Ampliﬁer by aligning the

hole on the back with the hook on the

bracket. Grasping the sides of the ampliﬁer,

slide it downward approximately ¼ inch into

place.

Run the cable from the outside antenna

and attach it to the SMA connector labeled

“antenna” on the ampliﬁer. Be sure that the

cable does not interfere with your ability to

operate the vehicle safely.

Attaching the Antenna

Installing a Wilson MobilePro™Ampliﬁer in a Vehicle

The Wilson MobilePro™Ampliﬁer performs

better the closer it is to the cell phone (with

minimum 8-inch separation). Thus, if you

regularly drive through particularly weak

signal areas, you should consider installing

the ampliﬁer on the back of the driver’s side

headrest.

To do so, attach a strip of Velcro (available

at most hardware or fabric stores) to

the back of the ampliﬁer and adhere the

matching strip to the back of headrest.

Visually align the strips of Velcro and press

the ampliﬁer against the headrest so that it

is held in place by the Velcro.

Run the cable from the outside antenna

and attach it to the SMA connector labeled

“antenna” on the ampliﬁer. Be sure that the

cable does not interfere with your ability to

operate the vehicle safely.

Alternative Ampliﬁer Installation for Weak Signal Areas

Installing a Wilson Outside Antenna in a Building

Follow the speciﬁc antenna instructions included with the outside antenna (sold separately

except for certain kits). These instructions assume that you are using a Wilson magnet-mount

or mini magnet-mount antenna and the optional suction-cup window bracket.

To receive the best signal, select a window on the side of your building where your outside

signal is the strongest.

Attach the suction-cup bracket to the inside

of a window so that the cable will reach

the ampliﬁer location. Place the bracket as

high on the window as possible for best

performance.

Once the bracket is in place, attach the

magnet base of the antenna to the ﬂat

surface of the bracket. Note: the antenna

must be installed vertically. Signal

performance will be degraded if the

antenna is not vertical.

Warning: The outside antenna must

have a separation of at least 8 inches from all

persons during normal operation.

The Wilson MobilePro™Ampliﬁer may be

placed in any convenient indoor location,

such as a desk or tabletop. The closer the

cell phone or laptop data card is to the

ampliﬁer (with its built-in inside antenna),

the better will be its performance.

Attaching the Antenna

Once you have selected the location for

the ampliﬁer, run the cable from the outside

antenna and attach it to the SMA connector

labeled “antenna” on the ampliﬁer. Note:

the ampliﬁer and the outside antenna must

have a minimum separation of 8 feet to

prevent oscillation.

Installing the Wilson MobilePro™Ampliﬁer in a Building

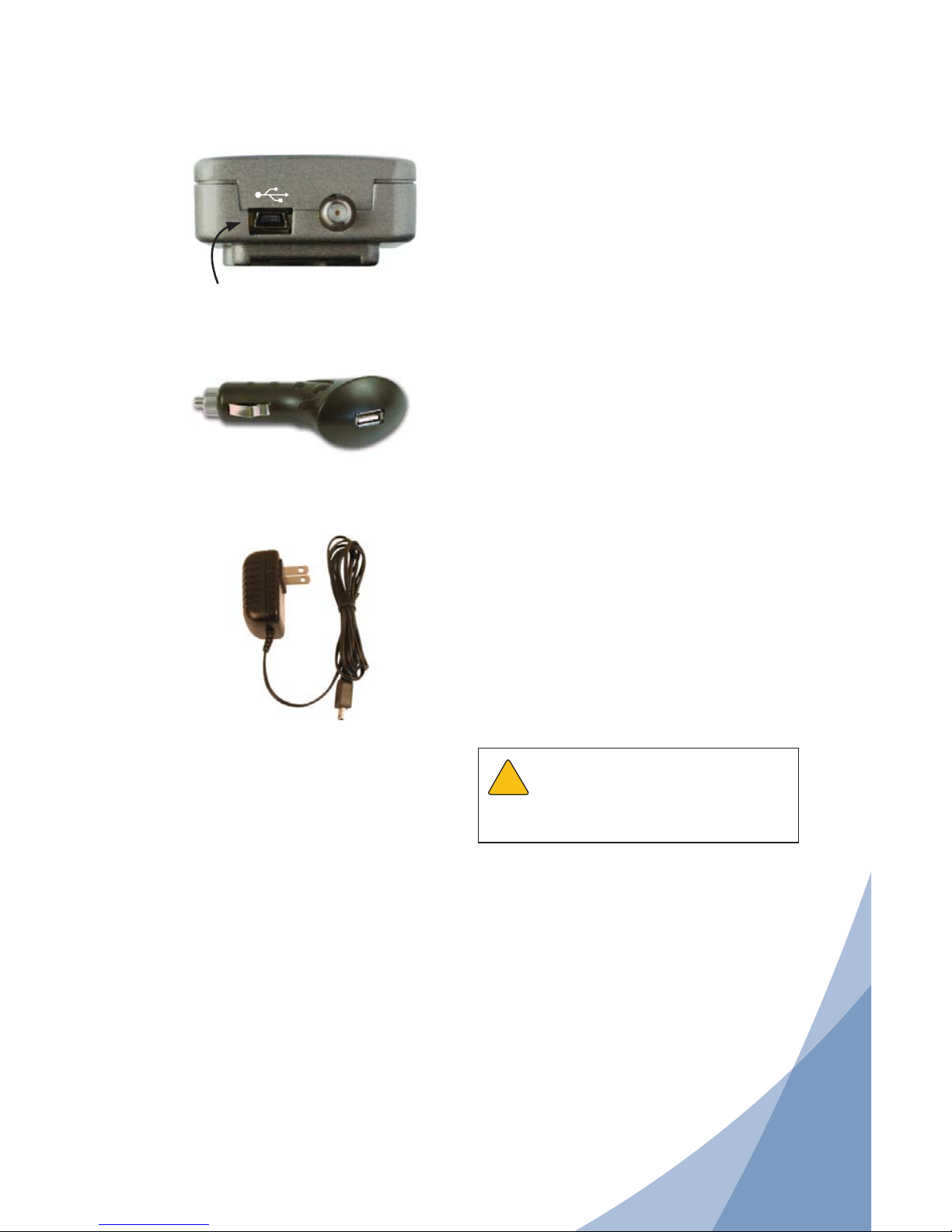

Powering up the Wilson MobilePro™Ampliﬁer

In a Vehicle

Make sure the outside antenna cable is

connected before powering up the ampliﬁer.

Connect the mini-USB plug on the power

cable to the ampliﬁer port marked by the USB

symbol. Connect the other end of the power

cable to the USB port on the cigarette lighter

adapter and insert the adapter into the cigarette

lighter outlet of your vehicle. (If you are using a

laptop to power your ampliﬁer, insert the other

end of the power cable into a USB port on the

laptop and power up the laptop.)

Carefully insert the USB power cable.

IMPORTANT: Do not power up the ampliﬁer

unless the outside antenna cable is attached

to ampliﬁer. Warning: Use only Wilson cigarette

lighter or AC adapters

Understanding the Ampliﬁer Lights

If the light turns red, oscillation is occurring and the ampliﬁer has powered down. The

outside antenna needs to be moved farther from the built-in antenna in the ampliﬁer. In a

vehicle installation, move the outside antenna on the roof of the car to the rear of the car,

but at least 8-12 inches from the rear or side windows. In a building installation, move the

ampliﬁer farther from the outside antenna. Remove power from the ampliﬁer and reinstall

power - this resets the ampliﬁer.

If the light is now green, the oscillation has stopped and the ampliﬁer is working. If the red

light is still on, move the antenna farther away and repeat the process.

In a vehicle, always use a magnet-mount or roof-mount antenna. Do not use a glass-

mount antenna, as oscillation may cause continuous shut-down of the ampliﬁer.

An amber light indicates overload from the cell site. The ampliﬁer has temporarily

shut down and will automatically reset approximately 1,000 feet or more from

the cell site.

The ampliﬁer may remain on all the time.

However, leaving the ampliﬁer on in a vehicle

when it is not running can discharge the

battery in a day or two.

A good option is to power the ampliﬁer

through the ignition switch so the ampliﬁer is

turned on and off with the vehicle.

In a Building

Make sure the outside antenna cable is

connected before powering up the ampliﬁer.

Connect the mini-USB plug on the AC adapter

cable to the ampliﬁer port marked by the USB

symbol. Connect the other end of the cable to

a standard AC power outlet. (If you are using

a computer to power your ampliﬁer, use the

supplied USB cable.)

Warnings and Recommendations

Warning: Do not plug the ampliﬁer directly into the cell phone or cellular

data card using an antenna adapter. It will damage the cell

phone or cellular data card.

Warning: Do not plug in the DC power supply until the outside antenna

cable is attached to the ampliﬁer.

Warning: RF Safety: The ampliﬁer with its built-in antenna must be

installed with a separation of at least 8 inches from all persons

and must not be located in conjunction with any other antenna or

ampliﬁer.

Warning: RF Safety: The outside antenna must be installed with a

separation of at least 8 inches from any of the vehicle’s

occupants or nearby persons and must not be located or

operating in conjunction with any other antenna or ampliﬁer. All

roof-mount antennas should be centrally located on the roof of

the vehicle. Use of this cellular ampliﬁer with antennas other

than those illustrated could be hazardous. Before using other

antennas, contact Wilson Technical Support at 886-294-1660.

Separation of inside and outside antennas is very important. In a vehicle,

the metal roof acts as a barrier and helps shield the two antennas from

each other, preventing oscillation.

If the vehicle has a sunroof, it is important to keep the outside antenna at least 12

inches from the edge of the sunroof. This prevents the ampliﬁer from overloading or

oscillating.

Distance between antennas

through a sunroof must be

5 feet or more.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Wilson Electronics Amplificateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-50 Manuel utilisateur

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics iDEN Manuel utilisateur

Wilson Electronics

Wilson Electronics IoT 5-Band Manuel utilisateur

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics BD800AM Manuel utilisateur

Wilson Electronics

Wilson Electronics 801102 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801230 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 811101 Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Wilson Electronics

Wilson Electronics 801306 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST C-Booster Manuel utilisateur

Wilson Electronics

Wilson Electronics BD800AM-M Manuel utilisateur

Wilson Electronics

Wilson Electronics 2B1401 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuel utilisateur

Wilson Electronics

Wilson Electronics 271220 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
