VEVOR HKB1040A Manuel utilisateur
Technical Support and E-Warranty Certificate www.vevor.com/support
TIRE BEAD BREAKER
MODEL: HKB1040A/HKB1040B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
MODEL:HKB1040A/HKB1040B
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TIRE BEAD
BREAKER
SPECIFICATIONS
Model
Fit Tire
Diameter
(inch)
Net Weight
(kg)
Gross
Weight
(kg)
Package Size
（mm）
HKB1040A
Less Than 42
5
5.5
290×125×165
HKB1040B
Less Than 42
6
6.5
290×125×165
Safety & Warning
Read and understand this entire manual before assembling, installing,
operating, or servicing this product.Failure to follow these warnings
and instructions can cause death, personal injury or damage to
valuable property.
DO NOT use impact wrench as it will damage the bead breaker.
Before and after each use, check to make sure that all hardware is
tightly secured. Regularly inspect for damage. If fraying or distortion
is found, immediately discontinue use.
Use common sense when working. Stay alert and concentrate when
setting up and using the tire bead breaker. Never work while under the
influence of alcohol, drugs or medications.
While assembling and using the tire bead breaker keep work area
clean and well lighted. Keep spectators and children out of the work
area.
Dress appropriately. Never wear loose fitting clothing or jewelry when
working. Contain long hair, and keep hair, clothing and gloves away
from moving parts.
PARTS BREAKDOWN
PARTS LISTING
Item No.
Description
Qty.
Item No.
Description
Qty.
1
Long Screw
1
8
Spindle
1
2
Elastic Pin
1
9
Washer
1
3
Hex Nut
1
10
Cotter Pin
1
4
Washer
1
11
Hook
1
5
Bush Ass'y
1
12
Bolt
1
6
Short Screw
1
13
Hex Nut
1
7
Claw Ass'y
1
14
Elastic Washer
1
OPERATION
Tools required: adjustable wrench, open end wrench, or air ratchet.
* DO NOT use impact wrench as it will damage the bead breaker.
1. Place bead breaker onto the rim with teeth and breaker foot between
rim & tire bead.
2. Tighten rim clamp jaw until “snug”with hand wrench. Make sure bead
breaker teeth and foot are against bead.
3. Continue tightening with wrench until snug. Do NOT over tighten!
4. Using the wrench, begin turning the bead breaker nut clockwise. This
will begin driving the bead breaker foot downward.
5. Continue to turn clockwise until bead is broken loose from rim. If
necessary, Repeat this process in 2 to 3 locations on each side of the
wheel until entire bead is broken.
Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E
RANCHO CUCAMONGA, California, 91730 United States of America
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
Made In China
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels VEVOR Outils
VEVOR
VEVOR JY-SS2L Manuel utilisateur
VEVOR
VEVOR JH-0840 Manuel utilisateur
VEVOR
VEVOR 3 IN 1/305 Manuel utilisateur
VEVOR
VEVOR HL-XW30 Manuel utilisateur
VEVOR
VEVOR 9526 Manuel utilisateur
VEVOR
VEVOR XRS026 Manuel utilisateur
VEVOR
VEVOR KH2000B Manuel utilisateur
VEVOR
VEVOR JK601 Manuel utilisateur
VEVOR
VEVOR JK603 Manuel utilisateur
VEVOR
VEVOR LD-868 Manuel utilisateur
VEVOR
VEVOR EB-1550 Manuel utilisateur
VEVOR
VEVOR CY-SF03 Manuel utilisateur
VEVOR
VEVOR WK3552E-5 Manuel utilisateur
VEVOR
VEVOR 19985-SN Manuel utilisateur
VEVOR
VEVOR 5607 Manuel utilisateur
VEVOR
VEVOR YL-15T Manuel utilisateur
VEVOR
VEVOR 5609 Manuel utilisateur
VEVOR
VEVOR GZL66 Manuel utilisateur
VEVOR

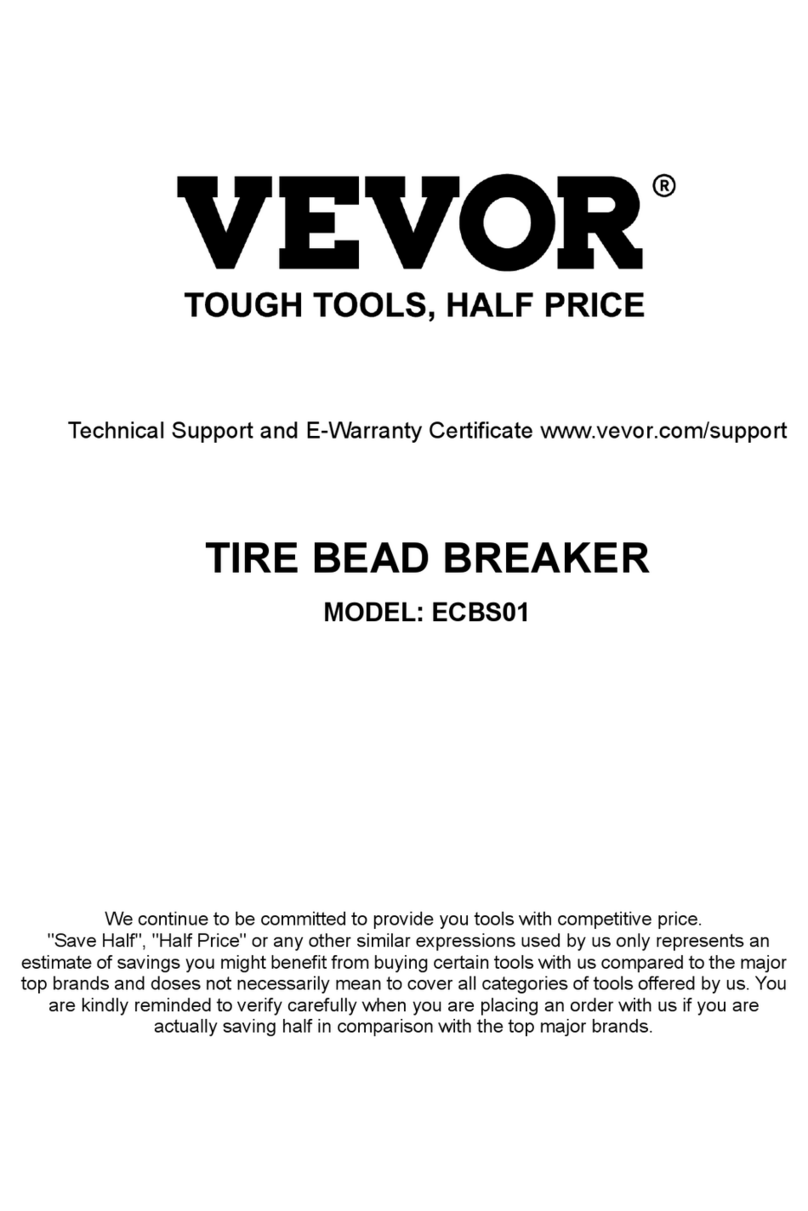

VEVOR ECBS01 Manuel utilisateur
