VEVOR JT-1632 Manuel utilisateur

Technical Support and E-Warranty Certificate www.vevor.com/support

PEX PIPE CONSTRUCTION

MODEL: JT-1632

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

Model: JT-1632

Due to continuing improvements, actual product may differ slightly from the

product described herein.

Have product questions? Need technical support? Please feel free to

CustomerService@vevor.com

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

PEX PIPE

CONSTRUCTION

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL

Keep this manual for the safety warnings and precautions, assembly,

operating,inspection, maintenance and cleaning procedures. Write the

month and year of purchase. Keep this manual and the receipt in a safe

and dry place for future reference.

IMPORTANT SAFETY INFORMATION

In this manual, on the labeling, and all other information

provided with this product:

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this symbol

to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION used with the safety alert symbol, indicates a

hazardous situation which, if not avoided, could result in

minor or moderate injury.

GENERAL SAFETY RULES

TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS

IMPERATIVE TO READ CAREFULLY THE DIRECTIONS FOR USE AND

TO FOLLOW THE INSTRUCTIONS IT CONTAINS. IF YOU DO NOT

RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION

MANUAL THE WARRANTY WILL BE CANCELLED.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite

accidents.

b. Keep children and bystanders away while operating, distractions will

cause you to lose control.

2. Personal safety

a. Stay alert, watch what you are doing and use common sense when

operating the tool. Do not use the tool while you are tired or under the

influence of drugs, alcohol or medication.. A moment of inattention while

operating hydraulic tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid shoes, hard hat, or hearing protection used

for appropriate conditions will reduced personal injuries.

c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair，

clothing and gloves away from moving parts. Loose clothes jewelry or long

hair can be caught in moving parts.

d. Do not force the tool. Use the correct power tool for your

application .The correct power tool will do the job better and safer at the

rate for which it was designed.

e. Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the manual pressing tool. This tool is dangerous in

the hands of untrained users.

f. Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the manual

pressing tool operation. If damaged, have the Manual pressing tool

repaired before use. Many accidents are caused by poorly maintained

power tools.

g. Use the Manual Pressing Tool, accessories and tool bits etc., in

accordance with these instructions and in the manner intended for the

particular type of tool, taking into account the working conditions and the

work to be performed. Use of the Hydraulic Pressing tool for operations

different from those intended could result in a hazardous situation.

3. Service

Have your Manual Pipe Pressing Tool serviced by a qualified service

technician using only identical replacement parts. This will ensure that the

safety of the Manual Pipe Pressing Tool Kit is maintained.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the tool which carry important safety

information. If unreadable or missing, contact the agent to replace.

2. This product is not a toy, keep it out of reach of children.

3. Do not slide your fingers in the dies profile.

4. Do not put your fingers in the head of the crimping tool when you slide

the dies inside it. Your fingers could be pinched very severely.

5. Do not use the tool without die.

6. Please keep the tool into tooling case after finish working and ensure

the crimping die out of the tool.

7. The warnings, precautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur.

It must be understood by the operator that common sense and caution are

factors which cannot be built into this product, but must be supplied by the

operator.

UNDERSTAND YOUR TOOL

Mechanical crimping tool JT-1632 is for connecting fittings with pipe,

the handle can be elongated with energy-efficient drive, with

telescopic handle. It is for system conform pressing of fittings up to

32mm.

1. Specification

Crimping force:

40KN

Stroke:

16mm

Working temperature:

-20℃-40℃

Length:

approx 535-755mm

Weight:

approx 4.00kg

Package:

plastic box

Accessories：Ref. table 1

Hex wrench

one piece

2. Description of the components

OPERATING INSTRUCTIONS

Read the entire SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before using this

product.

Please do not knock any part of the tool; otherwise it is dangerous for

operator.

1. Select the appropriate die set. Ask an authorized facility or distributor to

choose proper compression die set for crimping the fittings with pipe.

Don’t operate the tool without dies.

2. Open the handles completely, press the latch to open the crimping head,

insert the upper crimping die and the down crimping die by press the

retaining clips to match the die holder when both die halves are in place.

3. Make sure both dies halves are secured before operating the tool.

4. Fully insert the pipe into the fittings.

Item

no.

Description

Function

Die holder

For fixing the upper die

Die

For crimping, interchangeable crimping dies

Die holder

For fixing the down die

Die shoulder

For fixing the down die holder

Pump handle

For operating

Retaining

clips

For locking/unlocking the dies.

Latch

For locking/unlocking the crimping head

5. Put the connector in the crimping head, to lengthen the telescopic

handle to adjust the suitable length and tighten handles after.

6. Close the handles, the connector is crimped when the dies touch

together, the crimp is completed when the handles are completely closed.

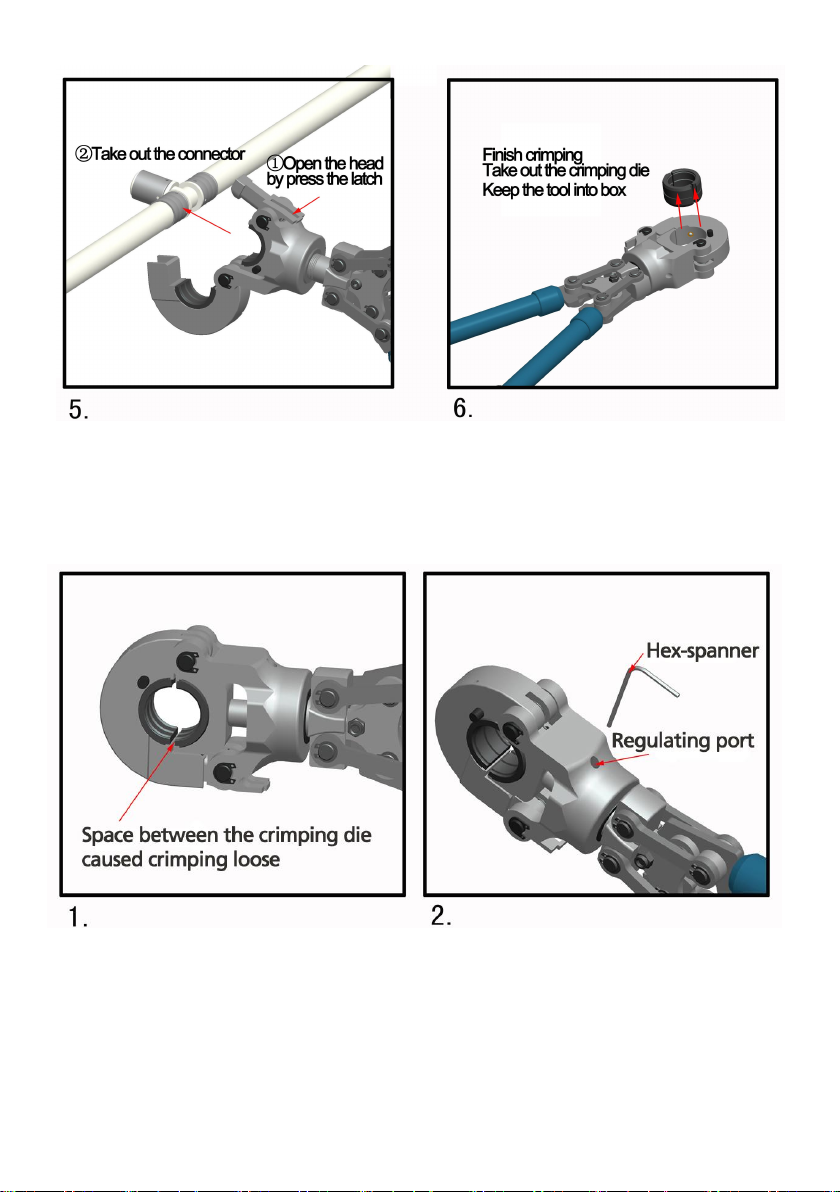

7. Open the handle completely and press the latch to open the head to

take out the connector for next cycle.

Please refer the illustration below:

If the tool cannot crimp the connector tight enough with right dies, it means

the gap of upper and down dies is too big, we have to use the hex wrench

to adjust the pressure. Please refer the illustration below:

Please take the crimping die away from the tool. Long time under stress

will cause the tool head damaged.

The die type used at optional, choose the correct type to crimp different

material. The size was marked on the surface of the die. If ask for special

size or special shape, please contact the distributor or manufacturer, they

can custom made die according to detail requirements.

MAINTENANCE AND SERVICING

Damaged equipment may cause serious personal injury. Do not use

damaged equipment. If abnormal noise or vibration occurs, have the

problem corrected before further using.

1. Before each using, inspect the general condition of the tool. Check for

loose screws, misalignment or binding of moving parts, cracked or broken

parts, or any other condition that may affect its safe operation.

2. After using, clean external surfaces of the tool with clean, moist, smear

the rust preventing oil on the metal surface of the tool and the dies to avoid

rusty. Store the tool in the dry environment.
