Ubiquiti RocketM Series Manuel utilisateur

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 1/16

Rocket Metal Strap PoE Adapter (24V, 1A) (24V, 0.5A

RocketM2 only)

Power Cord

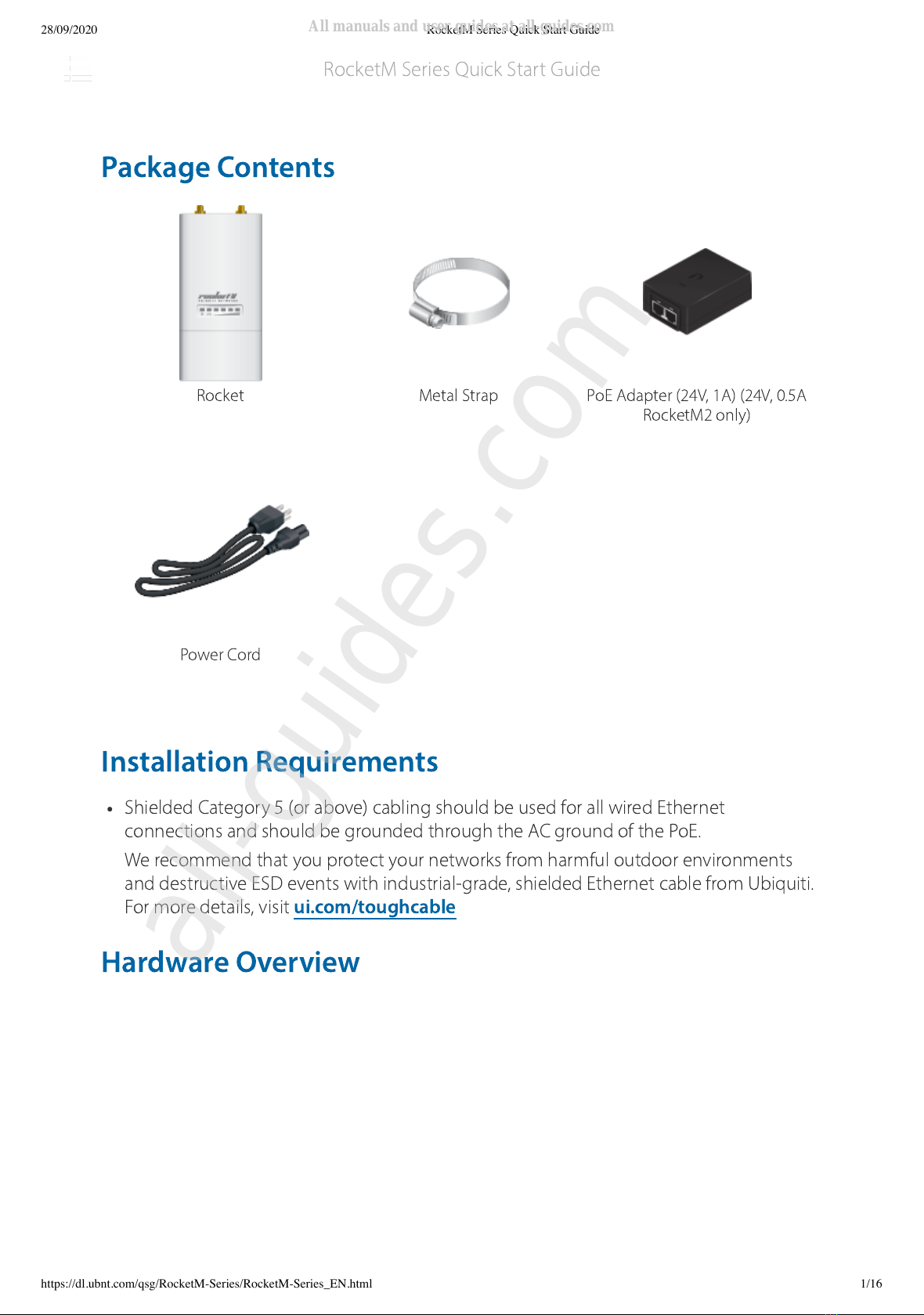

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling should be used for all wired Ethernet

connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

For more details, visit

ui.com/toughcable

Hardware Overview

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 2/16

RP-SMA



Antenna Connectors

Power LED

Ethernet LED

Signal LEDs

Used to attach RF cables (not included).

The Power LED will light green when the device is connected to a power source.

The Ethernet LED will light steady green when an active Ethernet connection is made

and ash when there is activity.

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 3/16

LAN

Reset Button

In airOS®, you can modify the wireless signal strength threshold values for each LED on

the Advanced tab under Signal LED Thresholds. The default values are shown below:

The 10/100 Ethernet port is used to connect the power and should be connected to the

LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is already powered on.

Hardware Installation

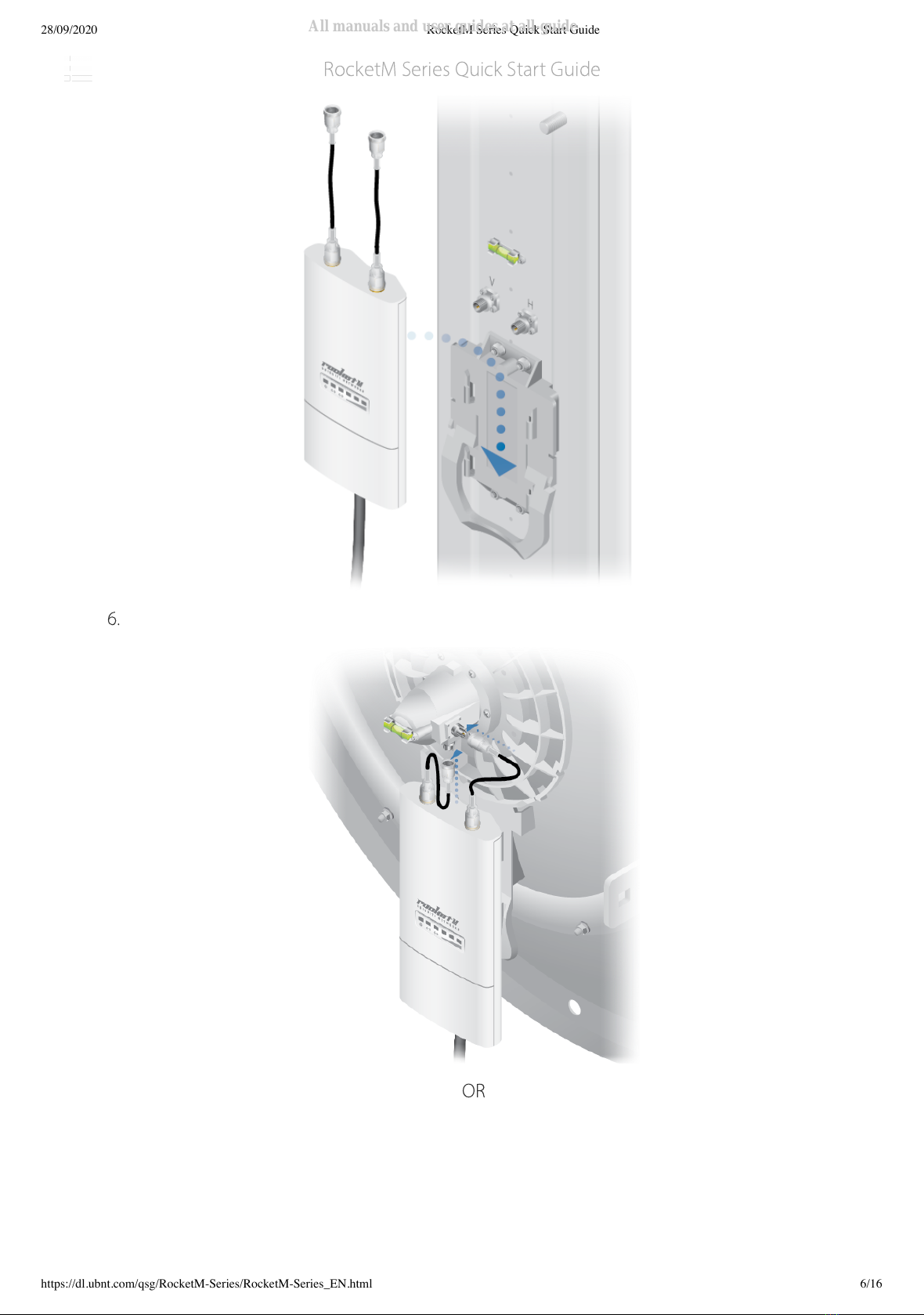

The Rocket is designed to mount directly onto a Ubiquiti airMAX RocketDish™ antenna for

Point-to-Point use or an airMAX Sector antenna for Point-to-MultiPoint use.

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 4/16

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 5/16



RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 6/16



RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 7/16



RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 8/16

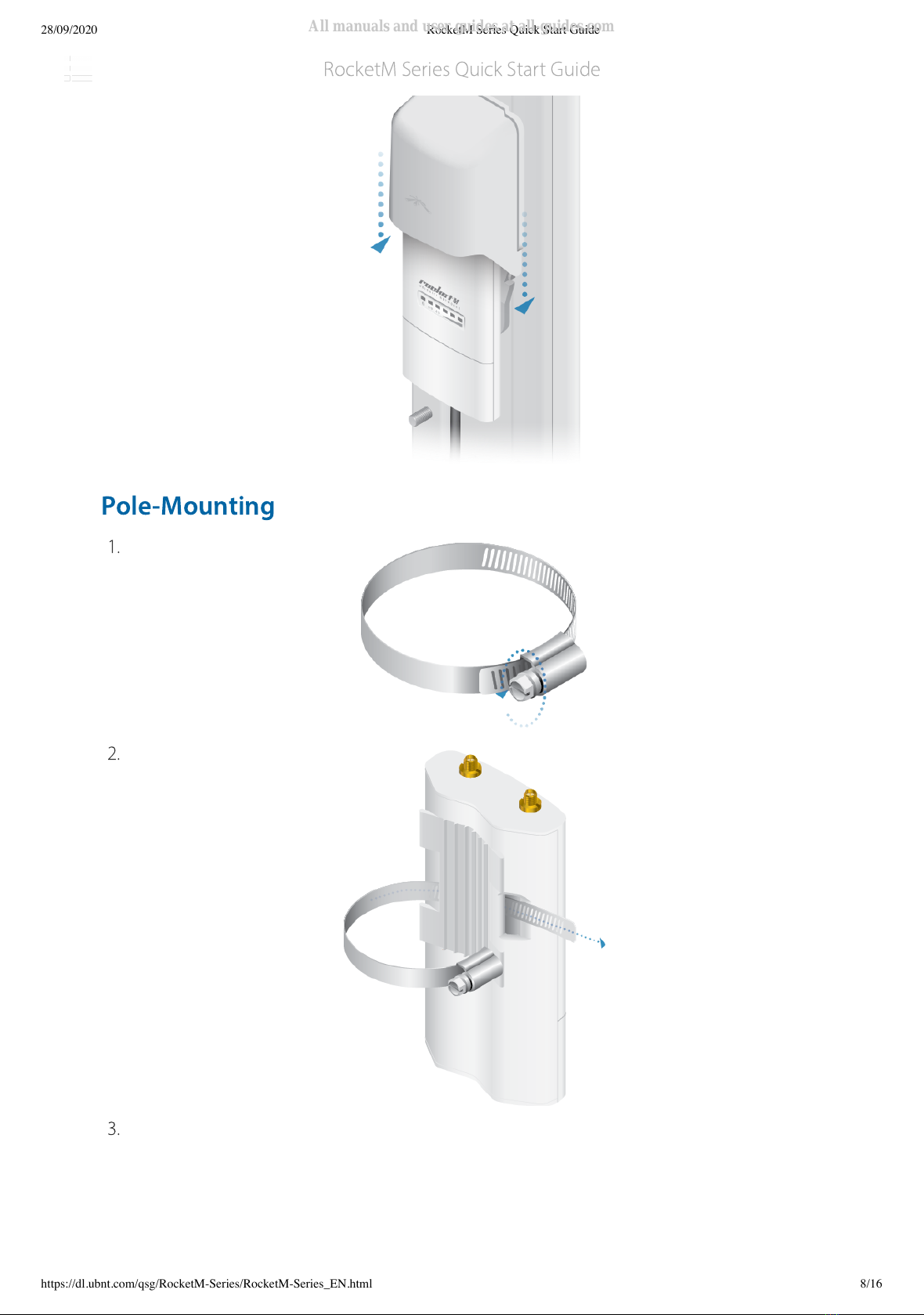

Pole-Mounting

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 9/16

Connecting Power

WARNING:

The switch port must comply with the power specications listed in

this Quick Start Guide.

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 RocketM Series Quick Start Guide

https://dl.ubnt.com/qsg/RocketM-Series/RocketM-Series_EN.html 10/16

Accessing airOS

Verify connectivity in the airOS Conguration Interface.

1. Make sure that your host system is connected via Ethernet to the device.

2. Congure the Ethernet adapter on your host system with a static IP address on the

192.168.1.x subnet.

3. Launch your web browser and type https://192.168.1.20 in the address eld. Press enter

(PC) or return (Mac).

4. Enter ubnt in the Username and Password elds. Select your Country and Language. You

must agree to the Terms of Use to use the product. Click Login.

The airOS Conguration Interface will appear, allowing you to customize your settings as

needed. For details, refer to the User Guide available at

ui.com/download/airmax

RocketM Series Quick Start Guide

All manuals and user guides at all-guides.com
