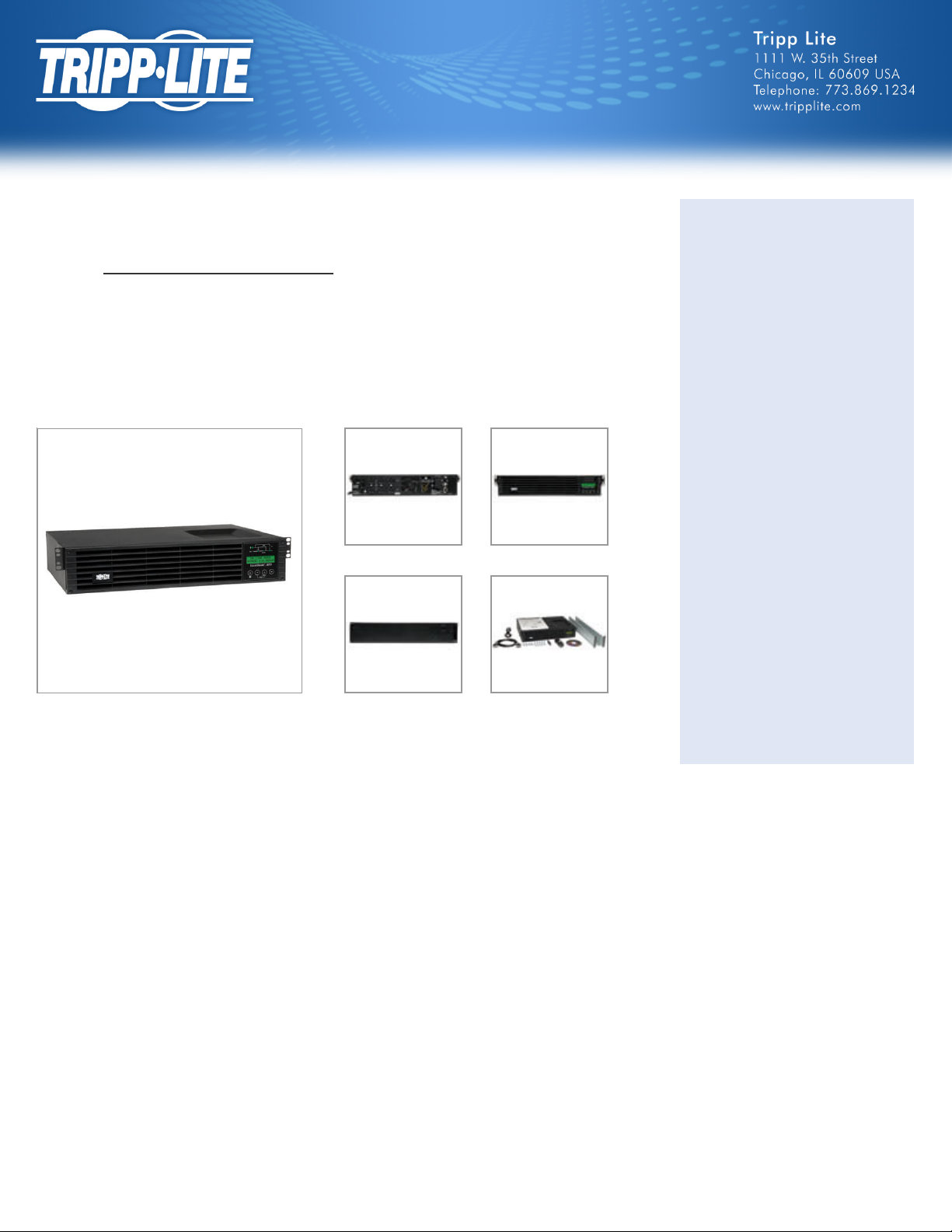

SmartOnline 120V 750VA 675W Double-

Conversion UPS, 2U Rack/Tower, Extended Run,

Network Card Options, LCD display, USB, DB9

Serial

MODEL NUMBER: SU750RTXLCD2U

Description

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and

network equipment in datacenters, computer rooms and network closets. Online, double-conversion

Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated

output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully

regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously,

even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains

battery-derived AC output during power failures with zero transfer time. Extended runtime options

available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus

enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy

mode saves BTU heat output and energy costs. Network management interfaces support communications

via USB, RS-232, contact-closure and slot for network interface options. Built-in DB9 port offers both

enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables

integration with built-in power management and auto shutdown features of Windows and Mac OS X.

PowerAlert monitoring software is available for free download. Emergency Power Off (EPO) interface.

LED display reports UPS operating mode, line power availability, battery mode operation, inverter

operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for

viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel

and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode.

Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery

packs.

Features

Tripp Lite SU750RTXLCD2U 750VA / .75kVA / 675W on-line, double-conversion 2U rack / tower UPS

●

Transformerless, IGBT technology

●

Selectable 100/110/120/127V output (120V factory preset)

●

NEMA 5-15P input, 6 NEMA 5-15R outlets

●

Highlights

750VA / .75kVA / 675W on-line

double-conversion 2U rack /

tower UPS

●

100/110/120/127V 50/60Hz

output; High efficiency economy

mode option

●

Interactive LCD with 9

selectable screens of UPS and

site power data

●

Expandable runtime, Hot-swap

batteries, 12.5 in / 31.8 cm

depth

●

USB, RS232 & EPO ports, plus

support for network card options

●

2 independently switched load

banks

●

NEMA 5-15P input; 6 NEMA 5-

15R outlets

●

To use the Auto Probe feature,

this product requires a

WEBCARDLX network interface

(sold separately) running LX

firmware update 15.5.2 or later

●

Package Includes

SU750RTXLCD2U UPS System

●

USB, Serial & EPO cabling

●

4 post rackmount installation kit

●

Instruction manual

●

1 / 7

Specifications

Two switched outlets support remote reboot or programmable load shedding options

●

Supports 2% output voltage regulation and zero transfer time in double conversion mode

●

Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU

emissions

●

13.9 minutes runtime at 50% load (337.5W) and 4.3 minutes at 100% load (675W) with internal

batteries

●

BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-

2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's

External Battery Configuration Software)

●

Intelligent battery management system with temperature-compensated charging extends battery life

●

LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % &

kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime,

Capacity remaining, Kw/hr. consumption)

●

LCD interface also supports 16 screens of UPS configuration and setup options

●

4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack / wallmount

installation, Optional 2-9USTAND enables tower placement

●

Single line TEL / Network surge suppression

●

Electronic bypass maintains utility output during a variety of UPS fault conditions

●

Battery independent restart ensures automatic UPS power-up without user interaction after lengthy

power outages, even when batteries are expired and require replacement

●

Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion

of frequency from 50 to 60Hz or 60 to 50Hz

●

Built-in USB, RS-232, contact-closure and slot for network interface card options

●

Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX,

SNMPWEBCARD and MODBUSCARD

●

HID-compliant USB interface enables integration with built-in power management and auto shutdown

features of Windows and Mac OS X

●

USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert

software, available via FREE download from www.tripplite.com/poweralert

●

OVERVIEW

UPC Code 037332168276

UPS Type On-Line

INPUT

Rated input current (Maximum Load) 8A

Nominal Input Voltage(s) Supported 100V AC; 110V AC; 115V AC; 120V AC; 127V AC

Nominal Input Voltage Description 120V factory default

UPS Input Connection Type 5-15P

Input Circuit Breakers 15A

UPS Input Cord Length (ft.) 10

UPS Input Cord Length (m) 3.1

Recommended Electrical Service 15A 120V

2 / 7

Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 750

Output Capacity (kVA) .75

Output Watt Capacity (Watts) 675

Output Capacity Details ON LINE MODE: Maximum output capacity is reduced to 608 watts at 100V nominal; FREQUENCY CONVERSION

MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120/115/110V: 472

watts / 100V: 425 watts)

OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%

load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and

frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE

bypass limits)

Power Factor 0.9

Crest Factor 3:1

Nominal Voltage Details 120V factory-default nominal voltage

Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency Compatibility Details ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output

matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds

+/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.

FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency

input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY

MODE: Output is regulated to +/-0.05Hz.

Output Voltage Regulation (Line

Mode) +/- 2%

Output Voltage Regulation

(Economy Line Mode) +/- 10%

Output Voltage Regulation (Battery

Mode) +/- 3%

Load Management Receptacles Two switchable single-outlet 5-15R load banks

Output AC Waveform (AC Mode) Pure Sine wave

Output AC Waveform (Battery

Mode) Pure Sine wave

Nominal Output Voltage(s)

Supported 100V; 110V; 115V; 120V; 127V

Output Receptacles (6) 5-15R

Individually Controllable Load Banks Yes

BATTERY

Battery Type Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.) 4.3 min. (675w)

Half Load Runtime (min.) 13.9 min. (337.5w)

Expandable Battery Runtime Extended runtime supported via optional external battery packs

Expandable Runtime Yes

3 / 7

Expandable Runtime Description Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see

manual for details

External Battery Pack Compatibility  <a class="productLink" href="//www.tripplite.com/External-24V-2U-Rack-Tower-Battery-Pack-for-select-Tripp-

Lite-UPS-Systems~BP24V15RT2U">BP24V15RT2U</a>  (limit 1);  <a class="productLink"

href="//www.tripplite.com/External-24V-2U-Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP24V28-

2U">BP24V28-2U</a>  (limit 1);  <a class="productLink" href="//www.tripplite.com/External-24V-3U-

Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP24V70-3U">BP24V70-3U</a>  (multi-pack

compatible);  <a class="productLink" href="//www.tripplite.com/external-24v-2u-rack-mount-battery-pack-for-

tripp-lite-ups-systems-SMART750-SU750-SU1000-SUINT1000-and-more~BP24V36-2US">BP24V36-

2US</a>  (multi-pack compatible)

DC System Voltage (VDC) 24

Battery Recharge Rate (Included

Batteries) Less than 3 hours recharge to 90% (typical, full load discharge)

Battery Access Front panel battery access

Internal UPS Replacement Battery

Cartridge  <a class="productLink" href="//www.tripplite.com/2U-UPS-Replacement-Battery-Cartridge-for-Select-Tripp-

Lite-UPS~RBC24V-LCD">RBC24V-LCD</a>

Battery Replacement Description Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage Regulation Description Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and

overvoltages

Overvoltage Correction Corrects overvoltages to 150V (0-100% load)

Undervoltage Correction Corrects undervoltages to 100V at full load (90V at 100V nominal)

Severe Undervoltage Correction Corrects brownouts to 70V (70% load) & 55V (33% load)

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,

plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options

Switches 2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select

options enable LCD status viewing and configuration options

Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available

Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions

LED Indicators 7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco

mode operation, bypass mode operation and AC output status

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 570

UPS AC Suppression Response

Time Instantaneous

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Primary Form Factor Rackmount

4 / 7

Cooling Method Fan

Included Mounting Accessory

Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

Installation Form Factors Supported

with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported

with Optional Accessories 2 post rackmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="//www.tripplite.com/Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )

Minimum Required Rack Depth (cm) 39.37

Minimum Required Rack Depth

(inches) 15.5

Optional Mounting Accessory Notes Optional  <a class="productLink" href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="//www.tripplite.com/Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support

Primary UPS Depth (mm) 318

Primary UPS Height (mm) 89

Primary UPS Width (mm) 445

Rack Height 2U

Shipping Dimensions (hwd / cm) 22.86 x 58.67 x 49.28

Shipping Dimensions (hwd / in.) 9.00 x 23.10 x 19.40

Shipping Weight (kg) 18.14

Shipping Weight (lbs.) 40.00

UPS Housing Material Steel

UPS Power Module Dimensions

(hwd, cm) 8.89 x 44.45 x 31.75

UPS Power Module Dimensions

(hwd, in.) 3.5 x 17.5 x 12.5

UPS Power Module Weight (kg) 12.52

UPS Power Module Weight (lbs.) 27.6

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load) 256

5 / 7

AC Economy Mode BTU / Hr. (Full

Load) 173

Battery Mode BTU / Hr. (Full Load) 439

AC Economy Mode Efficiency Rating

(100% Load) 93%

Audible Noise 45 dBA at 1m front side

Operating Elevation (m) Up to 3000m

COMMUNICATIONS

Network Management Cards  <a class="productLink" href="//www.tripplite.com/SNMP-Web-Management-Accessory-Card-SmartPro-

SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ;  <a class="productLink"

href="//www.tripplite.com/Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-

Systems~TLNETCARD">TLNETCARD</a> ;  <a class="productLink" href="//www.tripplite.com/Web-

Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a> ;  <a class="productLink"

href="//www.tripplite.com/MODBUS-Management-Accessory-Card-UPS-Remote-Monitoring-

Control~MODBUSCARD">MODBUSCARD</a>

Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure

communications

PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at

https://www.tripplite.com/poweralert

Communications Cable USB and DB9 cabling included

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card

Description Network management card optional

Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time Zero (0 milliseconds) in double-conversion mode; 4 milliseconds economy mode

Low Voltage Transfer to Battery

Power (Setpoint) 100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load

High Voltage Transfer to Battery

Power (Setpoint) 150

FEATURES & SPECIFICATIONS

Cold Start (Startup in Battery Mode

During a Power Failure) Cold-start operation supported

High Availability UPS Features Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic inverter bypass; Expandable battery backup;

Hot swappable batteries; On-Line/Double-Conversion; Remote management; Sine wave output; Surge/noise

protection; Zero transfer time

Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy

mode operation

STANDARDS & COMPLIANCE

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI); ROHS (Restriction of

Hazardous Substances)

WARRANTY

6 / 7

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:

https://www.tripplite.com/products/product-certification-agencies

Product Warranty Period

(Worldwide) 2-year limited warranty

Connected Equipment Insurance

(U.S., Canada & Puerto Rico) $250,000 <a class="insuranceLink" href="//www.tripplite.com/support/insurance-policy">Ultimate Lifetime

Insurance</a>

7 / 7

Autres manuels pour SmartOnline SU750RTXLCD2U

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite OMNIVSINT1000 Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart550MX Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNIVS800 Manuel utilisateur

Tripp Lite

Tripp Lite HT1000UPS Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMARTINT2200VS Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro VS SMART2200VS Manuel utilisateur

Tripp Lite

Tripp Lite SMX1000LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UG Manuel utilisateur

Tripp Lite

Tripp Lite AVR750U Manuel utilisateur

Tripp Lite

Tripp Lite HTRL15UPS Manuel utilisateur

Tripp Lite

Tripp Lite OMNI1000ISO Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 1050RM Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U2TF Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Intelligent True On-Line UPS... Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite INTERNET OFFICE 350 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1050 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXLCD2U Guide de configuration

Tripp Lite

Tripp Lite SUPDM11 Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO850LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRTHW Guide d'installation

Tripp Lite

Tripp Lite OmniPro 300VA Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
