Tripp Lite 450-1400VA Manuel utilisateur

Quick Installation: p. 3

Basic Operation: p. 4 - 5

Storage & Service: p. 6

Specifications: p. 6

Safety: p. 2

Warranty & Insurance: p. 6

1111W.35thStreet

Chicago, IL 60609 USA

CustomerSupport:(773)869-1234

www.tripplite.com

Owner'sManual

SmartPro®INT

450-1400VA

Intelligent,Line-Interactive

UPSSystems (230V)

ESPAÑOL: p. 7

FRANÇAIS:p.14

DEUTSCH:s.21

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:25 PM1

This manual contains important instructions and warnings that should be

followed during the installation, operation and storage of all Tripp Lite UPS

Systems.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, dust or

direct sunlight.

• For best performance, keep the indoor temperature between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a properly grounded AC power outlet. Do not

modify the UPS's plug. Do not use adapters that eliminate the UPS's

ground line.

• Do not plug your UPS into itself; this will damage the UPS and void

your warranty.

• If you are connecting your UPS to a motor-powered AC generator,

the generator must provide clean, filtered computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in

which a malfunction or failure of a Tripp Lite UPS System could cause

failure or significantly alter the performance of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may

damage your UPS and will void both the surge suppressor and UPS

warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your

UPS for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from

high short-circuit current, qualified service personnel should observe

proper precautions: Unplug and turn off the UPS before performing

battery replacement. Use tools with insulated handles and replace the

existing batteries with the same number and type of new batteries

(Sealed Lead-Acid). Do not open the batteries. Do not short or bridge

the battery terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal

requirements. Do not dispose of the batteries in a fire.

• Do not attempt to add external batteries.

Safety

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:25 PM2

Quick Installation

Connect your computer to the

UPS, and the UPS to an electrical

outlet.

1. Unplug your computer’spower cordfrom both yourAC

outletand your computer’s AC input.

2. Insert the female plug of the power cord that came with

your UPS (A) into your computer’s AC input. Insert the UPS

cord’s male plug into any of your UPS’s female output

receptacles.

3. Insert the female plug of your computer’s cord (B) into

your UPS’s AC input. Insert the male plug of your

computer’scord into your ACoutlet.

Plug your equipment into

your UPS.

YourUPS isdesigned to supportonly computerequipment.

Youwill overload your UPSif you connecthousehold

appliances, laser printers or surge suppressors.

Cords and receptacle adapters are available from Tripp

Lite to accommodate most outlet configurations. If

rewiring is necessary, refer to the Wire Color-Code Chart

at the bottom of the page.

–Optional DB9 Connection*–

Using Tripp Lite cable, connect the serial port of your

computer to the serial port of your UPS. Load software and

runinstallation program appropriateto youroperating

system.

*Your UPS will function properly without this connection.

Turn your UPS ON.

Set the System Enable Switch (UPS back panel)

to “ON” (or “ENABLE/I”).

(See Figure 1)

This switch activates the battery charger and

microprocessor.

The “XXX” light will flash until you engage the ON/

Standby Switch to activate the “ON” mode.

Engagethe momentary ON/StandbySwitch (UPS

front panel) and release it to activate the “ON”

mode and supply power to the UPS receptacles.

(See Figure 2)

A B

SEE MANUAL

Figure 2

ON/Standby Switch

Figure 1

System Enable Switch

Wire Color Wire 1 Wire 2 Wire 3

American Black White Green

European Brown Blue Green/Yellow

Wire Reference Wire 1 Wire 2 Wire 3

American Line 1 Neutral Ground

European Line 1 Line 2 or Neutral Ground

EURO

Black

White

Green

Brown

Blue

Green/

Yellow

AMER

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:26 PM3

Switches

System Enable Switch

This switch activates the battery charger and intelligent micro-

processor. Always leave it in the “ON” (or “ENABLE/I”) position

when your UPS is plugged in. Set the System Enable Switch to

“OFF” (or “DISABLE/O”) only if you store or ship your UPS (to

reduce battery drain).

Note: the “XXX” light will flash until you engage the ON/Standby Switch to activate

the “ON” mode (power ON at the UPS receptacles).

ON/Standby Switch

This momentary switch controls power to the UPS receptacles.

Engage it momentarily and release it to toggle between the “ON”

mode (power ON at the UPS receptacles) and “Standby” mode

(power OFF at the UPS receptacles).

Mute/Test Switch

Use this momentary switch to do two things:

Silence the UPS On Battery alarm

Engage this switch and release it to silence the UPS on Battery

alarm, a series of short beeps that sounds intermittantly when

the UPS is providing AC power from battery. Note: when the

battery is nearly depleted, the Low Battery alarm, a continuous

beep that cannot be silenced, will alert you to immediately shut

down connected equipment.

Test your UPS’s battery charge

Leave your connected equipment ON. With your UPS plugged in

and completely turned ON, engage this switch; hold it there for

5 seconds and release it. You will hear a series of short beeps as

the UPS momentarily switches to battery to test its charge. The

“” light will turn ON and the alarm (a long, continuous beep)

will sound if your UPS fails a self-test and/or the UPS battery is

less than fully charged. If this occurs, let the UPS charge for 12

hours and perform a second self-test. If the light continues to stay

on, contact Tripp Lite for service. CAUTION: Do not unplug your

UPS to test its batteries. This will remove safe electrical grounding

and may introduce a damaging surge into your network connections.

Indicator Lights

Light descriptions apply when the UPS is plugged into a wall outlet and turned ON.

This green light will shine constantly to indicate AC power is

available at the receptacles. It will flash to indicate AC power is

not available. (See “System Enable Switch” and “On/Standby

Switch” descriptions above.)

This multi-colored light displays 7 separate UPS battery charge

conditions. It will turn from red (low) to yellow (medium) to green

(full) to show you the level of battery charge. If the light is

constant, your UPS is operating from line power, and the battery is

charging. If the light is flashing, your UPS is operating from battery

power, and the battery is discharging. When the light flashes red,

close any files you are working on and shut down your computer.

Basic Operation

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:26 PM4

Other UPS Features

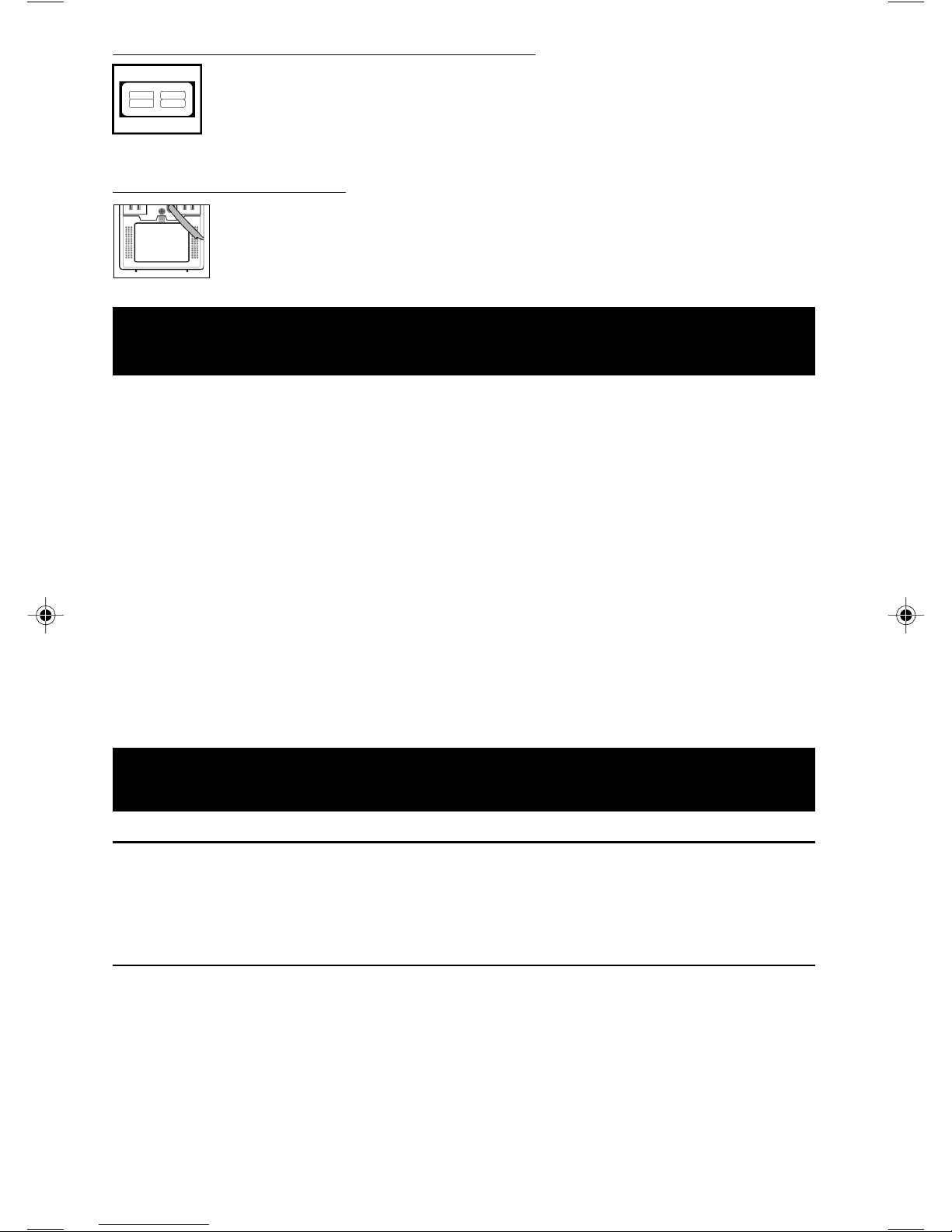

AC Receptacles

The receptacles provide your connected equipment with AC line

power during normal operation and battery power during black-

outs and brownouts. They also protect your equipment against

damaging surges and line noise. You can remotely reboot con-

nected equipment by turning all of the receptacles OFF and ON

at once using Tripp Lite UPS software. Select models, however,

feature a unique “Remote Reboot Outlet” (identified on the back

panel of your UPS) which allows you to use Tripp Lite UPS software

to remotely reboot equipment connected to this outlet without

interrupting power to equipment connected to the other outlets.

See software instructions for details.

“SMART” RS-232 Port

This port, labeled "LAN 4.1" on the UPS, connects your UPS to a

workstation or server. Use with Tripp Lite software and cabling

to monitor and manage network power and automatically save

open files and shut down equipment during a blackout. This port

uses RS-232 communications to transmit UPS and power condi-

tions (Pin 7 = Transmit; Pin 8 = Common; Pin 9 = Receive). Contact

Tripp Lite Customer Support for more information and a list of

available SNMP, network management and connectivity products.

Contact Closure Port(s) (Select Models Only)

This port, labeled "LAN 2.2" on select UPS models, is also used

to connect your UPS to a workstation or server. Use with Tripp Lite

software and cabling to automatically save open files and shut

down equipment during a blackout. This port uses contact-

closure signals to indicate line-fail and low-battery status.

Contact Tripp Lite Customer Support for more information.

Note: constant power is available at the Remote Reboot Outlet (and all other outlets)

unless controlled through Tripp Lite UPS software.

Whenever your UPS is automatically correcting high or low AC

line voltage, this green light will turn ON and the UPS will gently

click. The more the UPS has to correct voltage, the more the

green light will turn ON and the more the UPS will click. These

are both normal, automatic operations of your UPS, and no action

is required on your part.

This red light will turn ON if your UPS fails a self-test and/or the

UPS battery is less than fully charged. Let the UPS charge for 12

hours and perform a second self-test. If the light continues to

stay on, contact Tripp Lite for service.

This multi-colored light displays 4 separate UPS load conditions.

It will turn from green (low) to yellow (medium) to red (high) as

you connect equipment to show you the load level your UPS is

supporting. When the light is red, your UPS is supporting a load

above 85% of its capacity. If the red light begins flashing, then

your UPS is severely overloaded. Remove overload immediately

until light stops flashing.

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:26 PM5

Specifications

Storage & Service

Storage

Turn your UPS OFF: first engage the ON/Standby Switch and release it to place

your UPS in the “Standby” mode, then disconnect the UPS power cord from the

wall outlet. If you plan on storing your UPS for an extended period of time,

recharge the UPS batteries once every three months. Follow steps #1 and #3

in the Quick Installation section and allow the UPS to charge from 4 to 6 hours.

If you leave your UPS batteries discharged for an extended period of time, they

will suffer permanent loss of capacity.

Service

If returning your UPS for service, contact your local Tripp Lite dealer or

distributor. They will refer you to a service center. Please carefully pack the UPS

using the ORIGINAL PACKING MATERIAL that came with the unit. Enclose a

letter describing the symptoms of the problem. If the UPS is within the 2 year

warranty period, enclose a copy of your sales receipt.

Smart INT 450 Smart INT 700 Smart INT 1000

Output Capacity (VA/Watts): 450/280 700/425 1000/680

Battery Runtime (Half Load/

Full Load) Minutes: 19/5 20/6 23/8

Battery Recharge Time: 2-4 hrs. 2-4 hrs. 2-4 hrs.

Approvals: UL, CE UL, CE UL, CE

Smart INT 1400 Smart INT 1400 XL

Output Capacity (VA/Watts): 1400/940 1400/940

Battery Runtime (Half Load/

Full Load) Minutes: 25/10 25+/10+*

Battery Recharge Time: 2-4 hrs. 2-4 hrs.

Approvals: UL, CE UL, CE

* Battery Runtime for this model can be increased with the addition of optional external battery packs.

Input Voltage (230V); Input Frequency (50/60 Hz, Auto-Selecting); On-Line Input Voltage Range (151-274 volts); Voltage-Regulated Output

Voltage Range (230V +6%/-15%); On-Battery Output Voltage Range (230V ± 5%); Output Waveform Line Mode (filtered sinewave); Output

Waveform Battery Mode (PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A & B standards);

AC Noise Attenuation (>40 dB); AC TVSS Protection Modes (H to N, H to G, N to G).

The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change.

External Battery Connector (Select Models Only)

Use to connect additional Tripp Lite battery packs for additional

runtime. Refer to the label next to the connector for the appro-

priate Tripp Lite battery pack to connect. Refer to instructions

available with the battery pack for complete connection informa-

tion and safety warnings.

Battery Replacement Door

Under normal conditions, the original battery in your UPS will last

several years. Battery replacement should be performed only by

qualified service personnel. Refer to “Battery Warnings” in the

Safety section on page 2.

9905249 230V SmartPro 450-1400 OM.p65 4/13/00, 2:26 PM6

Propiedad literaria de Tripp Lite. Reservados todos los derechos. SmartPro®es una marca registrada de Tripp Lite.

Instalación Rápida: p. 9

Operación Básica: p. 10 – 11

Almacenaje y Servicio: p. 13

Especificaciones: p. 13

Seguridad: p. 8

Warranty & Insurance: p. 6

1111 W. 35th Street

Chicago, IL 60609 USA

Servicios a Clientes: (773) 869-1234

www.tripplite.com

Manual de Operación

SmartPro®INT

450-1400VA

Sistemas UPS Inteligentes e

Interactivos (230V)

9905249 230V SmartPro 450-1400 OM-Spanish.p65 4/13/00, 2:42 PM7

Seguridad

Este manual contiene instrucciones y advertencias importantes que deben

seguirse durante la instalación, operación y almacenaje de todos los sistemas

UPS Tripp Lite.

Advertencias sobre la Ubicación del Sistema UPS

• Instale este sistema UPS bajo techo y lejos de humedad y calor excesivo,

polvo o luz solar directa.

• Para obtener mejores resultados conserve la temperatura ambiental entre 0º

y 40º C (entre 32º y 104º F).

• Deje suficiente espacio alrededor del sistema UPS para permitir ventilación

adecuada.

Advertencias sobre la Conexión del Sistema UPS

• Conecte esta unidad a una toma eléctrica con conexión a tierra. No

remueva o modifique el enchufe del sistema UPS. No conecte adaptadores

que eliminen la conexión a tierra del sistema UPS.

• No conecte el sistema UPS a sí mismo; esto causará daños al sistema UPS y

anulará su garantía.

• Si usted desea conectar este sistema UPS a un generador motorizado de CA,

dicho generador debe suministrar energía limpia y filtrada adecuada para

equipos de computación.

Advertencias sobre la Conexión de Equipos

• No utilice los sistemas UPS Tripp Lite en aplicaciones para el soporte de la

vida humana donde una falla o funcionamiento defectuoso del sistema UPS

Tripp Lite pueda causar fallas o alterar significativamente el rendimiento de

dispositivos para el soporte de la vida humana.

• No conecte supresores de sobrentensiones transitorias a los receptáculos de

salida del sistema UPS. Esto puede dañar el sistema UPS y anular las

garantías del supresor de sobretensiones transitorias y del sistema UPS.

Advertencias sobre las Baterías

• Este sistema UPS no requiere mantenimiento rutinario alguno. No abra el

sistema UPS por ninguna razón. No existen partes interiores que puedan

ser reparadas por el usuario.

• El reemplazo de las baterías debe ser realizado por personal técnico

capacitado. Ya que las baterías presentan riesgos de choques eléctricos y

quemaduras causadas por alta corriente de corto circuito, el personal técnico

capacitado siempre debe observar las precauciones adecuadas. Desenchufe

y apague el sistema UPS antes de reemplazar sus baterías. Utilice

herramientas con asas aisladas y reemplace las baterías existentes con el

mismo número y tipo de baterías nuevas (selladas de plomo y ácido). No

abra las baterías. No permita que objetos foráneos entren en contacto con

los bornes o terminales de las baterías.

• Las baterías incluidas con este sistema UPS son reciclables. Refiérase a su

código local para obtener instrucciones para el deshecho de baterías. No

utilice calor o fuego para disponer de las baterías.

• No intente agregar baterías externas.

9905249 230V SmartPro 450-1400 OM-Spanish.p65 4/13/00, 2:42 PM8

Encienda el sistema UPS

Coloque el interruptor “System Enable”(activador

de sistema) ubicado en el panel posterior del

sistema UPS en la posición “ON”(encendido) o

“ENABLE/I”(activar).

(Vea la figura 1)

Este interruptor activa el cargador de baterías y el

microprocesador.

La luz “ ” parpadeará hasta que usted coloque el

interruptor “ON/Standby” (encendido / standby) en la

posición “ON”.

Sostenga momentáneamente el interruptor “ON/

Standby”(encendido / standby) ubicado en el panel

frontal y suéltelo para activar el modo “ON”

(encendido) y suministrar energía a los

receptáculos del sistema UPS.

(Vea la figura 2)

Instalación Rápida

A B

SEE MANUAL

Figure 1

Interruptor

“System Enable”

(activator de sistema)

Conecte su computadora al sistema

UPS y conecte el sistema UPS a una

toma eléctrica.

1. Desconecte el cable de energía de su computadora del

receptáculo de CA y de la entrada de su computadora.

2. Inserte el enchufe hembra del cable del sistema UPS (A)

en la entrada de CA de su computadora. Inserte el enchufe

macho del cable del sistema UPS en uno de los receptáculos

hembra de salida del sistema UPS.

3. Inserte el enchufe hembra del cable de su computadora

(B) en la entrada de CA del sistema UPS. Inserte el enchufe

macho del cable de su computadora en una toma de energía

de CA.

Conecte sus equipos al sistema UPS

Este sistema UPS ha sido diseñado para respaldar equipos

de computación solamente. Usted sobrecargaráel sistema

UPS si conecta electrodomésticos, impresoras láser o

supresores de sobretensiones transitorias a sus

receptáculos.

Tripp Lite dispone de adaptadores de cables y receptáculos

para la mayoría de las configuraciones mundiales. Si es

necesario modificar la instalación eléctrica, refiérase a la

Tabla de Colores en esta página.

Opcional Connexión del Puerto DB9*

Utilizando el cable Tripp Lite conecte el puerto serial de su

computadora al puerto serial del sistema UPS. Instale el

software y ejecute el programa apropiado para su sistema

operativo.

* La conexión del puerto DB9 es opcional. Este sistema UPS

funcionará correctamente aún sin esta conexión.

Figure 2

Interruptor

“On/Standby”

(encendido/standby)

Color del Alambre Alambre 1 Alambre 2 Alambre 3

Americano Negro Blanco Verde

Europeo Marrón Azul Verde / Amarillo

Referencias Alambre 1 Alambre 2 Alambre 3

de Alambres

Americano Línea 1 Neutro Tierra

Europeo Línea 1 Línea 2 o Neutro Tierra

EURO

Negro

Blanco

Verde

Marrón

Azul

Verde/

Amarillo

AMER

9905249 230V SmartPro 450-1400 OM-Spanish.p65 4/13/00, 2:42 PM9

Interruptores

Interruptor“System Enable”(activador de sistema)

Este interruptor activa el cargador de baterías y el microprocesador

inteligente. Siempre consérvelo en la posición “ON” (encendido)

o “ENABLE/I” (activar) mientras el sistema UPS esté conectado

a una toma de energía eléctrica. Colóquelo en la posición “OFF”

(apagado) o “DISABLE/O” (desactivar) solamente si desea

almacenar o trasladar el sistema por un largo periodo de tiempo

(para evitar el desgaste de las baterías).

Observación: la luz “ “ parpadeará hasta que el interruptor “ON/Standby” (encendido / standby) sea colocado

en la posición “ON” (encendido) para suministrar energía a los receptáculos del sistema UPS.

Interruptor“ON/Standby”(encendido / standby)

Este interruptor momentáneo controla la energía suministrada a

los receptáculos del sistema UPS. Sosténgalo momentáneamente

y suéltelo para conmutar entre los modos de operación “ON”

(encendido) y suministrar energía a los receptáculos y “Standby”

para desactivar la energía en los receptáculos.

Interruptor“Mute/Test”(silenciador/autoprueba)

Utilice este interruptor momentáneo para realizar dos funciones:

Silenciar la alarma del sistema UPS

Sostenga y suelte este interruptor para desactivar la alarma

audible del sistema UPS, una serie de sonidos breves

intermitentes que indica que el sistema UPS está suministrando

energía de batería. Observación: Cuando la batería esté casi

agotada la alarma indicadora de esta condición sonará, y no podrá

ser silenciada, para indicarle que los equipos conectados deben

ser apagados inmediatamente.

Realizar una autoprueba del sistema UPS

Conserve los equipos conectados encendidos y el sistema UPS

enchufado y en el modo “ON” (encendido), sostenga este botón

por 5 segundos y suéltelo. Usted escuchará una serie de sonidos

breves mientras el sistema UPS pasa momentáneamente a

suministrar energía de batería para probar la carga de la misma.

La luz “ “ se encenderá y la alarma (un sonido prolongado y

continuo) sonará si el sistema UPS no pasa la prueba o si las

baterías del sistema UPS no están totalmente cargadas. Si esto

ocurriera, permita que el sistema UPS cargue sus baterías por 12

horas y repita la prueba. Si la luz continúa encendida comuníquese

con Tripp Lite para recibir información sobre el servicio de

reparaciones. PRECAUCION: No desenchufe el sistema UPS para

probar sus baterías. Esto eliminaría la conexión a tierra y podría

introducir peligrosas sobretensiones a sus conexiones de red.

Operación Básica

9905249 230V SmartPro 450-1400 OM-Spanish.p65 4/13/00, 2:43 PM10

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite S3M100KX Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200XL Manuel utilisateur

Tripp Lite

Tripp Lite Standby UPS Systems Internet I Manuel utilisateur

Tripp Lite

Tripp Lite SMX1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 700 HG Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartOnline 220/230/240V Input/Output Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RT2UHV Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNISMART500 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Series Manuel utilisateur

Tripp Lite

Tripp Lite OMNISMART OMNIVS500 Manuel utilisateur

Tripp Lite

Tripp Lite SU20KRTHWTFASSM Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNI650LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U1TF Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2200RM2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Series Manuel utilisateur

Tripp Lite

Tripp Lite OMNI1500LCDT Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuel utilisateur

Tripp Lite

Tripp Lite Audio/Video On-Line UPS System Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro VS SMART2200VS Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
