Tripp Lite SmartOnline SU1500XL Manuel utilisateur
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]

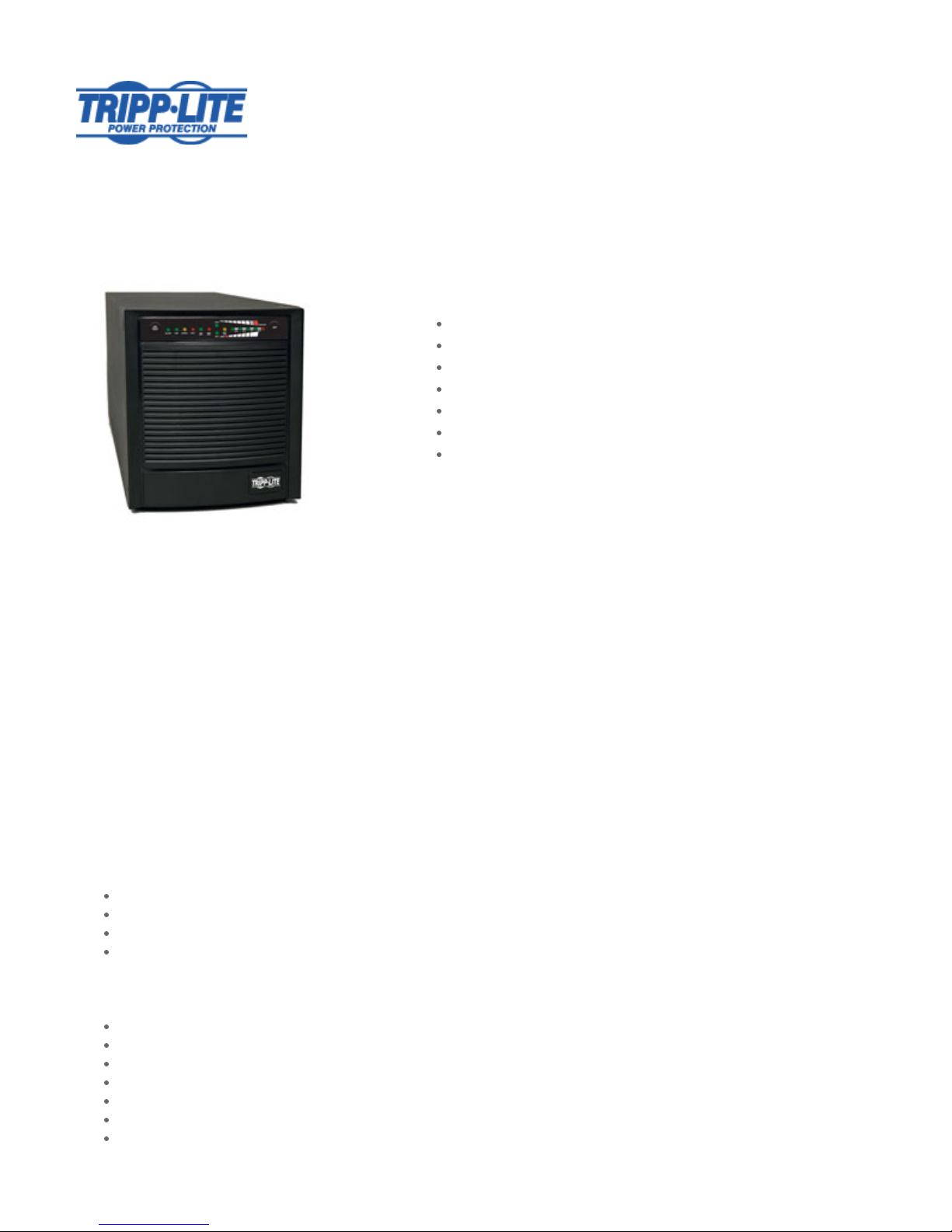

Model #: SU1500XL
SmartOnline 1.5kVA On-Line Double-Conversion UPS, Tower, 100/110/120V NEMA outlets
Highlights
1500VA / 1.5kVA / 1200 watt on-line double-conversion tower UPS
110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
Expandable runtime, Hot-swappable battery modules
USB, RS232 & EPO ports; support for SNMP/WEB card options
Front panel status LEDs with detailed load and battery metering
2 independently switchable output load banks
NEMA 5-15P input; 5-15R outlets
Description
Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from
blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to
perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other
hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time provides guaranteed compatibility
with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6
UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote
equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery backup time can be extended
with the addition of multiple external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for
unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in
power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software.
Compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software. Attractive all-black upright tower format. $250,000 Ultimate Lifetime
Insurance
Package Includes
SU1500XL UPS System
PowerAlert Software
USB, DB9 and EPO cabling
Owner's manual with warranty information
Features
True on-line, double conversion UPS provides constant, pure sine wave AC output
Zero transfer time, on-line, double-conversion and economy-mode operation supported
Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%
1500VA/1200W output capacity with 6 NEMA 5-15R outlets
Two built-in, individually switchable load banks, each with 3 outlets, can be controlled via software interface to selectively reboot remote
equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load
Runtime is expandable with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Attractive all-black upright tower format
Simultaneous communications via HID-compliant USB port, DB9 serial port, and SNMP/web card slot
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
DB9 serial network interface supports RS-232 and contact closure messaging
Slot for optional SNMP/web card (part# SNMPWEBCARD)
Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status
and fault warnings, output load level and load bank power control
Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part # WATCHDOGSW)
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Diagnostic LEDs
Built-in RJ-11 EPO (Emergency Power Off) jack allows connection to site emergency power off systems
$250,000 Ultimate Lifetime Insurance coverage for connected equipment (USA and Canada Only)
Specifications
OUTPUT
Output Volt Amp
Capacity (VA)
1500
Output kVA capacity
(kVA)
1.5
Output Watt Capacity
(watts)
1200
Output kW capacity 1.2
Output power factor 0.8
Crest Factor 3:1
Nominal Output
Voltage(s) Supported
100V; 110V; 120V
Nominal Voltage details 120V default
Frequency
compatibility
50 / 60 Hz
Frequency
compatibility details
Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
Output voltage
regulation (line mode)
+/- 2%
Output voltage
regulation (Economy
line mode)
+/- 10%
Output voltage
regulation (Battery
mode)
+/- 2%
Built-in UPS output
receptacles
6 5-15R outlet(s)
Built-in controllable
switched load banks
Two switchable three-outlet 5-15R load banks
Output AC waveform
(AC mode)
Sine wave
Output AC waveform
(battery mode)
Pure Sine wave
INPUT
Rated input current (at
maximum load)
12A (120V), 14A (110V), 15.4A (100V)
Nominal Input
Voltage(s) Supported
100V AC; 110V AC; 120V AC
UPS input connection
type
5-15P
Input circuit breaker 20A
UPS Input cord length
(ft.)
10
UPS Input cord length
(m)
3
Recommended
Electrical Service
15A 120V
BATTERY
Full load runtime
(minutes)
4.5 min. (1200w)
Half load runtime
(minutes)
14 min. (600w)
Expandable battery
runtime
Extended runtime supported via optional external battery packs
External battery pack
compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
DC system voltage
(VDC)
48
Battery recharge rate
(included batteries)
Less than 6 hours from 10% to 90%
Replacement battery
cartridge (internal UPS
battery replacement)
RBC48-SUTWR
Battery Access Battery access door
Battery replacement
description
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation
description
Online, double-conversion power conditioning
Overvoltage correction 2% output voltage regulation during overvoltages to 150
Undervoltage
correction
2% output voltage regulation during undervoltages to 80
Severe undervoltage
correction
2% output voltage regulation during undervoltages to 65 (under 70% load only)
LEDS ALARMS & SWITCHES
LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace
battery and fault status information - includes 4-LED meter display for load and battery charge level
Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression
joule rating
570
UPS AC suppression
response time
Instantaneous
UPS Dataline
suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC noise
suppression
Yes
PHYSICAL
Installation form
factors supported with
included accessories
Tower
Primary form factor Tower
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / inches)
10.2 x 9 x 19.5
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / cm)
26 x 22.9 x 49.5
UPS / Power Module
weight (lbs)
49.3
UPS / Power Module
weight (kg)
22.4
UPS Shipping
dimensions (height x
width x depth / inches)
15.2 x 13 x 24
UPS Shipping
dimensions (height x
width x depth / cm)
38.7 x 33 x 61
Shipping weight (lbs) 56
Shipping weight (kg) 25.4
Cooling method Fans
UPS housing material Steel
ENVIRONMENTAL
Operating Temperature
Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature
Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full
load)
609.7
AC economy mode
BTU / hr. (full load)
260.4
Battery mode BTU / hr.
(full load)
609.7
AC economy mode
efficiency rating (100%
load)
94%
Audible Noise < 45 dB at front side 1m
COMMUNICATIONS
Communications
interface
USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring
port description
Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure
communications
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time No transfer time (0 ms.) in online, double-conversion mode
Low voltage transfer to
battery power (setpoint)
80V (100% load), 65V (
High voltage transfer
to battery power
(setpoint)
150
SPECIAL FEATURES
Cold Start (startup in
battery mode during a
power failure)
Cold-start operation supported
High availability UPS
features
Automatic inverter bypass; Hot swappable batteries
Green & high efficiency
features
High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of
economy mode operation
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
WARRANTY
Product Warranty
Period (Worldwide)
2-year limited warranty
Connected Equipment
Insurance (U.S.,
Canada & Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Related Model Description Qty.
SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1
ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires SNMPWEBCARD
or switched PDU.)
1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
BP48V24-2U BP48V242U - External Battery Pack for UPS System 1
BP48V60RT-3U External Battery Pack and Cable. 3U, Expandable, Blue 2-Point Connector 1
WEXT3-500-1500 3-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack
models, 1500VA or less
1
WEXT5-500-1500 5-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack
models, 1500VA or less
1
PDUB15 Dual source Power Distribution Unit / PDU with Manual Transfer Switch enables
Hot-swappable UPS Replacement in Critical Network Applications
1
PDUMH15AT Metered PDU with ATS - Power Distribution Unit with dual-input Auto Transfer Switching 1
PDUMH15 Metered PDU / Power Distribution Unit - Safe, reliable power distribution with digital
current meter
1
PDUMNH15 Monitored PDU / Power Distribution Unit supports real-time remote monitoring of load
level, voltage and frequency with options for remote environmental and security
monitoring
1
PDUMH15NET Single-Phase Switched PDU, 15A 120V, 1U Horizontal Rackmount, NEMA 5-15R outlets,
NEMA 5-15P input plug
1
RELAYIOCARD Programmable Relay I/O Card 1
MODBUSCARD For remote monitoring and control via MODBUS protocol 1
AS400CABLEKIT2 Power Management Tools - UPS Communication Cable Kit for System i / AS400 /
iSeries Servers
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3300.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
Table des matières
Autres manuels Tripp Lite UPS
Tripp Lite
Tripp Lite SmartPro VS SMART2200VS Manuel utilisateur
Tripp Lite
Tripp Lite ECO350UPS Manuel utilisateur
Tripp Lite
Tripp Lite SMART550USBTAA Manuel d'installation et d'exploitation
Tripp Lite
Tripp Lite SMART3000RM2UL Manuel utilisateur
Tripp Lite
Tripp Lite SmartPro 2200XLT Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline Manuel utilisateur
Tripp Lite
Tripp Lite OMNISMART OMNIVS500 Manuel utilisateur
Tripp Lite
Tripp Lite SmartPro SMART700SER Manuel utilisateur
Tripp Lite
Tripp Lite OMNIVSINT1000 Manuel utilisateur
Tripp Lite
Tripp Lite 120V Input Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline SU10K Manuel utilisateur
Tripp Lite
Tripp Lite AGBC5755 Manuel utilisateur
Tripp Lite
Tripp Lite SmartPro SMART1050XL Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline SU2200RTXL2UA Manuel utilisateur
Tripp Lite
Tripp Lite SmartPro SMC1000T Manuel utilisateur
Tripp Lite
Tripp Lite UPS System AVRX550U Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline SUINT1500LCD1U Manuel utilisateur
Tripp Lite
Tripp Lite SmartOnline Intelligent True On-Line UPS... Instructions d'installation et d'utilisation
Tripp Lite
Tripp Lite SmartOnline SU1500RTXL2U Manuel utilisateur
Manuels UPS populaires d'autres marques
Pylontech
Pylontech Victron & Pylontech US5000 Manuel utilisateur
Tecnoware
Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur
Mecer
Mecer ME-1000-WTU Manuel utilisateur
Mustek
Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation
Emerson
Emerson Liebert NXL series Manuel utilisateur
MAKELSAN
MAKELSAN BOXER SERIES Manuel utilisateur
